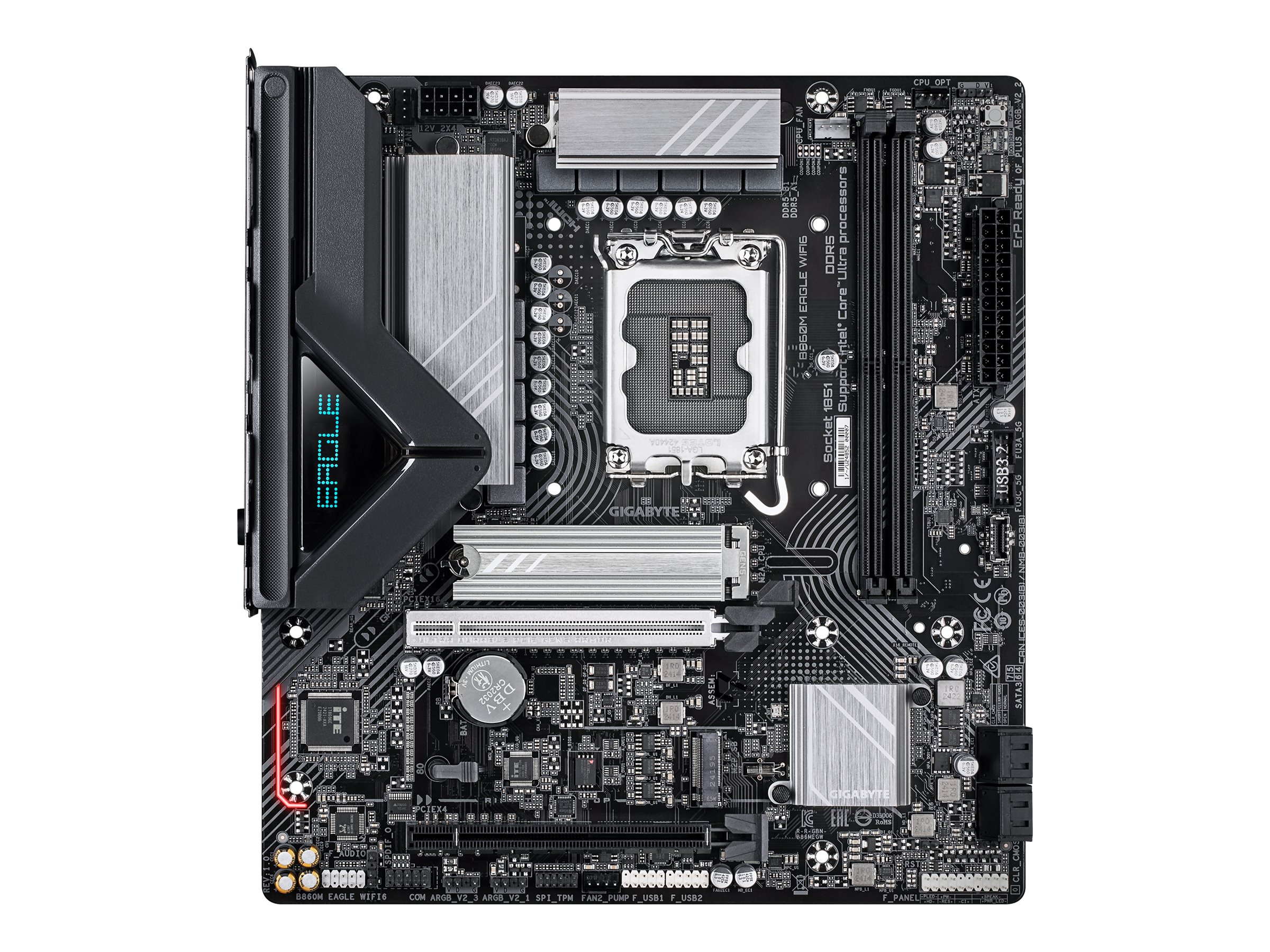

Gigabyte B860M EAGLE WIFI6, Motherboard, micro ATX, LGA1851 Socket, B860 Chipset, USB 3.2 Gen 1, USB-C 3.2 Gen 1, 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth, onboard graphics (CPU required), HD Audio (8-channel)
$252.93 inc GST
✓ In Stock - 15 available
✓ Free NZ Delivery
15 in stock
Ships from: Auckland, Wellington, or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The GIGABYTE B860M EAGLE WIFI6 is designed to enhance your computing experience with efficient features and robust performance. This micro ATX motherboard supports Intel Core Ultra processors and features the powerful Intel B860 chipset, making it suitable for a wide range of applications. With dual-channel memory architecture and support for DDR5 SDRAM up to 4400 MHz through overclocking, users can expect improved responsiveness and speed for demanding tasks.
Equipped with networking capabilities, the B860M EAGLE includes 2.5 Gigabit Ethernet and Wi-Fi 6 support, ensuring stable and fast connections for online activities. The motherboard features a variety of expansion slots, including PCIe 5.0 x16 and M.2 sockets, allowing for extensive customization and upgrade options. Additionally, the hardware monitoring tools and DIY-friendly design make setup and management straightforward for all users, whether novice or experienced.
- Supports Intel Core Ultra processors with LGA1851 socket
- Equipped with dual-channel memory architecture supporting DDR5 SDRAM
- Includes 2.5 Gigabit Ethernet and Wi-Fi 6 for high-speed networking
- Multiple expansion slots for enhanced customization flexibility
- Hardware monitoring features for optimal system performance
- Robust connectivity options
This motherboard features various interfaces including HDMI, DisplayPort, and multiple USB ports, enabling seamless connectivity with peripherals and displays. - Versatile expansion capabilities
With slots for PCIe 5.0 x16 and M.2 sockets, this motherboard allows users to expand their setups with the latest graphics cards and NVMe storage options. - Advanced power management
The 6+1+2 Phase Power Design and premium power chokes improve system stability and efficiency, ensuring consistent power delivery during demanding tasks. - Efficient cooling management
Design elements such as the VRM heatsink and M.2 Thermal Guard help maintain optimal temperatures, enhancing performance and longevity. - Intuitive BIOS features
The UEFI BIOS supports various customization options and system monitoring features, providing users with an easy interface for performance optimization.
What’s in the Box
- Gigabyte B860M EAGLE WIFI6
- 2 x Serial ATA cable
- Wi-Fi aerial, computer case screws, M.2 SSD thick/thin rubber pad
- Software
Main Specifications
Product Description | Gigabyte B860M EAGLE WIFI6 – motherboard – micro ATX – LGA1851 Socket – B860 |
Product Type | Motherboard – micro ATX |
Chipset Type | Intel B860 |
Processor Socket | 1 x LGA1851 Socket |
Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
Max RAM Size | 128 GB |
RAM Supported | 2 DIMM slots – DDR5, ECC (operate in non-ECC mode), non-ECC, unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
USB / FireWire Ports | 3 x USB 3.2 Gen 1 + 3 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
Extended Specifications
General
Product Type | Motherboard – micro ATX |
|---|---|
Chipset Type | Intel B860 |
Processor Socket | LGA1851 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
Supported RAM
Max Size | 128 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 4533 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz |
Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
Audio
Type | HD Audio (8-channel) |
|---|---|
Compliant Standards | High Definition Audio |
LAN
Network Controller | Realtek RTL8851BE |
|---|---|
Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
Expansion / Connectivity
Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 2 x M.2 socket (2280 M.2 Key M slot) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 PCIe 4.0 -connectors: 1 x M.2 |
Interfaces | 1 x PS/2 keyboard / mouse HDMI 1 x DisplayPort 3 x USB 3.2 Gen 1 3 x USB 2.0 1 x audio line-out – mini-jack 1 x audio line-in – mini-jack 1 x microphone – mini-jack 1 x LAN (2.5Gigabit Ethernet) |
Internal Interfaces | USB-C 3.2 Gen 1 – header 2 x USB 3.2 Gen 1 – header 4 x USB 2.0 – header 1 x SPI – header 1 x audio – header 1 x SPDIF out – header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
Hardware Monitoring | System voltage, temperature detection, fan speed detection, fan fail warning, water cooling flow rate, fan control |
Hardware Features | Q-Flash Plus button, Q-Flash, Q-Flash Plus, 6 Layer PCB, 6+1+2 Phase Power Design, AI Perfdrive, AI SNATCH Engine, chipset heatsink, DIY Friendly Design, GIGABYTE Smart Fan 6, M.2 Thermal Guard, Premium Power Choke, RGB FUSION, Ultra Durable, VRM heatsink design |
Miscellaneous
Included Accessories | M.2 SSD thick/thin rubber pad, Wi-Fi aerial, computer case screws |
|---|---|
Cables Included | 2 x Serial ATA cable |
Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
Width | 24.4 cm |
Depth | 22.5 cm |
