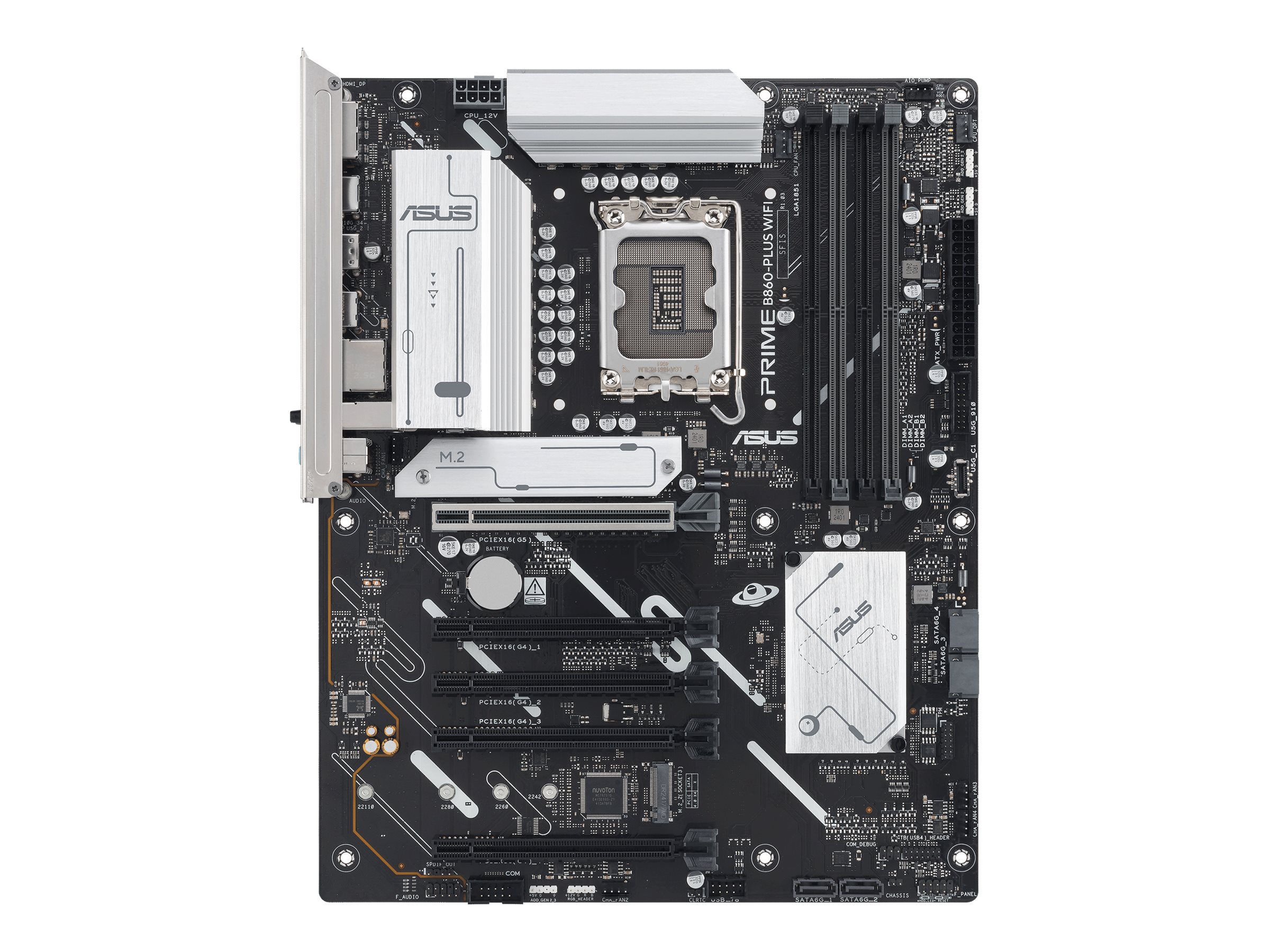

ASUS PRIME B860-PLUS WIFI-CSM, Motherboard, ATX, LGA1851 Socket, B860 Chipset, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1, 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E, onboard graphics (CPU required), HD Audio (8-channel)
$396.20 inc GST
✓ In Stock - 15 available
✓ Free NZ Delivery
15 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The ASUS PRIME B860-PLUS WIFI-CSM motherboard is designed for high-performance builds, supporting Intel Core Ultra processors (Series 2). This ATX motherboard delivers connectivity options, with multiple USB ports including USB-C 3.2 Gen 2×2, and 2.5 Gigabit Ethernet for networking capabilities. Enhanced audio is provided through high definition audio support with 8-channel output, ensuring an immersive multimedia experience.
With a robust chipset, this motherboard supports DDR5 SDRAM with speeds up to 4333 MHz (O.C.) and features four DIMM slots for memory expandability. The ASUS EZ Flash BIOS, along with hardware features like ASUS Aura Sync and crash protection mechanisms, contributes to a reliable and customizable computing experience. Ideal for users seeking a solid foundation for their computer systems, this motherboard combines performance, stability, and efficiency for an optimized user experience.
- Supports Intel Core Ultra processors (Series 2)
- Offers multiple USB ports including USB-C 3.2 Gen 2×2
- Provides enhanced high definition audio with 8-channel output
- Features advanced BIOS for customizable configurations
- Supports DDR5 RAM with speeds up to 4333 MHz (O.C.)
- Versatile connectivity
With a range of connectivity options including 2.5 Gigabit Ethernet and multiple USB interfaces, the motherboard meets modern data transfer demands while enabling seamless networking. - Advanced memory support
Equipped with four DIMM slots, the motherboard supports DDR5 SDRAM, enhancing performance and multitasking capabilities, making it suitable for intensive applications. - High definition audio
The built-in high definition audio supports 8-channel output for an immersive sound experience, catering to gamers and multimedia enthusiasts. - Robust hardware features
Packed with features like ASUS Q-Design and SafeSlot, this motherboard ensures convenience in installation and protection against hardware damage, promoting long-term reliability. - Customizable BIOS
The AMI BIOS equipped with ASUS EZ Flash allows easy updates and user-friendly configurations for performance tuning options.
What’s in the Box
- ASUS PRIME B860-PLUS WIFI-CSM
- 2 x Serial ATA cable
- 1 x M.2 rubber package, M.2 screw package, ASUS Wi-Fi Q-antenna
- Software
Main Specifications
Product Description | ASUS PRIME B860-PLUS WIFI-CSM – motherboard – ATX – LGA1851 Socket – B860 |
Product Type | Motherboard – ATX |
Chipset Type | Intel B860 |
Processor Socket | 1 x LGA1851 Socket |
Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
Max RAM Size | 256 GB |
RAM Supported | 4 DIMM slots – DDR5, non-ECC, on-die ECC, unbuffered, clocked unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
USB / FireWire Ports | 1 x USB-C 3.2 Gen 2×2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
Extended Specifications
General
Product Type | Motherboard – ATX |
|---|---|
Chipset Type | Intel B860 |
Processor Socket | LGA1851 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
Supported RAM
Max Size | 256 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 4333 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC, on-die ECC |
Registered or Buffered | Unbuffered, clocked unbuffered |
Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
Audio
Type | HD Audio (8-channel) |
|---|---|
Compliant Standards | High Definition Audio |
LAN
Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
|---|
Expansion / Connectivity
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 3 x PCIe 4.0 x16 (x1 mode) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 PCIe 5.0 -connectors: 1 x M.2 |
Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 1 4 x USB 2.0 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen2x2 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x microphone – mini-jack 1 x audio line-in – mini-jack 1 x audio line-out – mini-jack |
Internal Interfaces | 1 x USB-C 3.2 Gen 1 – header 2 x USB 3.2 Gen 1 – header 2 x USB 2.0 – header 1 x serial – header 1 x audio – header 1 x SPDIF out – header 1 x Thunderbolt 4 – header 1 x SPI – header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Hardware Features | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CUDIMM support, ASUS Enhanced Memory Profile (AEMP) III, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, ASUS Aura Sync, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, M.2 heatsink, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 8+1+1+1 Phase Power Design, 6 Layer PCB |
Miscellaneous
Included Accessories | ASUS Wi-Fi Q-antenna, 1 x M.2 rubber package, M.2 screw package |
|---|---|
Cables Included | 2 x Serial ATA cable |
Software Included | Armoury Crate, ASUS Fan Xpert 2+, Adobe Creative Cloud (free trial), ASUS AI Advisor, ASUS CPU-Z, ASUS DriverHub, ASUS GlideX, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
Compliant Standards | DisplayPort 1.4 |
Width | 30.5 cm |
Depth | 24.4 cm |
