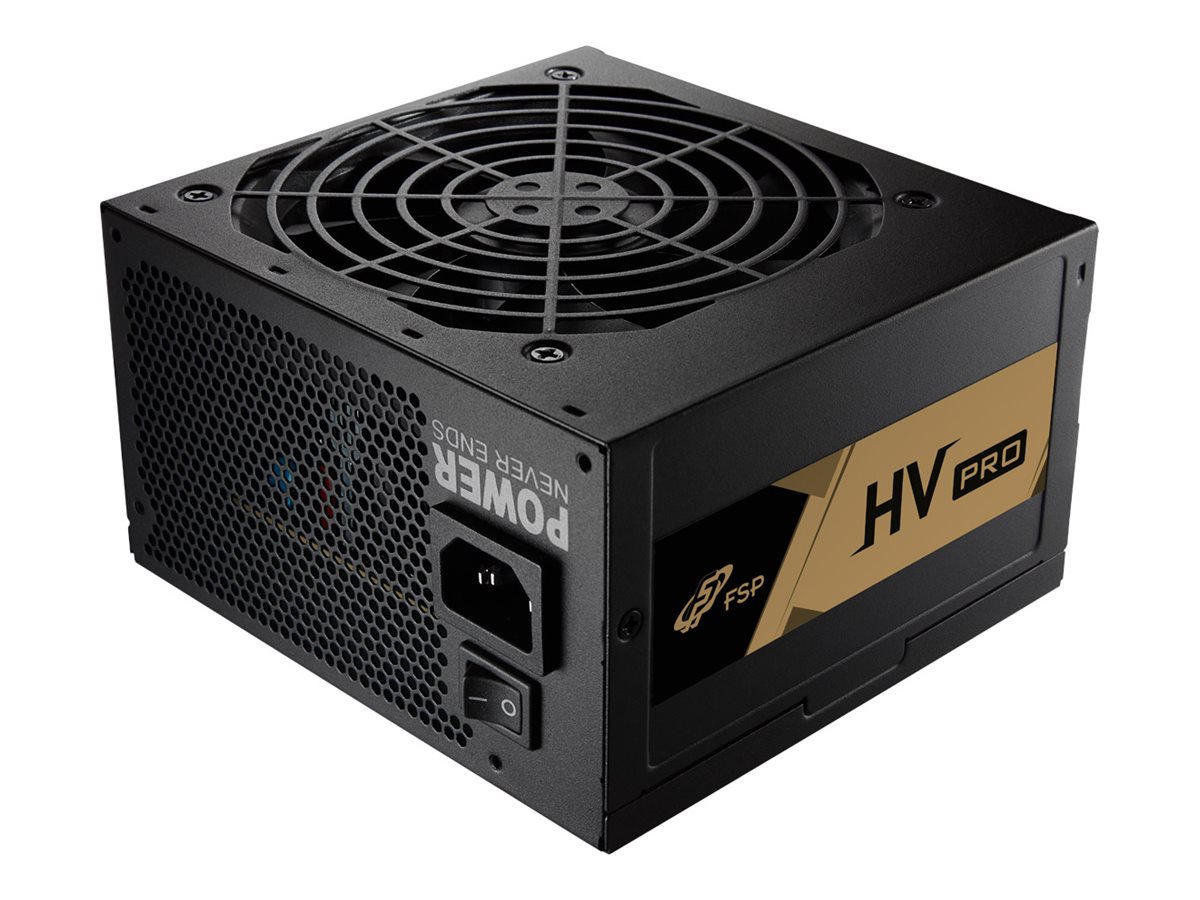

FSP HV PRO FSP550-51AAC, Power supply (internal), ATX12V 2.52/ EPS12V 2.92, 80 PLUS, AC 200-240 V, 550 Watt, active PFC
$86.03 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The FSP HV PRO FSP550-51AAC power supply is designed to deliver reliable performance for various computing needs. With a power output of 550 watts, this internal power supply ensures stable operation while meeting the requirements of various components. It features a single 12V rail and includes multiple voltage outputs, including +3.3V, +5V, and ±12V, allowing for broad compatibility across different systems.
Safety and efficiency are paramount in the design of the FSP HV PRO. This power supply is equipped with several protective features, such as overcurrent, overvoltage, overpower, and short-circuit protection. The active Power Factor Correction enhances efficiency up to 85%, certified by 80 PLUS. Additionally, the 120 mm fan provides effective cooling and operates in silent mode, ensuring a quiet computing environment.
- 550 watts of total power output for reliable performance
- Comprehensive protection features for safety
- Active Power Factor Correction for increased efficiency
- 120 mm fan for effective and quiet cooling
- Compatible with ATX12V 2.52 and EPS12V 2.92 standards
- Stable power delivery
With a robust output of 550 watts, this power supply provides stable voltage across various rails, ensuring reliable performance for all components. - Enhanced safety features
Incorporating overcurrent, overvoltage, overpower, and short-circuit protection safeguards the system against electrical faults. - Whisper-quiet operation
The sleeve bearing cooling fan operates in silent mode, minimizing noise distractions while maintaining optimal temperatures. - Energy-efficient design
Achieving up to 85% efficiency and certified by 80 PLUS, this power supply reduces energy consumption and operational costs. - Versatile connectivity options
Equipped with various connectors, including 24 pin ATX and 8 pin PCI Express, it supports a range of devices and configurations.
Main Specifications
Product Description | FSP HV PRO FSP550-51AAC – power supply – 550 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 2.52/ EPS12V 2.92 |
80 PLUS Certification | 80 PLUS |
Input Voltage | AC 200-240 V |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 550 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 45.8 A -12V – 0.3 A +5VSB – 2.5 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 2 x 8 pin PCI Express power with detachable 2 pin section 1 x power 8 pin +12V 4 x 15 pin Serial ATA power 2 x 4 PIN internal power 1 x 4 PIN mini-power connector 1 x power 8 pin +12V with detachable 4 pin section |
Cooling System | 120 mm fan |
Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 2.52/ EPS12V 2.92 |
PSU Form Factor | ATX |
Power Device
Input Voltage | AC 200-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 2 x 8 pin PCI Express power with detachable 2 pin section 1 x power 8 pin +12V 4 x 15 pin Serial ATA power 2 x 4 PIN internal power 1 x 4 PIN mini-power connector 1 x power 8 pin +12V with detachable 4 pin section |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 550 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 45.8 A -12V – 0.3 A +5VSB – 2.5 A |
Efficiency | 85% |
80 PLUS Certification | 80 PLUS |
Miscellaneous
Cooling System | 120 mm fan |
|---|---|
Features | Single 12V rail, DC-DC technology, silent mode, over current protection, over voltage protection, overpower protection, short-circuit protection, sleeve bearing cooling fan |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 14 cm |
Height | 8.6 cm |
