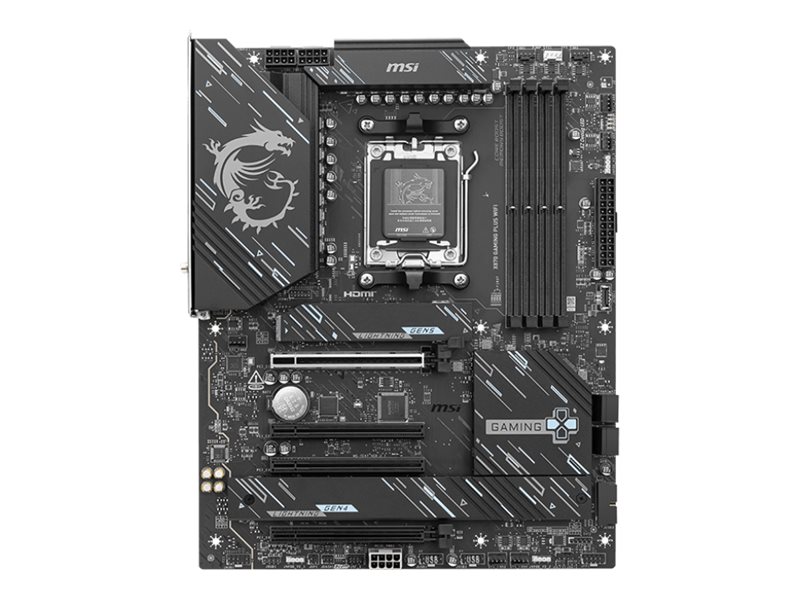

MSI X870 GAMING PLUS WIFI, Motherboard, ATX, Socket AM5, AMD X870 Chipset, USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, onboard graphics (CPU required), HD Audio (8-channel)
$596.75 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The MSI X870 GAMING PLUS WIFI motherboard is designed for high-performance gaming setups, featuring a robust ATX form factor and compatibility with AMD Ryzen 7000/8000/9000 Series processors. It supports DDR5 SDRAM with speeds up to 4100 MHz overclocked, ensuring excellent memory performance for demanding applications. Connectivity options are abundant with numerous USB ports, including USB-C and USB4, along with four SATA-600 ports and three M.2 sockets for versatile storage solutions. Equipped with advanced audio capabilities powered by the Realtek ALC897 codec, this motherboard delivers high-definition audio through eight channels. Enhance gaming experiences with MSI Mystic Light for customized aesthetics, and rely on features like MSI Audio Boost 5 to elevate sound quality. The inclusion of a Flash BIOS button and EZ Debug LED facilitates an easy setup and troubleshooting process, making it a great choice for DIY enthusiasts and gamers alike.
- Supports AMD Ryzen 7000/8000/9000 Series processors
- Offers a robust 14+2+1 phase power design
- Includes advanced audio capabilities with MSI Audio Boost 5
- Provides multiple connectivity options including USB4 and Wi-Fi 7
- Features a DIY-friendly design with EZ Debug LED
- Powerful performance
The motherboard is built with a 14+2+1 phase power design, ensuring stable power delivery and efficiency during intense gaming sessions. - Extensive connectivity
Equipped with multiple USB ports, including USB-C and USB4, along with four SATA-600 and three M.2 sockets for a wide range of storage options. - High-quality audio
Features high-definition audio with eight-channel support powered by the Realtek ALC897 codec, designed to enhance the overall sound experience. - Enhanced cooling solutions
Incorporates advanced cooling features like the M.2 Shield FROZR and Extended Heatsink Design to maintain temperatures for optimal performance. - Intuitive interface
Includes a Flash BIOS button and EZ Debug LED for easy updates and troubleshooting, making installation and maintenance straightforward.
What’s in the Box
- MSI X870 GAMING PLUS WIFI
- 2 x Serial ATA cable
- EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable, EZ M.2 clip II remover, EZ M.2 clip II
- Software
Main Specifications
Product Description | MSI X870 GAMING PLUS WIFI – motherboard – ATX – Socket AM5 – AMD X870 |
Product Type | Motherboard – ATX |
Chipset Type | AMD X870 / Nuvoton NCT6687-R |
Processor Socket | 1 x Socket AM5 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Max RAM Size | 256 GB |
RAM Supported | 4 DIMM slots – DDR5, non-ECC, unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 3 x M.2 |
USB / FireWire Ports | 1 x USB4 + 1 x USB-C 3.2 Gen 2×2 + 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Extended Specifications
General
Product Type | Motherboard – ATX |
|---|---|
Chipset Type | AMD X870 / Nuvoton NCT6687-R |
Processor Socket | Socket AM5 |
Max Processors Qty | 1 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Supported RAM
Max Size | 256 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 4100 Mhz (O.C), 3200 MHz (O.C.), 2800 MHz (O.C.), 2400 MHz (O.C.), 2800 MHz, 2400 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, AMD EXPO technology |
Audio
Type | HD Audio (8-channel) |
|---|---|
Audio Codec | Realtek ALC897 |
Compliant Standards | High Definition Audio |
LAN
Network Controller | Realtek RTL8126VB |
|---|---|
Network Interfaces | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Expansion / Connectivity
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 3.0 x1 1 x PCIe 4.0 x4 3 x M.2 socket (22110/2280) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 PCIe 5.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 PCIe 4.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 |
Interfaces | 1 x USB4 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (5Gigabit Ethernet) 2 x aerial 1 x audio line-in – mini-jack 1 x audio line-out – mini-jack 1 x microphone – mini-jack 1 x HDMI |
Internal Interfaces | 1 x USB-C 3.2 Gen 2 – header 2 x USB-C 3.2 Gen 1 – header 4 x USB 2.0 – header 1 x audio – header 1 x SPI – header |
Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | MSI ClickBIOS, UEFI BIOS, ACPI 6.5 support, SMBIOS 3.7 support |
Hardware Features | CUDIMM support, MSI AI Engine, MSI Audio Boost 5, MSI Mystic Light, Frozr AI Cooling, 2oz Copper PCB, DIY Friendly Design, Extended Heatsink Design, lightning gen5 solution, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost, Super Charger, EZ M.2 Clip II, EZ M.2 Sheild FROZR II, EZ PCIe Release, flash BIOS button, Clear CMOS Button, pre-mounted I/O shield, EZ Conn-Design, MSI Steel Armor II, EZ Debug LED, EZ LED control, 14+2+1 Phase Power Design, 8 Layer PCB, AMD Precision Boost Overdrive (PBO), Enlarged Chipset Heatsink, MSI Audio Boost, MSI Steel Armor, PCIe EZ Latch, MSI PCIe Steel Slot |
Miscellaneous
Included Accessories | 1 to 2 EZ Conn-Cable, EZ Wi-Fi antenna, EZ M.2 clip II, EZ M.2 clip II remover |
|---|---|
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme – MSI Edition, MSI CPU-Z, MSI App Player, Norton 360 |
Width | 30.5 cm |
Depth | 24.4 cm |
