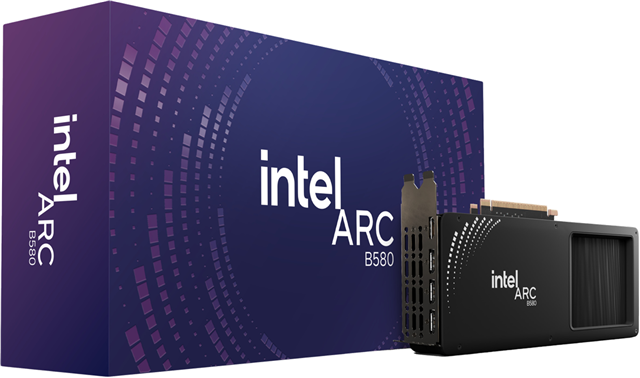

Intel Arc B580, graphics card, Arc B580, 12 GB
$638.01 inc GSTIntel Arc B580, Graphics card, Arc B580, 12 GB GDDR6, PCIe 4.0 x8, 2 x DisplayPort, HDMI, box
$638.01 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections

Description
Experience graphics performance with the Intel Arc B580. Featuring a powerful Graphics Processor, this graphics card is designed for high-resolution gaming, supporting a maximum external resolution of 7680 x 4320 at 120 Hz through HDMI and 60 Hz via DisplayPort. With 12 GB of GDDR6 SDRAM and a bus width of 192-bit, the B580 delivers bandwidth of 456 GBps and a memory speed of 19 Gbps, ensuring smooth visuals and rapid data processing for demanding applications.
Designed to support up to four monitors, the Intel Arc B580 incorporates features such as Intel Xe Super Sampling (XeSS), Variable Refresh Rate (VRR), and comprehensive video encoding support including AV1 and H.264. The card also boasts significant video adapter features such as 20 Ray Tracing Units and HDR10 capabilities, making it a choice for both gamers and creative professionals who require fidelity and detail in their graphics output.
- Supports max external resolution of 7680 x 4320 at 120 Hz
- Equipped with 12 GB GDDR6 SDRAM for smooth performance
- Compatible with up to 4 monitors for enhanced multitasking
- Includes Intel Xe Super Sampling (XeSS) for improved visuals
- Features 20 Ray Tracing Units for realistic lighting and effects
- Robust graphics performance
The Intel Arc B580 is powered by a capable Graphics Processor with a clock speed of 2670 MHz, delivering reliable performance for gaming and professional use. - Extensive memory capabilities
With 12 GB of video memory, the B580 ensures resources for handling high-resolution textures and complex scenes in demanding applications. - Advanced video technologies
This graphics card supports a range of APIs including DirectX 12 Ultimate and OpenCL 3.0, allowing compatibility with a wide array of software and gaming titles. - Multiple output options
The Intel Arc B580 comes with HDMI and DisplayPort outputs, providing flexibility and convenience for connecting various display devices. - Energy efficient design
With a power consumption of 190 watts, the Intel Arc B580 is designed to perform effectively while maintaining energy efficiency.
Main Specifications
Product Description | Intel Arc B580 – graphics card – Arc B580 – 12 GB |
Device Type | Graphics card |
Bus Type | PCI Express 4.0 x8 |
Graphics Engine | Intel Arc B580 |
Memory | 12 GB GDDR6 |
Memory Speed | 19 Gbps |
Core Clock | 2670 MHz |
Memory Interface | 192-bit |
Max Resolution | 7680 x 4320 |
Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz |
Max Monitors Supported | 4 |
Interfaces Details | DisplayPort (2.1 UHBR 13.5) HDMI DisplayPort (2.1 UHBR10) |
API Supported | DirectX 12 Ultimate, oneAPI, OpenVINO, OpenCL 3.0, OpenGL 4.6, Vulkan 1.3 |
Package Type | Box |
Extended Specifications
General
Device Type | Graphics card |
|---|---|
Bus Type | PCI Express 4.0 x8 |
Graphics Engine | Intel Arc B580 |
Core Clock | 2670 MHz |
Process Technology | 5 nm |
Max Resolution | 7680 x 4320 |
Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz |
Max Monitors Supported | 4 |
Interfaces Details | DisplayPort (2.1 UHBR 13.5) HDMI DisplayPort (2.1 UHBR10) |
API Supported | DirectX 12 Ultimate, oneAPI, OpenVINO, OpenCL 3.0, OpenGL 4.6, Vulkan 1.3 |
Features | 20 Xe Cores, 20 Ray Tracing Units, 160 Xe Vector Engines, Intel Xe Matrix eXtensions (XMX), 4K HEVC/H.265 decode and encode support, AV1 decode support, AV1 encode support, H.264 decode and encode support, HDR10, Intel Xe Super Sampling (XeSS), Variable Refresh Rate (VRR), VP9 support |
Memory
Size | 12 GB |
|---|---|
Technology | GDDR6 SDRAM |
Memory Speed | 19 Gbps |
Bus Width | 192-bit |
Bandwidth | 456 GBps |
Miscellaneous
Power Consumption Operational | 190 watt |
|---|---|
Compliant Standards | DisplayPort 2.1 |
Package Details | Box |
