Description

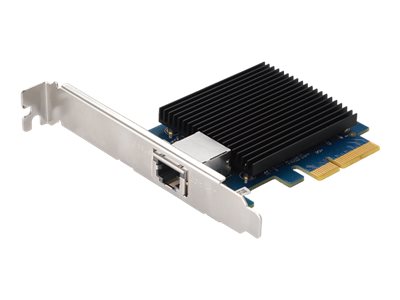

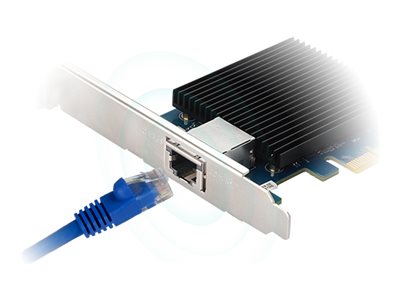

The ASUSTOR AS-T10G2 is an efficient network adapter designed to enhance connectivity with its wired technology. Featuring a low-profile form factor, it easily fits into various system setups without sacrificing performance. With a data transfer rate of 10 Gbps, this adapter supports high-speed connections essential for demanding network environments, ensuring seamless data flow and reduced latency for critical applications. Ideal for users looking to upgrade their networking capabilities, the AS-T10G2 utilizes a 10 Gigabit Ethernet protocol with an Ethernet 10GBase-T cabling type. This ensures compatibility with existing network infrastructure while providing the performance boost necessary for modern computing tasks. With a single RJ-45 port, this plug-in card simplifies installation and expands your network features.
- Delivers a data transfer rate of 10 Gbps
- Low-profile design suitable for various installations
- Compatible with Ethernet 10GBase-T cabling
- Supports 10 Gigabit Ethernet data link protocol
- Easy installation with a single RJ-45 port
- Efficient data transfer
The AS-T10G2 offers a data transfer rate of 10 Gbps, making it ideal for environments that require fast and reliable connectivity. - Space-saving design
The low-profile form factor allows this network adapter to fit into tight spaces, maximizing the utilization of available slots in your system.
Main Specifications
Product Description | ASUSTOR AS-T10G2 – network adapter – PCIe 3.0 x4 – 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 |
Device Type | Network adapter |
Form Factor | Plug-in card – low profile |
Interface (Bus) Type | PCI Express 3.0 x4 |
Ports | 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 |
Dimensions (WxDxH) | 8.695 cm x 6.79 cm |
Weight | 77 g |
Cabling Type | Ethernet 10GBase-T, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 2.5GBase-T, Ethernet 5GBase-T |
Data Link Protocol | 10GbE, 2.5GbE, 5GbE, 1GbE, 100Mb LAN |
Data Transfer Rate | 10 Gbps |
Network / Transport Protocol | TCP/IP, UDP/IP |
Processor | 1 x Marvell AQC107 |
Compliant Standards | IEEE 802.1Q, IEEE 1588v2, IEEE 802.1p, IEEE 802.1Qav, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
System Requirements | Apple MacOS, Linux, VMware ESXi, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Linux Kernel 4.4, Linux Kernel 4.9, Linux Kernel 4.8 |
Extended Specifications
General
Device Type | Network adapter |
|---|
Form Factor | Plug-in card – low profile |
|---|
Interface (Bus) Type | PCI Express 3.0 x4 |
|---|
Networking
Ports | 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 |
|---|
Connectivity Technology | Wired |
|---|
Cabling Type | Ethernet 10GBase-T, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 2.5GBase-T, Ethernet 5GBase-T |
|---|
Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
|---|
Data Transfer Rate | 10 Gbps |
|---|
Network / Transport Protocol | TCP/IP, UDP/IP |
|---|
Features | QoS, VLAN support, AVB, Back Pressure Support, Energy Efficient Ethernet, flow control, PTP, PQ, tagged VLAN, full duplex capability, 16 KB Jumbo Frame |
|---|
Compliant Standards | IEEE 802.1Q, IEEE 1588v2, IEEE 802.1p, IEEE 802.1Qav, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|---|
Processor / Memory
Processor | 1 x Marvell AQC107 |
|---|
Expansion / Connectivity
Interfaces | 1 x 100M/1G/2.5/5/10 Gigabit Ethernet – RJ-45 – female |
|---|
Miscellaneous
Included Accessories | Low-profile bracket, full-height bracket |
|---|
Compliant Standards | FCC |
|---|
Software / System Requirements
Software Included | Drivers & Utilities |
|---|
OS Required | Apple MacOS, Linux, VMware ESXi, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Linux Kernel 4.4, Linux Kernel 4.9, Linux Kernel 4.8 |
|---|
Dimensions & Weight
Depth | 8.695 cm |
|---|
Height | 6.79 cm |
|---|
Weight | 77 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 5 – 95% |
|---|
