Startech 8 Port HDMI Splitter, Mounting Brackets, HDMI Multi Port, HDMI Hub, HDMI Audio Splitter, HDMI Splitter Box (ST128HDMI2), Video/audio splitter, 8 x HDMI, rack-mountable, for P/N: ST121SHD50, SVA12M2NEUA, SVA12M5NA
$294.85 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
Split an HDMI audio and video signal to eight displays simultaneously. The ST128HDMI2 8-Port High Speed HDMI Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
A perfect addition to virtually any application requiring the high quality video, the ST128HDMI2 HDMI splitter is easy to install as a standalone or rack-mounted device using the included brackets and provides flawless, distortion-free digital video.

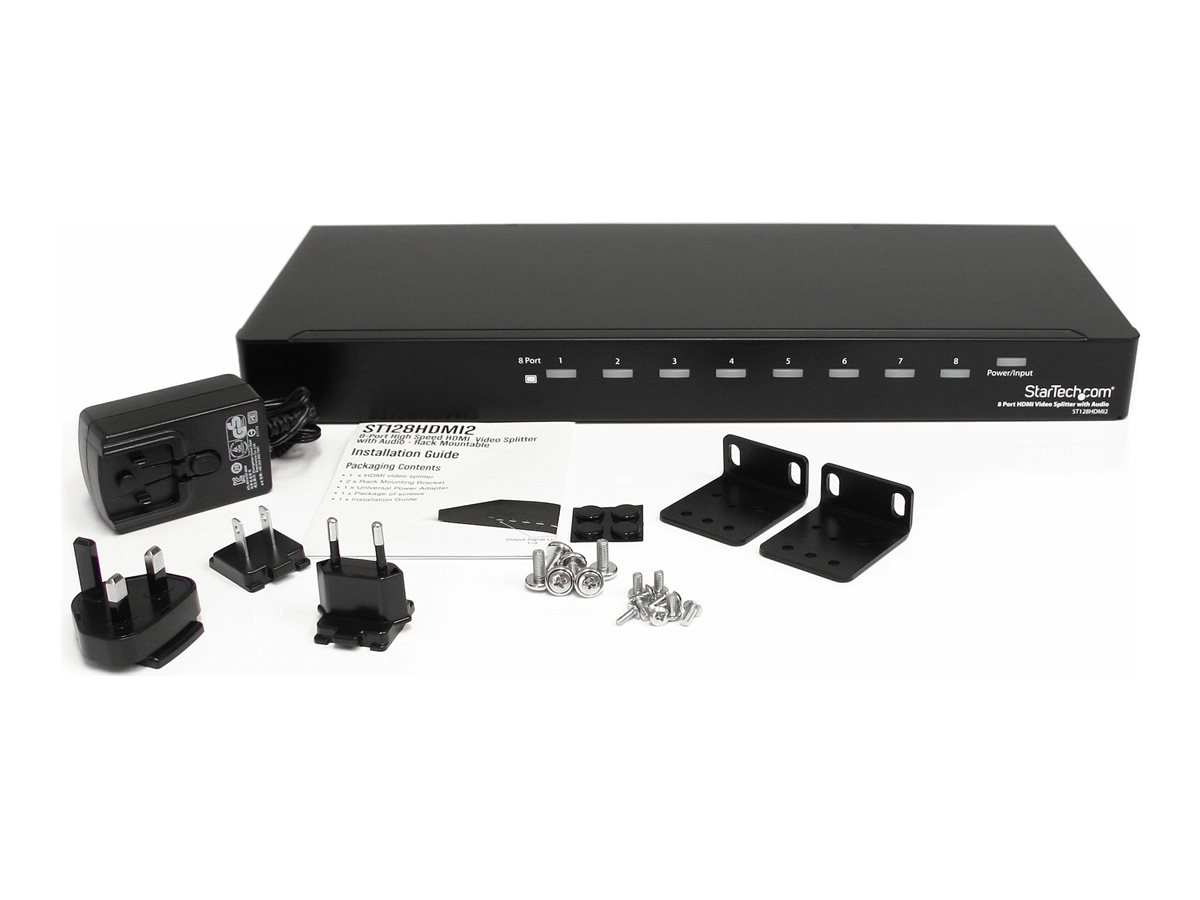

What’s in the Box
- StarTech.com 8 Port HDMI Splitter – Mounting Brackets – HDMI Multi Port – HDMI Hub – HDMI Audio Splitter – HDMI Splitter Box (ST128HDMI2)
- External power adapter
- Rack mounting kit
Main Specifications
Product Description | Startech 8 Port HDMI Splitter – Mounting Brackets – HDMI Multi Port – HDMI Hub – HDMI Audio Splitter – HDMI Splitter Box (ST128HDMI2) – video/audio splitter – 8 ports – rack-mountable |
Device Type | Video/audio splitter – 8 ports – cascadable |
Enclosure Type | Rack-mountable |
Subtype | HDMI |
Ports | 8 x HDMI |
Power | AC 120/230 V |
Dimensions (WxDxH) | 18.5 cm 4.4 cm |
Weight | 3.5 kg |
Colour | Black |
Designed For | P/N: ST121SHD50, SVA12M2NEUA, SVA12M5NA |
Extended Specifications
General
Device Type | Video/audio splitter – 8 ports – cascadable |
|---|---|
Enclosure Type | Rack-mountable |
Subtype | HDMI |
Ports | 8 x HDMI |
Max Units In A Stack | 3 |
Max Resolution | 1080p |
Features | HDTV support |
Status Indicators | Port status, power |
Expansion / Connectivity

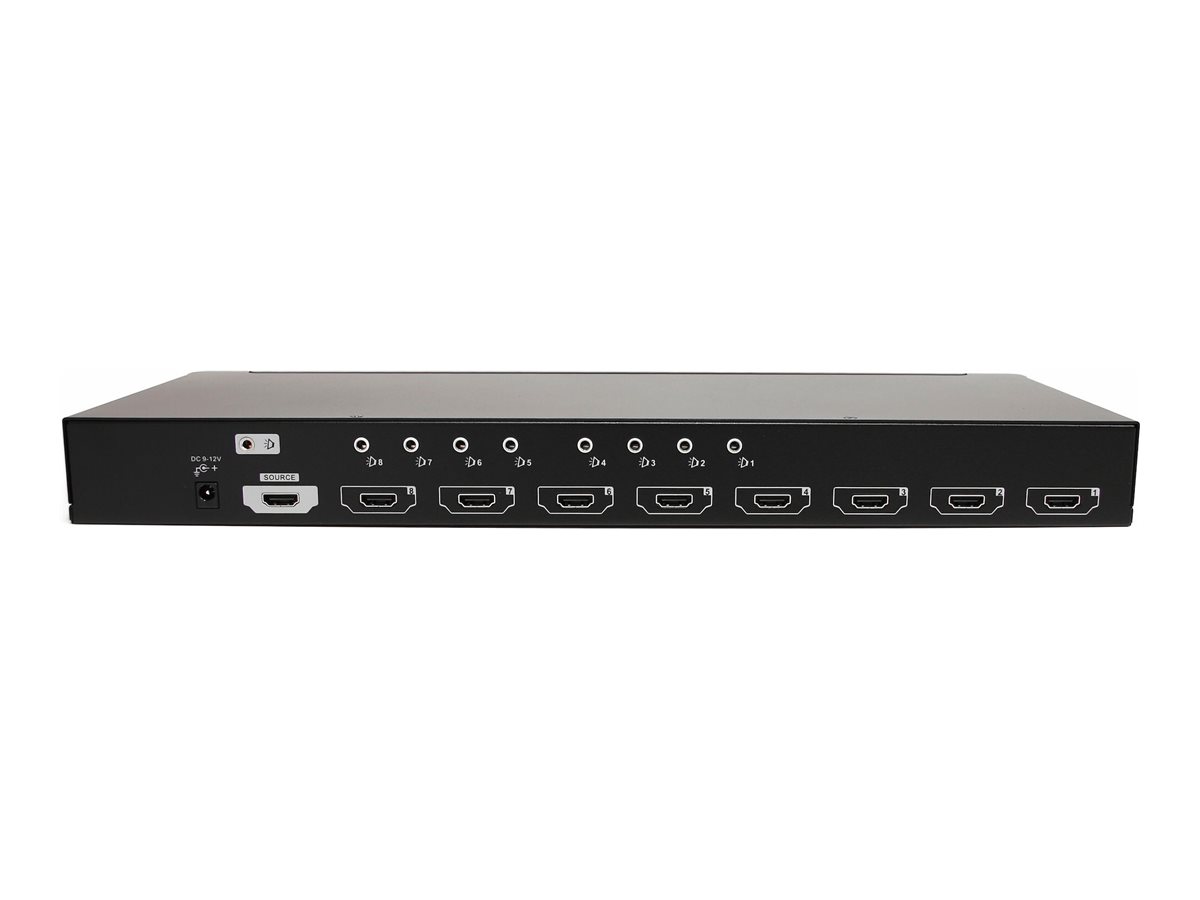

Interfaces | 8 x HDMI 1 x HDMI 1 x audio input mini-jack 8 x audio output mini-jack |
|---|
Power
Power Device | External power adapter |
|---|---|
Voltage Required | AC 120/230 V |
Power Consumption Operational | 10.2 Watt |
Miscellaneous
Colour | Black |
|---|---|
Rack Mounting Kit | Included |
Compliant Standards | FCC, RoHS |
Dimensions & Weight
Width | 18.5 cm |
|---|---|
Height | 4.4 cm |
Weight | 3.5 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 80% |
Min Storage Temperature | -10 °C |
Max Storage Temperature | 60 °C |
Compatibility Information
Designed For | P/N: ST121SHD50, SVA12M2NEUA, SVA12M5NA |
|---|
