Description

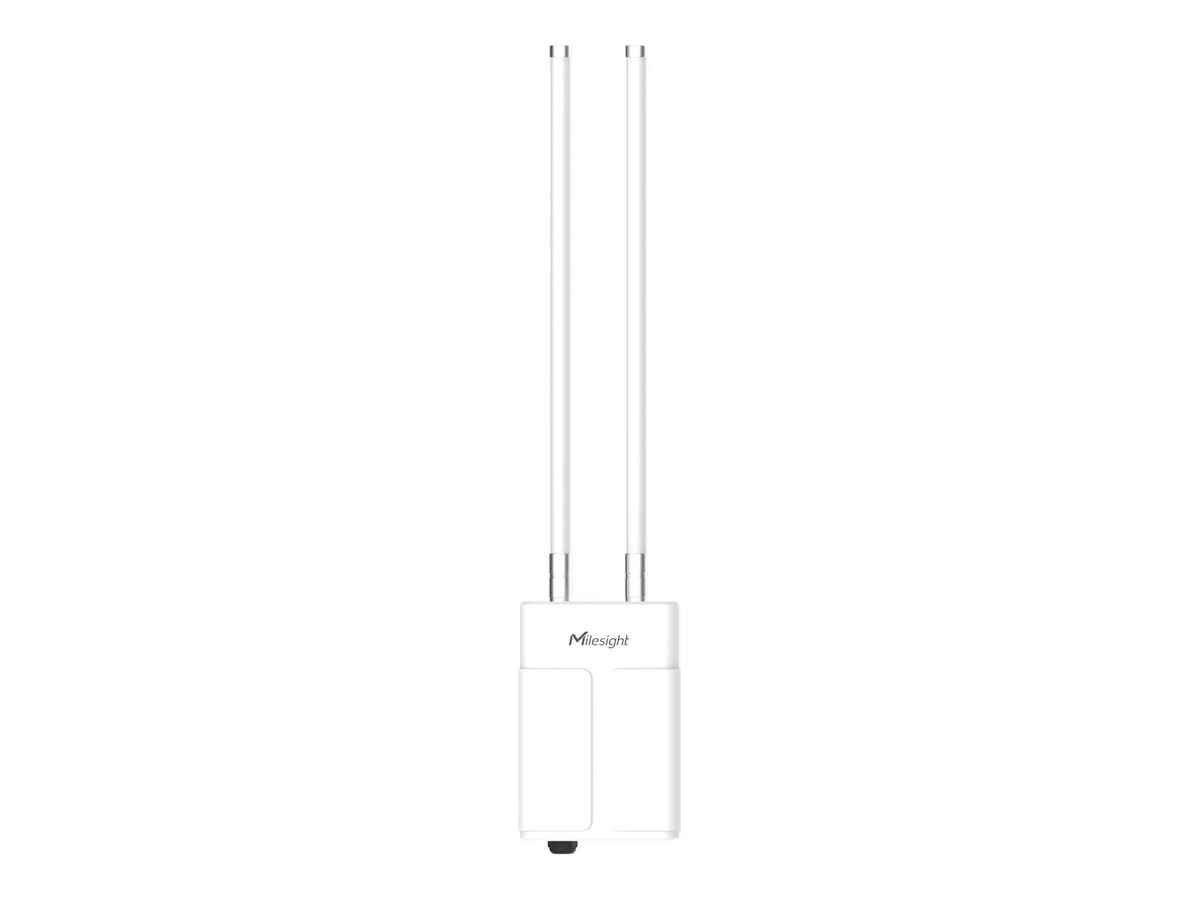

The Milesight UG67 gateway is designed for robust outdoor applications, featuring an IP67 waterproof rating to withstand various environmental conditions. This device operates effectively in a temperature range from -40°C to 70°C and functions within a humidity range of 0 to 95% RH. Equipped with a 64-bit quad-core processor running at 1.5 GHz and 512 GB of RAM, the UG67 ensures efficient performance for various communication needs. It supports multiple connectivity options including LoRaWAN and Ethernet, alongside functionalities such as DHCP support, Dynamic Multipoint VPN (DMVPN), and web-based management.
With two external detachable antennas, the UG67 provides enhanced signal strength and reliability. The device includes integrated GPS and a watchdog timer, ensuring precise operations and monitoring. Users benefit from convenient features such as a reset button, real-time clock (RTC), and LED indicators for clear status representation. Designed for versatility, it can be wall-mounted or pole-mounted, making it suitable for outdoor IoT applications.
- Waterproof design with IP67 rating
- Operates in extreme temperatures from -40°C to 70°C
- Supports various connectivity technologies including LoRaWAN and Ethernet
- 64-bit quad-core processor for efficient performance
- Versatile mounting options for outdoor installation
- Powerful processing capability
The Milesight UG67 is equipped with a 64-bit quad-core processor running at 1.5 GHz, allowing it to handle multiple tasks efficiently and ensuring smooth operation for all connected devices. - Robust outdoor functionality
Designed for outdoor environments, the UG67 features an IP67 waterproof rating, ensuring protection against water while functioning effectively in temperatures ranging from -40°C to 70°C. - Versatile connectivity options
This gateway supports various connectivity technologies including LoRaWAN and Ethernet, making it suitable for a wide range of IoT applications and robust networking needs. - User-friendly management features
The device includes web-based management, allowing users to efficiently configure and monitor the gateway. Features like DHCP support and Dynamic Multipoint VPN enhance its usability. - Integrated monitoring components
The UG67 is equipped with integrated GPS and a watchdog timer, providing reliability and precise location services for various applications, crucial for outdoor deployments.
Main Specifications
Product Description | Milesight UG67 – gateway – outdoor – LoRaWAN, 802.11b/g/n – white |
Product Type | Gateway |
Environment | Outdoor |
Placing / Mounting | Pole mounting, wall-mounting |
Integrated Components | Watchdog timer, GPS |
Power Source | Power adapter, PoE |
Connectivity | Wireless, wired – LoRaWAN, 802.11b/g/n – 10/100/1000 Ethernet |
Frequency Band | 915 MHz, 920 MHz, 923 MHz, 2.4 Ghz |
Colour | White |
Dimensions (WxDxH) | 16.4 cm x 9.09 cm x 24 cm |
Extended Specifications
General
Product Type | Gateway |
|---|
Environment | Outdoor |
|---|
Integrated Components | Watchdog timer, GPS |
|---|
Power Source | Power adapter, PoE |
|---|
Placing / Mounting | Pole mounting, wall-mounting |
|---|
Connectivity Technology | Wireless, wired – IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, LoRaWAN, Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Frequency Band | 915 MHz, 920 MHz, 923 MHz, 2.4 Ghz |
|---|
Interfaces Details | Console
LAN/power
2 x aerial |
|---|
Features | 64-bit quad-core processor, waterproof, 8 channels, LED indicators, reset button, Real-Time Clock (RTC), timer, PoE, SX1302 chip, Backhaul Technology, WAN failover, CLI management, web-based management, on-demand dial up, URL filtering, DMZ support, MAC binding, OpenVPN server, IPSec server, L2TP support, GRE tunneling, Dynamic Multipoint VPN (DMVPN), WireGuard, PPPoE relay, HTTPS support, SNMP v1/v2c/v3 (MIB-II) support, TCP support, UDP support, DHCP support, HTTP support, DNS support, ARP support, SNTP support, Telnet support, SSH support, MQTT support, BACnet/IP support, Modbus compatible, auto-sensing per device, auto-uplink (auto MDI/MDI-X), -140 dBm sensitivity |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Communications Technology | LoRaWAN |
|---|
Processor
CPU | Cortex-A53 |
|---|
Manufacturer | ARM |
|---|
Clock Speed | 1.5 GHz |
|---|
Aerial
Form Factor | External detachable |
|---|
Quantity | 2 |
|---|
RAM
Flash Memory
Miscellaneous
Included Accessories | PoE injector, mounting bracket, 4 x wall mounting kits, cable gland, cable gland plug, dust cover, antenna extension cable (1m), 2 aerials, short mounting backboard kit, M12 DC power cable |
|---|
Product Material | Polycarbonate (PC), ADC12 aluminium alloy |
|---|
Colour | White |
|---|
Voltage Required | DC 6 – 12 V |
|---|
Power Consumption Operational | 3.6 Watt |
|---|
Compliant Standards | IP67, FCC, RCM, TELEC, ANATEL, RoHS, UL 94 V-0, IEEE 802.3af |
|---|
Dimensions & Weight
Width | 16.4 cm |
|---|
Depth | 9.09 cm |
|---|
Height | 24 cm |
|---|
Weight | 1.463 kg |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
Humidity Range Operating | 0 – 95% RH (non-condensing) |
|---|
