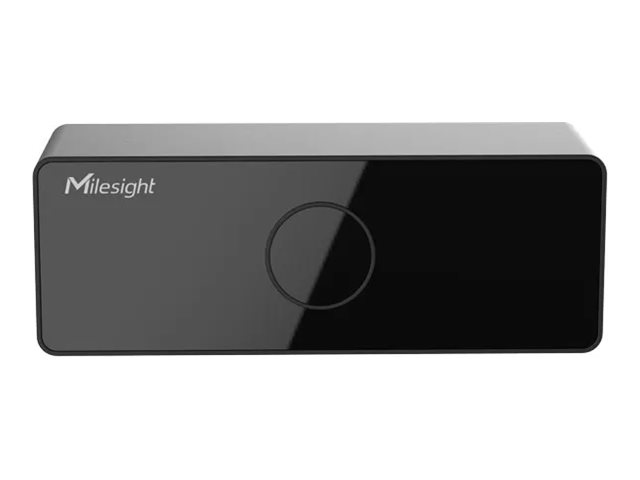

Milesight VS132-915M, People counting sensor, 3D, TOF, wired, wireless, 802.11b/g/n, LoRaWAN, 915 MHz, 470 MHz, 868 MHz, 2.4 Ghz, 10/100 Ethernet, black

Description

The Milesight VS132-915M is a reliable people counting sensor designed for accurate monitoring in various environments. With a counting accuracy rate of 99.5% and bi-directional counting capabilities, this sensor ensures precise data collection. It features a robust sensitivity of -137 dBm and accommodates a database of 1,000,000 users, making it suitable for high-traffic areas. The sensor integrates advanced Time of Flight (ToF) and 3D technology, providing a detection range from 0.5 to 3 m, with a 92.5° horizontal and 67° vertical field of view. This functionality facilitates effective placement in various mounting styles including wall, ceiling, or in-wall installations.
The Milesight VS132-915M operates in a range of environmental conditions, with a temperature tolerance from -10°C to 60°C and a humidity range of 0 to 95% non-condensing. Connectivity is versatile with options for both wired and wireless interfaces including LAN/power, as well as support for protocols like LoRaWAN and IEEE 802.3at. Power over Ethernet (PoE) capability combined with a low operational power consumption of 7.5 watts ensures efficient performance without compromising scalability or installation convenience.

• Features bi-directional counting for precise data collection
• Offers a counting accuracy rate of 99.5%
• Supports a database of 1,000,000 users
• Integrates advanced Time of Flight (ToF) and 3D sensing technology
• Operates effectively in temperatures from -10°C to 60°C

• Robust connectivity options
  The sensor offers both wired and wireless connectivity, supporting LAN/power connections and protocols such as LoRaWAN for versatile installation options.
• Efficient power usage
  Designed to operate with a low power consumption of 7.5 watts via Power over Ethernet (PoE), ensuring cost-effective usage.
• Flexible mounting capabilities
  This sensor can be wall-mounted, ceiling-mounted, or in-wall-mounted, providing flexibility for various installation environments.
• Wide operational range
  With a temperature range of -10°C to 60°C and a humidity range of 0 to 95%, the sensor can function optimally in diverse conditions.
• High accuracy performance
  Features a detection range of 0.5 to 3 m with a 92.5° horizontal and 67° vertical field of view, ensuring comprehensive coverage for monitoring.

Main Specifications

Extended Specifications

General

Camera

Miscellaneous

Dimensions & Weight

Environmental Parameters
