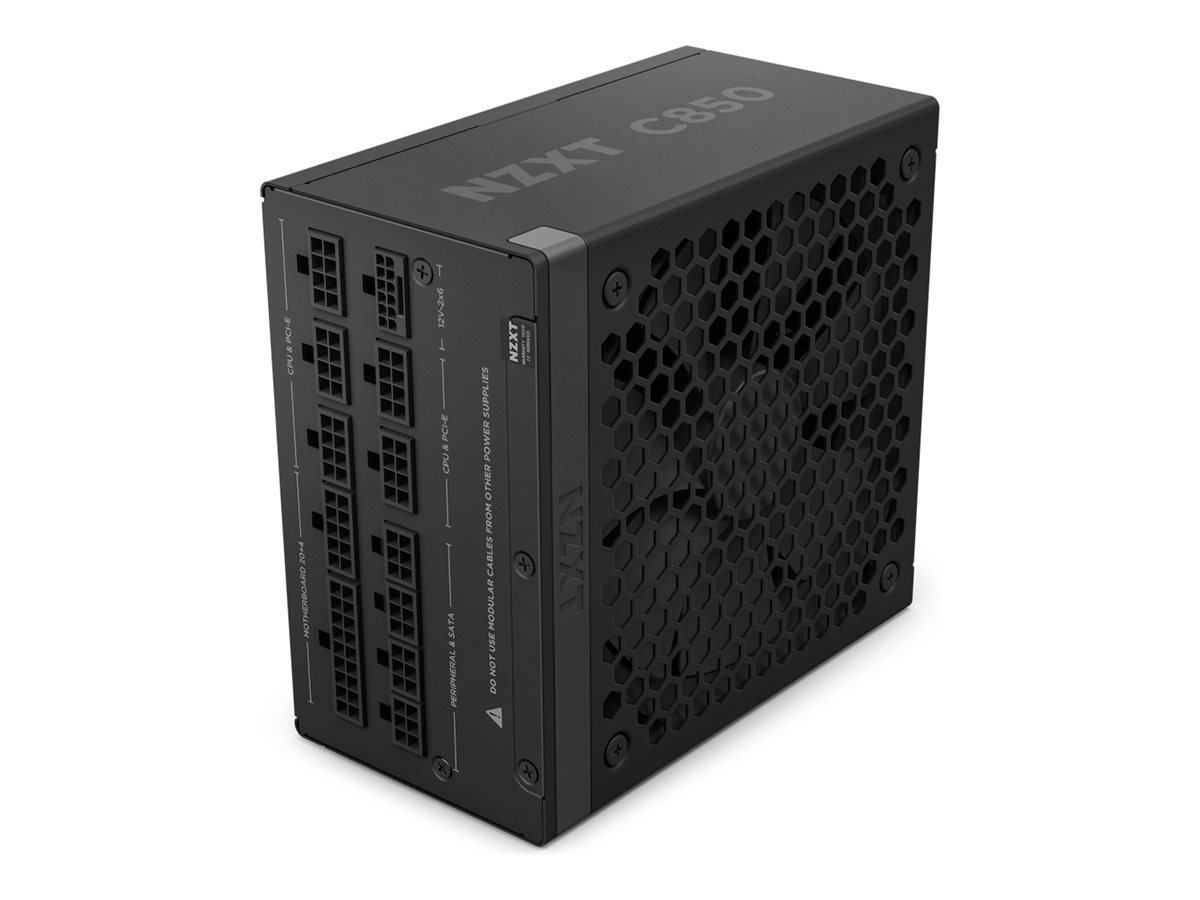

NZXT C-Series C850, Power supply (internal), ATX12V 3.1/ EPS12V 2.92, 80 PLUS Gold, AC 100-240 V, 850 Watt, active PFC, Australia, black
$266.99 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The C-Series power supply from NZXT features safe, reliable power while ensuring optimal efficiency and quieter performance. Manufactured with high-quality components, the C-Series power supplies deliver both peace of mind and clean, reliable power to your PC gaming system.
- Built for builders
- Silent operation
- Built for builders
The modular design lets you use only the cables you need, ensuring easier installation, and less clutter. The sleeved main cables look great and resist heat damage as well as fraying, delivering greater durability and longevity. - Silent operation
A push of a button enables zero RPM fan mode, silencing the fan underlow-load conditions. When needed, the fluid-dynamic bearing fan spins up to efficiently cool the PSU, keeping your system stable and running through intense gaming sessions.
Main Specifications
Product Description | NZXT C-Series C850 – power supply – 850 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
80 PLUS Certification | 80 PLUS Gold |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, +12 V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +3.3V – 22 A +5V – 22 A +12V – 70.83 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x power 8 pin EPS12V 3 x 8 pin PCI Express power with detachable 2 pin section 1 x 16 pin PCI Express power 12 x 15 pin Serial ATA power 4 x 4 PIN internal power |
Modular Cable Management | Yes |
Cooling System | 135 mm fan |
Included Accessories | 4 screws |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 16 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
PSU Form Factor | ATX |
Colour | Black |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x power 8 pin EPS12V 3 x 8 pin PCI Express power with detachable 2 pin section 1 x 16 pin PCI Express power 12 x 15 pin Serial ATA power 4 x 4 PIN internal power |
Output Voltage | +3.3, +5, +12 V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +3.3V – 22 A +5V – 22 A +12V – 70.83 A +5VSB – 3 A |
Efficiency | 89.2% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
Included Accessories | 4 screws |
|---|---|
Cables Included | AC power cable Power 24 pin ATX with detachable 4 pin section modular cable 60 cm Power 8 pin +12V with detachable 4 pin section modular cable 70 cm Power 8 pin EPS12V modular cable 70 cm 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm 16-pin 12VHPWR power modular cable 65 cm 3 x 15 pin Serial ATA power modular cable 65 cm 4 pin power modular cable 65 cm |
MTBF | 100,000 hours |
Cooling System | 135 mm fan |
Features | Fully modular, fluid dynamic bearing cooling fan, Zero RPM fan mode, over voltage protection, undervoltage protection, short-circuit protection, overheat protection, overpower protection, over current protection |
Compliant Standards | FCC, CB, IEC 62368-1, UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 50 °C |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 16 cm |
Height | 8.6 cm |
