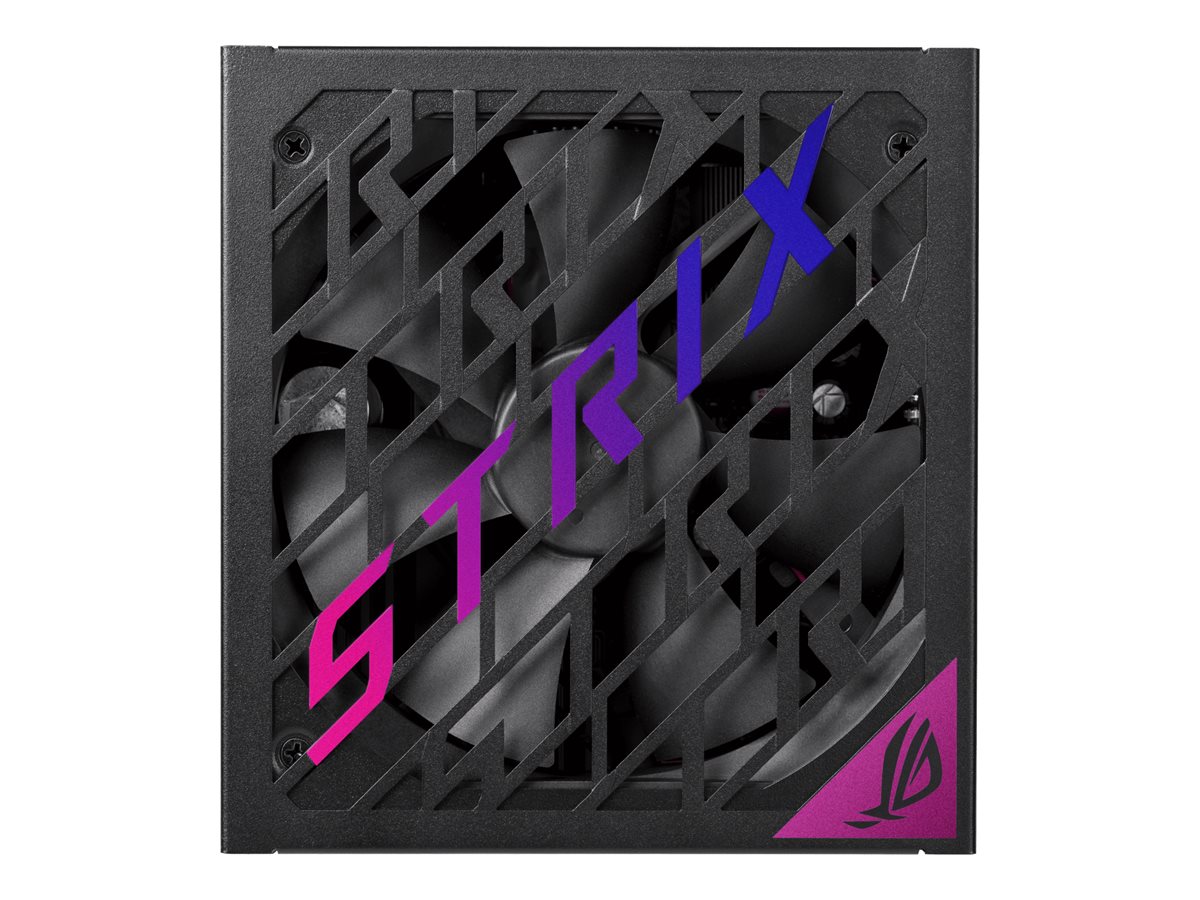

ASUS ROG Strix, Power supply (internal), ATX12V 3.1/ EPS12V, 80 PLUS Platinum, AC 100-240 V, 1200 Watt, active PFC
$472.07 inc GST
✓ In Stock - 2 available
✓ Free NZ Delivery
2 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The ROG Strix 1000 W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.
- Built to run cool
- Heart of gold
- Outshine the competition
- Built to run cool
The ROG Strix 1000 W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise. - Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability. - Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 1000 W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
Main Specifications
Product Description | ASUS ROG Strix – power supply – 1200 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V |
80 PLUS Certification | 80 PLUS Platinum |
Weight | 2.94 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Power Capacity | 1200 Watt |
Output Current | +3.3V – 25 A +5V – 20 A +12V – 100 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 4 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power |
Modular Cable Management | Yes |
Included Accessories | ROG Strix DIY sticker |
Dimensions (WxDxH) | 15 cm x 16 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V |
PSU Form Factor | ATX |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Power Output Connectors Details | 1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 4 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Power Capacity | 1200 Watt |
Output Current | +3.3V – 25 A +5V – 20 A +12V – 100 A -12V – 0.3 A +5VSB – 3 A |
Efficiency | 89% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Platinum |
Miscellaneous
Included Accessories | ROG Strix DIY sticker |
|---|---|
Cables Included | AC power cable Power 24 pin ATX with detachable 4 pin section modular cable 61 cm 2 x power 8 pin +12V with detachable 4 pin section modular cable 1 m 16-pin 12VHPWR power cable 75 cm 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm 2 x 15 pin Serial ATA power modular cable 64 cm 4 pin power modular cable 70 cm |
MTBF | 120,000 hours |
Features | Fully modular, overpower protection, over voltage protection, undervoltage protection, short-circuit protection, over current protection, overheat protection, 0dB fan button, ROG heatsink, dual ball bearing cooling fan |
Compliant Standards | RoHS |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 16 cm |
Height | 8.6 cm |
Weight | 2.94 kg |
