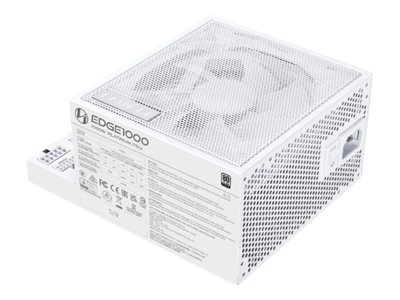

Lian Li Edge 1000, Power supply (internal), ATX12V 3.1, 80 PLUS Platinum, Cybenetics Platinum, AC 100-240 V, 1000 Watt, active PFC, white
$349.02 inc GST
✓ In Stock - 3 available
✓ Free NZ Delivery
3 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The Lian Li Edge 1000 power supply offers a reliable solution for powering high-performance systems. With a total power output of 1000 W, it supports a variety of components, ensuring stable energy distribution across your setup. The sleek L-shaped design and steel housing provide durability and a modern aesthetic for any build. This power supply is equipped with fully modular cables for efficient cable management and a cleaner look inside the case. The inclusion of premium features such as overheat protection, short-circuit protection, and a Zero RPM fan mode enhances functionality, ensuring quieter operation under low loads. With certifications from multiple standards, the Lian Li Edge 1000 power supply is a reliable choice for any gaming or workstation configuration.
- 1000 W of power output for stable performance
- Fully modular cables for efficient cable management
- Equipped with multiple safety features including overheat and short-circuit protection
- L-shaped design with durable steel housing
- Zero RPM fan mode for quiet operation
Main Specifications
Product Description | Lian Li Edge 1000 – power supply – 1000 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1 |
80 PLUS Certification | 80 PLUS Platinum |
Cybenetics Certification | Cybenetics Platinum |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Power Capacity | 1000 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 83 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V 1 x power 8 pin +12V with detachable 4 pin section 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 12V 2×6 PCIE 5.1 3 x 15 pin Serial ATA power 1 x 4 PIN internal power 1 x 9 pin USB header 1 x 9 pin USB Type A |
Modular Cable Management | Yes |
Cooling System | 120 mm fan |
Included Accessories | Cable bag, power cord |
Colour | White |
Dimensions (WxDxH) | 15 cm x 18.2 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1 |
PSU Form Factor | ATX |
Colour | White |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V 1 x power 8 pin +12V with detachable 4 pin section 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 12V 2×6 PCIE 5.1 3 x 15 pin Serial ATA power 1 x 4 PIN internal power 1 x 9 pin USB header 1 x 9 pin USB Type A |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Power Capacity | 1000 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 83 A -12V – 0.3 A +5VSB – 3 A |
Efficiency | 92.3% |
Power Factor (PF) | 0.9 |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Platinum |
Cybenetics Certification | Cybenetics Platinum |
Miscellaneous
Included Accessories | Cable bag, power cord |
|---|---|
Cooling System | 120 mm fan |
Features | L-shaped, sleeved cables, steel housing, fully modular, built-in 4 port USB hub, over current protection, over voltage protection, short-circuit protection, overpower protection, overheat protection, Surge & Inrush Protection (SIP), no load operation protection, fluid dynamic bearing cooling fan, gold-plated terminals, Multi-GPU Technologies Supported, Zero RPM fan mode |
Compliant Standards | NMB-003 Class B, CAN ICES-3 Class B, FCC, CCC, UKCA, EAC, TUV Rheinland, EN IEC 62368-1:2020+A11:2020, RoHS, IC, RCM, PCIe 5.1 |
Environmental Parameters
Sound Emission | 25.96 dB |
|---|
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 18.2 cm |
Height | 8.6 cm |
