Description
The Hikvision EZVIZ H80X is designed for outdoor surveillance, capable of operating in extreme temperatures ranging from -30°C to 50°C. With a weatherproof protection rating of IP65, this camera withstands the elements while delivering high-quality 4K video resolution. Dual lens technology enhances image capture, ensuring clarity even in low light conditions with a minimum illumination of just 0.01 lux. Intelligent features, including auto tracking, vehicle shape detection, and human shape detection, make it a versatile choice for security needs. The built-in siren and strobe light offer an added layer of security, enabling proactive alerts to potential threats. IoT compatibility allows integration with Google Assistant and Alexa, providing users with control options. Support for various encryption algorithms, including AES and WPA2, ensures data security. The Smart H80X also includes two-way audio capability for direct communication through the camera, enhancing remote monitoring. Its advanced motion detection feature ensures that any activity is captured and recorded, making the Hikvision EZVIZ H80X a reliable choice for surveillance.
- 4K digital video resolution for detailed image capture
- Dual lens system enhances surveillance capabilities
- Weatherproof design suitable for outdoor use
- IoT compatibility with Google Assistant and Alexa
- Multiple intelligent detection features for heightened security
- Robust outdoor performance
With an operating temperature range of -30°C to 50°C, this surveillance camera maintains functionality in extreme weather, making it suitable for diverse environments. - High-definition video quality
The 3840 x 2160 resolution delivers clear imagery, allowing users to capture and review critical details from their surveillance feeds. - Advanced detection capabilities
Features like vehicle shape detection and human shape detection ensure that relevant movements are captured, while auto tracking follows subjects automatically. - Integrated audio support
Equipped with a built-in microphone and speaker, this camera facilitates two-way audio communication for enhanced interaction. - Reliable security features
The built-in siren and strobe light provide immediate alerts to potential threats, while multiple encryption standards protect data integrity.
What’s in the Box
- EZVIZ H80X
- Power adapter, screw kit, drill hole template, waterproof kit
Main Specifications
Product Description | EZVIZ H80X – network surveillance camera – turret |
Device Type | Network surveillance camera – pan / tilt – turret – outdoor – weatherproof |
Audio | Yes: two-way audio capability, built-in speaker, built-in microphone |

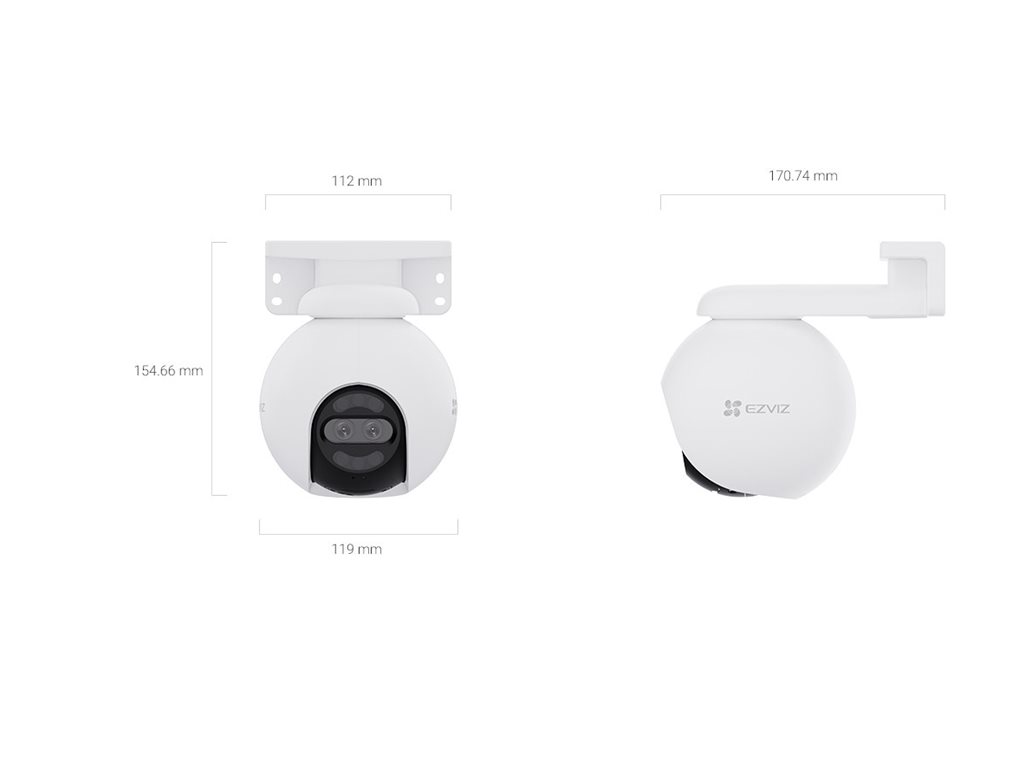

Dimensions (WxDxH) | 11.2 cm x 17 cm x 15.4 cm |
Weight | 630 g |
Connectivity Technology | Wireless, wired |
Camera | Colour – Day&Night |
Max Resolution | 3840 x 2160 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Video Modes | 4K |
Optical Sensor Type | 1 x Progressive Scan CMOS – 1/2.7″ 1 x Progressive Scan CMOS – 1/2.9″ |
Lens System | 1 x 4 mm – M12 mount – f/1.6 1 x 4 mm – M12 mount – f/1.0 |
Minimum Illumination | 0.01 lux – colour – F1.0 – AGC on 0 lux – IR |
Panning Range (degree) | 340 |
Tilting Range (degree) | 70 |
Interfaces | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet 10Base-T/100Base-TX |
Intelligent Assistant | Google Assistant, Alexa |
Voltage | DC 12 V |
Features | Self-adaptive shutter, infrared-cut filter, auto-switching, 3D digital noise reduction (DNR), Digital Wide Dynamic Range (D-WDR), Backlight Compensation (BLC), human shape detection, vehicle shape detection, customised alert area, auto tracking, anti-flicker, dual-stream, heart beat, password protection, watermark, dual lens, built-in siren, built-in strobe light |
Environmental Parameters (operating) | -30 °C – 50 °C; 0 – 95% (non-condensing) relative humidity |
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: two-way audio capability, built-in speaker, built-in microphone |
|---|
Form Factor | Turret |
|---|
Connectivity Technology | Wireless, wired |
|---|
Width | 11.2 cm |
|---|
Depth | 17 cm |
|---|
Height | 15.4 cm |
|---|
Weight | 630 g |
|---|
Camera
Type | Colour – Day&Night – pan / tilt – outdoor – weatherproof |
|---|
Digital Video Format | H.265, H.264 |
|---|
Max Digital Video Resolution | 3840 x 2160 |
|---|
Motion Detection | Yes |
|---|
Video Modes | 4K |
|---|
Minimum Illumination | 0.01 lux – colour – F1.0 – AGC on 0 lux – IR |
|---|
Infrared LEDs | Yes |
|---|
Infrared Distance | 30 m |
|---|
Digital Video Capture Resolution | 3840 x 2160 |
|---|
Frame Rate (max) | 30 frames per second |
|---|
Features | Self-adaptive shutter, infrared-cut filter, auto-switching, 3D digital noise reduction (DNR), Digital Wide Dynamic Range (D-WDR), Backlight Compensation (BLC), human shape detection, vehicle shape detection, customised alert area, auto tracking, anti-flicker, dual-stream, heart beat, password protection, watermark, dual lens, built-in siren, built-in strobe light |
|---|
Image Sensor
Type | 1 x Progressive Scan CMOS 1/2.7″ 1 x Progressive Scan CMOS 1/2.9″ |
|---|
Lens Construction
Lens System | 1 x 4 mm – M12 mount – f/1.6 – 87° (H) / 46° (V) / 103° (D) 1 x 4 mm – M12 mount – f/1.0 – 87° (H) / 46° (V) / 103° (D) |
|---|
Panning
Tilting
Interfaces
Network Interface | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet 10Base-T/100Base-TX |
|---|
Network Protocols | TLS |
|---|
Expansion / Connectivity
Ports | LAN – RJ-45 |
|---|
Supported Memory Cards | microSD Card |
|---|
Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA2, WPA, WPA2-PSK, WPA-PSK, AES, TLS |
|---|
Miscellaneous
Included Accessories | Drill hole template, screw kit, waterproof kit |
|---|
Compliant Standards | UL, RoHS, WEEE, REACH, IP65 |
|---|
Power
Power Requirements | DC 12 V – 1 A |
|---|
Power Device | Power adapter – external 12 Watt |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Intelligent Assistant | Google Assistant, Alexa |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 17.6 cm |
|---|
Shipping Depth | 20.5 cm |
|---|
Shipping Height | 19.4 cm |
|---|
Shipping Weight | 1.035 kg |
|---|
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Relative Humidity (operating) | 0 – 95% (non-condensing) |
|---|
