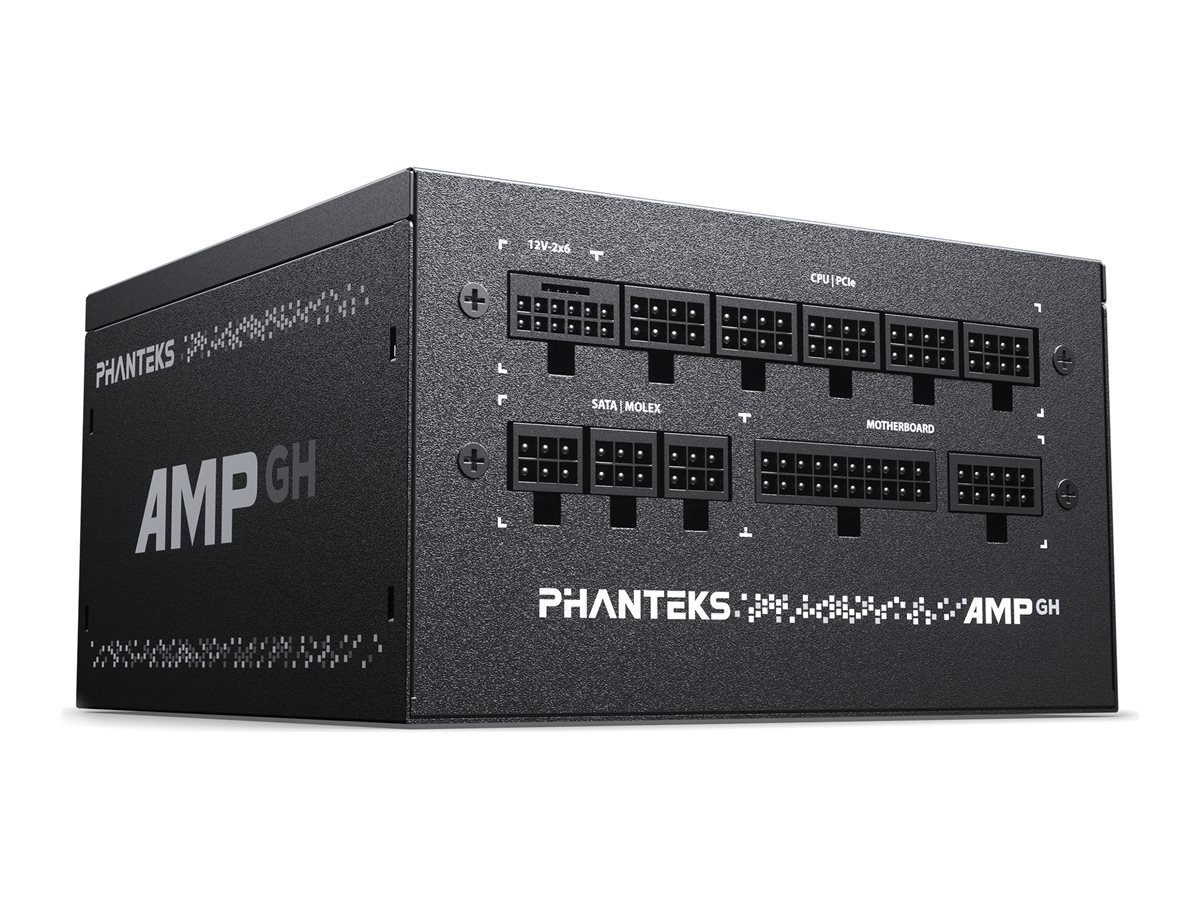

Phanteks AMP GH 850, Power supply (internal), fully modular, ATX12V 3.1, 80 PLUS Gold, AC 100-240 V, 850 Watt, black
$211.66 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The Phanteks AMP GH 850 power supply offers reliable performance for both PC and server applications. With a long mean time between failure (MTBF) of 100,000 hours, this power supply is engineered for durability and continuous operation. It supports an input voltage range of AC 100-240 V, making it versatile for various setups.
- Compatible with PC and server systems
- 80 PLUS Gold certified for energy efficiency
- High reliability with 100,000 hours MTBF
- Wide voltage range for global usage
- Efficient energy management
With an 80 PLUS Gold certification, the Phanteks AMP GH 850 ensures efficient energy usage, helping to reduce electricity costs while minimizing wasted power. - Long-lasting reliability
Designed with a mean time between failure of 100,000 hours, this power supply is built for durability and longevity in demanding environments. - Ultra-high power density, compact size
Ultra-high power density with a small footprint of only 140 mm depth. - Gold-plated high-current terminals
Reduces current transmission resistance for increased efficiency. - 120 mm hydraulic dynamic bearing fan
The hydraulic dynamic bearing (HDB) improves the lubrication of the bearing for increased stability and longevity. - Cable-free connection design
The back panel and PCB are connected by a copper plate to improve output power quality. - Multi-GPU support
Multiple 6-pin and 8-pin output connectors support all multi-GPU platforms.
Main Specifications
Product Description | Phanteks AMP GH 850 – power supply – fully modular – 850 Watt |
Device Type | Power supply – internal |
Specification Compliance | ATX12V 3.1 |
80 PLUS Certification | 80 PLUS Gold |
Weight | 1.4 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +12V – 70 A +5V – 20 A +3.3V – 20 A -12V – 0.3 A +5VSB – 2.5 A |
Output connectors | 1 x power 24 pin ATX 2 x power 8 pin +12V with detachable 4 pin section 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 12V 2×6 PCIE 5.1 3 x 6 pin Serial ATA power 1 x 6 pin Molex |
Modular Cable Management | Yes |
Cooling System | 120 mm fan |
Included Accessories | PSU bag, PSU tester, screw pack, cable bag, zip tie bag |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – internal |
|---|---|
Specification Compliance | ATX12V 3.1 |
PSU Form Factor | ATX |
Colour | Black |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX 2 x power 8 pin +12V with detachable 4 pin section 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 12V 2×6 PCIE 5.1 3 x 6 pin Serial ATA power 1 x 6 pin Molex |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +12V – 70 A +5V – 20 A +3.3V – 20 A -12V – 0.3 A +5VSB – 2.5 A |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
Included Accessories | PSU bag, PSU tester, screw pack, cable bag, zip tie bag |
|---|---|
Cables Included | Power cable (C13) – external – 1.5 m |
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Textured cables, fully modular, hydrodynamic bearing cooling fan, overpower protection, over voltage protection, undervoltage protection, short-circuit protection, over current protection, overheat protection, no load operation protection, reset protection, silent performance, Multi-GPU Technologies Supported, gold-plated terminals |
Compliant Standards | FCC Part 15, PCIe 5.1 |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.4 kg |
Dimensions & Weight (Shipping)
Shipping Weight | 3.2 kg |
|---|
