Description
For small to medium businesses, APC by Schneider Electric delivers a special category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high-quality UPS developed to handle a wide voltage range and inconsistent power conditions.
- Automatic internal bypass
- Automatic restart of loads after UPS shutdown
- ECO mode
- Input power factor correction
- Intelligent battery management
- LCD display
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault. - Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power. - ECO mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. - Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling. - Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precise charging. - LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Main Specifications

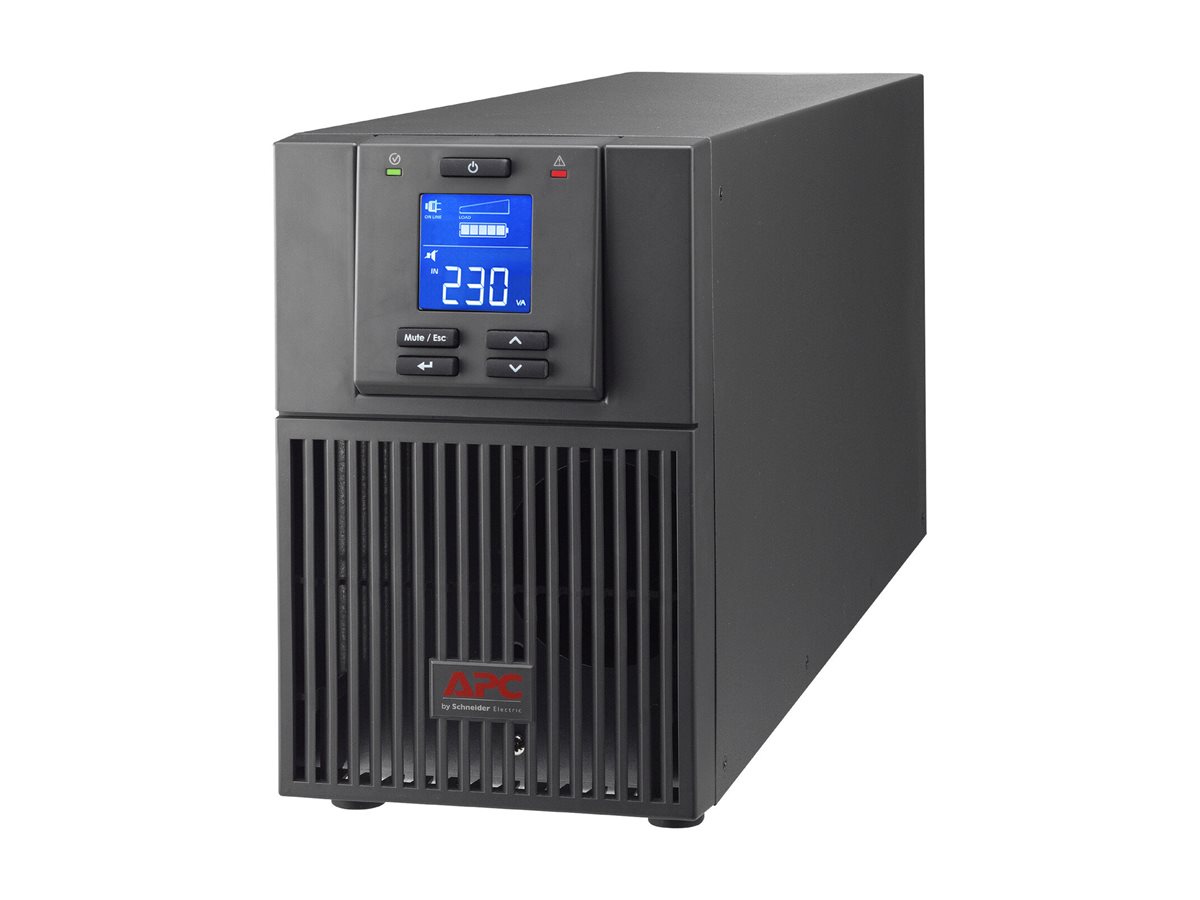

Product Description | APC Easy UPS SRV SRV1KIL – UPS – 800 watt – 1000 VA |
Device Type | UPS – external |
Weight | 4.4 kg |
Input Wiring | 1-phase |
Input Voltage | AC 220-240 V |
Output Voltage | AC 220/230/240 V ± 1% |
Power Capacity | 800 watt / 1000 VA |

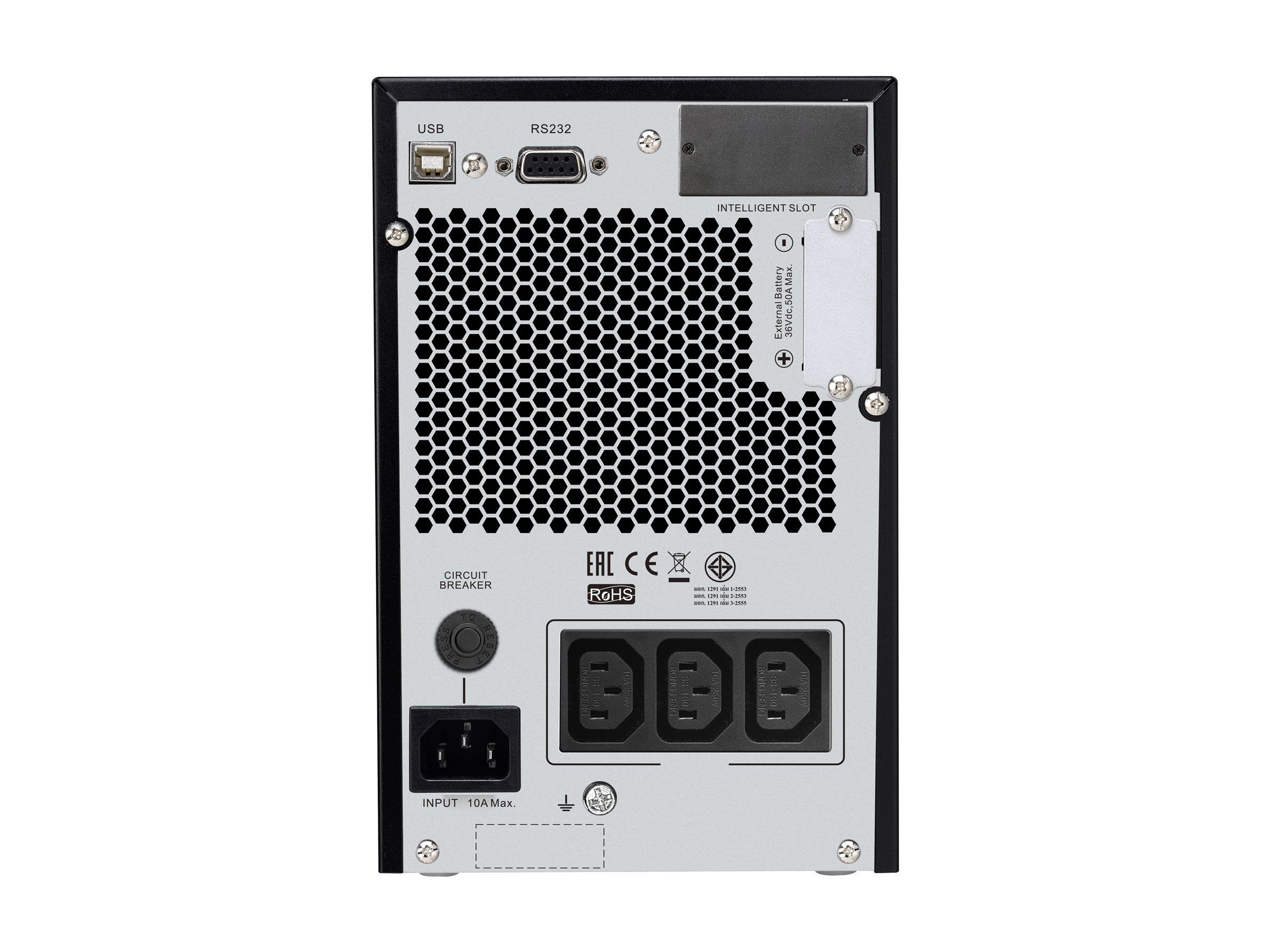

Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 3 x power IEC 60320 C13 |
Battery | Lead Acid |
Batteries Qty | 1 |
Networking | USB, RS-232 |

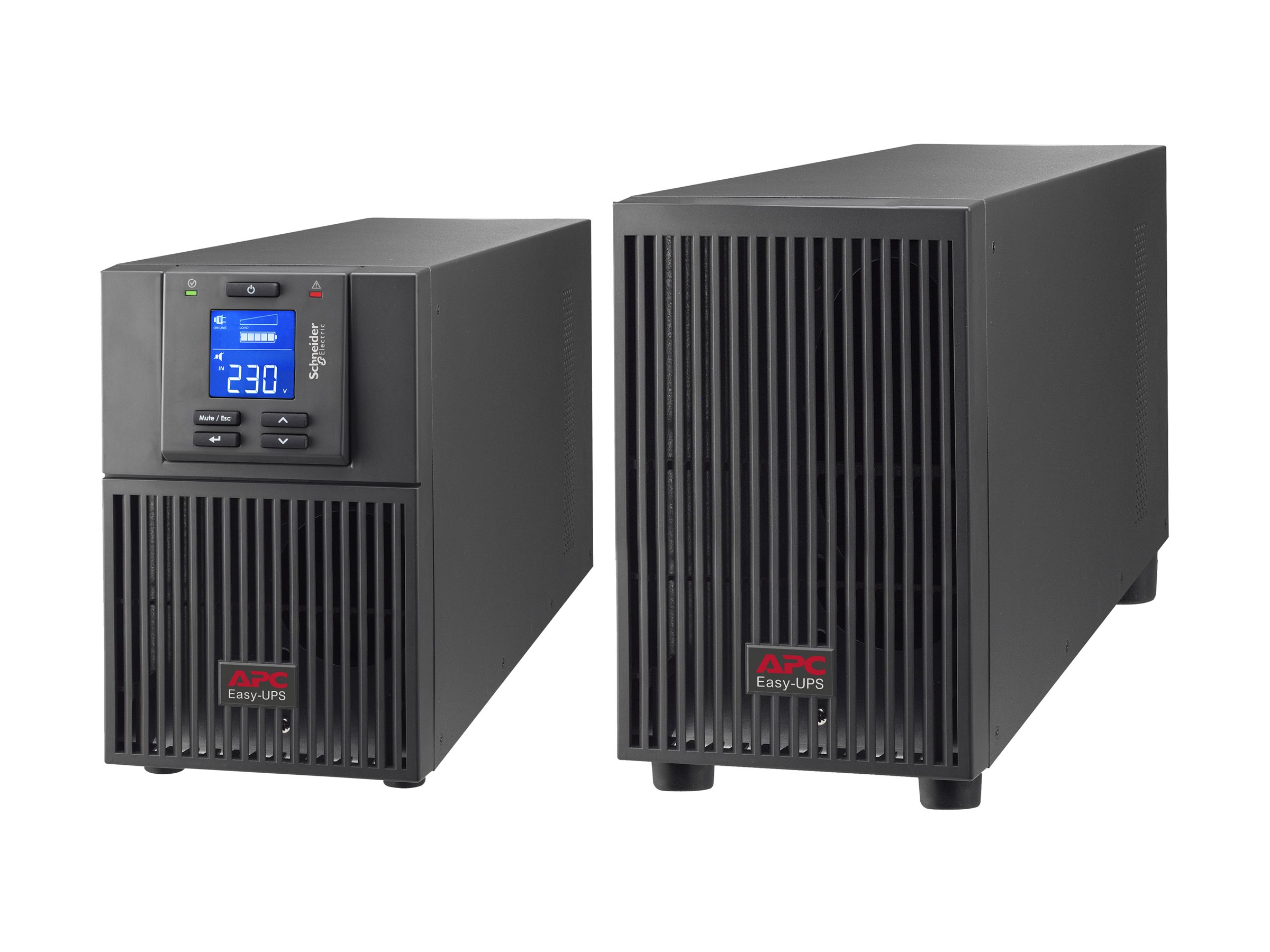

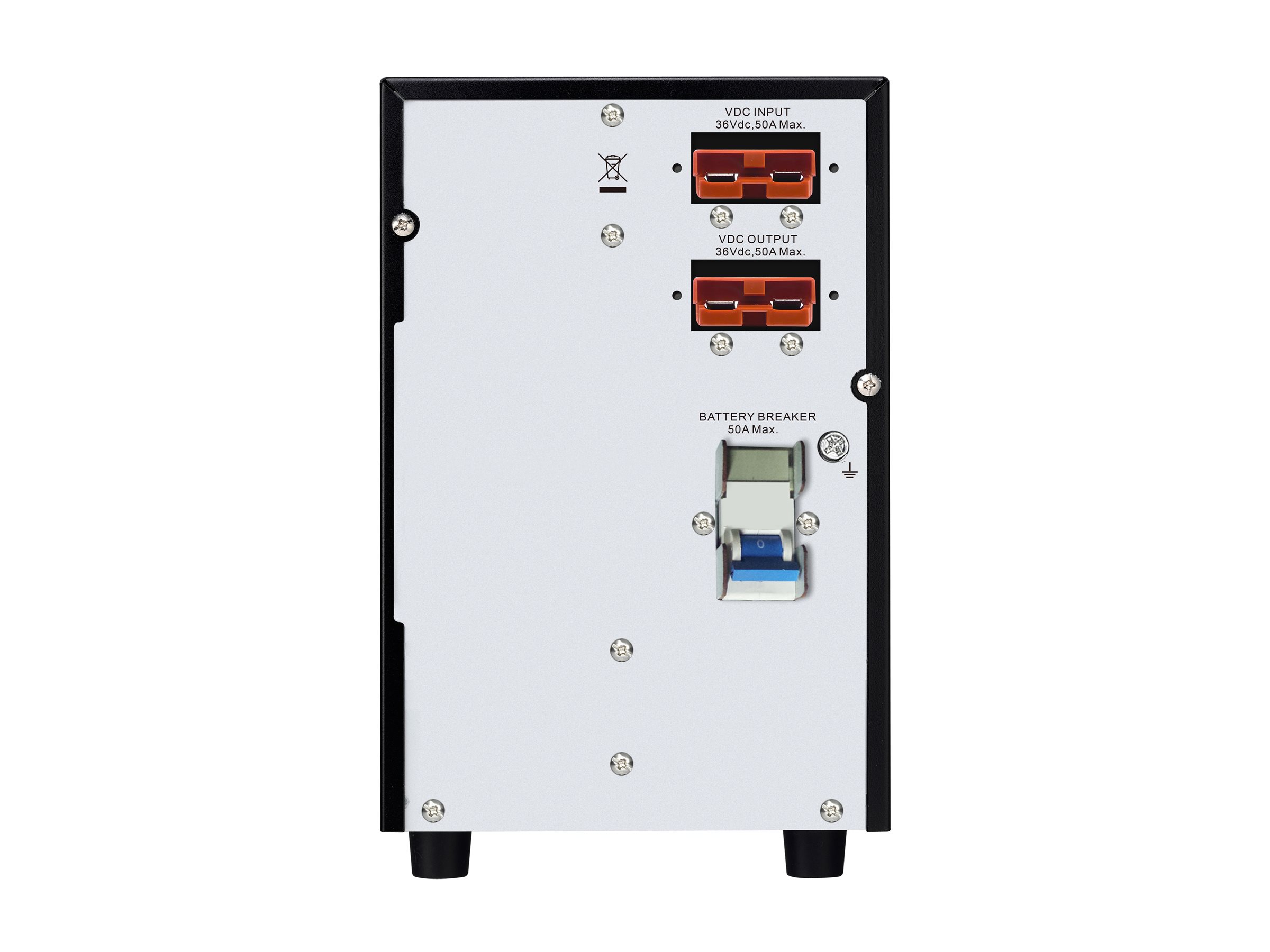

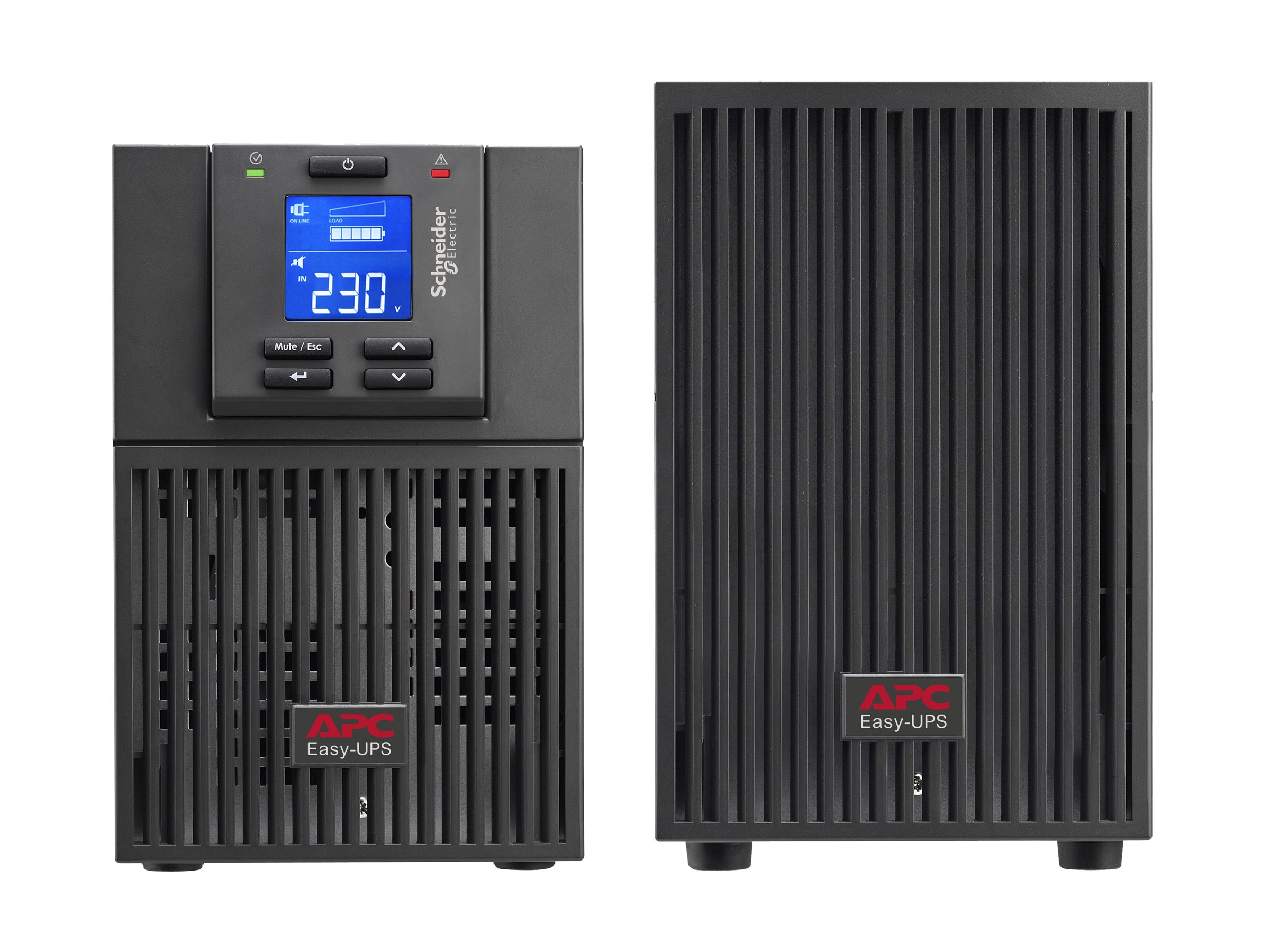

Included Accessories | External battery pack |
Dimensions (WxDxH) | 14.5 cm x 28.8 cm x 22.3 cm |
Extended Specifications
General
Device Type | UPS – external |
|---|
Power Device
UPS Technology | On-line |
|---|
Input Voltage | AC 220-240 V |
|---|
Input Voltage Range | AC 110 – 285 V |
|---|
Frequency Provided | 50/60 Hz ± 3Hz |
|---|
Input Wiring | 1-phase |
|---|
Frequency Required | 50/60 Hz |
|---|
Input Connectors | 1 x power IEC 60320 C14 |
|---|
Power Output Connectors Details | 3 x power IEC 60320 C13 |
|---|
Output Voltage | AC 220/230/240 V ± 1% – 50/60 Hz |
|---|
Power Capacity | 800 watt / 1000 VA |
|---|
Output Waveform | Sinewave |
|---|
Surge Energy Rating | 600 joules |
|---|
Circuit Protection | Circuit breaker |
|---|
Efficiency | 88% AC mode |
|---|
Power Factor (PF) | 0.95 |
|---|
Battery
Quantity | 1 |
|---|
Technology | Lead Acid |
|---|
Features | Sealed, maintenance free |
|---|
Networking
Remote Management Interface | USB, RS-232 |
|---|
Expansion / Connectivity
Interfaces | 1 x management (USB)
1 x management (RS-232) |
|---|
Miscellaneous
Included Accessories | External battery pack |
|---|
Features | LCD display, Eco-Mode, generator compatible, over voltage protection, internal bypass, firmware upgradable |
|---|
Software / System Requirements
Software Included | APC Easy Ups Online SNMP Shutdown Wizard |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 0 – 95% (non-condensing) |
|---|
Sound Emission | 50 dB |
|---|
Dimensions & Weight
Width | 14.5 cm |
|---|
Depth | 28.8 cm |
|---|
Height | 22.3 cm |
|---|
Weight | 4.4 kg |
|---|
