Description

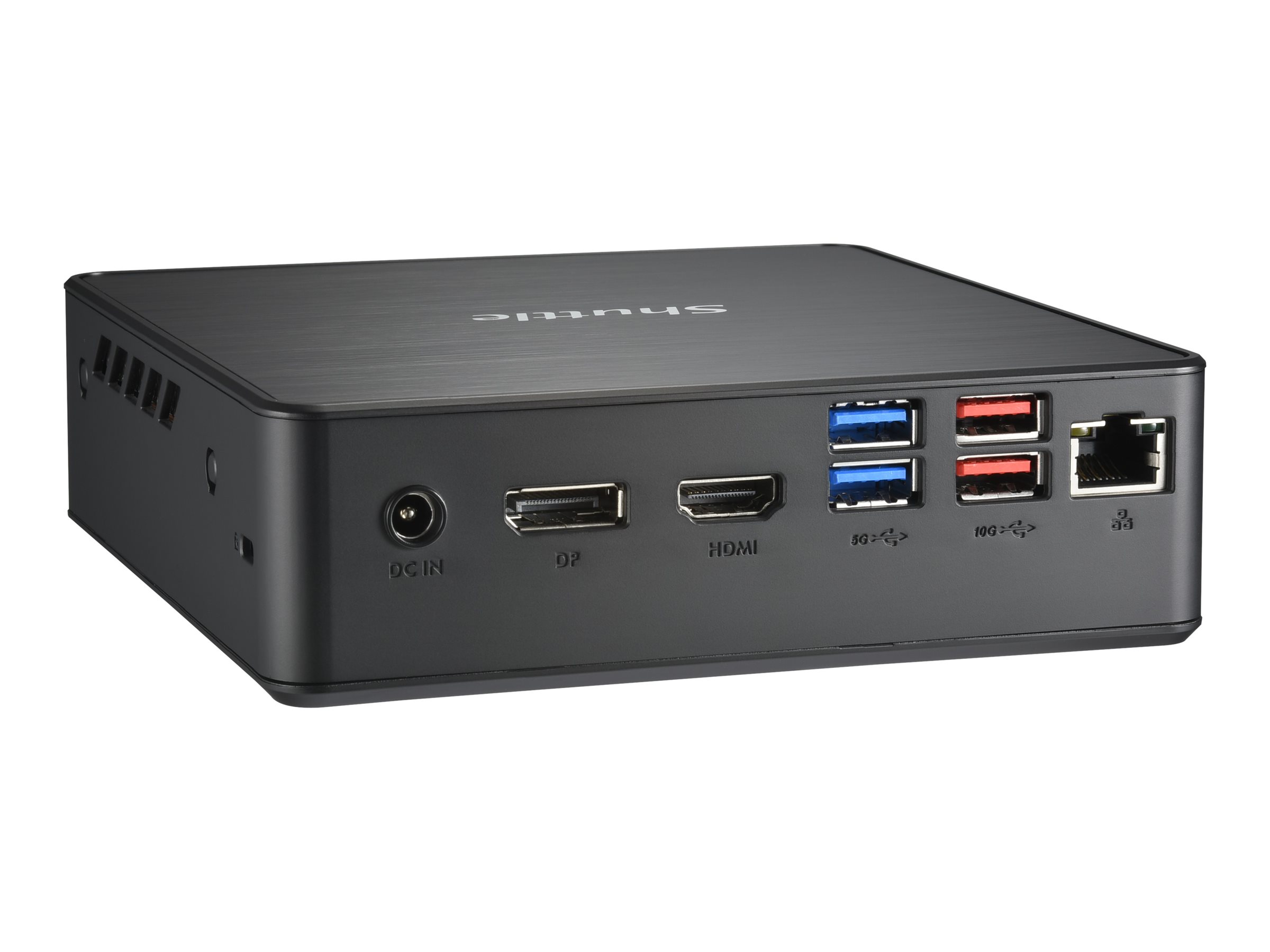

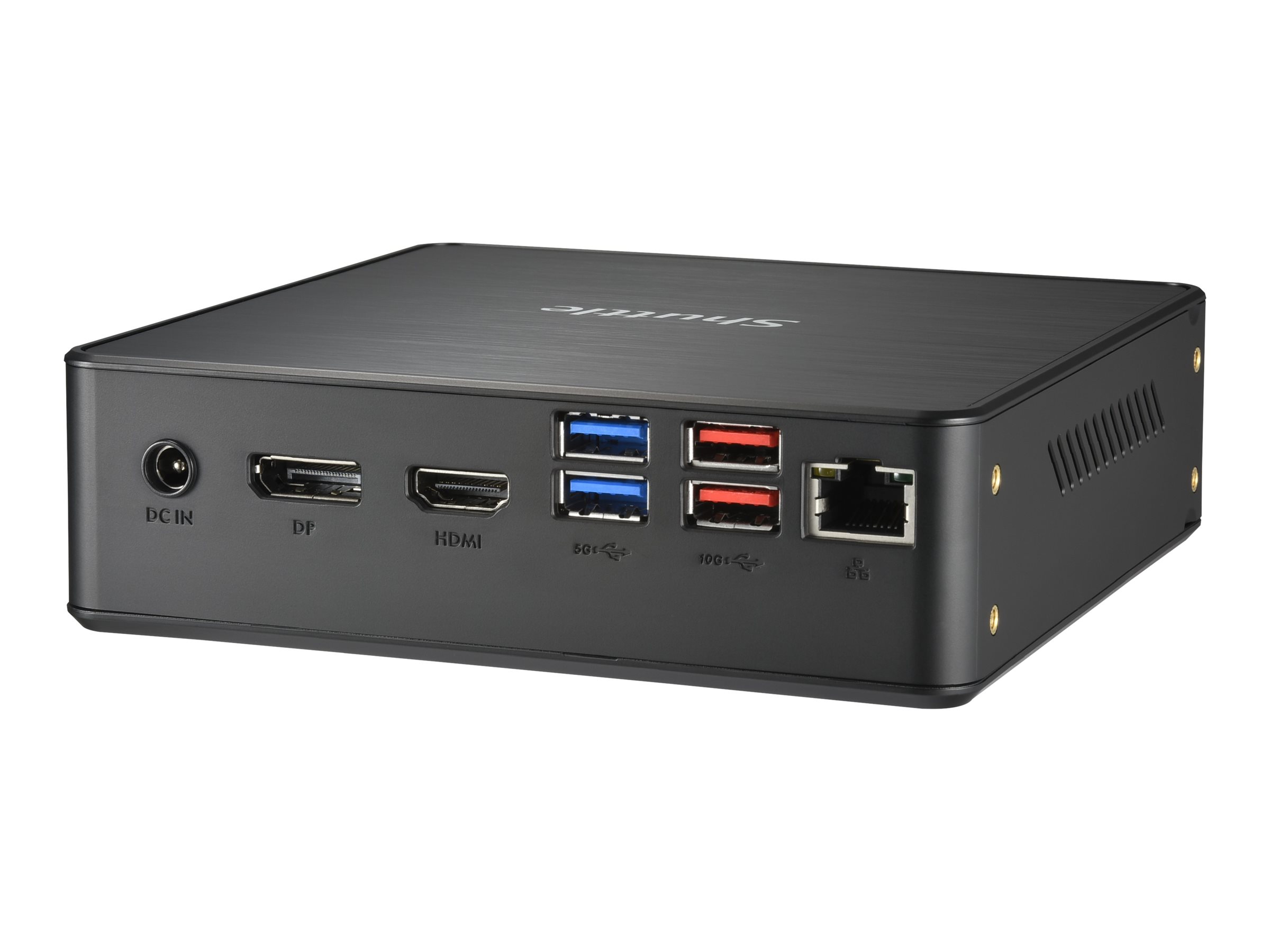

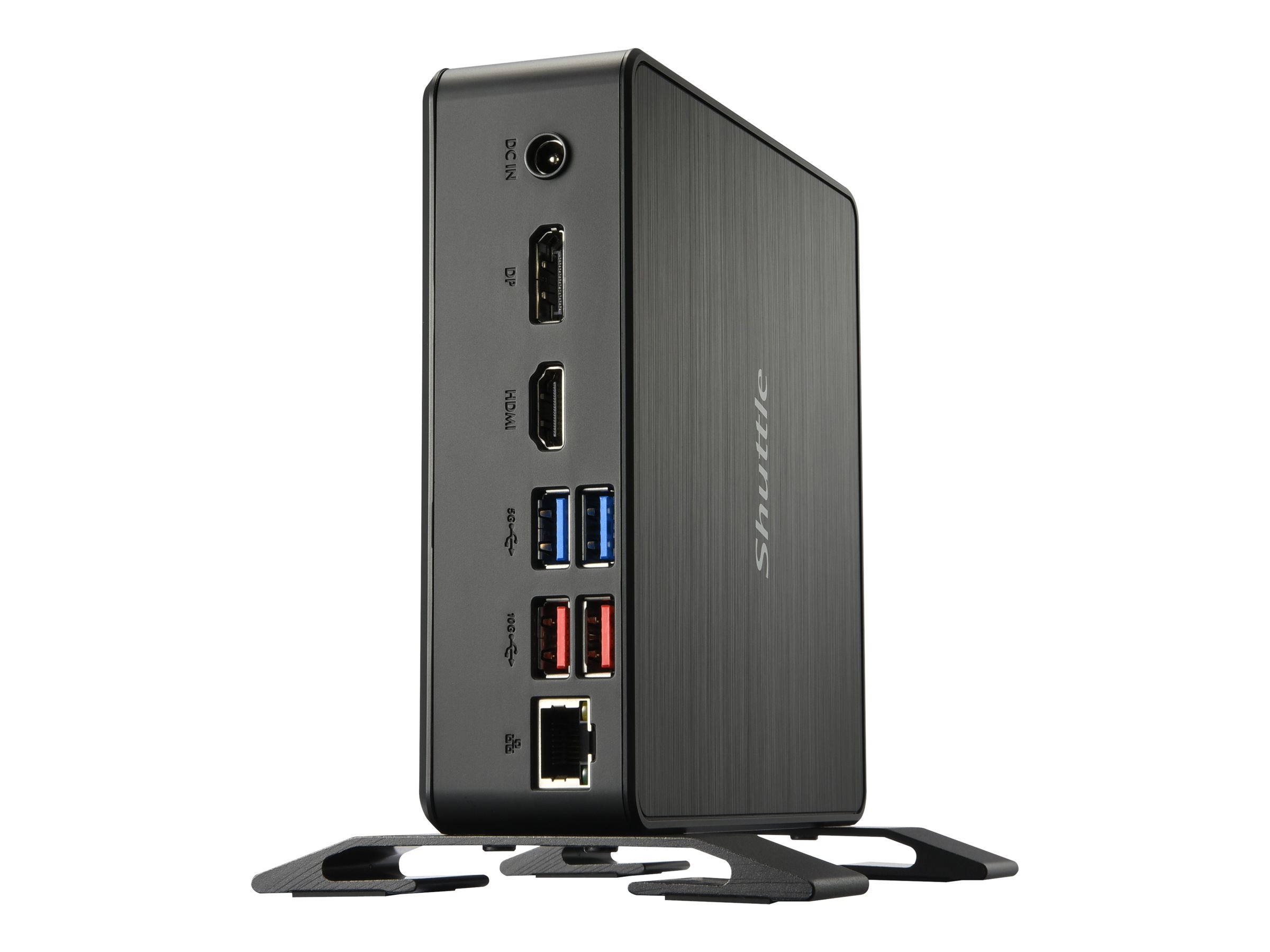

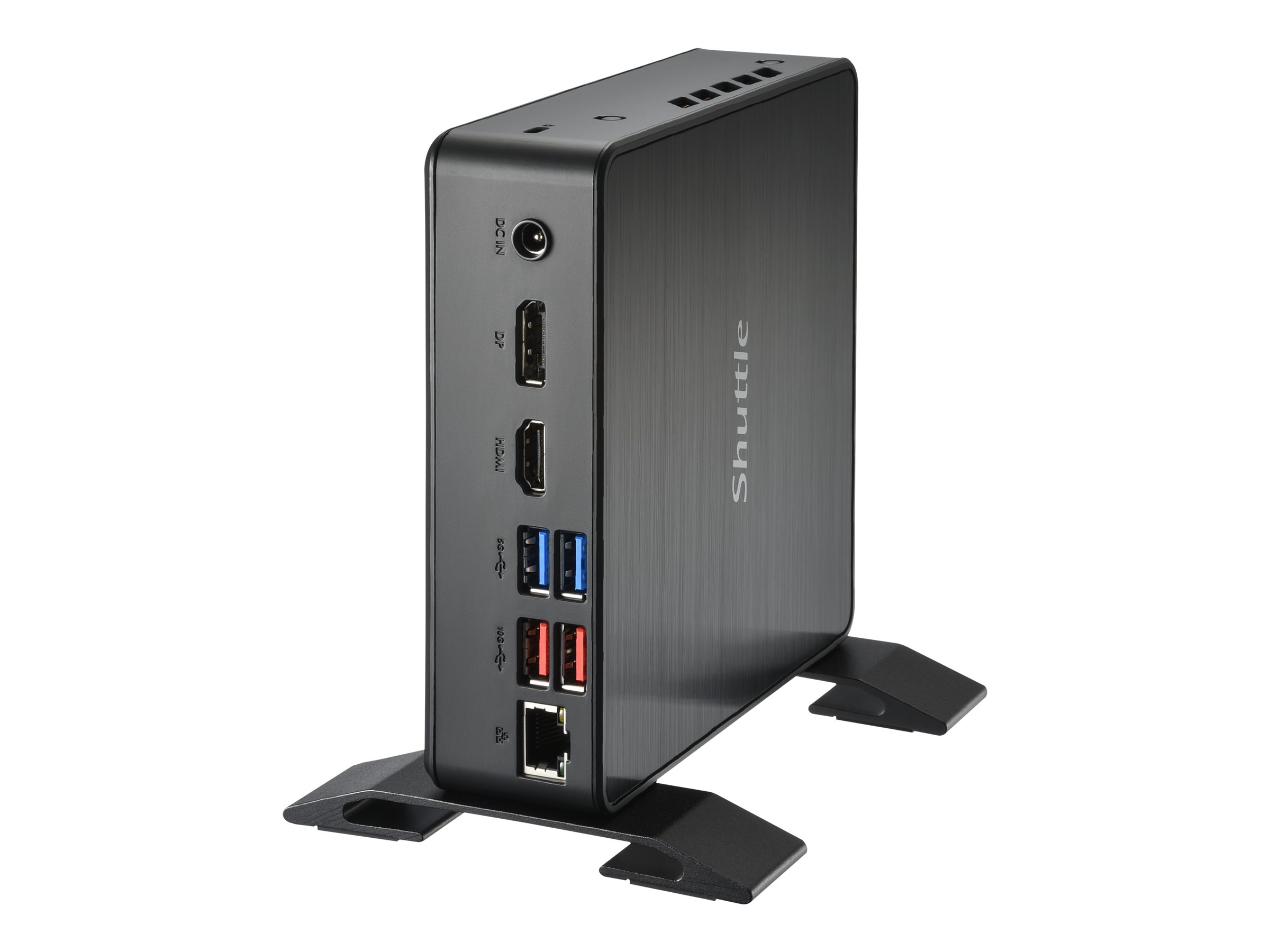

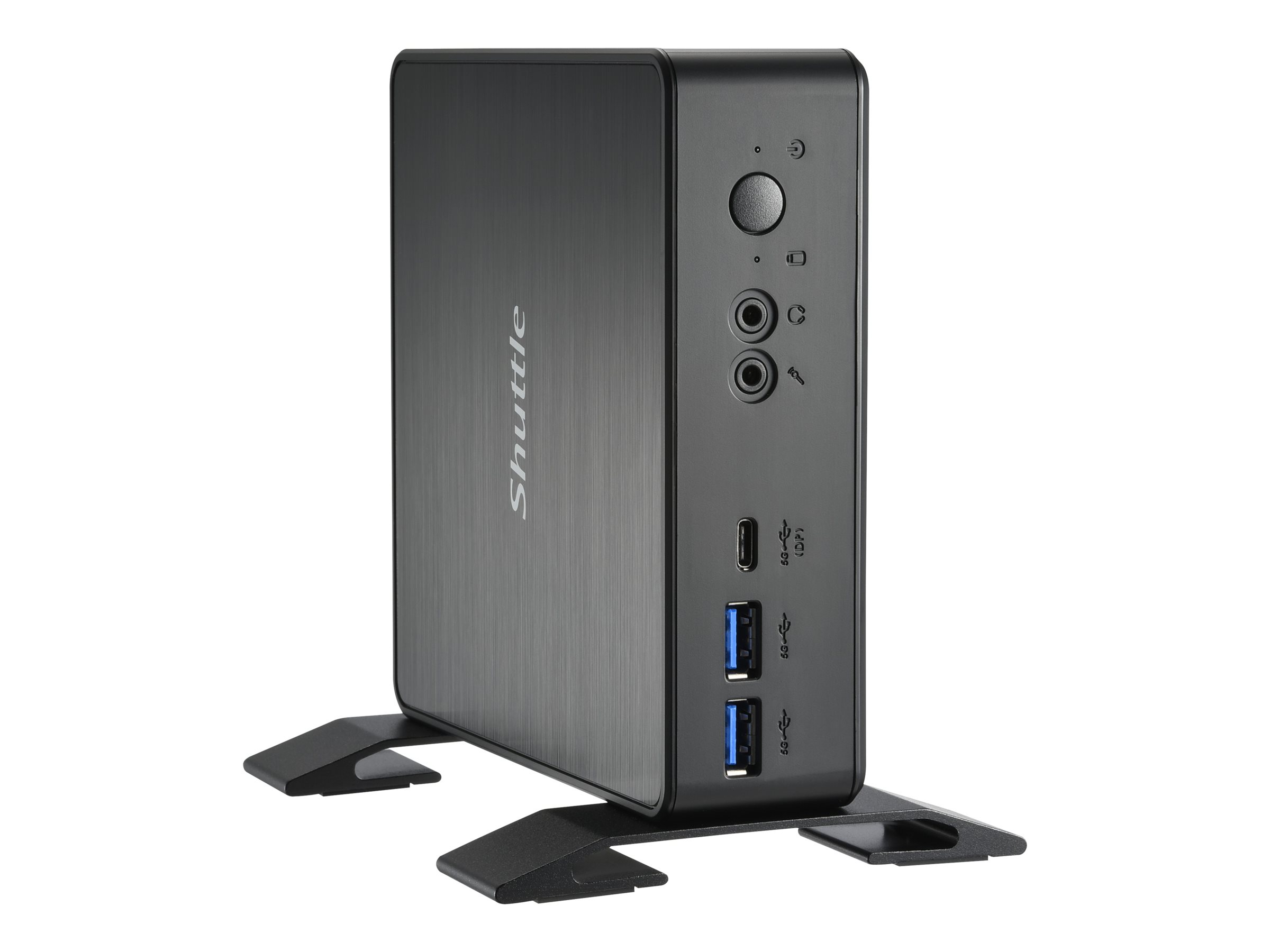

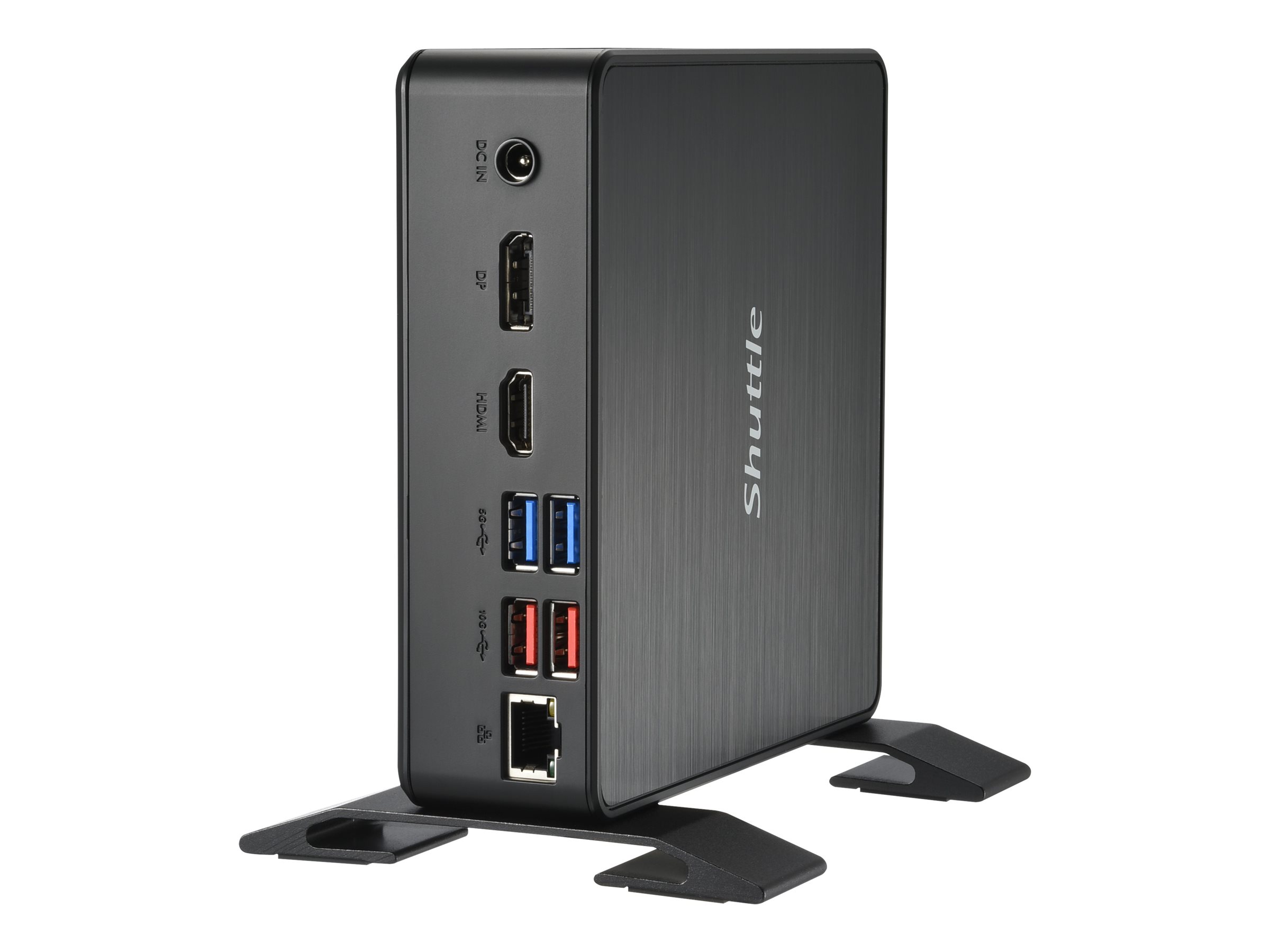

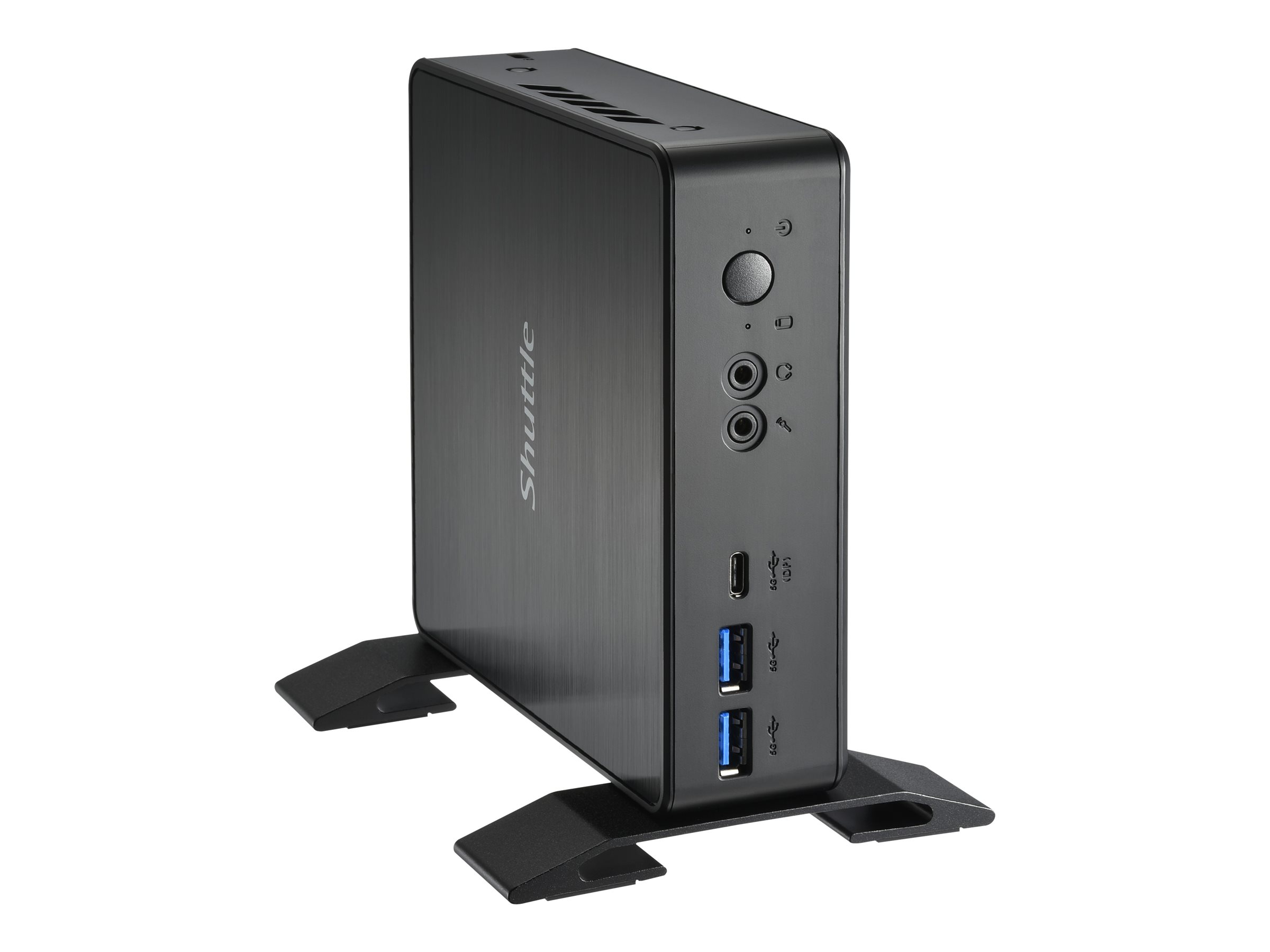

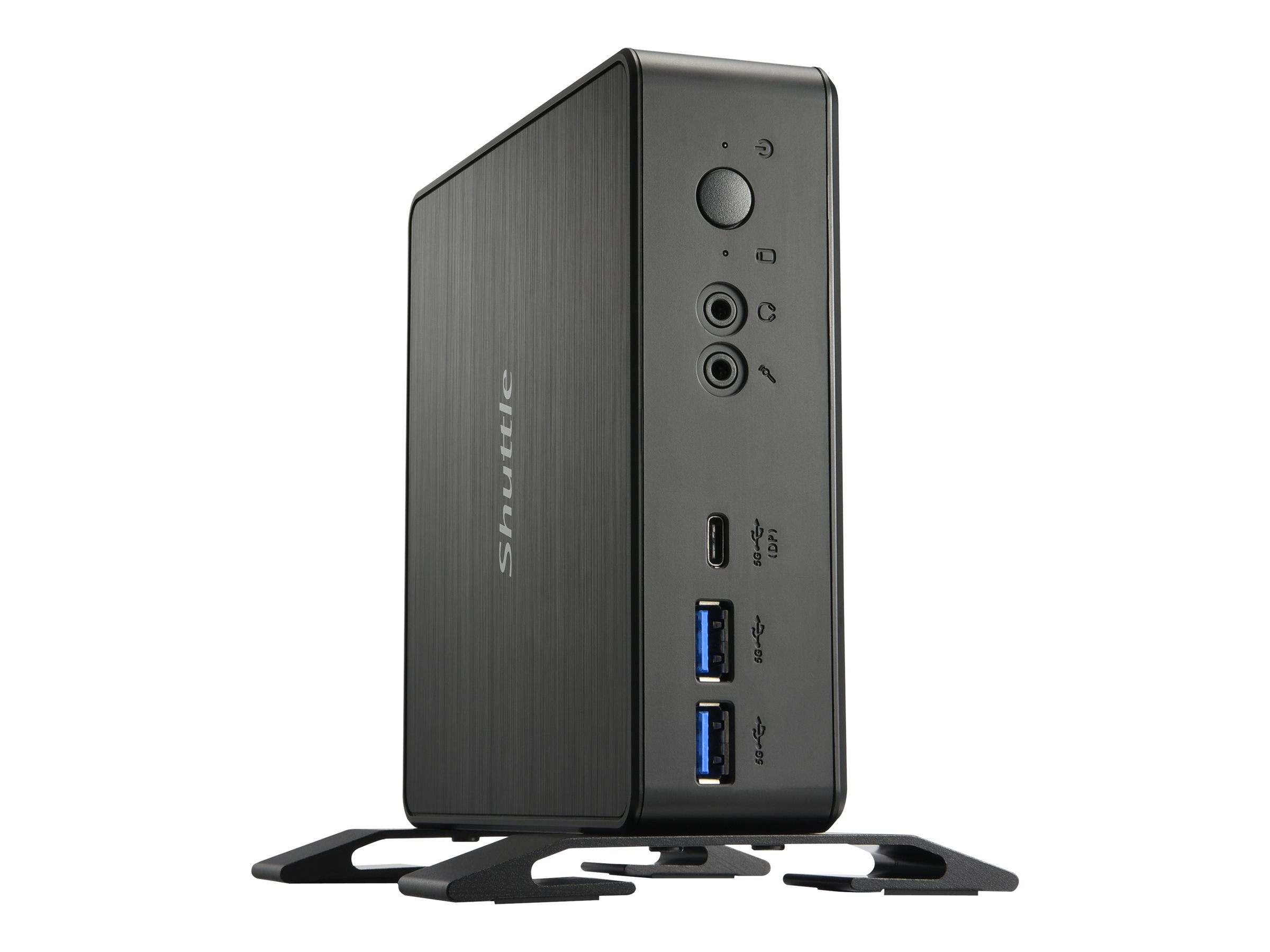

The NC40U series comes with powerful and efficient 12th generation Intel processor. Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60 Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5″ hard drive can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
- Stylish and absolutely small
- Seven USB 3.2 ports
- Supports two M.2 SSD cards and one 2.5″ drive
- Power On after Power fail
- Triple 4K display support
- Stylish and absolutely small

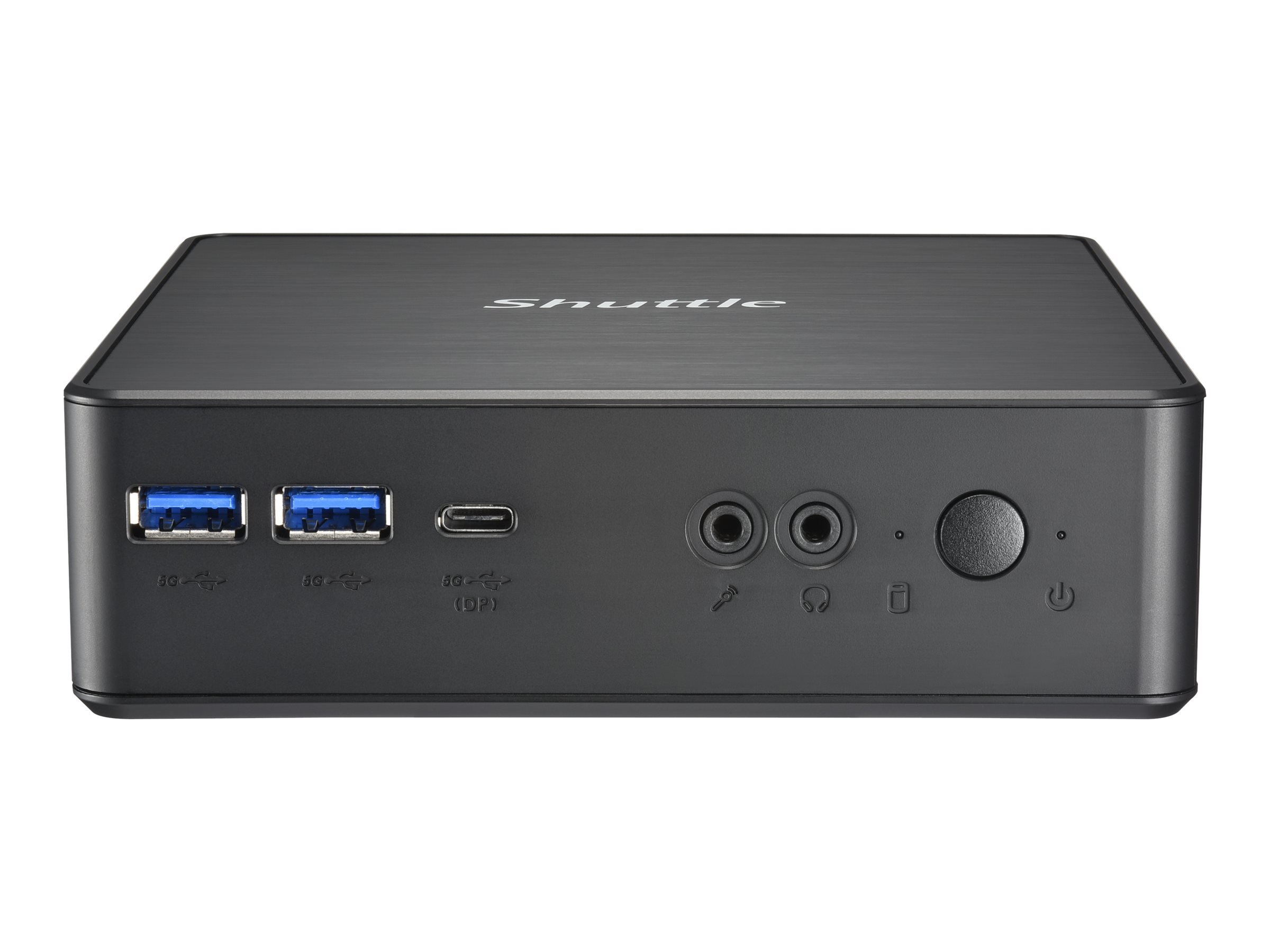

The black plastic case with its curves is certain to be the eye catcher on your desk. It may also be elegantly hidden behind monitors thanks to the supplied VESA mount. Despite its dinky dimensions, it provides generous connectivity options and even room for one 2.5 inch drive. - Seven USB 3.2 ports

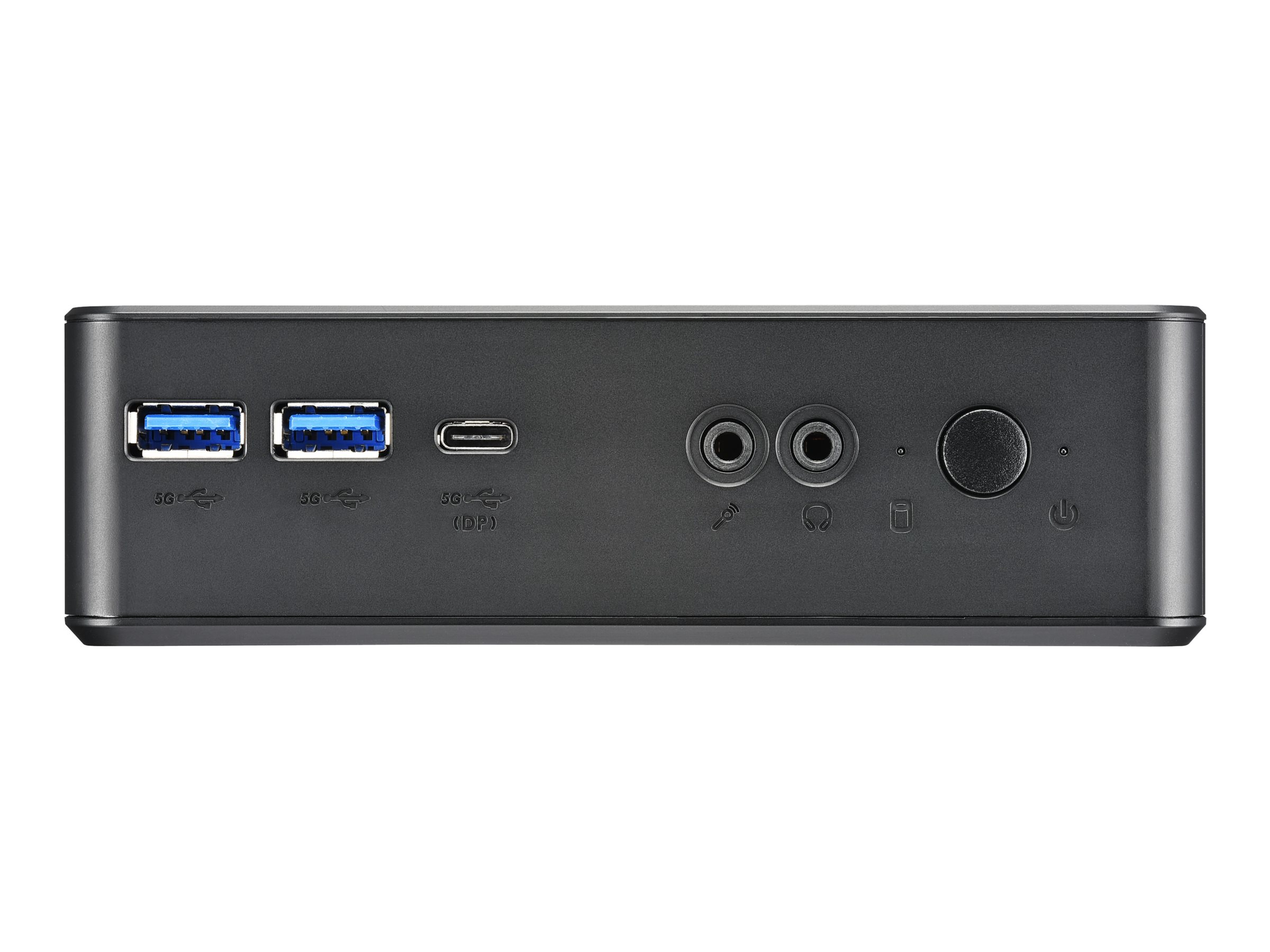

Up to 7 USB devices can be connected to the NC40U. The USB-C port can also be used as a DisplayPort. The red USB ports even support USB 3.2 Gen2 with up to 10 Gbit/s. - Supports two M.2 SSD cards and one 2.5″ drive
This nano PC has room for two SSD cards in M.2-2280 format with fast PCIe interface and NVMe support (one card with SATA is supported). Two self-adhesive thermal pads are included. NC40U also supports RAID 0/1 configuration for two M.2 PCIe SSDs thanks to the Intel Volume Management Device Technology (Intel VMD). - Power On after Power fail
The BIOS setup provides a “Power-On after Power Fail” function that can be found under “Power Management Configuration”. As the name indicates, this function determines the PC’s behavior after power failure: (1) unconditional power on, (2) restore former status, (3) keep system turned off, (4) Power-On by LAN or (5) Power-On by Real-Time-Clock. As a matter of the nature of this function, it may fail after short power failures. This is why the Shuttle XPC slim Barebone NC40U also comes with a hardware-based solution. By removing Jumper JP1 the system will start unconditionally once power is applied. - Triple 4K display support

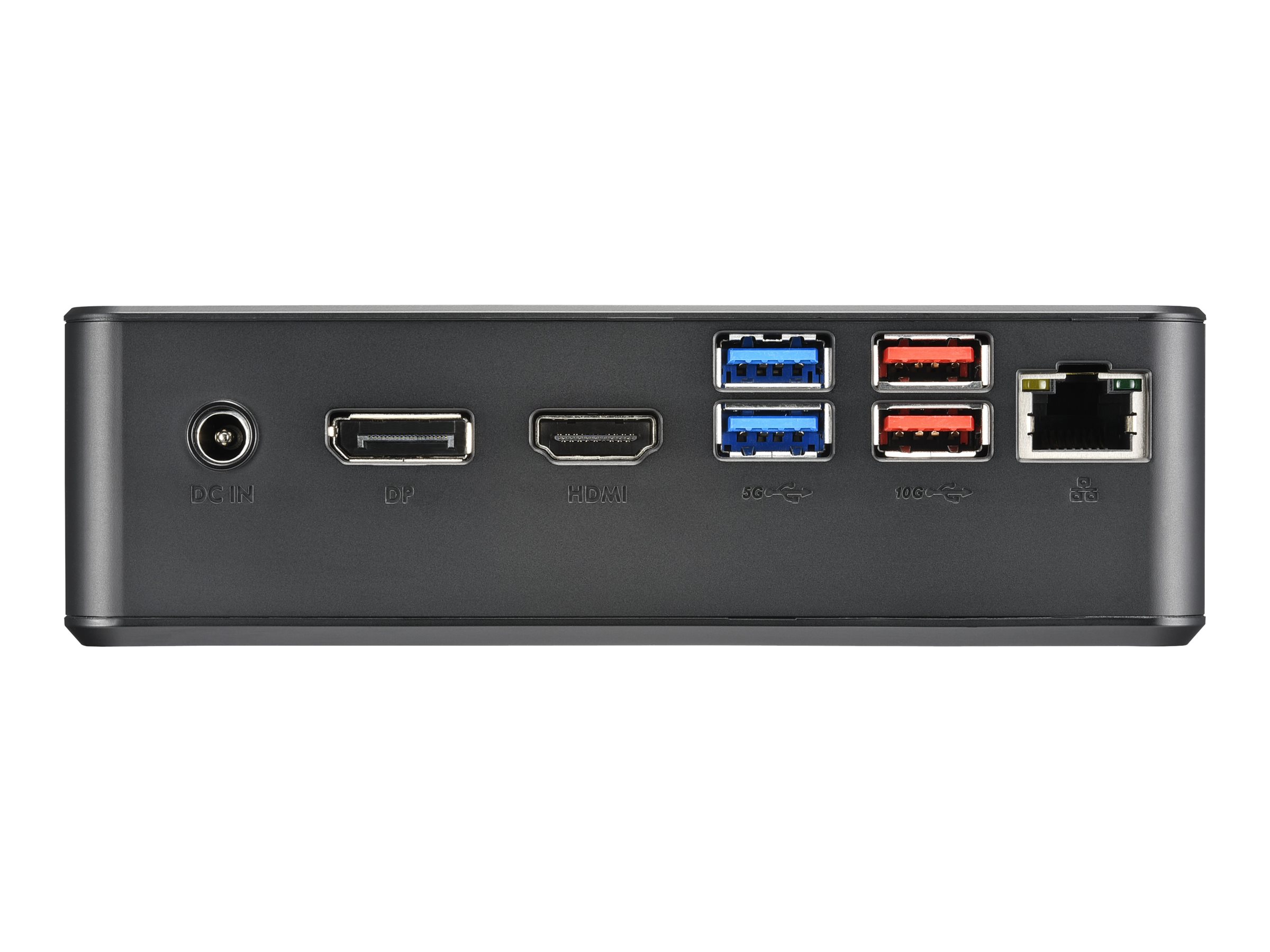

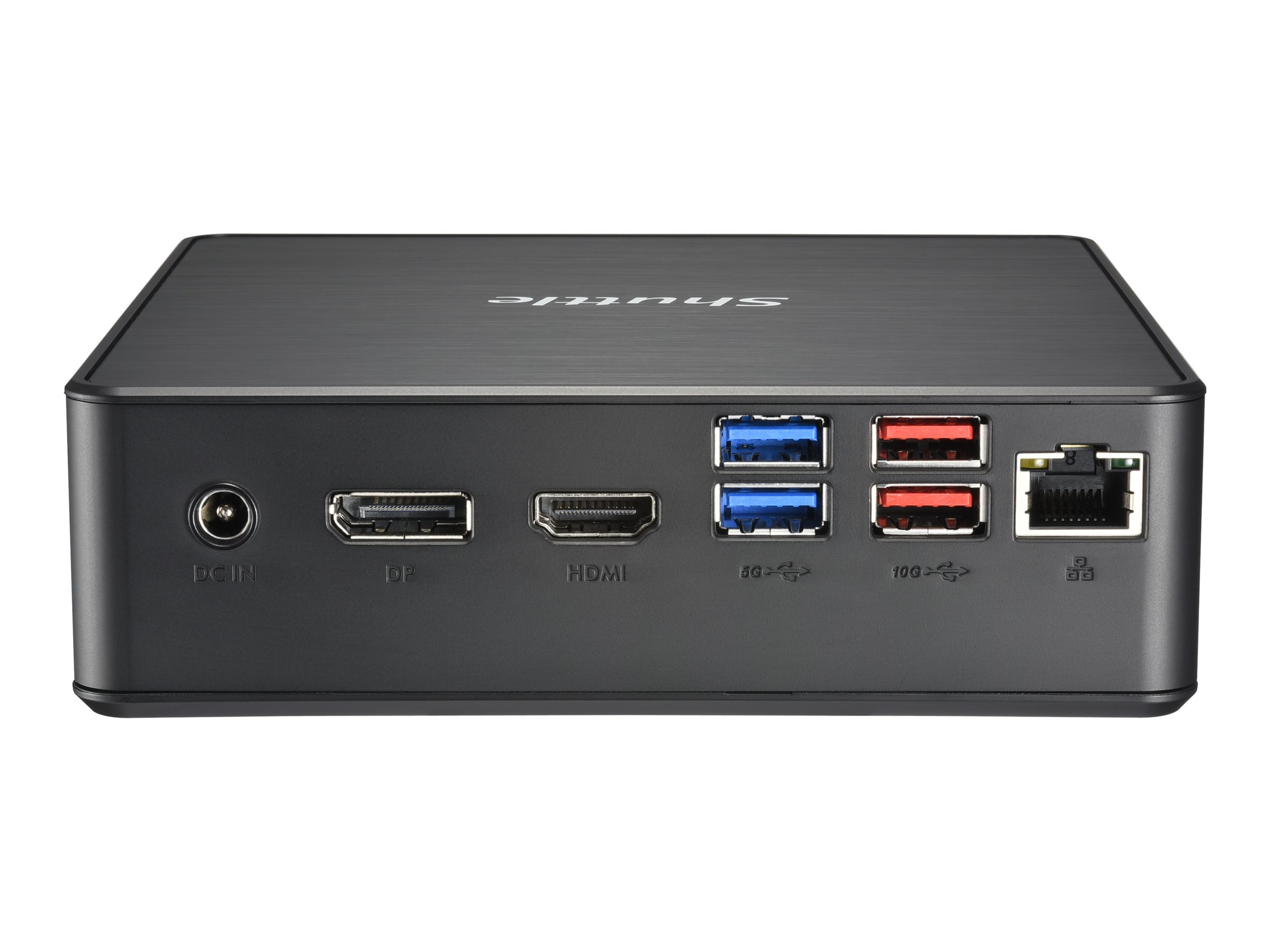

The NC40U features three digital video outputs: HDMI, DisplayPort and USB-C. This allows for the connection of three independent 4K displays which all can run with 3 840 x 2 160 Ultra HD resolution at 60 Hz frames per second.
Main Specifications
Product Description | Shuttle XPC nano NC40U – mini PC Celeron 7305 1.1 GHz – 0 GB – no HDD |
Type | PC barebone – mini PC |
Processor | 1 x Intel Celeron 7305 / 1.1 GHz (5-core) |
Cache Memory | 8 MB |
Cache Per Processor | 8 MB |
RAM | 0 GB (installed) / 64 GB (max) – DDR4 SDRAM – non-ECC |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Graphics Controller | Intel UHD Graphics 620 |
Networking | 1GbE |
Power | (50/60 Hz) |
OS Provided | No operating system |
Colour | Black |
Dimensions (WxDxH) | 14.2 cm x 14.2 cm x 4.2 cm |
Weight | 400 g |
Extended Specifications
General
Type | PC barebone |
|---|
Product Form Factor | Mini PC |
|---|
Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Celeron 7305 |
|---|
Clock Speed | 1.1 GHz |
|---|
Number of Cores | 5-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Cache Memory
Installed Size | 8 MB |
|---|
Cache Per Processor | 8 MB |
|---|
RAM
Installed Size | 0 GB (installed) / 64 GB (max) |
|---|
Technology | DDR4 SDRAM – non-ECC |
|---|
Form Factor | SO-DIMM 260-pin |
|---|
Slots | 2 (Total) / 2 (empty) |
|---|
Features | Unbuffered, dual channel memory architecture |
|---|
Hard Drive
Storage Controller
Type | 1 x SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Channel Qty | 1 |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Intel UHD Graphics 620 |
|---|
Video Interfaces | HDMI, DisplayPort |
|---|
Audio Output
Compliant Standards | High Definition Audio |
|---|
Networking
Ethernet Controller | Intel I219 |
|---|
Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet |
|---|
Expansion / Connectivity
Bays | 1 (total) / 1 (free) x internal 2.5″ x 1/8H |
|---|
Slots | 2 (total) / 2 (free) x M.2 Card – 2280 |
|---|
Interfaces | 6 x USB 3.2 Gen 2
1 x USB-C 3.1 Gen 2
1 x HDMI
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
1 x audio line-out/headphones
USB 3.1 Gen 2
1 x microphone |
|---|
Miscellaneous
Included Accessories | Horizontal feet, VESA mounting kit |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 65 watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Dimensions & Weight
Width | 14.2 cm |
|---|
Depth | 14.2 cm |
|---|
Height | 4.2 cm |
|---|
Weight | 400 g |
|---|
