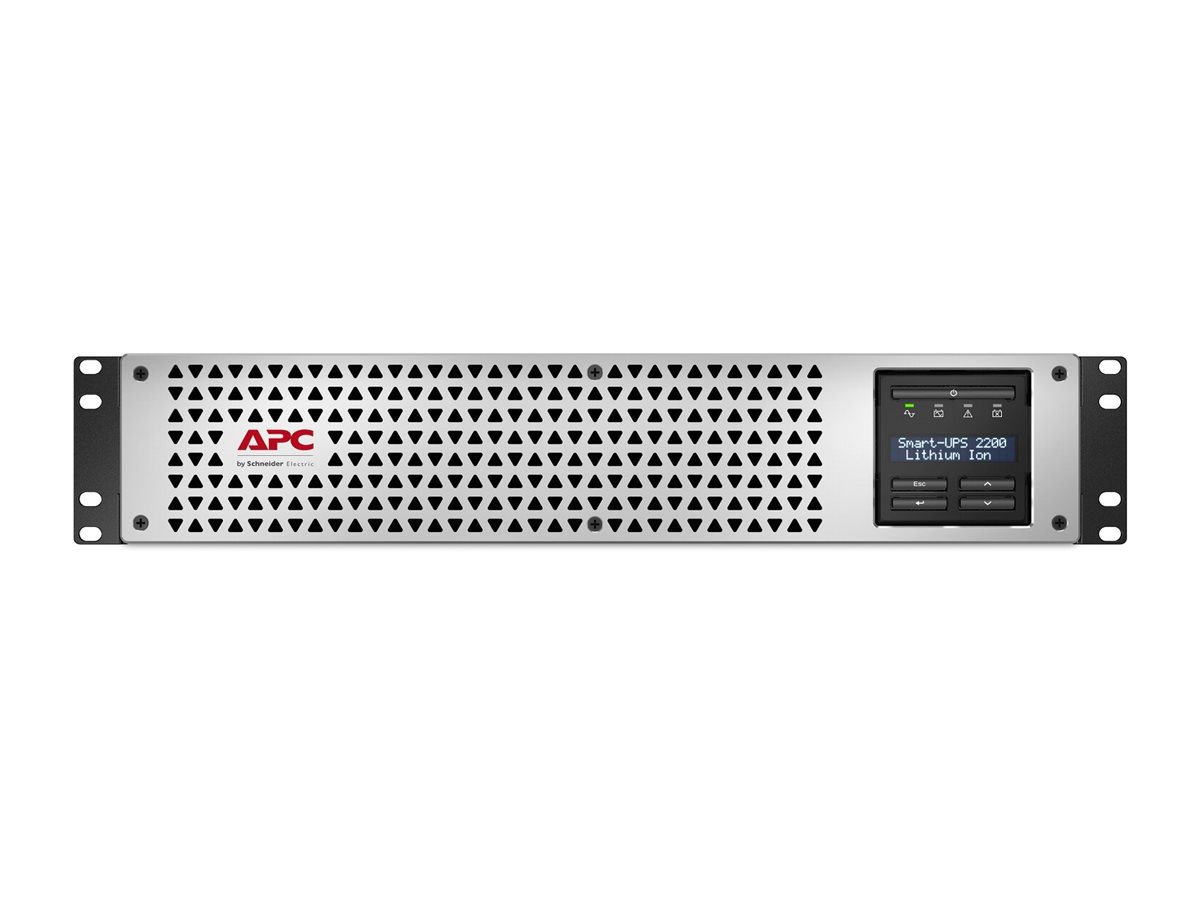

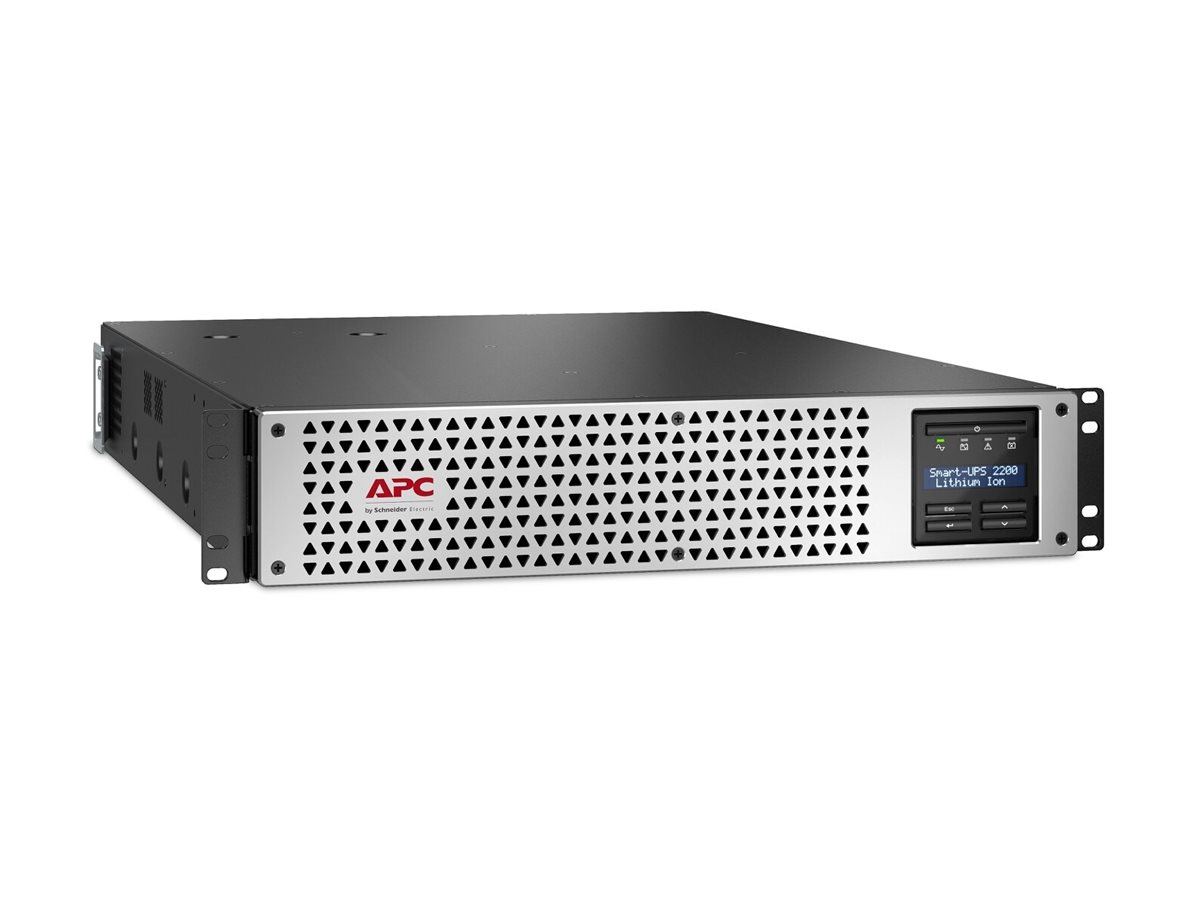

APC Smart-UPS Lithium Ion – UPS (rack-mountable) – line interactive, 8x IEC C13, 1x IEC C19, SmartConnect+SmartSlot, AVR, LCD – AC 220/230/240 V – 1980 Watt – 2200 VA – USB, serial, RJ-45 – output connectors: 9 – 2U – black with silver front bezel

Manufacturer:APC
Part Number:SMTL2200RMI2UC
Warranty:5 Years
PPID:AB36706

$4,781.29 inc GST

Free Delivery

Available on back-order

Out of Stock! Contact us for a lead time or ETA

Ships from Auckland

Ships from Auckland

  • Allow 1-2 days for delivery to the North Island
  • Allow 2-3 days for delivery to the South Island
  • add 1-2 days if you are rural
  • Collection can be arranged

Description

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

  • 98.3% – 99.1% efficiency at varying loads ensures optimal power usage
  • Rapid 2-hour recharge time minimizes downtime
  • Comprehensive connectivity with RJ-45, USB, and SmartConnect for easy management
  • Operates effectively in a wide temperature range and high humidity
  • Equipped with lithium-ion battery for lighter weight and better performance

  • Efficient power management
    With efficiencies up to 99.1% at full load, the APC Smart-UPS Lithium Ion ensures minimal energy loss, providing an eco-friendly solution to power management. Its Automatic Voltage Regulation (AVR) maintains stable power levels, safeguarding connected equipment from power irregularities.
  • Comprehensive connectivity
    Equipped with a variety of interfaces including RJ-45, USB, and SmartConnect, this UPS offers versatile management options. Whether through serial, USB, or network connections, users gain easy access to monitor and manage their power infrastructure.
  • Rapid recharge technology
    The lithium-ion battery technology not only offers a lighter solution but also boasts a rapid recharge time of 2 hours. This ensures your critical equipment is protected by continuous uptime, even during frequent power disturbances.
  • Enhanced environmental tolerance
    Designed to operate under a wide range of environmental conditions, this UPS can function at temperatures from 0°C to 40°C and withstand humidity levels of 0 to 95% (non-condensing). This resilience makes it suitable for a variety of settings, ensuring reliable performance.
  • Robust protection features
    With a surge energy rating of 739 Joules and comprehensive circuit protection, the APC Smart-UPS Lithium Ion offers significant protection against power surges and spikes. The included equipment protection policy of up to 150,000 US Dollars adds an extra layer of security for connected devices.

What’s in the Box

  • rack mounting brackets
  • rack mounting support rails
  • screw
  • washer
  • USB cable
  • ethernet patch cable

Main Specifications

Product DescriptionAPC Smart-UPS Lithium Ion – UPS – line interactive, 8x IEC C13, 1x IEC C19, SmartConnect+SmartSlot, AVR, LCD – 1980 Watt – 2200 VA
Device TypeUPS – rack-mountable
Rack Size2U
Weight33.3 kg
Input VoltageAC 220/230/240 V
Output VoltageAC 220/230/240 V
Power Capacity1980 Watt / 2200 VA

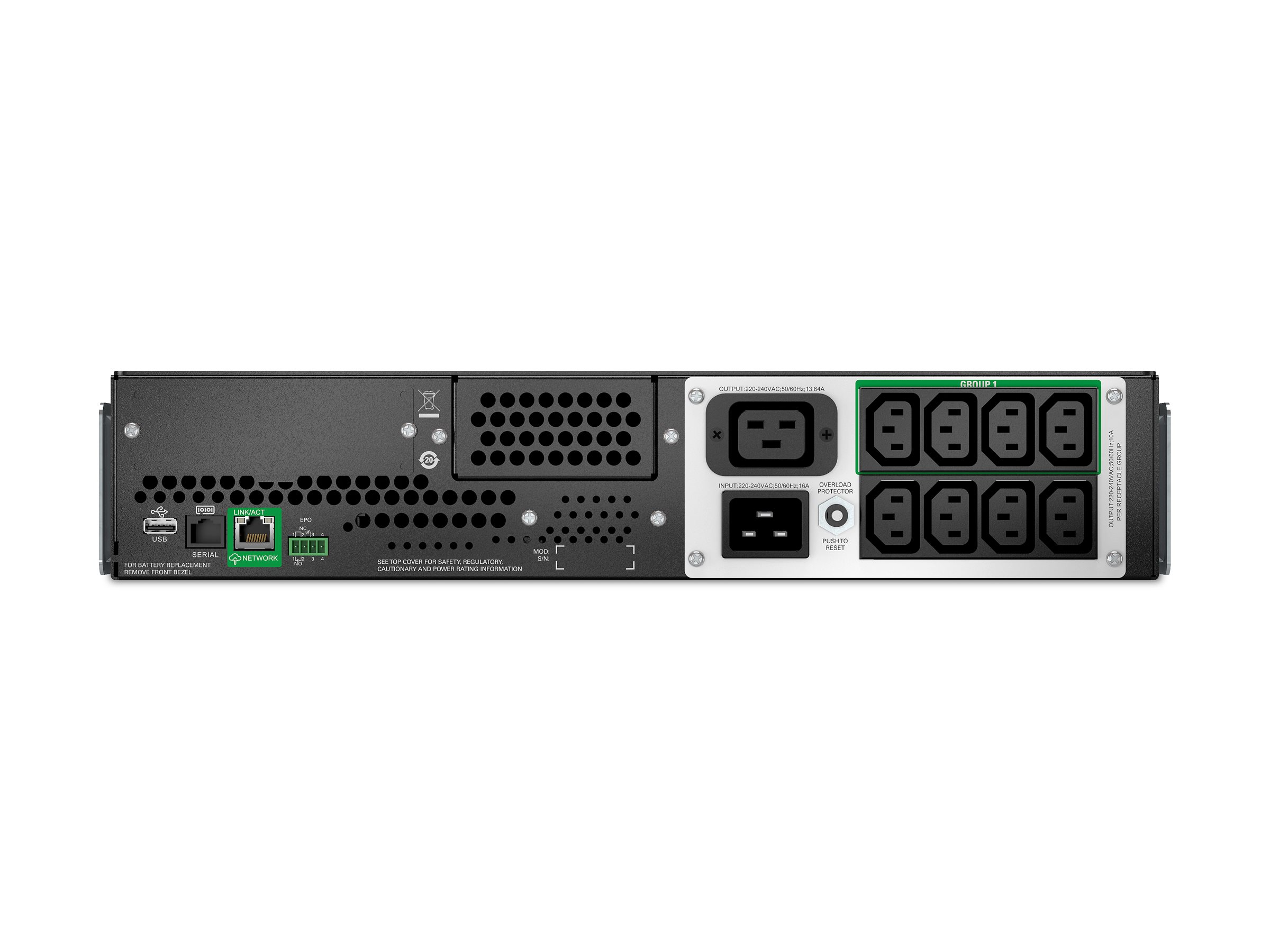

Input Connectors1 x power IEC 60320 C20
Output connectors8 x power IEC 60320 C13
1 x power IEC 60320 C19
BatteryLithium ion
Run Time (Up To)7.5 min
NetworkingUSB, serial, RJ-45
ColourBlack with silver front bezel
Dimensions (WxDxH)43.2 cm x 68.3 cm x 8.6 cm

Documents

Extended Specifications

General

Device TypeUPS – rack-mountable
Height (Rack Units)2U
ColourBlack with silver front bezel

Power Device

UPS TechnologyLine interactive
Input VoltageAC 220/230/240 V
Input Voltage RangeAC 160 – 286 V
Frequency Provided50/60 Hz ± 3Hz
Frequency Required50/60 Hz ± 3Hz
Input Connectors1 x power IEC 60320 C20
Power Output Connectors Details8 x power IEC 60320 C13
1 x power IEC 60320 C19
Output VoltageAC 220/230/240 V 50/60 Hz
Power Capacity1980 Watt / 2200 VA
Surge SuppressionYes
Surge Energy Rating739 Joules
Circuit ProtectionCircuit breaker
Efficiency99.1% at 75% Load, 99.1% at 100% Load, 98.3% at 25% Load, 98.9% at 50% Load

Battery

TechnologyLithium ion
Recharge Time2 hours
Transfer Time6 ms

Networking

Remote Management InterfaceUSB, serial, RJ-45

Expansion / Connectivity

Interfaces1 x serial – RJ-45
1 x management (USB) – 4 pin USB Type A
1 x SmartConnect – RJ-45
Expansion Slots1 (total) / 1 (free) x SmartSlot

Miscellaneous

Cables IncludedRS-232 cable
Power cable – external
Rack Mounting KitIncluded
Equipment Protection Value150000 US Dollars
FeaturesAudible alarm, LCD display, Automatic Voltage Regulation (AVR), visible alarm
Compliant StandardsRoHS, REACH, IP20, Green Premium

Environmental Parameters

Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating0 – 95% (non-condensing)
Sound Emission55 dB

Dimensions & Weight

Width43.2 cm
Depth68.3 cm
Height8.6 cm
Weight33.3 kg

Dimensions & Weight (Shipping)

Shipping Width60 cm
Shipping Depth98 cm
Shipping Height45.8 cm
Shipping Weight41.5 kg
