Description

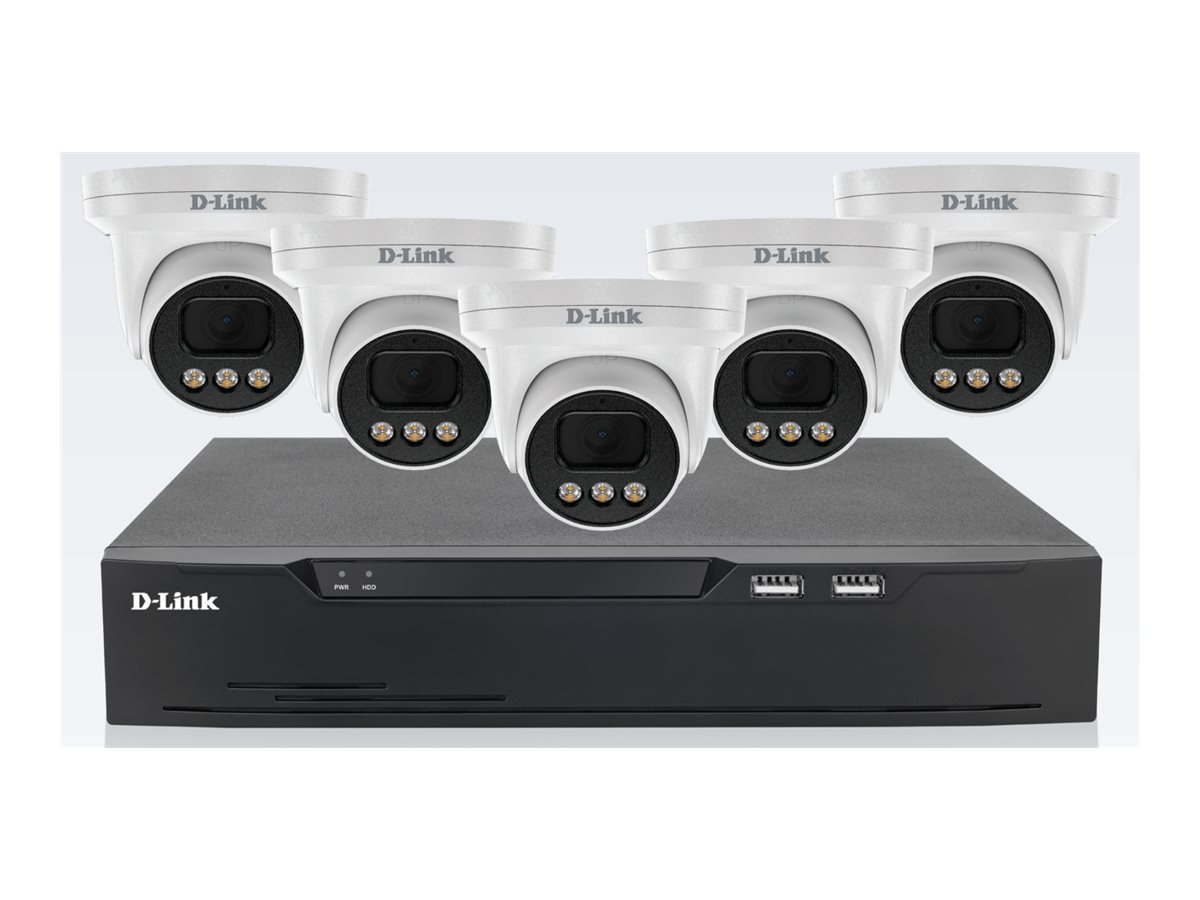

The D-Link Vigilance surveillance system is designed to enhance the security of outdoor spaces. This system includes five high-resolution, 8 megapixel cameras equipped with infrared night vision, ensuring clear, detailed images day and night. The cameras’ IP66-rated enclosures protect against harsh weather conditions, making them suitable for outdoor installation. With features such as face recognition, human detection, and vehicle detection, the system offers precise monitoring and reduces the likelihood of false alarms. The included Network Video Recorder (NVR) comes with a 4 TB hard drive, supporting continuous, event-triggered, and scheduled recording to meet various surveillance needs. Additionally, the system’s Power over Ethernet (PoE) capability simplifies installation, and its compliance with ONVIF standards ensures easy integration into existing networks. Suitable for home or business use, the D-Link Vigilance system provides reliable surveillance to keep your property secure.
- 8 megapixel high-resolution cameras for clear images
- Infrared night vision up to 20 m for continuous surveillance
- IP66-rated weather-resistant design for outdoor use
- Intelligent analytics for accurate monitoring and alerts
- 4 TB storage capacity, expandable up to 12 TB for extensive video archiving
- Robust outdoor design
Designed to withstand the elements, the D-Link Vigilance cameras are housed in a durable IP66-rated enclosure, ensuring protection against dust, water, and various weather conditions. The 3-axis angle adjustment allows for optimal positioning to cover the desired area effectively. - Advanced surveillance capabilities
Featuring high-resolution 8 megapixel sensors and infrared LEDs for night vision up to 20 m, these cameras provide clear, detailed images around the clock. The wide 105° field of view ensures comprehensive coverage of outdoor spaces. - Intelligent detection features
Equipped with sophisticated analytics, including face recognition, human detection, and vehicle detection, the system enhances security by alerting you to significant events. These features, combined with motion and intrusion detection, enable precise monitoring and reduce false alarms. - High-capacity recording
With a 4 TB hard drive and support for up to 12 TB, the NVR ensures ample storage for high-quality video footage. The system supports continuous, event-triggered, and scheduled recording, providing flexibility to meet various surveillance needs. - Easy connectivity and setup
The inclusion of Power over Ethernet (PoE) simplifies installation by using a single cable for both power and data. The system’s compliance with ONVIF standards and Plug-and-Play functionality ensures compatibility and straightforward integration into existing networks.
Main Specifications
Product Description | D-Link Vigilance NVR + camera(s) – wired (GbE) – AC powered |
System | NVR + camera(s) – wired – Ethernet 10Base-T/100Base-TX/1000Base-T – power adapter |
Security DVR | 8 channels |
Hard Drive | 1 x 4 TB |
Camera | 5 cameras – outdoor – night vision |
Extended Specifications
General
System | NVR + camera(s) – wired |
|---|
Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
|---|
Features | Wide Dynamic Range (WDR), auto white balance, highlight compensation (HLC), backlight compensation (BLC), defog, noise reduction |
|---|
Package Content | 5 cameras, NVR |
|---|
Power Source | Power adapter |
|---|
Compliant Standards | NDAA, Plug and Play, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, FCC, RoHS |
|---|
Warranty | Limited lifetime warranty |
|---|
Security DVR
Video Channels | 8 |
|---|
Frame Rate (Record) | 30 fps |
|---|
Image Resolution | 3840×2160, 1920×1080 |
|---|
Compression Format | H.265, H.264, MJPEG, H.265+, G.711, AAC |
|---|
Record Events | Continuous, scheduled, event, manual, motion detection |
|---|
Features | Human detection, vehicle detection, motion detection, e-mail alarm notifications, tripwire detection, loitering detection, intrusion detection, face recognition |
|---|
Hard Drive
Quantity Installed | 1 |
|---|
Capacity | 4 TB |
|---|
Interface | Serial ATA |
|---|
Supported Max Total Capacity | 12 TB |
|---|
Video Server
Features | Digital noise reduction, ONVIF compliant |
|---|
Cameras
Quantity | 5 cameras |
|---|
Camera Type | Outdoor |
|---|
Sensor | CMOS – 1/2.7″ – 8 Megapixel |
|---|
Field of View | 105° |
|---|
Night Vision | Yes |
|---|
Infrared LEDs | Yes |
|---|
Infrared Distance | 20 m |
|---|
Focal Length | 2.8 mm |
|---|
Lens Iris | Fixed iris |
|---|
Voltage | PoE |
|---|
Compliant Standards | IP66 |
|---|
Cameras Included | 5 – outdoor |
|---|
Connections
Video Output Ports | HDMI x 1, VGA x 1 |
|---|
Audio Input Ports | Mini-phone 3.5 mm x 1 |
|---|
Audio Output Ports | Mini-phone 3.5 mm x 1 |
|---|
Alarm Ports | Alarm input x 8, alarm output x 1 |
|---|
Camera Control Interface (PTZ) | Yes |
|---|
Network Port | 10/100/1000Base-T x 8 (PoE) |
|---|
Other Ports | USB 2.0 x 3 |
|---|
Dimensions & Weight
Details | DVR: 25.5 cm x 23.51 cm x 4.745 cm – 1 kg Camera: 11.8 cm x 11.8 cm x 9.4 cm – 550 g |
|---|
