SilverStone Decathlon Series DA650 Gold, Power supply (internal), ATX12V 2.4/ EPS12V/ PS/2, 80 PLUS Gold, AC 100-240 V, 650 Watt, active PFC, black
$165.45 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
Ships from: Auckland, Wellington, or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- Collection can be arranged
Description

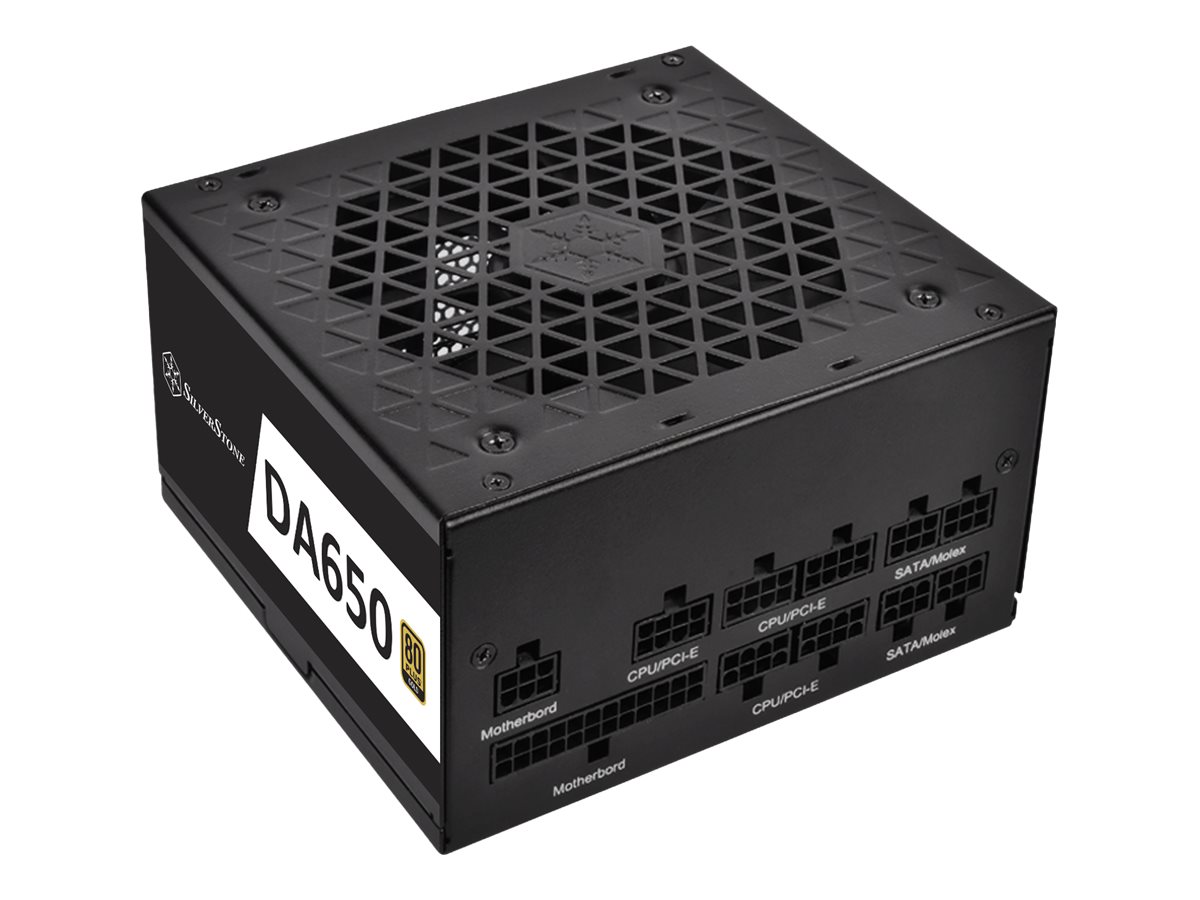

80 PLUS Gold 650 W fully modular ATX power supply.
- High efficiency
- 24/7 continuous power output with 40? operating temperature
- Single +12 V rail

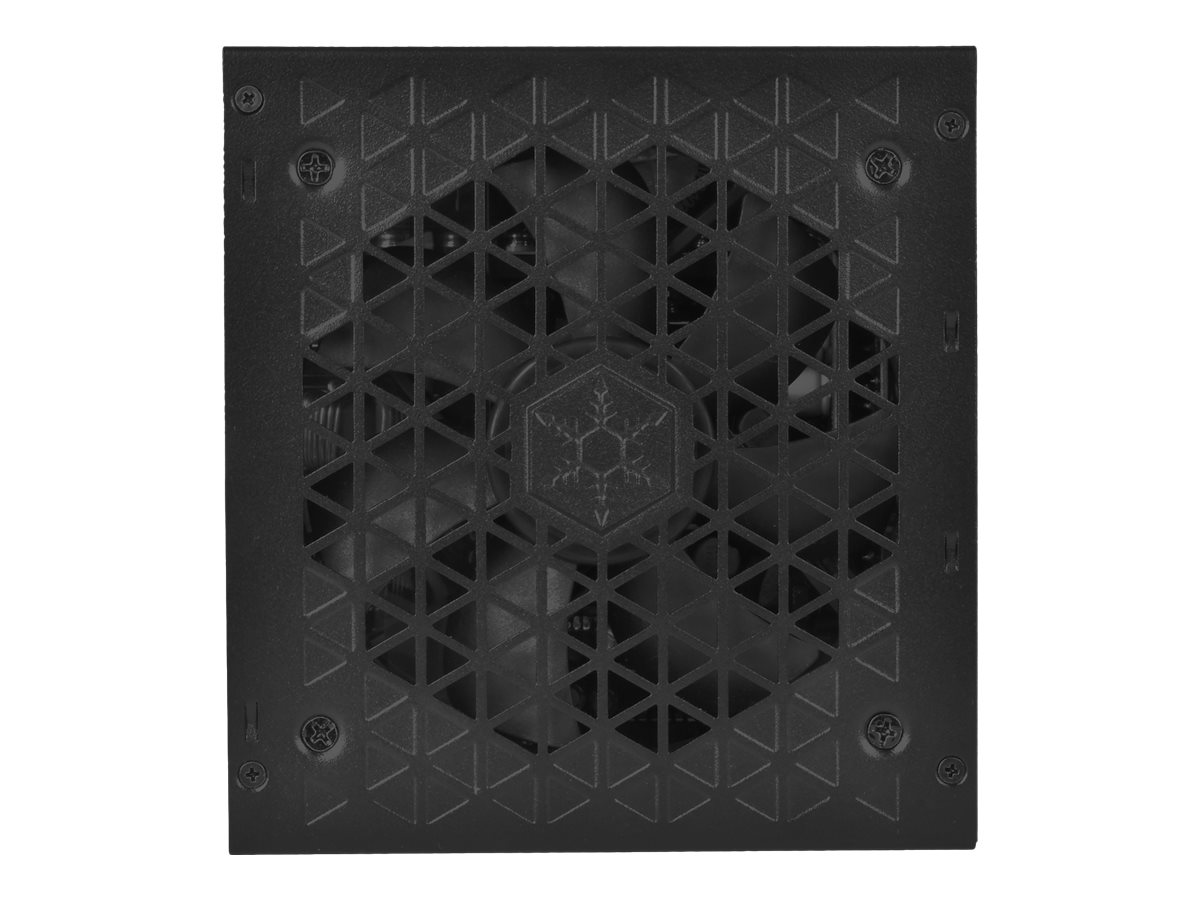

- Silent-running 120 mm FDB fan with 18 dBA minimum

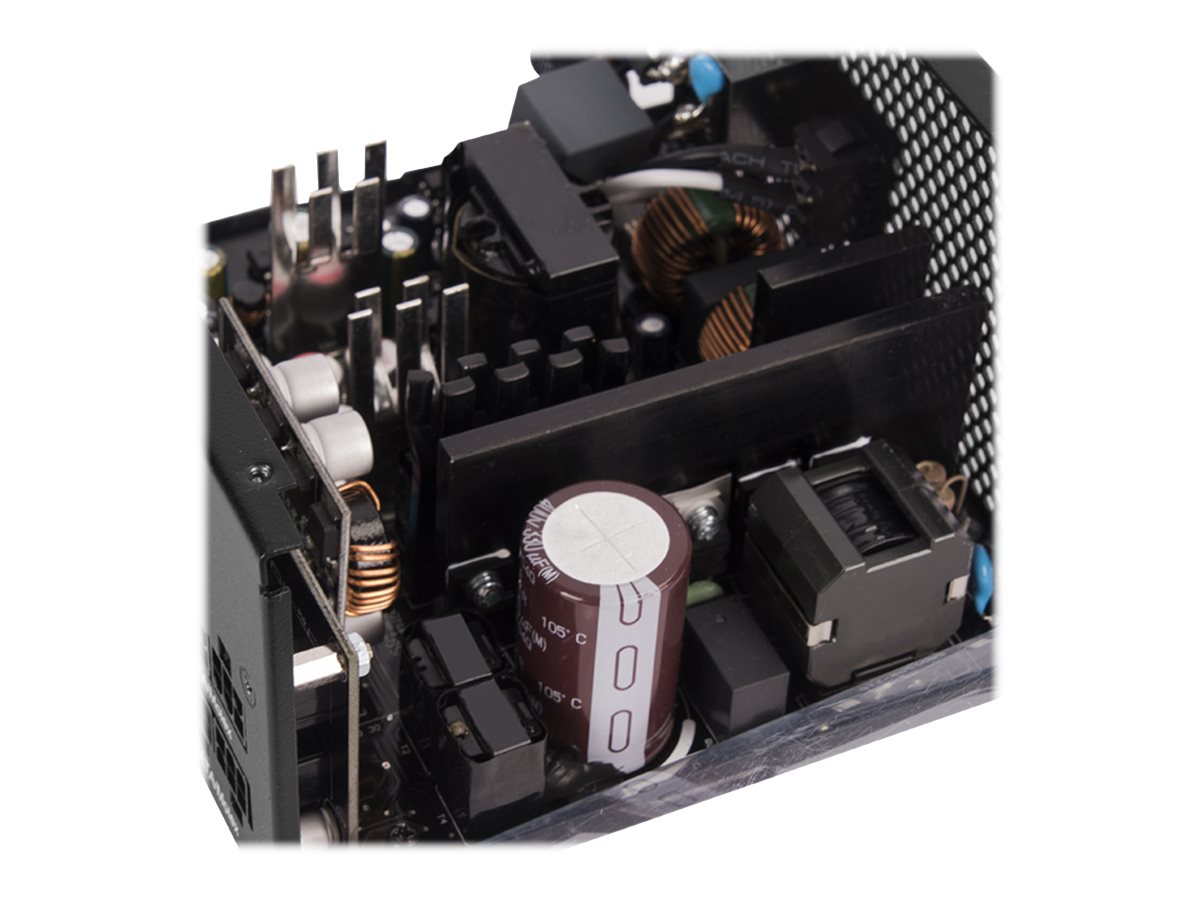

- Great electrolytic capacitors
- Specially designed cover increases effectiveness of residual heat dissipation
- Compact design with a 140 mm depth for easy integration
- Strict voltage regulation and low ripple and noise
Main Specifications
Product Description | SilverStone Decathlon Series DA650 Gold – power supply – 650 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 2.4/ EPS12V/ PS/2 |
80 PLUS Certification | 80 PLUS Gold |
Weight | 1.42 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 650 Watt |

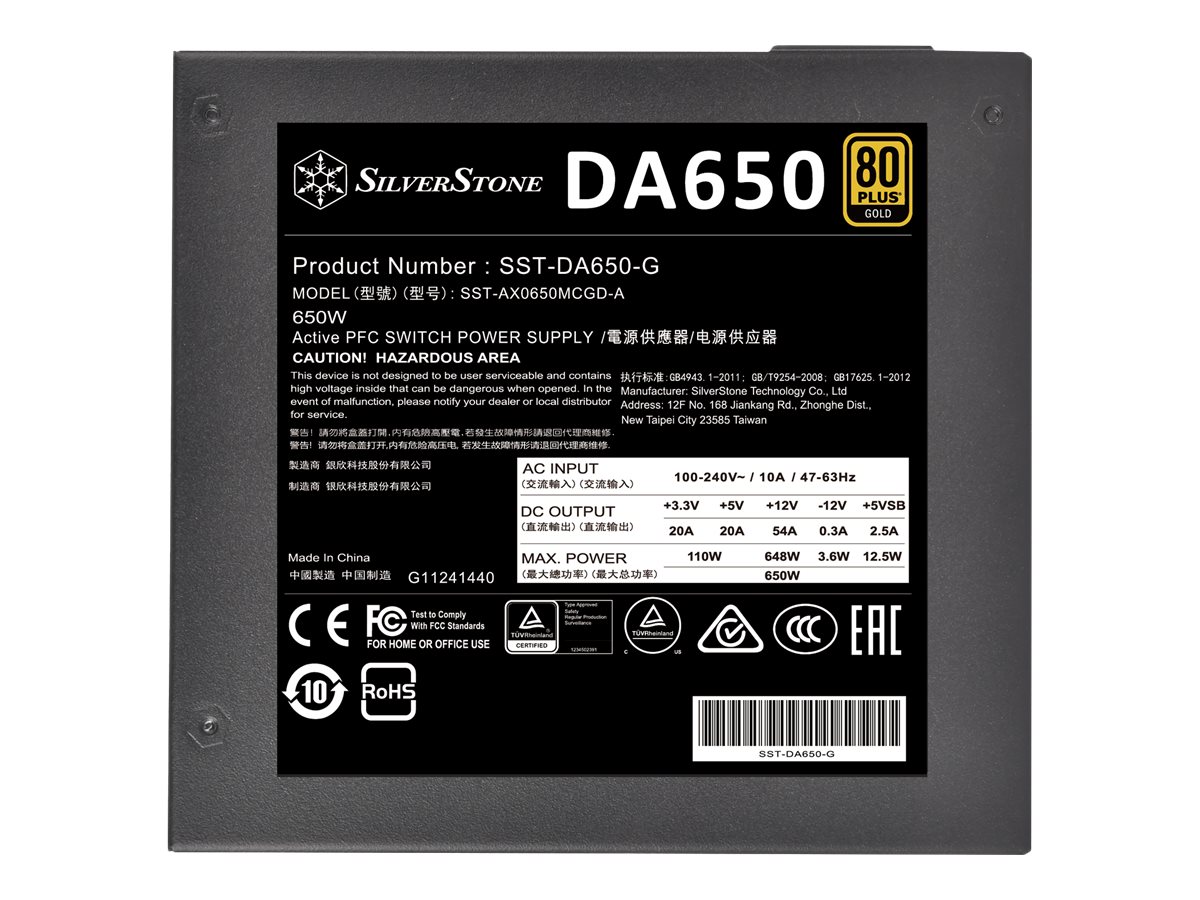

Output Current | +3.3V – 20 A / 0 A +5V – 20 A / 0 A +12V – 54 A / 0 A -12V – 0.3 A / 0 A +5VSB – 2.5 A / 0 A |

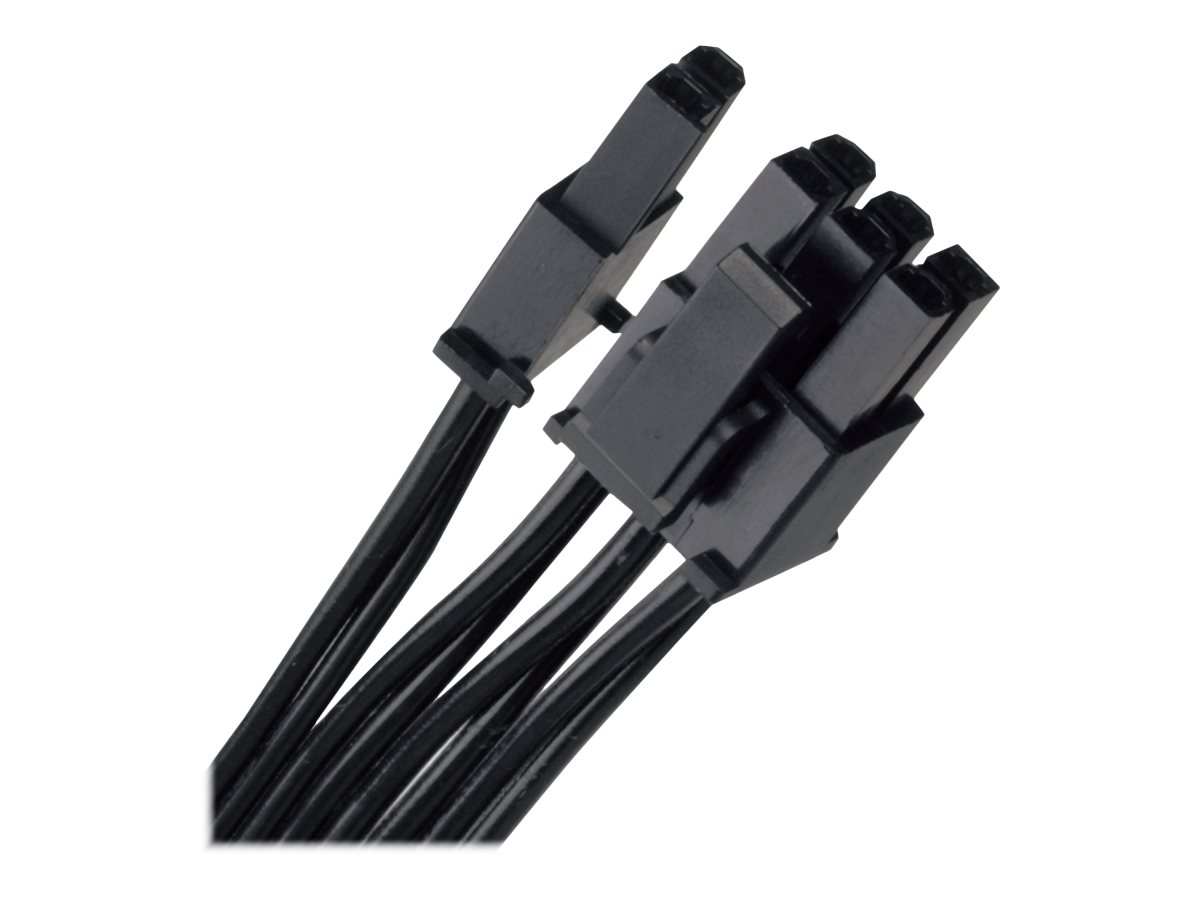

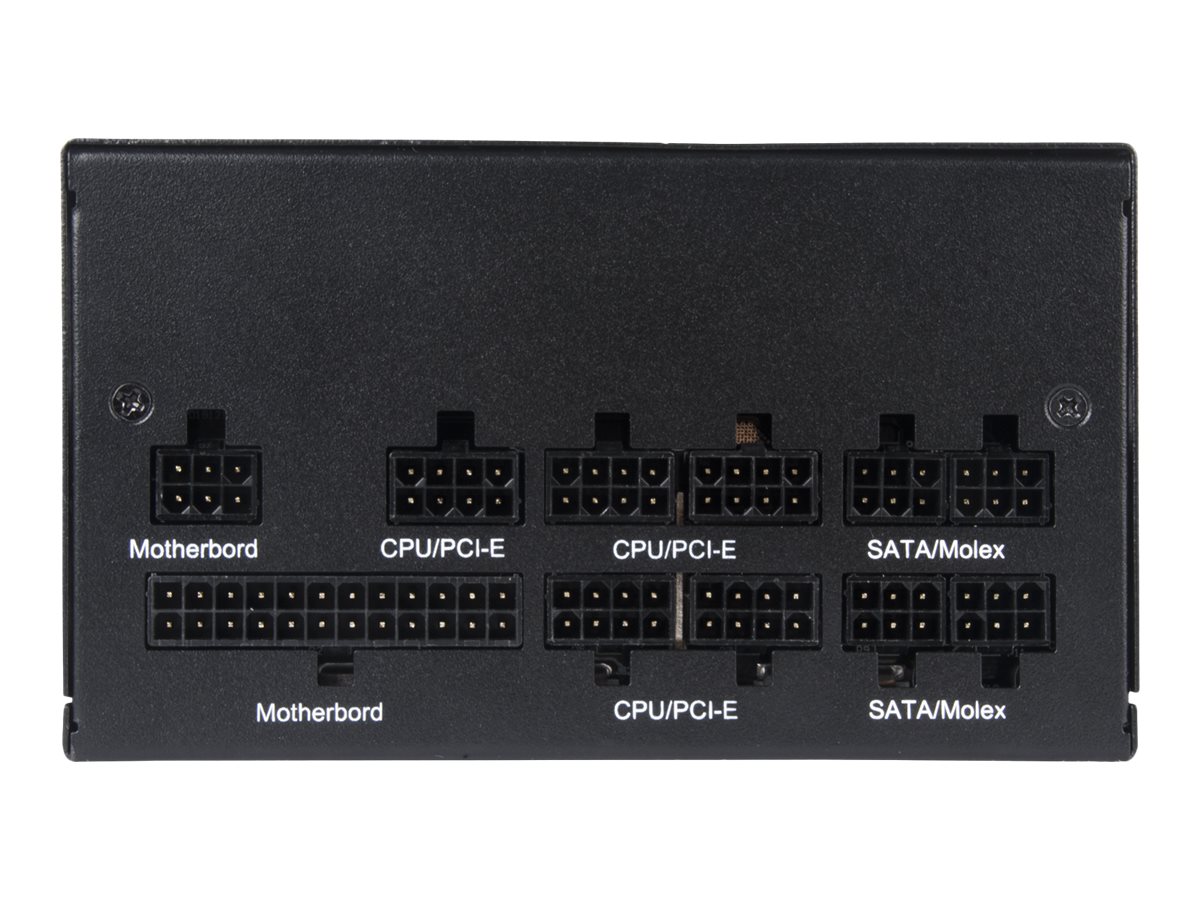

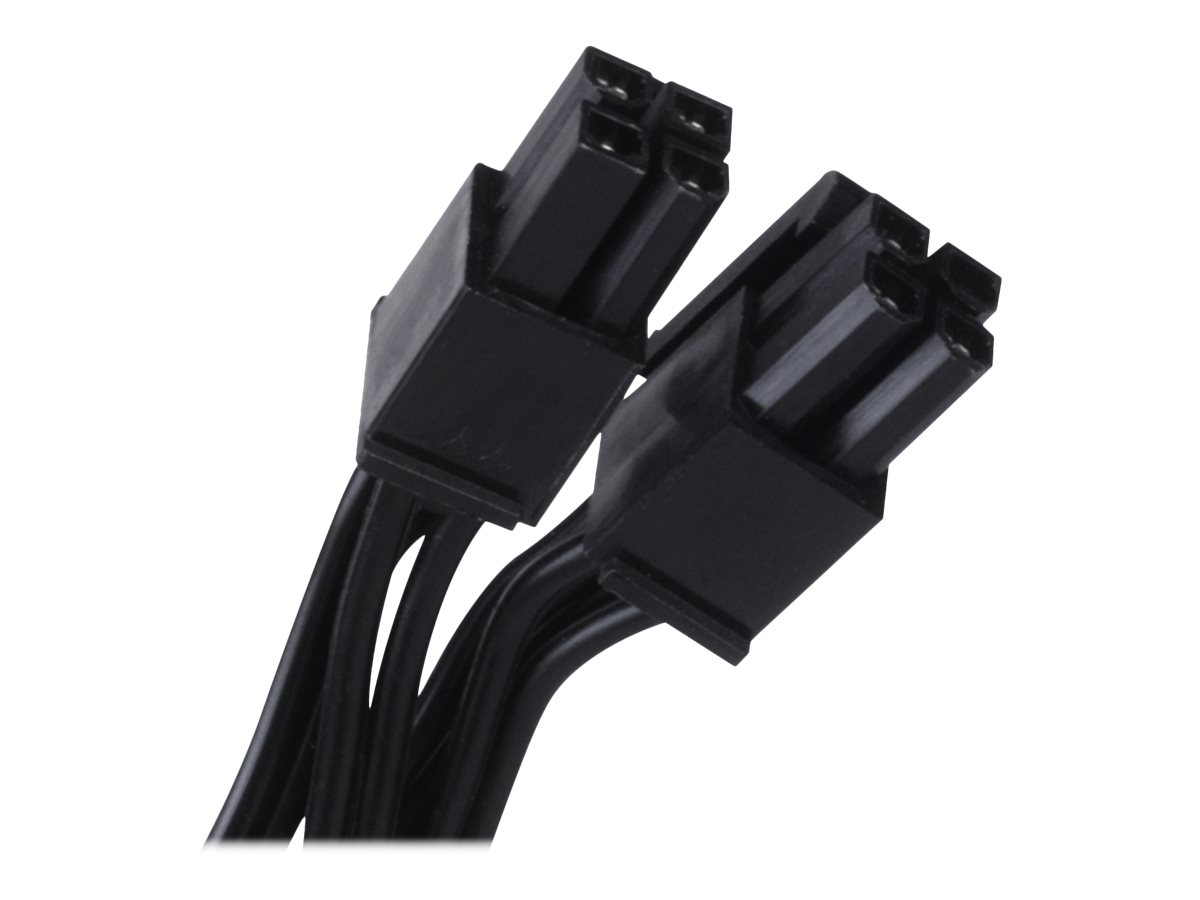

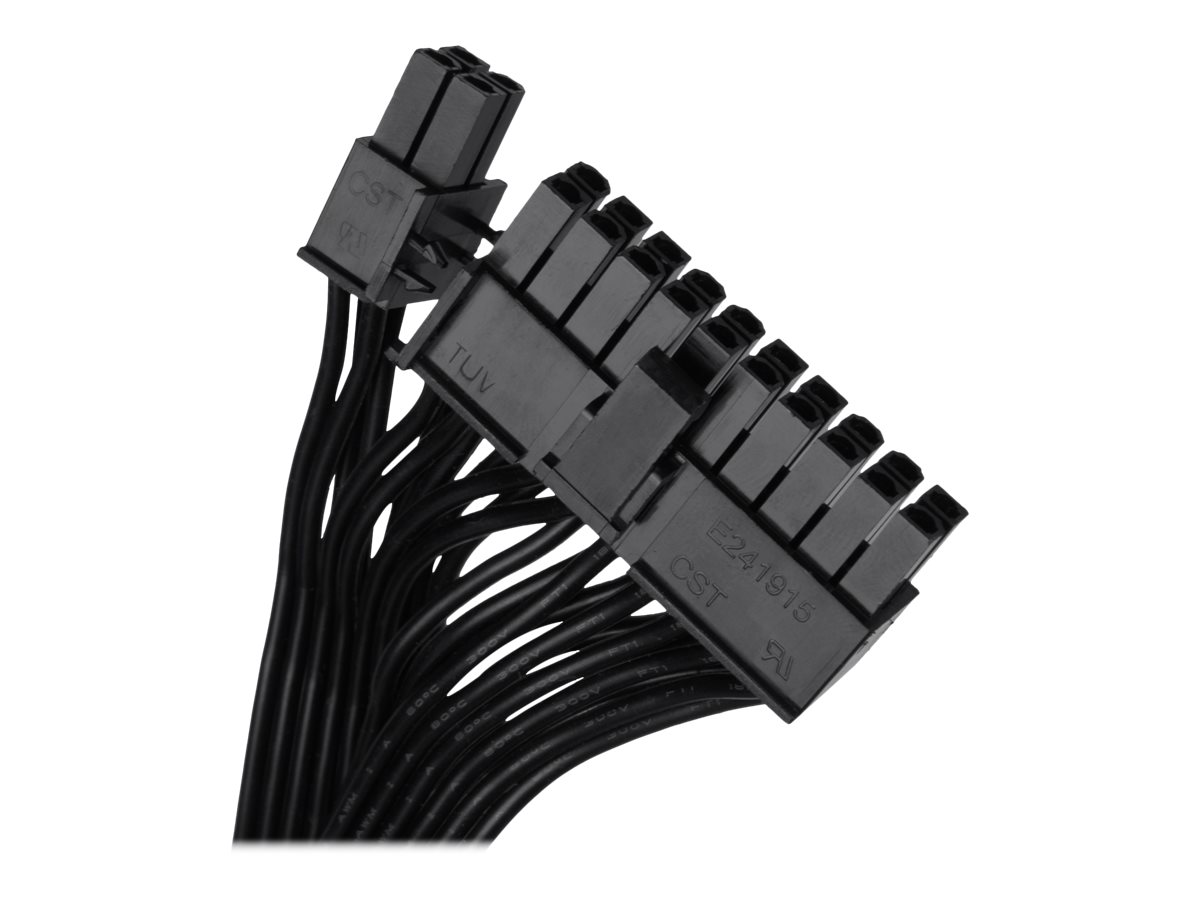

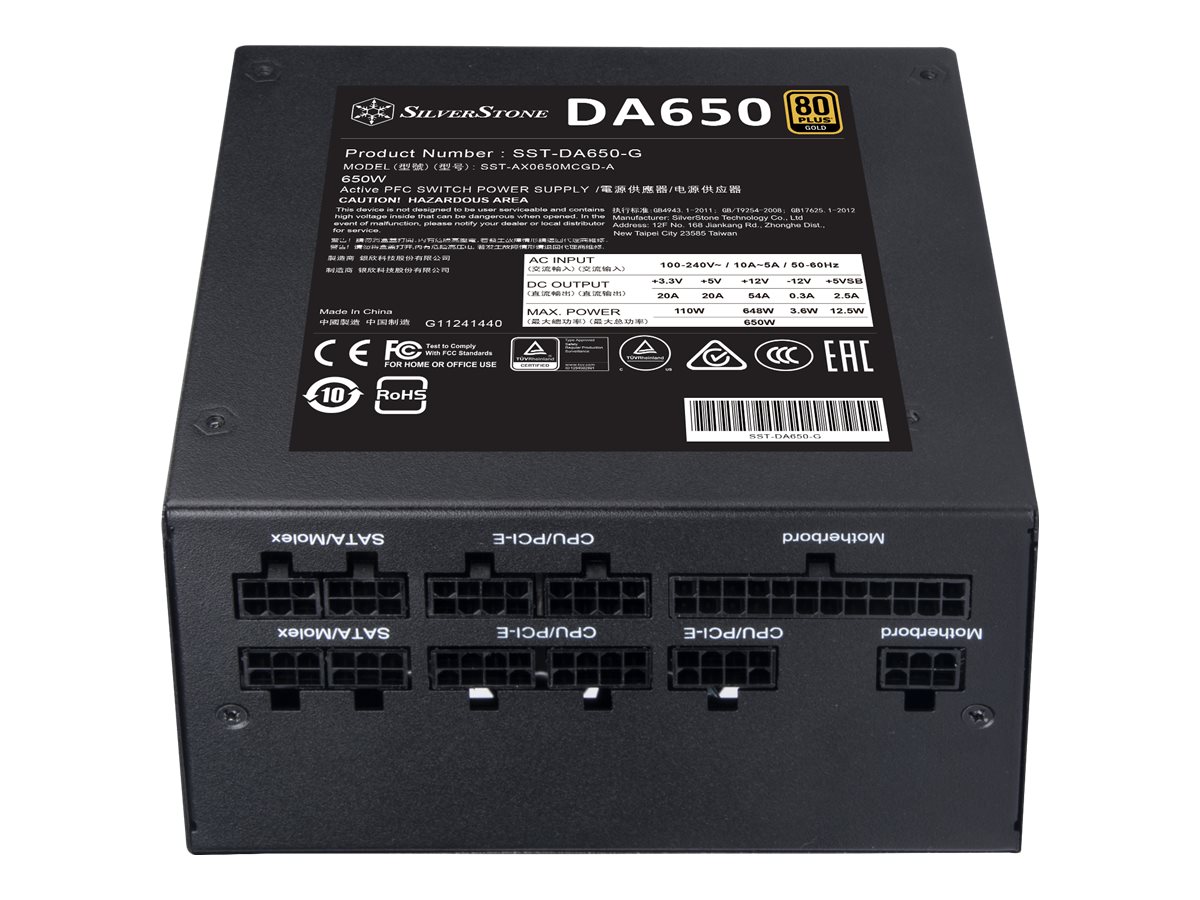

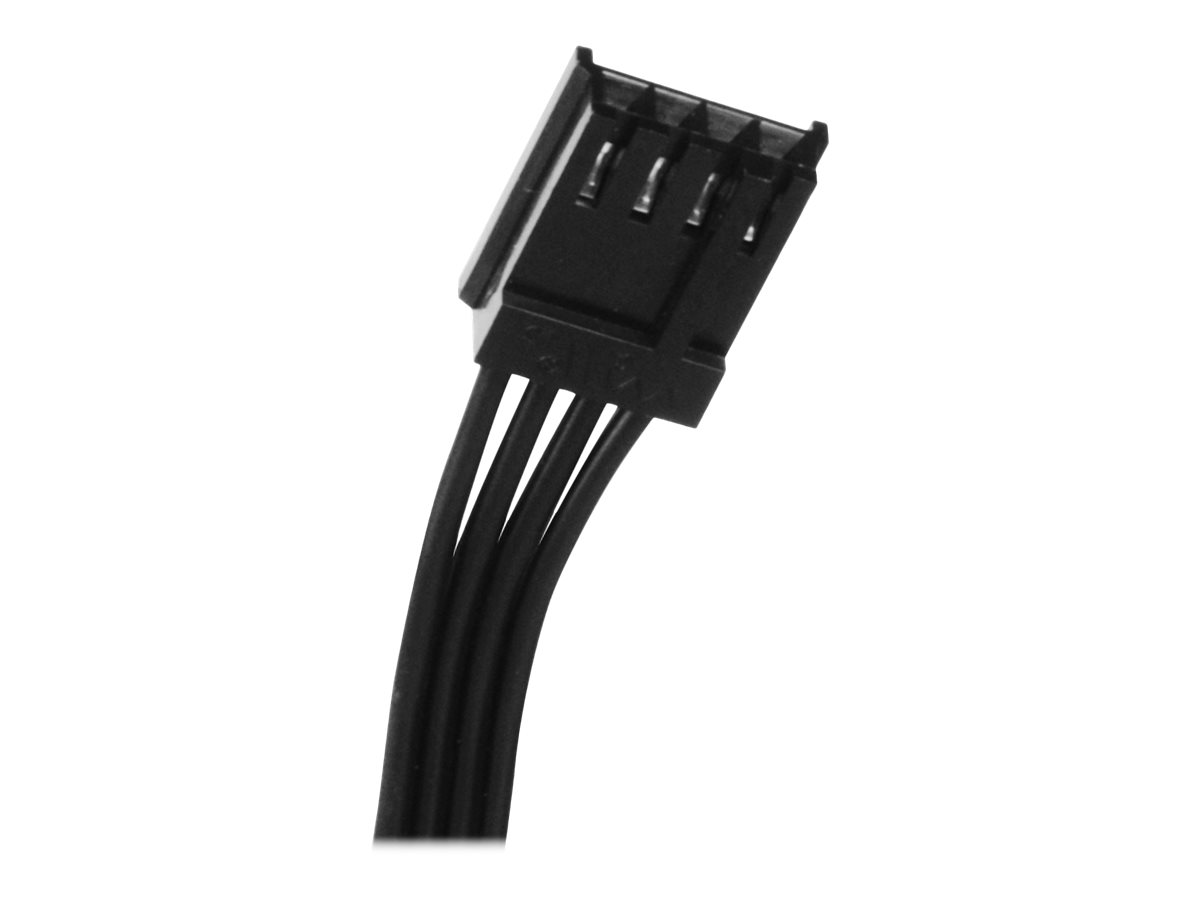

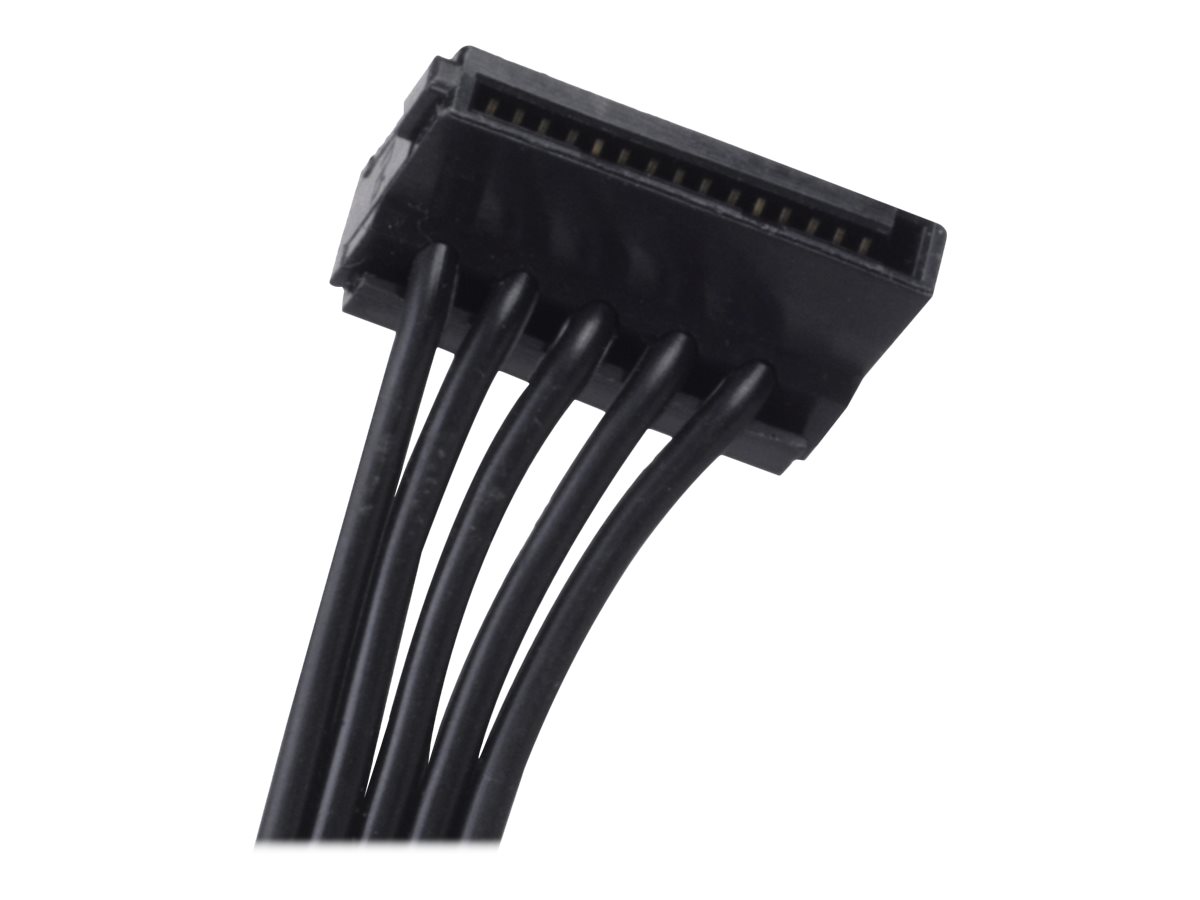

Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 8 x 15 pin Serial ATA power 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 4 PIN mini-power connector 3 x 4 PIN internal power |
Modular Cable Management | Yes |
Cooling System | 120 mm fan |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 2.4/ EPS12V/ PS/2 |
PSU Form Factor | ATX |
Colour | Black |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Input Voltage Range | AC 90 – 264 V |
Frequency Required | 47 – 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 8 x 15 pin Serial ATA power 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 4 PIN mini-power connector 3 x 4 PIN internal power |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 650 Watt |
Output Current | +3.3V – 20 A / 0 A +5V – 20 A / 0 A +12V – 54 A / 0 A -12V – 0.3 A / 0 A +5VSB – 2.5 A / 0 A |
Power Factor (PF) | 0.9 |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
MTBF | 100,000 hours |
|---|---|
Cooling System | 120 mm fan |
Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, fluid dynamic bearing cooling fan, fully modular, 24 hours / 7 days continuous use |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Sound Emission | 18 dBA |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.42 kg |
