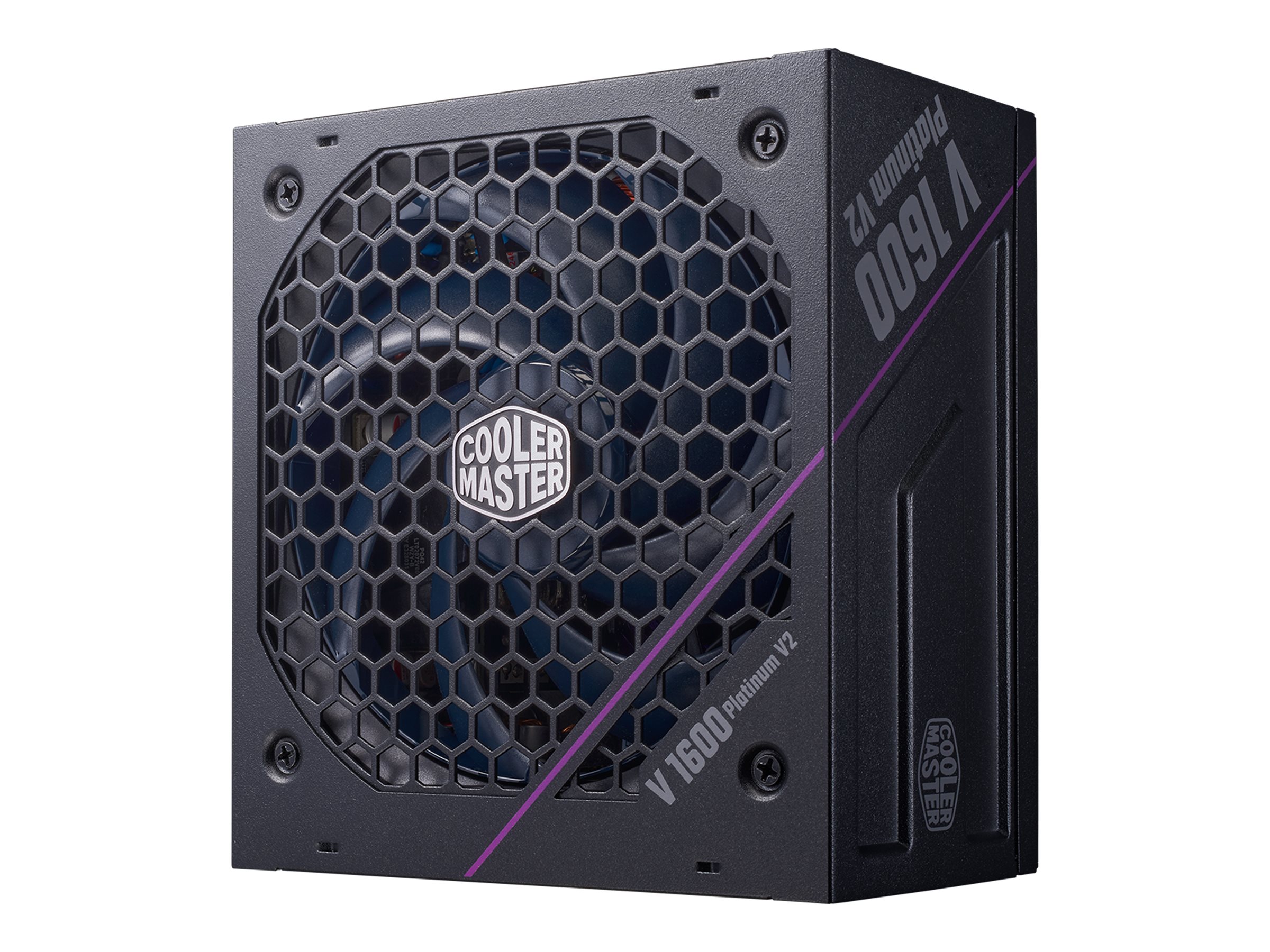

Cooler Master V Series Platinum 1600 V2, Power supply (internal), ATX12V 3.1, 80 PLUS Platinum, AC 100-240 V, 1600 Watt, active PFC, Australia
$519.38 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
Cooler Master developed the V-series to re-ascertain its position as the worlds top power supply brand. It features outstanding efficiency, especially at typical low idle loads, excellent hold up times, voltage stability and ripple suppression. It only uses highest grade Japanese capacitors, most of them solid capacitors, as well as a massive high quality 42mm transformer.
And thanks to high quality FDB fans V-series PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all black, extra slim flat-ribbon cables. This makes cable management a breeze and results in nice looking clean builds with the best possible airflow.
- Fully modular cable design incorporates a single 1000W +12V output that delivers up to 83A
- Silent 135 mm FDB fan for lower noise and longer lifespan
- Eight PCI-E 6+2 pin connectors to support high-end GPUs
- 100% high quality capacitor ensures performance and reliability
- Efficient cooling
Equipped with a 135 mm fan featuring LDB bearing cooling technology and a Zero RPM fan mode, this power supply ensures optimal thermal performance while maintaining silence under low to medium loads. - Robust power delivery
Delivering a formidable 1600 W of power with a 92% efficiency rating under typical loads, the Platinum 1600 V2 supports high-end PC configurations without breaking a sweat. - Comprehensive protection
Designed with overcurrent, overheat, overpower, overvoltage, short-circuit, surge & inrush, and undervoltage protection, this power supply ensures the safety and longevity of your components. - Fully modular design
The fully modular cable management system allows you to use only the cables you need, leading to a cleaner build and improved airflow within your PC case. - Wide compatibility
With a variety of connectors including 24-pin ATX, 8 pin +12V, EPS12V, and 12VHPWR, this power supply is compatible with a broad range of PC and server configurations, ensuring flexibility for future upgrades.
Main Specifications
Product Description | Cooler Master V Series Platinum 1600 V2 – power supply – 1600 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1 |
80 PLUS Certification | 80 PLUS Platinum |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 1600 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 133.3 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 1 x power 8 pin EPS12V 4 x 4 PIN internal power 16 x 15 pin Serial ATA power 5 x 8 pin PCI Express power with detachable 2 pin section 2 x 12VHPWR |
Modular Cable Management | Yes |
Cooling System | 135 mm fan |
Dimensions (WxDxH) | 15 cm x 16 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1 |
PSU Form Factor | ATX |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 1 x power 8 pin EPS12V 4 x 4 PIN internal power 16 x 15 pin Serial ATA power 5 x 8 pin PCI Express power with detachable 2 pin section 2 x 12VHPWR |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 1600 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 133.3 A -12V – 0.3 A +5VSB – 3 A |
Efficiency | 92% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Platinum |
Miscellaneous
MTBF | 100,000 hours |
|---|---|
Cooling System | 135 mm fan |
Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, heat sink, surge & inrush protection, Zero RPM fan mode, LDB bearing cooling fan, fully modular |
Compliant Standards | TUV, BSMI, CCC, FCC, KC, EAC, RCM, BIS, ErP Lot 3 2014 Ready, UKCA, RoHS 2.0 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 50 °C |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 16 cm |
Height | 8.6 cm |
Additional information
| Manufacturer | |
|---|---|
| PSU Power Capacity |
