Description
The SXTsq 5 ac is a compact and lightweight outdoor 5GHz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

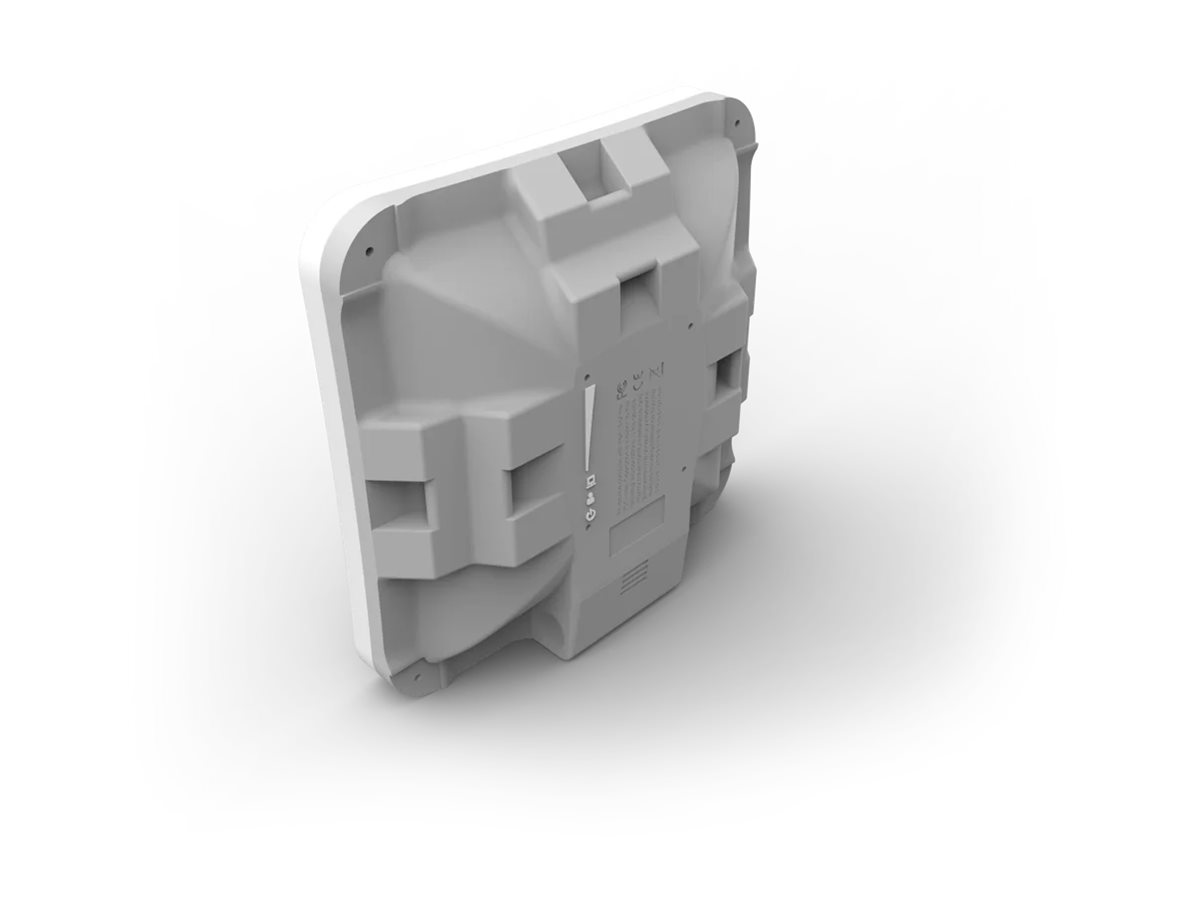

The weatherproof enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. There is also an easily accessible grounding connection to protect it against lightning.
- 16 dBi internal antenna for enhanced signal strength
- Operational temperature range of -40 °C to 70 °C for outdoor use
- Versatile connectivity with both wired and wireless options
- Power over Ethernet support for flexible installation
- 256 MB RAM and 716 MHz processor for efficient performance
- Reliable signal strength
The 16 dBi internal antenna provides effective signal coverage, ensuring that wireless connections maintain stability over distance. - Wide operational temperature range
With a minimum operating temperature of -40 °C and a maximum of 70 °C, this device is designed to withstand extreme weather conditions without compromising performance. - Flexible connectivity options
Featuring both wireless capabilities and an Ethernet interface, the SXTsq 5 ac supports multiple methods of connection to suit various network requirements. - Power over Ethernet functionality
This feature allows for easy installation by delivering power and data through a single cable, minimizing clutter and enhancing convenience. - Efficient processing power
The 716 MHz processor combined with 256 MB of RAM ensures reliable performance for a variety of networking tasks, making it suitable for different applications.
What’s in the Box
- MikroTik SXTsq 5 ac
- PoE injector, metal ring
Main Specifications
Product Description | MikroTik SXTsq 5 ac – wireless router kit – Wi-Fi 5 |
Device Type | Wireless router kit |
Packaged Quantity | 2 (specifications are for single item) |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Frequency Band | 5 GHz |
Features | PoE, weatherproof, beam width 23°, passive PoE supported |
Compliant Standards | IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac |
Power | 10 – 30 V |
Dimensions (WxDxH) | 12.9 cm x 3.4 cm x 12.9 cm |
Weight | 295 g |
Extended Specifications
General
Packaged Quantity | 2 (specifications are for single item) |
|---|
Device Type | Wireless router kit |
|---|
Connectivity Technology | Wireless, wired |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
|---|
Frequency Band | 5 GHz |
|---|
Features | PoE, weatherproof, beam width 23°, passive PoE supported |
|---|
Compliant Standards | IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IP55 |
|---|
Processor | 1 x IPQ4018 716 MHz |
|---|
RAM | 256 MB |
|---|
Flash Memory | 16 MB |
|---|
Expansion / Connectivity
Interfaces | LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
|---|
Aerial
Aerial | Internal |
|---|
Gain Level | 16 dBi |
|---|
Power
Power Device | External power adapter / power injector |
|---|
Voltage Required | 10 – 30 V |
|---|
Power Consumption Operational | 7 watt |
|---|
Miscellaneous
Included Accessories | PoE injector, metal ring |
|---|
Software / System Requirements
OS Provided | MikroTik RouterOS |
|---|
Dimensions & Weight
Width | 12.9 cm |
|---|
Depth | 3.4 cm |
|---|
Height | 12.9 cm |
|---|
Weight | 295 g |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 25.5 cm |
|---|
Shipping Depth | 4.5 cm |
|---|
Shipping Height | 12.9 cm |
|---|
Shipping Weight | 492 g |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
