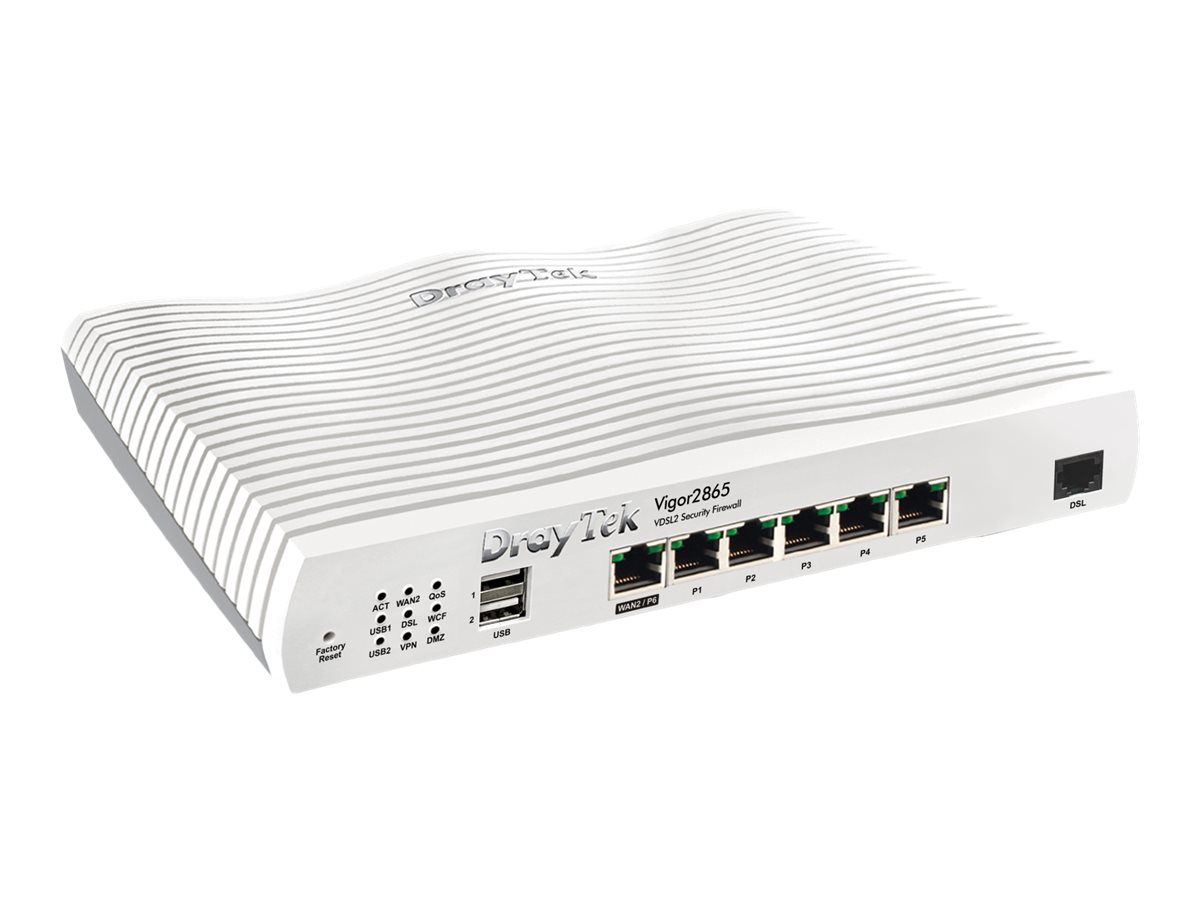

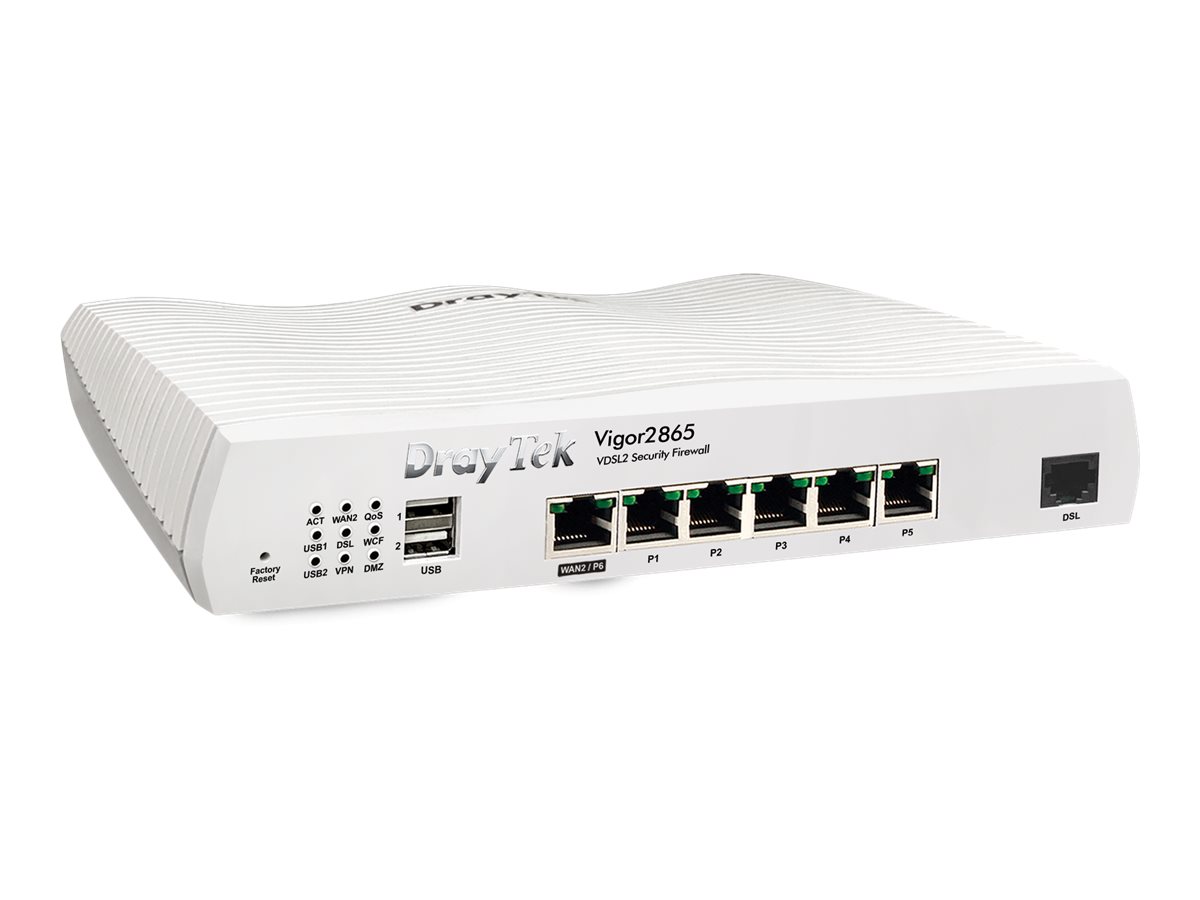

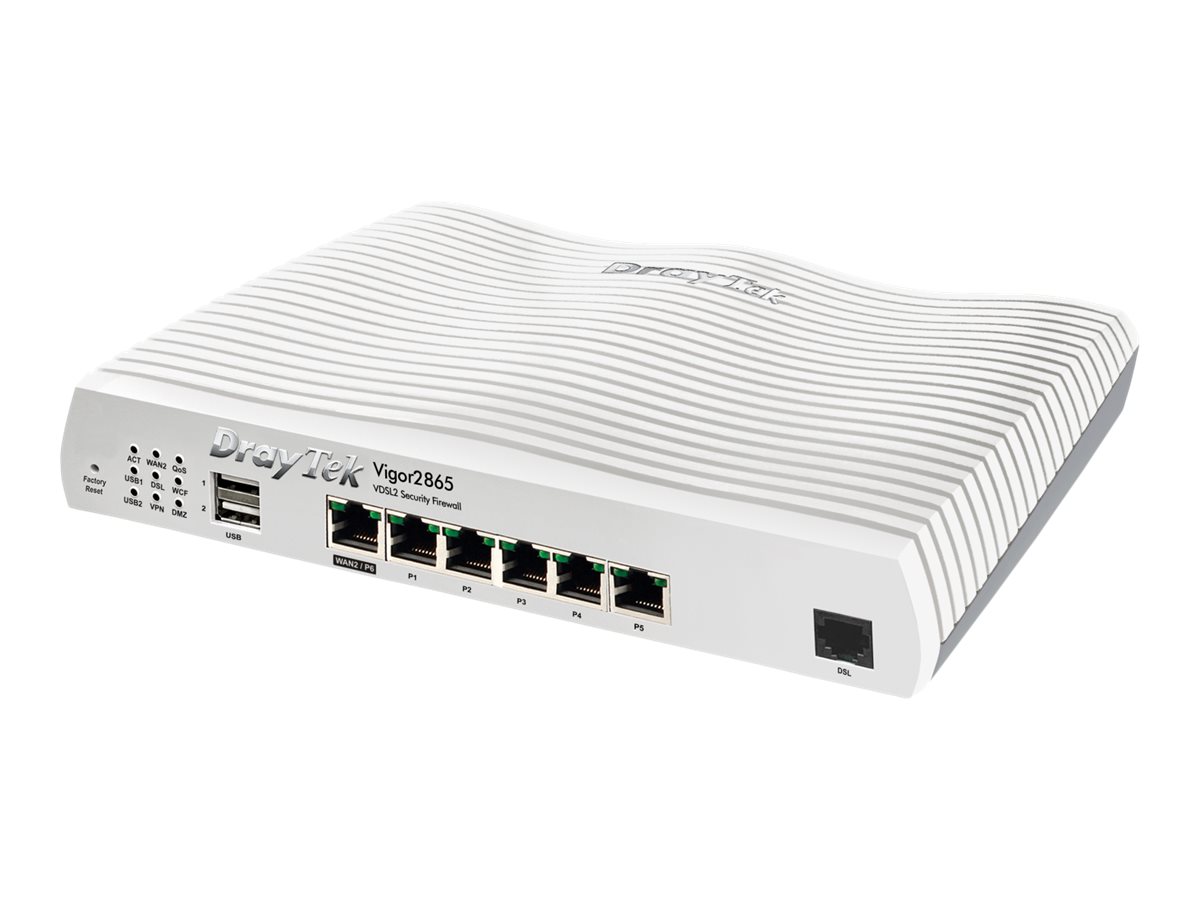

Draytek Vigor 2865, Router, DSL modem 1GbE, PPP, WAN ports: 2
$761.55 inc GST
✓ In Stock - 2 available
✓ Free NZ Delivery
2 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
Vigor 2865 Series is a VDSL2 35b/ADSL2+ security firewall router integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring. There is also a Gigabit Ethernet WAN port for broadband connections to share the traffic load or serve as a failover connection. The 3G/4G/LTE USB modem can also be attached to the USB ports of the router.
- Maximize throughput and reliability by using multiple Internet connections
- Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring
- Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings
- VPN works through firewalls providing secure remote access to any network environment
- Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents
- Set up VLAN easily from the router and get a centralized hierarchy view of the switches
What’s in the Box
- Draytek Vigor 2865
- Modem cable
- External power adapter
Main Specifications
Product Description | Draytek Vigor 2865 – router – DSL modem – desktop |
Device Type | Router – DSL modem |
Enclosure Type | Desktop |
Digital Signaling Protocol | VDSL2, ADSL2+, Vplus 35b, ADSL2, ADSL, VDSL |
WAN Ports Qty | 2 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
Performance | VPN throughput (256-bit AES IPSec): 300 Mbps VPN throughput (SSL): 120 Mbps NAT throughput: 800 Mbps |
Capacity | VLANs supported: 16 Concurrent VPN tunnels: 32 NAT sessions: 60000 Concurrent SSL VPN tunnels: 16 |
Network / Transport Protocol | IPSec, DDNS, DHCP, PPPoE, PPTP, L2TP, IPv4, IPv6, DHCPv6, Bonjour, SMB, RTSP, FTP |
Routing Protocol | Static IPv4 routing, static IPv6 routing, RIP, BGP, policy-based routing (PBR), GRE |
Remote Management Protocol | Telnet, HTTP, HTTPS, SSH, TR-069, TFTP, SNMP 1, SNMP 2c, SNMP 3 |
VoIP Protocols | SIP, H.323 |
Features | Firewall protection, 3G/4G USB Dongle Support, VPN support, reset button, load balancing, content filtering, DynDNS, bandwidth control, DHCP server, IPv6 support, IPv4 support, VLAN Tagging, ARP support, port-based VLAN, IP-MAC binding, port mirroring, DNS server, High Availability, IGMP proxy, IGMP snooping, file sharing, LAN-to-LAN bridging, GRE, IPSec NAT-T, failover protection, port triggering, DMZ support, ALG support, VPN passthrough, application filtering, URL filtering, Web Filtering, anti-spoofing protection, DoS attack prevention, QoS, ToS, DSCP support, DSCP based ToS, ACL support, Brute Force Protection, E-mail alert, SMS alert, Syslog support, tagged VLAN, keyword filtering |
Compliant Standards | ANSI T1.413, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, UPnP |
Dimensions (WxDxH) | 24.1 cm x 16.6 cm x 4.6 cm |
Documents
Extended Specifications
General
Device Type | Router |
|---|---|
Enclosure Type | Desktop |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
Performance | VPN throughput (256-bit AES IPSec): 300 Mbps VPN throughput (SSL): 120 Mbps NAT throughput: 800 Mbps |
Capacity | VLANs supported: 16 Concurrent VPN tunnels: 32 NAT sessions: 60000 Concurrent SSL VPN tunnels: 16 |
Network / Transport Protocol | IPSec, DDNS, DHCP, PPPoE, PPTP, L2TP, IPv4, IPv6, DHCPv6, Bonjour, SMB, RTSP, FTP |
Routing Protocol | Static IPv4 routing, static IPv6 routing, RIP, BGP, policy-based routing (PBR), GRE |
Remote Management Protocol | Telnet, HTTP, HTTPS, SSH, TR-069, TFTP, SNMP 1, SNMP 2c, SNMP 3 |
Encryption Algorithm | SSL, IKEv2, SHA-1, 256-bit SHA, DES, Triple DES, AES, MPPE |
Authentication Method | RADIUS, XAUTH authentication, internal user database, LDAP, TACACS+, X.509 certificates |
Features | Firewall protection, 3G/4G USB Dongle Support, VPN support, reset button, load balancing, content filtering, DynDNS, bandwidth control, DHCP server, IPv6 support, IPv4 support, VLAN Tagging, ARP support, port-based VLAN, IP-MAC binding, port mirroring, DNS server, High Availability, IGMP proxy, IGMP snooping, file sharing, LAN-to-LAN bridging, GRE, IPSec NAT-T, failover protection, port triggering, DMZ support, ALG support, VPN passthrough, application filtering, URL filtering, Web Filtering, anti-spoofing protection, DoS attack prevention, QoS, ToS, DSCP support, DSCP based ToS, ACL support, Brute Force Protection, E-mail alert, SMS alert, Syslog support, tagged VLAN, keyword filtering |
Compliant Standards | ANSI T1.413, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, UPnP |
Built-in Devices | Led panel |
Status Indicators | DMZ, DSL, link/activity, USB, VPN, WAN |
Line Properties
Framing Format | ANSI T1.413 |
|---|
Communications
Type | DSL modem |
|---|---|
Digital Signaling Protocol | VDSL2, ADSL2+, Vplus 35b, ADSL2, ADSL, VDSL |
Protocols & Specifications | ITU G.993.2, ITU G.993.5, ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.992.5 Annex A |
Max Transfer Rate | 300 Mbps |
IP Telephony
VoIP Protocols | SIP, H.323 |
|---|
Expansion / Connectivity
Interfaces | LAN: 5 x 10Base-T/100Base-TX/1000Base-T – RJ-45 WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 WAN: 1 x VDSL2 / ADSL2+ – RJ-11 USB 2.0: 2 x 4 pin USB Type A |
|---|
Power
Power Device | External power adapter |
|---|
Miscellaneous
Cables Included | 1 x modem cable |
|---|
Dimensions & Weight
Width | 24.1 cm |
|---|---|
Depth | 16.6 cm |
Height | 4.6 cm |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
