Lenkeng LKV822P, Transmitter + 2 receivers, video/audio/infrared/serial/network extender, HDMI, over CAT 6/6a/7, up to 70 m
$576.70 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description

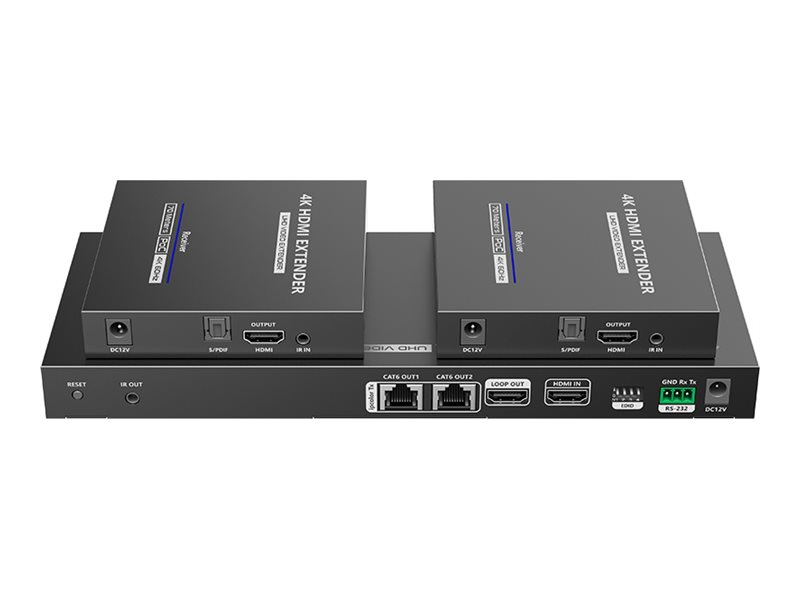

The Lenkeng LKV822P is a versatile video, audio, and infrared extender kit that includes a transmitter and two receivers. It operates efficiently in environments ranging from -20°C to 60°C and supports up to 30 Hz V-Sync rate at a maximum resolution of 4096 x 2160. With a range of interfaces including HDMI, RS-232, Ethernet, and SPDIF, this device allows seamless connectivity for various applications. The unit ensures secure transmission with features like surge protection, lightning protection, and ESD protection while maintaining zero latency for real-time performance. Suitable for a variety of setups, the LKV822P boasts a maximum transfer distance of 70 m using CAT 6/6a/7 cables, making it an ideal solution for challenging installations.
- Transmitter and 2 receivers included for connectivity
- Supports 4096 x 2160 resolution for quality video output
- Equipped with surge protection and lightning protection
- Connects using interfaces including HDMI and RS-232
- Transmits signals up to 70 m with minimal latency
- Robust environmental range
Operates effectively in temperatures ranging from -20°C to 60°C with a humidity range of 0 – 90%, ensuring reliability in diverse settings. - Comprehensive connectivity options
Features multiple interface types including HDMI input and output, RS-232, Ethernet, and SPDIF, allowing for flexible installation. - Advanced transmission technology
Utilizes CAT 6/6a/7 transmission medium with Power over Ethernet (PoE) to simplify cabling and reduce installation complexity. - High video performance
Supports KVM functionality with a maximum V-Sync rate of 30 Hz at resolutions up to 4096 x 2160, delivering clear visuals. - Enhanced protection features
Incorporates surge protection, lightning protection, and ESD protection to safeguard the device and connected equipment from electrical disturbances.
Main Specifications
Product Description | Lenkeng LKV822P – transmitter + 2 receivers – video/audio/infrared/serial/network extender – HDMI |
Device Type | Video/audio/infrared/serial/network extender |
Form Factor | External |
Data Link Protocol | HDMI |
Transmission Medium | CAT 6/6a/7 |
Max Transfer Distance | 70 m |
Power Over Ethernet (PoE) | PoE |
Power | DC 12 V |
Extended Specifications
General
Device Type | Video/audio/infrared/serial/network extender |
|---|---|
Form Factor | External |
Networking
Connectivity Technology | Wired |
|---|---|
Data Link Protocol | HDMI |
Max Resolution | 4096 x 2160 @ 30 Hz |
Max Transfer Distance | 70 m |
Features | Ipcolour technology, zero latency, splitter mode, extend mode, HDMI loop out, EDID Pass-Through, surge protection, lightning protection, ESD Protector, reset button, aluminium/steel housing |
Compliant Standards | HDCP 2.2 |
Expansion / Connectivity
Interfaces | 1 x HDMI input (transmitter) – 19 pin HDMI Type A female 1 x HDMI (loop output) – 19 pin HDMI Type A 2 x HDMI output (receiver) female 2 x IR input (receiver) female 2 x SPDIF (receiver) 1 x RS-232 (transmitter) 1 x IR output (transmitter) female 2 x Ethernet (transmitter) – RJ-45 female |
|---|
Power
Power Over Ethernet (PoE) | PoE |
|---|---|
Power Device | External power adapter |
Voltage Required | DC 12 V |
Dimensions & Weight
Dimensions (WxDxH) / Weight Details | Transmitter: 27.2 cm x 9.65 cm x 2.3 cm / 650 g Receiver: 7.5 cm x 8 cm x 1.8 cm / 243 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|---|
Max Operating Temperature | 60 °C |
Humidity Range Operating | 0 – 90% (non-condensing) |
Additional information
| Manufacturer |
|---|
