Description

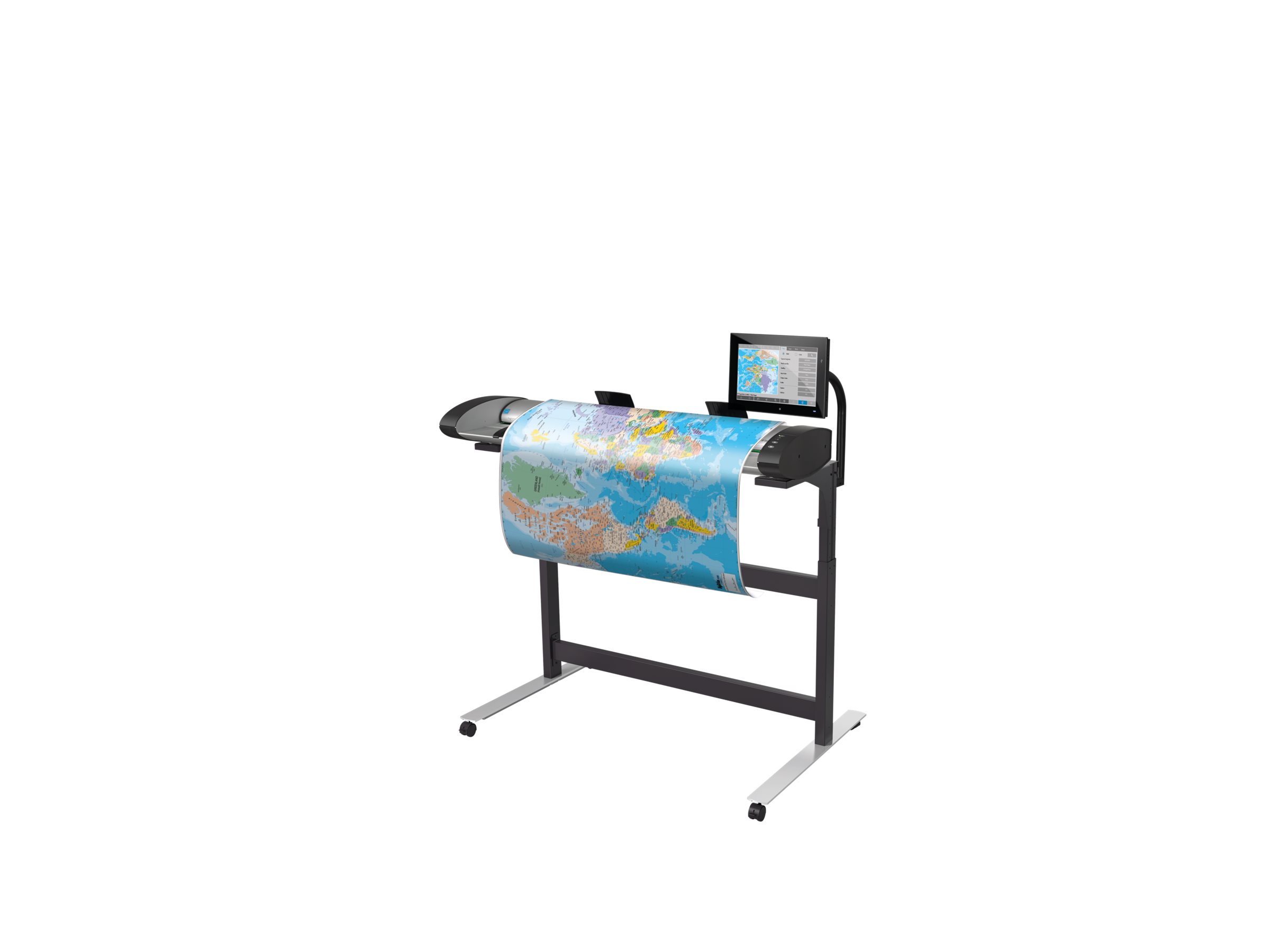

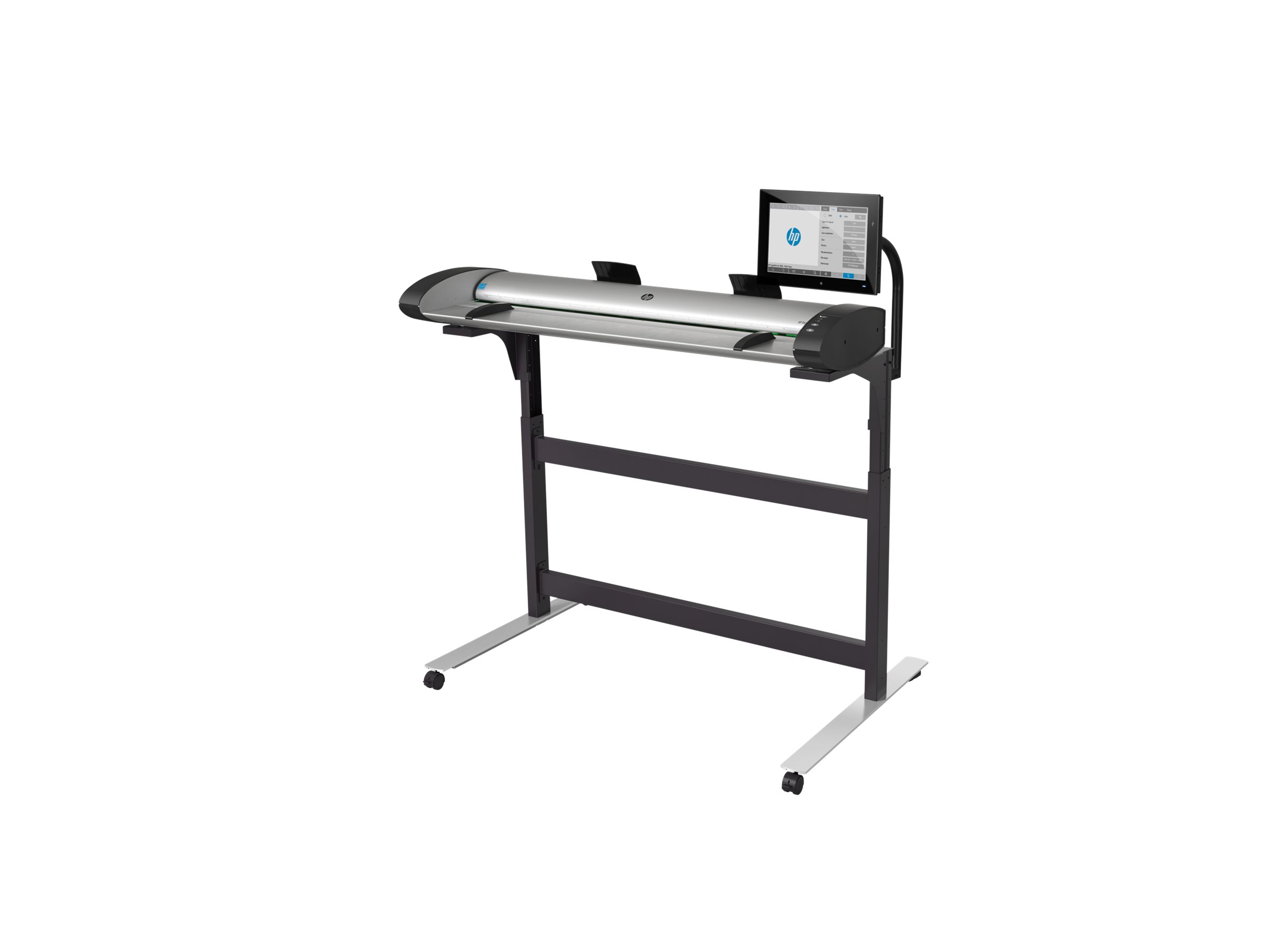

Empower production workflows with the high-speed, high-quality HP SD Pro 2 44-in Scanner. Produce scans with crisp lines and fine detail with CIS technology. Enhanced features enable workflow efficiencies that speed up collaboration and outcomes.
- Accomplish more with incredible speeds—scan 9 inches/sec (22.8 cm/sec) in color, 18 inches/sec (45.7 cm/sec) in grayscale.
- Reproduce AEC/CAD drawings, blueprints, maps with crisp lines and fine detail using CIS scanning technology.
- Enjoy seamless integration with HP PageWide XL and HP DesignJet printers—rely on HP to support the solution.
What’s in the Box
- HP SD Pro 2 44-in Scanner, stand, touchscreen (panel PC), quick reference guide, media guides, setup poster, maintenance sheet, copy/scan software, documentation software, Ethernet cable, USB cable, power cords
Main Specifications
Product Description | HP SD Pro 2 – roll scanner – stationary – Gigabit LAN, USB 3.1 Gen 1, USB 2.0 |
Device Type | Roll scanner – stationary |
Interface Type | Gigabit LAN, USB 3.1 Gen 1, USB 2.0 |
Scanning Sensor Type | Contact Image Sensor (CIS) |
Additional Functions | Email, scan to USB, scan to FTP, scan to HDD, scan to network folder, scan to file, scan to print |
Max Supported Document Size | Roll (111.8 cm) |
Max Scan Width | 44″ |
Input Type | Colour |
Optical Resolution | 1200 dpi x 1200 dpi |
Max Document Size | 1118 mm x 1168.4 mm |
Power | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH) | 153 cm x 93 cm x 166 cm |
Weight | 60 kg |
Environmental Standards | ENERGY STAR Qualified |
Designed For | DesignJet T950 |
Documents
Extended Specifications
General
Type | Roll scanner – stationary |
|---|
Interface Type | Gigabit LAN, USB 3.1 Gen 1, USB 2.0 |
|---|
Additional Functions | Email, scan to USB, scan to FTP, scan to HDD, scan to network folder, scan to file, scan to print |
|---|
Max Supported Document Size | Roll (111.8 cm) |
|---|
Max Scan Width | 44″ |
|---|
Scanner
Input Type | Colour |
|---|
Optical Resolution | 1200 dpi x 1200 dpi |
|---|
Scanning Sensor Type | Contact Image Sensor (CIS) |
|---|
Scanner Speed Details | 228 mm / sec – colour – 200 dpi
457 mm / sec – greyscale – 200 dpi |
|---|
Scanner Features | 15.6″ touch screen display, 256 GB SSD |
|---|
Scan File Formats | DWF, JPEG, JPEG 2000, PDF, TIFF |
|---|
Media Handling
Max Document Size | 1118 mm x 1168.4 mm |
|---|
Expansion / Connectivity
Interfaces Details | Gigabit LAN
4 x USB 3.1 Gen 1
USB 2.0 |
|---|
Miscellaneous
Included Accessories | Stand, setup poster |
|---|
Cables Included | 1 x network cable
1 x USB cable |
|---|
Compliant Standards | EMC, FCC, ICES, ACMA, RSM, CCC, VCCI, MSIP, EAC, WEEE, RoHS, REACH, UL, LVD, EN 60950-1, PSB, IRAM, NYCE, KC |
|---|
Environmental Standards
Power
Power Device | Internal power supply |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Consumption Operational (Standby) | 47 watt |
|---|
Power Consumption Stand by | 32 watt |
|---|
Power Consumption Sleep | 1.8 watt |
|---|
Software / System Requirements
Software Included | Drivers & Utilities |
|---|
Dimensions & Weight
Width | 153 cm |
|---|
Depth | 93 cm |
|---|
Height | 166 cm |
|---|
Weight | 60 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 150 cm |
|---|
Shipping Depth | 68 cm |
|---|
Shipping Height | 71 cm |
|---|
Shipping Weight | 85 kg |
|---|
Environmental Parameters
Min Operating Temperature | 5 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 20 – 80% RH |
|---|
Sound Emission | 62 dBA |
|---|
Compatibility Information
Designed For | HP DesignJet T950 |
|---|
