Description

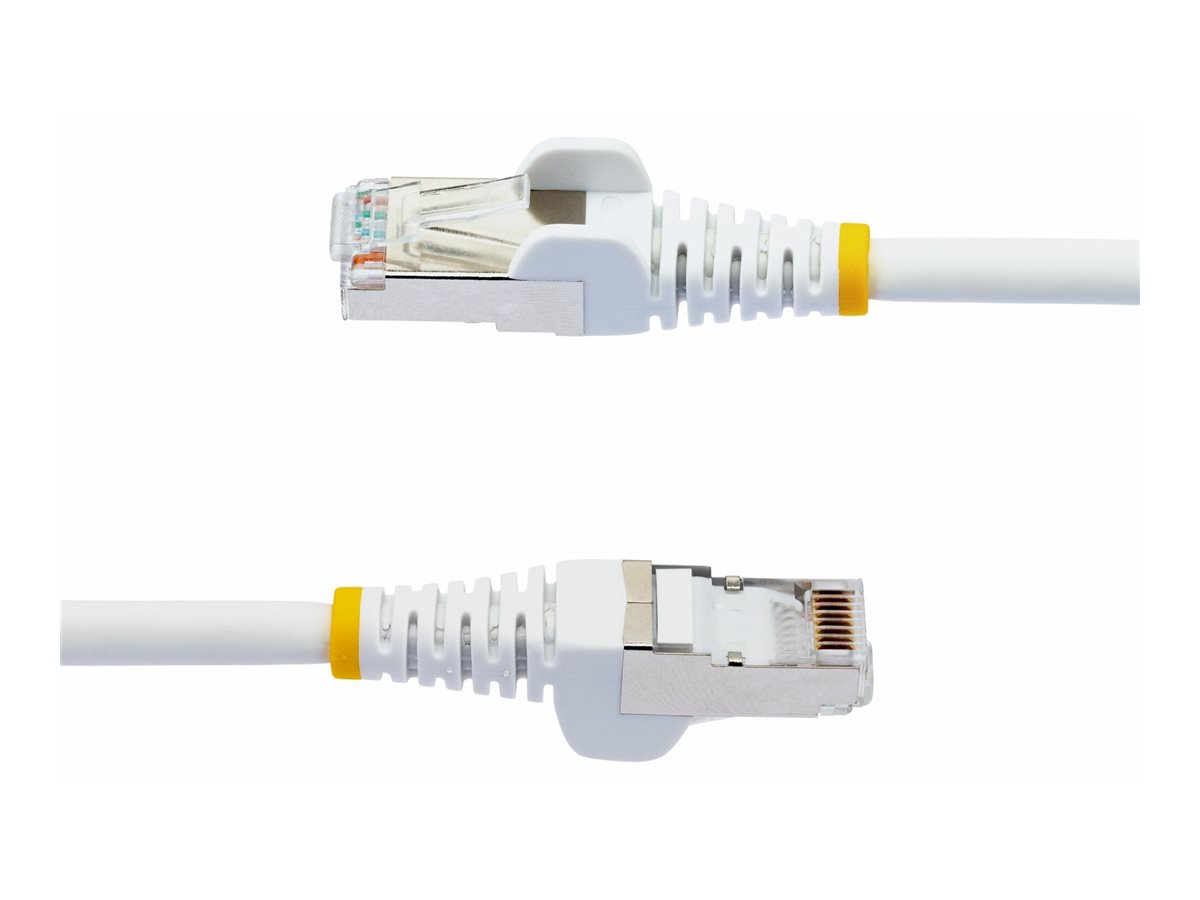

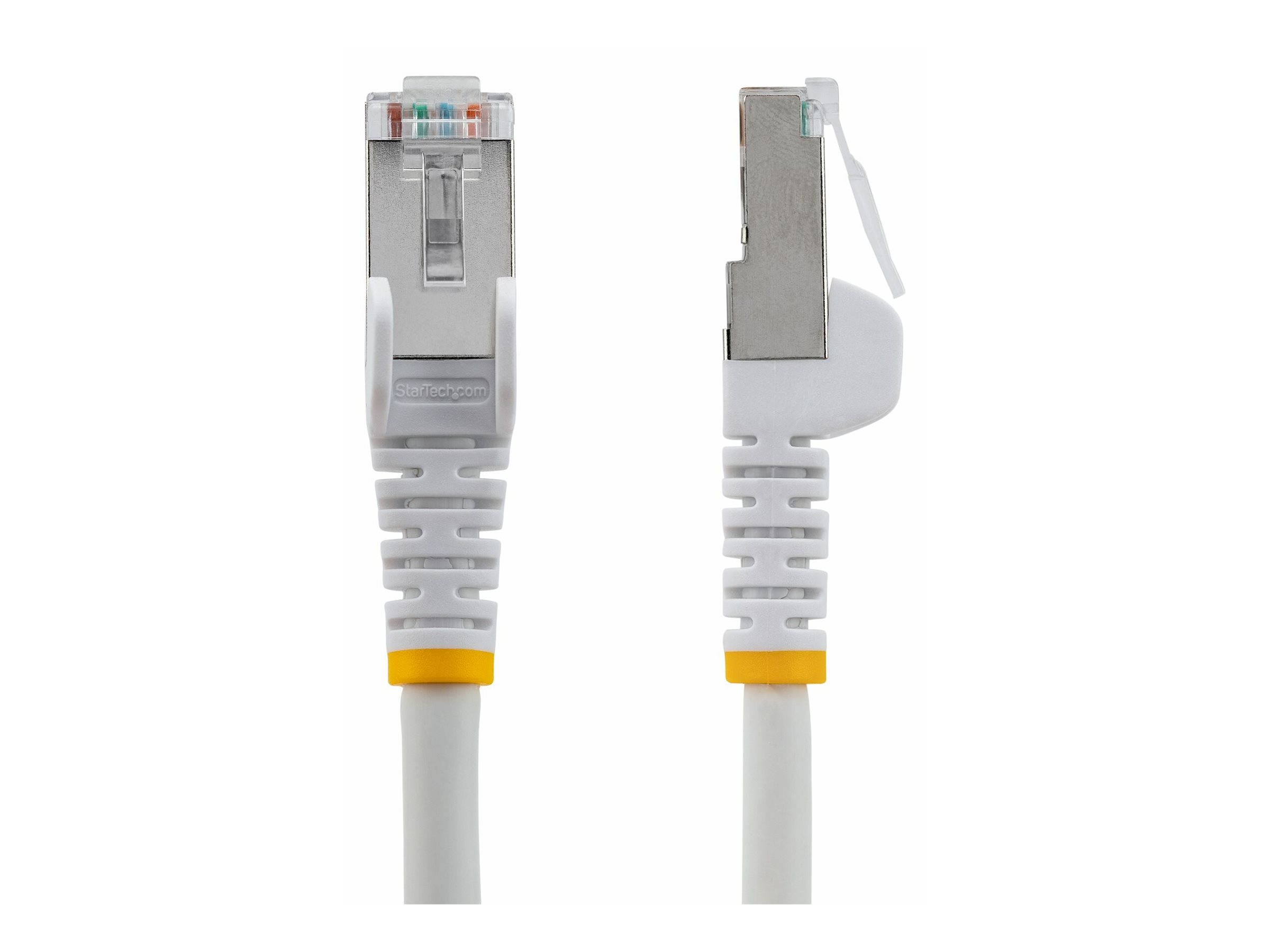

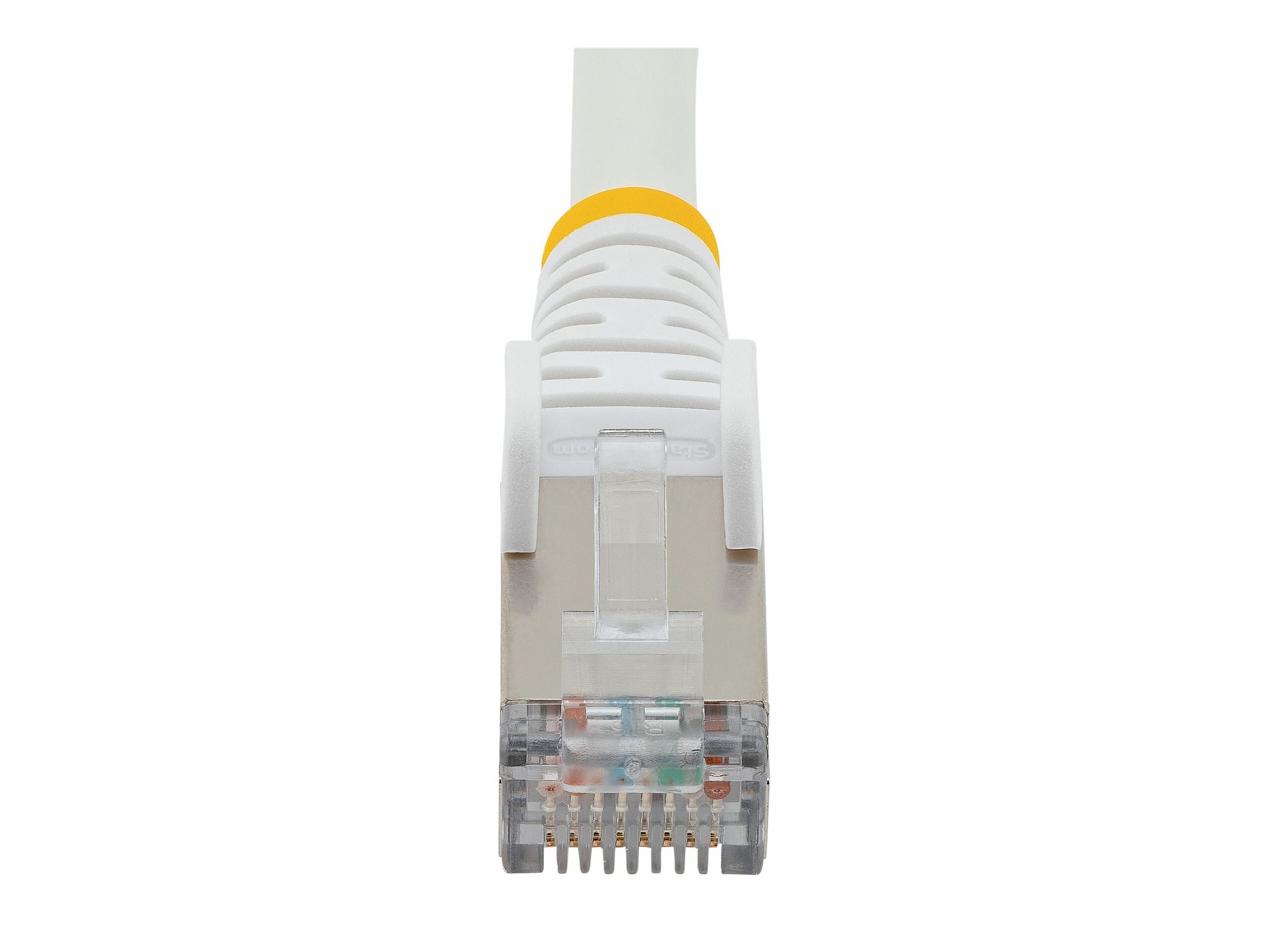

Ethernet Cable CAT6a 1m – Low Smoke Zero Halogen (LSZH), 10 Gigabit 500MHz 100W PoE RJ45 S/FTP Snagless Network Cord White (NLWH-1M-CAT6A-PATCH).
- Compliant with IEEE 802.3bt standards
- Supports data rates up to 10 Gbps
- Low Smoke Zero Halogen jacket for safety
- Features EMI/RFI protection and strain reliefs
- Tested frequency of 500 MHz
- Robust construction
Built with copper conductors and foil shielding, this cable minimizes damage and ensures reliable data transmission. - Efficient power delivery
Designed to accommodate up to 100 watts maximum input power, suitable for high-performance devices. - Enhanced reliability
Features included strain relief and minimized Return Loss for increased durability and signal integrity. - Compatibility
Compliant with RoHS, ETL, WEEE, and ANSI/TIA-568.2-D standards, ensuring compatibility with various networking systems. - Snagless design
Molded connectors with snagless design prevent cable snags during installation, providing convenience.
Main Specifications
Product Description | Startech 1m CAT6a Ethernet Cable – White – Low Smoke Zero Halogen (LSZH) – 10GbE 500MHz 100W PoE++ Snagless RJ-45 w/Strain Reliefs S/FTP Network Patch Cord – patch cable – 1 m – white |
Type | Patch cable – CAT 6a – IEEE 802.3bt |
Technology | S/FTP |
Shielding Material | Foil |
Wires per Cable | 8 wires |
Features | Halogen-free, molded, snagless, stranded, strain relief, minimised Near-End Crosstalk (NEXT), copper conductor, EMI/RFI protection, 100 Watt maximum input power, reduced Return Loss (RL), damage protection, up to 10 Gbps |
Cable Length | 1 m |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | White |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a – IEEE 802.3bt |
|---|
Technology | S/FTP |
|---|
Shielding Material | Foil |
|---|
Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
American Wire Gauge (AWG) | 27 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Halogen-free, molded, snagless, stranded, strain relief, minimised Near-End Crosstalk (NEXT), copper conductor, EMI/RFI protection, 100 Watt maximum input power, reduced Return Loss (RL), damage protection, up to 10 Gbps |
|---|
Cable Length | 1 m |
|---|
Weight | 42.1 g |
|---|
Colour | White |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ETL, WEEE, ANSI/TIA-568.2-D, PoE++ – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 22 cm |
|---|
Shipping Depth | 19 cm |
|---|
Shipping Height | 1 cm |
|---|
Shipping Weight | 50.8 g |
|---|
