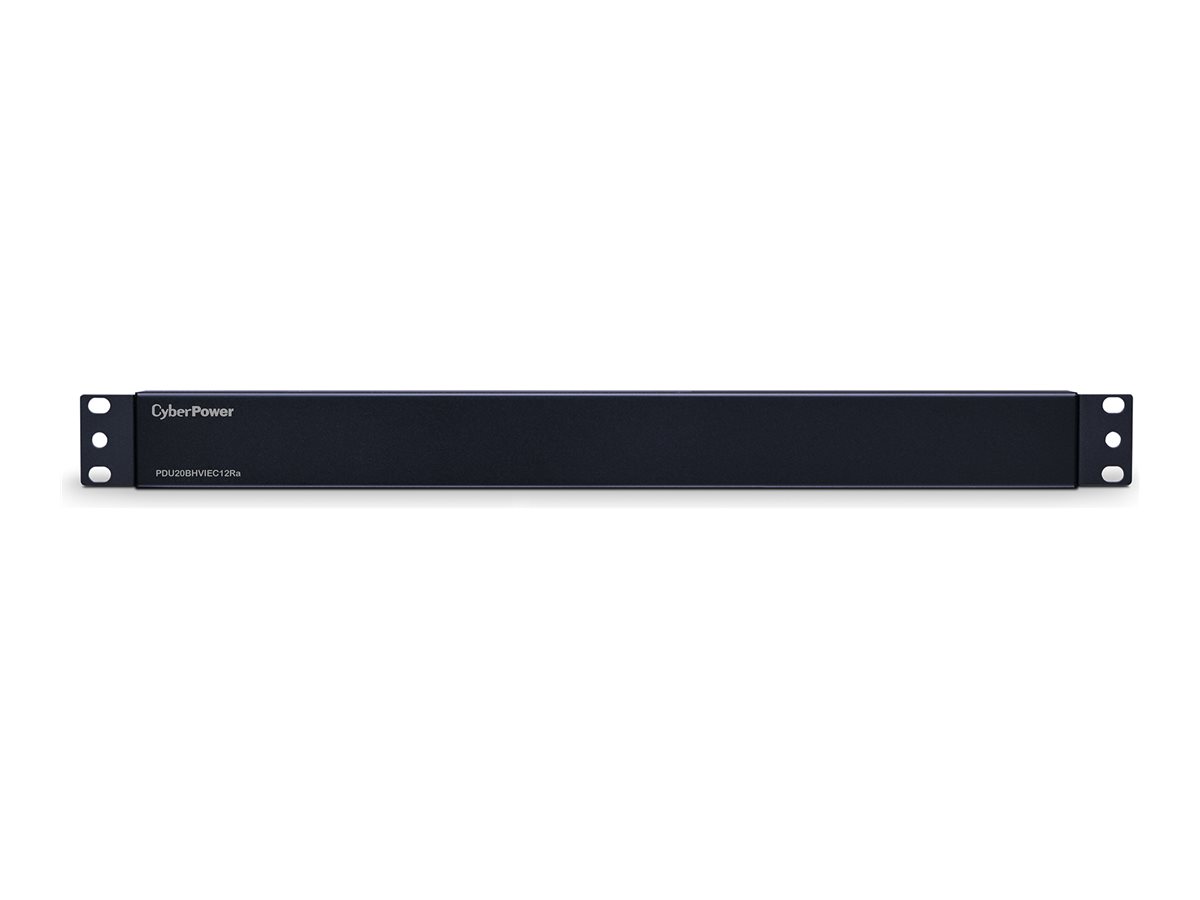

CyberPower Basic Series PDU20BHVIEC12RA, Power distribution unit (rack-mountable), AC 200/230 V, input: IEC 60320 C20, output connectors: 12 (power IEC 60320 C13, IEC 60320 C19), 1U
$271.99 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The CyberPower 12-outlet rack mount basic power distribution unit provides 200V/230V 20A output. It distributes power to 12 IEC-320 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord.
- 12 ICE-320 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 1U rack mount
Main Specifications
Product Description | CyberPower Basic Series PDU20BHVIEC12RA – power distribution unit |
Device Type | Power distribution unit – rack-mountable |
Rack Size | 1U |
Weight | 0.9 kg |
Input Voltage | AC 200/230 V |
Output Voltage | AC 200/230 V |
Input Connectors | 1 x power IEC 60320 C20 |
Output connectors | 10 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Dimensions (WxDxH) | 44.5 cm x 3.8 cm x 4.5 cm |
Extended Specifications
General
Device Type | Power distribution unit – rack-mountable |
|---|---|
Height (Rack Units) | 1U |
Power Device
Input Voltage | AC 200/230 V |
|---|---|
Input Voltage Range | AC 200 – 230 V |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power IEC 60320 C20 |
Power Output Connectors Details | 10 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Output Voltage | AC 200/230 V |
Max Electric Current | 20 A |
Circuit Protection | Circuit breaker |
Miscellaneous
Cables Included | Power cable 3 m |
|---|---|
Rack Mounting Kit | Included |
Features | Rugged, overload protection, vertical orientation |
Compliant Standards | CSA C22.2, RoHS, ETL, UL 60950-1 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 95% |
Dimensions & Weight
Width | 44.5 cm |
|---|---|
Depth | 3.8 cm |
Height | 4.5 cm |
Weight | 0.9 kg |
