Description

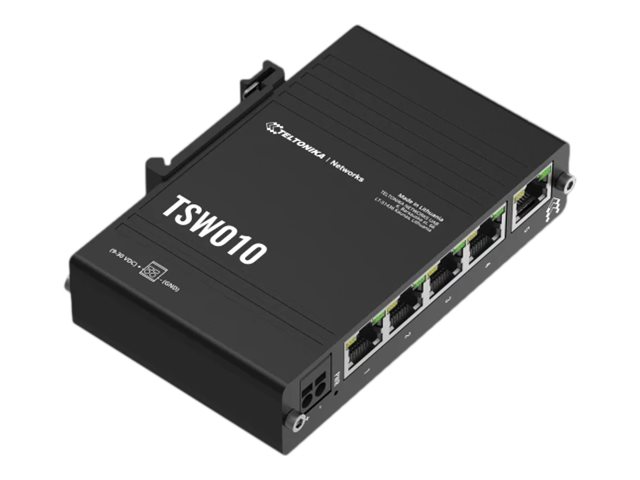

TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
- Plug-and-Play – no additional configuration needed
- Mounting – integrated DIN rail bracket and surface mounting options
- Industrial design – anodized aluminum housing and panels
- Ethernet – 5 x Ethernet ports with speeds of up to 100 Mbps
- Reliable temperature operation
The Teltonika TSW010 maintains functionality in both low and high temperature environments, with an operational range of -40°C to 75°C, making it suitable for a variety of challenging conditions. - Versatile networking capabilities
Equipped with five 10/100 ports, this switch provides flexibility for connecting multiple devices, ideal for various networking scenarios. - Efficient power management
With Passive Power over Ethernet, the TSW010 simplifies power delivery to connected devices, enhancing efficiency in network setup. - Robust construction for durability
The aluminum housing of the TSW010 offers protection, making it suitable for industrial applications where resilience is vital. - Easy installation
Designed to be DIN rail mountable, this switch allows for straightforward integration into existing infrastructure, streamlining the installation process.
Main Specifications
Product Description | Teltonika TSW010 – switch – 5 ports |
Device Type | Switch – 5 ports |
Subtype | Fast Ethernet |
Ports | 5 x 10/100 |
Power Over Ethernet (PoE) | Passive PoE |
Performance | Non-blocking bandwidth: 1 Gbps |
MAC Address Table Size | 2K entries |
Jumbo Frame Support | 2048 bytes |
Features | Auto-uplink (auto MDI/MDI-X), aluminium housing |
Compliant Standards | IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Power | DC 9 – 30 V |
Dimensions (WxDxH) | 11.31 cm x 8.05 cm x 2.74 cm |
Weight | 146.5 g |
Extended Specifications
General
Device Type | Switch – 5 ports |
|---|
Enclosure Type | DIN rail mountable, wall-mountable |
|---|
Subtype | Fast Ethernet |
|---|
Ports | 5 x 10/100 |
|---|
Power Over Ethernet (PoE) | Passive PoE |
|---|
Performance | Non-blocking bandwidth: 1 Gbps |
|---|
MAC Address Table Size | 2K entries |
|---|
Jumbo Frame Support | 2048 bytes |
|---|
Features | Auto-uplink (auto MDI/MDI-X), aluminium housing |
|---|
Compliant Standards | IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
|---|
Status Indicators | Power, link/activity |
|---|
Expansion / Connectivity
Interfaces | 4 x LAN RJ-45
1 x LAN RJ-45 PoE |
|---|
Power
Voltage Required | DC 9 – 30 V |
|---|
Miscellaneous
Compliant Standards | IP30, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM, EN IEC 62368-1:2020+A11:2020 |
|---|
Dimensions & Weight
Width | 11.31 cm |
|---|
Depth | 8.05 cm |
|---|
Height | 2.74 cm |
|---|
Weight | 146.5 g |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 17.3 cm |
|---|
Shipping Depth | 7.1 cm |
|---|
Shipping Height | 14.8 cm |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 75 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
