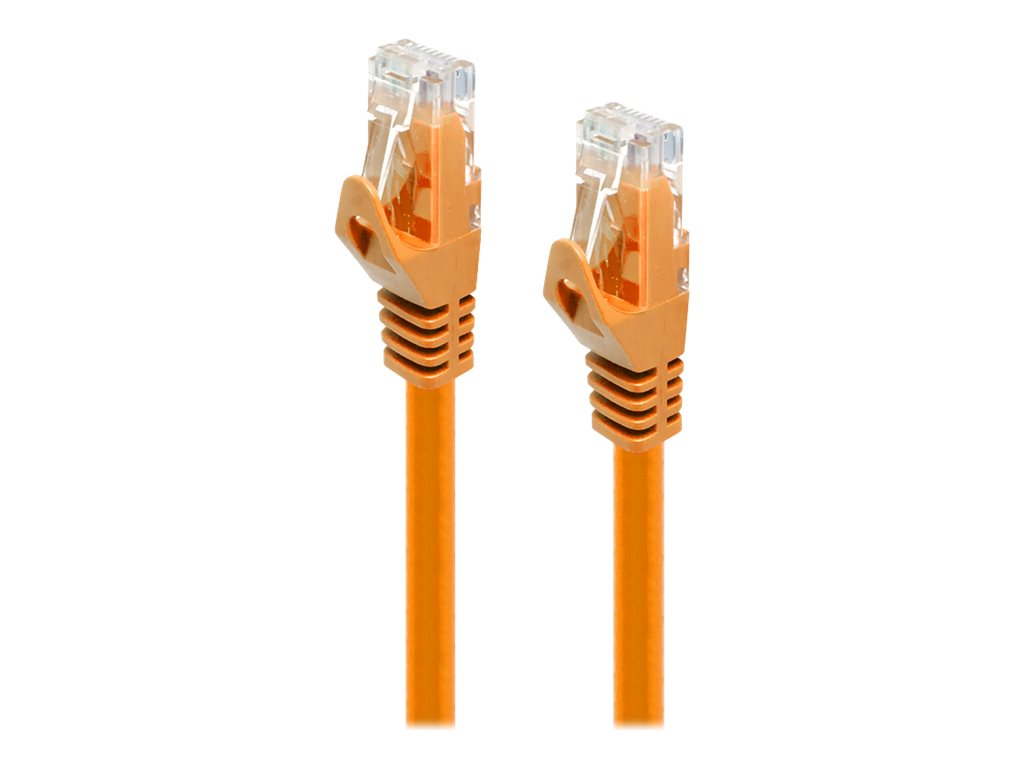

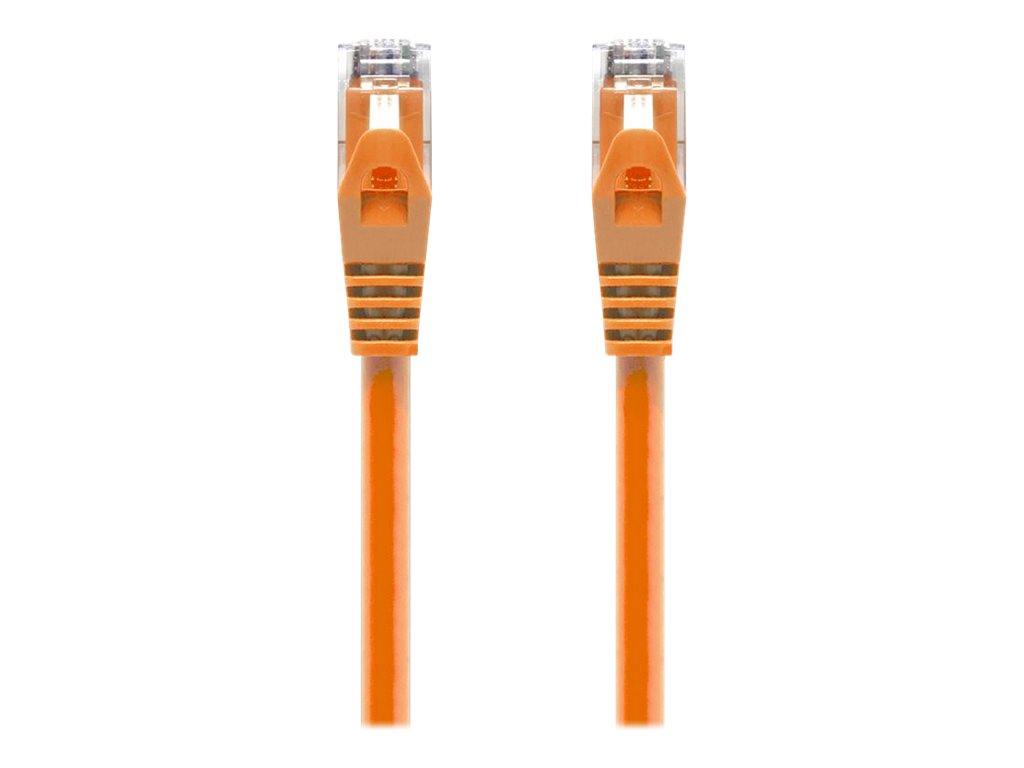

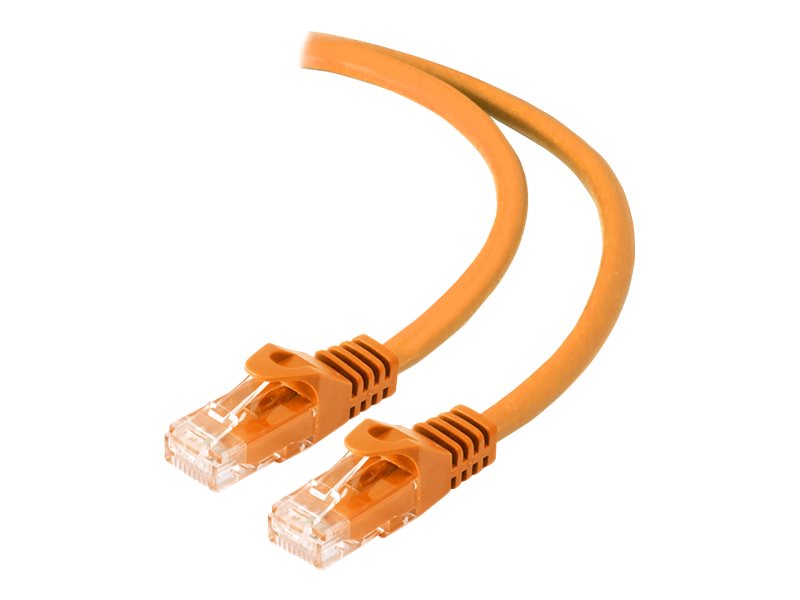

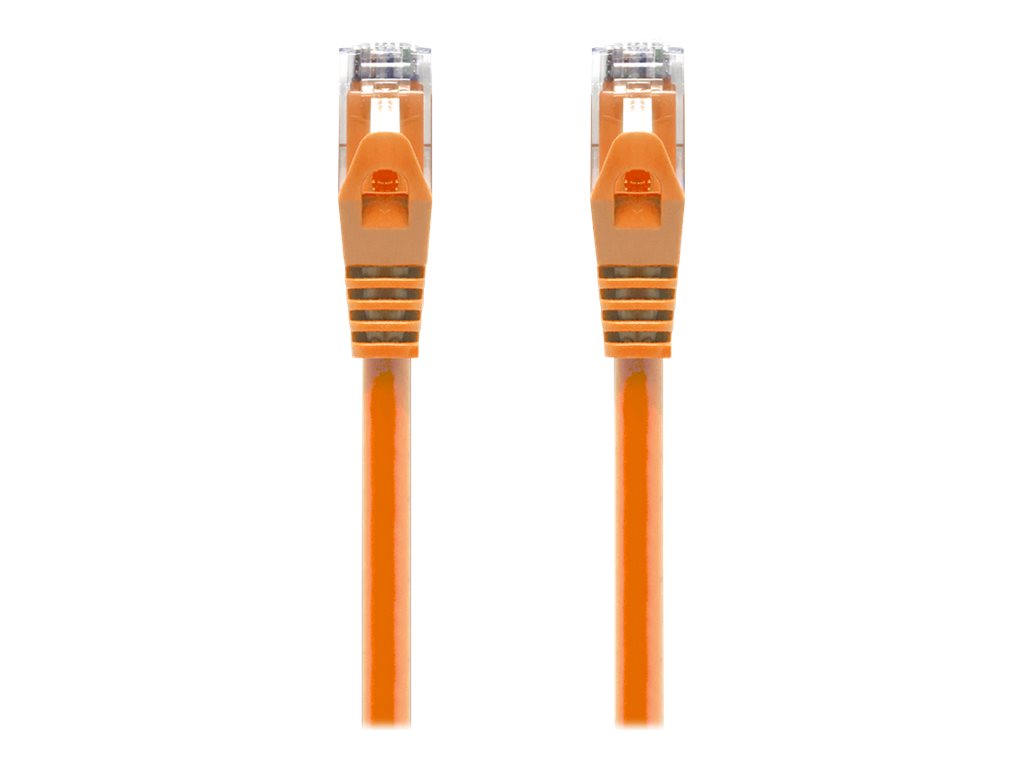

ALOGIC, Patch cable, RJ-45 (M) to RJ-45 (M), 1 m, CAT 6, molded, snagless, stranded, orange
$16.40 inc GST
✓ In Stock - 6 available
✓ Free NZ Delivery
6 in stock
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
ALOGIC Cat6 snagless patch cables are ideal to handle ultra-high speed and multi-gigabit protocols to transfer large volumes of voice, data, video and communications signals. ALOGIC CAT6 cables can help to improve the networks speeds by reducing impedance loss and network return loss in your network by as much as 40%. The cables consist of 4 pairs of 24 AWG insulated copper conductors separated by a cross to maintain a uniform distance between them which leads to improved cross talk performance, low insertion loss and higher data rates. Gold plated connectors ensure crystal clear transmission and the custom designed snagless boot protects the cable from any damage during installation.
- All ALOGIC CAT6 cables are A-Tick compliant with ACMA requirements
- Supports 10Base-T, 100Base-T, and 1000Base-T Network
- Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels
- Meets and exceeds all Cat6 TIA/EIA-568-B-2.1, draft 9 standards
- 50-micron gold-plated connectors to ensure clear transmissions
- Snagless molded connectors to protect the RJ45 retaining clips from damage during installation
Main Specifications
Product Description | ALOGIC patch cable – 1 m – orange |
Type | Patch cable – CAT 6 |
Wiring Scheme | T568A |
Wires per Cable | 8 wires |
Features | Molded, snagless, stranded, minimised Near-End Crosstalk (NEXT), bare copper conductors, pair separator, short plug |
Cable Length | 1 m |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Orange |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6 |
|---|---|
Wiring Scheme | T568A |
Jacket Material | PVC |
American Wire Gauge (AWG) | 24 |
Wires per Cable | 8 wires |
Pairs per Cable | 4 pairs |
Plated Connector | Gold |
Features | Molded, snagless, stranded, minimised Near-End Crosstalk (NEXT), bare copper conductors, pair separator, short plug |
Cable Length | 1 m |
Colour | Orange |
Connectivity
Connector | RJ-45 – male |
|---|---|
Connector (Second End) | RJ-45 – male |
Miscellaneous
Compliant Standards | RoHS, A-Tick, TIA/EIA-568-B-2.1, ACMA |
|---|
Environmental Parameters
Max Operating Temperature | 60 °C |
|---|
Additional information
| Manufacturer | |
|---|---|
| Colour | |
| Cable Length |
