Description
The TP-Link VIGI C340 V2 network surveillance camera is engineered for precision and durability, offering a comprehensive solution for outdoor security needs. With its ability to operate in extreme temperatures and high humidity, it ensures uninterrupted surveillance in any environmental condition. The camera’s high-quality lens and infrared night vision capability provide clear, detailed images day and night, over a wide area. Advanced video analytics, including smart detection and active defense mechanisms, enable precise monitoring and immediate response to security events. Additionally, secure network connectivity and support for onboard storage via a microSD card make this camera a versatile and reliable choice for safeguarding your premises.
- Supports microSD card for onboard storage
- Compliant with multiple standards including IP66 for weatherproof protection
- Offers bidirectional voice communication with built-in microphone and speaker
- Supports high-definition video capture up to 2560 x 1440 resolution
- Features active defense with instant notification for real-time security
- Robust environmental adaptability
Designed to withstand extreme temperatures ranging from -30 °C to 60 °C and humidity up to 95% (non-condensing), ensuring reliable operation in any weather condition. - Advanced optical performance
Features a fixed focal lens with a wide aperture of f/1.6 and an angular field of view up to 57.4 degrees, capturing clear and detailed images across expansive areas. - Enhanced night vision capability
Equipped with infrared LEDs and smart IR technology, this camera provides up to 30 m of night vision, delivering crisp images even in complete darkness. - Comprehensive video analytics
Incorporates features such as 3D digital noise reduction, backlight compensation, and smart detection capabilities including line crossing and human detection, for accurate monitoring and alerts. - Secure and versatile connectivity
Supports a variety of network protocols and features HTTPS encryption, ensuring secure data transmission. With Ethernet and PoE options, installation and power supply are simplified, enhancing flexibility in deployment.
Main Specifications
Product Description | TP-Link VIGI C340 V2 – network surveillance camera – bullet |
Device Type | Network surveillance camera – fixed – bullet – outdoor – weatherproof |
Audio | Yes: built-in speaker, built-in microphone |
Camera Mount Type | Wall mount, ceiling mount, pole mount |
Dimensions (WxDxH) | 7 cm x 17.4 cm x 7.8 cm |
Weight | 195 g |
Connectivity Technology | Wired |
Camera | Colour – Day&Night |
Max Resolution | 2560 x 1440 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Optical Sensor Type | CMOS – 1/3″ |
Minimum Illumination | 0.005 lux – colour
0 lux – white light |
Focal Length Control | Fixed focal |
Focal Length | 6 mm |
Lens Mounting | M12 mount |
Lens Iris | F/1.6 |
Interfaces | Ethernet 10Base-T/100Base-TX |
Voltage | DC 12 V / PoE |
Features | Backlight Compensation (BLC), IR filter, sharpness control, saturation control, brightness control, contrast control, image mirror, ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), Live View Control, programmable white balance, Camera Tampering Detection, Smart IR, reset button, password protection, 2-way voice communication, Region of Interest (ROI), exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), HTTPs encryption, human detection, Smart Detection, instant notification, object enter area detection, MiMo WiFi connectivity, Active Defense, password reset via e-mail, 2 video streams, video tampering detection, slow shutter |
Environmental Parameters (operating) | -30 °C – 60 °C; up to 95% (non-condensing) relative humidity |
Documents
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: built-in speaker, built-in microphone |
|---|
Form Factor | Bullet |
|---|
Camera Mount Type | Wall mount, ceiling mount, pole mount |
|---|
Connectivity Technology | Wired |
|---|
Width | 7 cm |
|---|
Depth | 17.4 cm |
|---|
Height | 7.8 cm |
|---|
Weight | 195 g |
|---|
Camera
Type | Colour – Day&Night – fixed – outdoor – weatherproof |
|---|
Digital Video Format | H.264, H.265, H.265+, H.264+ |
|---|
Max Digital Video Resolution | 2560 x 1440 |
|---|
Motion Detection | Yes |
|---|
Exposure Range | 1/3 sec – 1/10000 sec |
|---|
Minimum Illumination | 0.005 lux – colour
0 lux – white light |
|---|
Infrared LEDs | Yes |
|---|
Infrared Distance | 30 m |
|---|
Digital Video Capture Resolution | 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2048 x 1280 |
|---|
Frame Rate (max) | 30 frames per second |
|---|
Features | Backlight Compensation (BLC), IR filter, sharpness control, saturation control, brightness control, contrast control, image mirror, ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), Live View Control, programmable white balance, Camera Tampering Detection, Smart IR, reset button, password protection, 2-way voice communication, Region of Interest (ROI), exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), HTTPs encryption, human detection, Smart Detection, instant notification, object enter area detection, MiMo WiFi connectivity, Active Defense, password reset via e-mail, 2 video streams, video tampering detection, slow shutter |
|---|
Image Sensor
Lens Construction
Type | M12 mount – fixed focal |
|---|
Focal Length | 6 mm |
|---|
Lens Iris | F/1.6 |
|---|
Horizontal Field of View (degree) | 49.3 |
|---|
Vertical Field of View (degree) | 26.8 |
|---|
Diagonal Field of View (degree) | 57.4 |
|---|
Interfaces
Network Interface | Ethernet 10Base-T/100Base-TX |
|---|
Network Protocols | DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL |
|---|
Expansion / Connectivity
Ports | LAN/power – RJ-45 |
|---|
Supported Memory Cards | microSD Card |
|---|
Miscellaneous

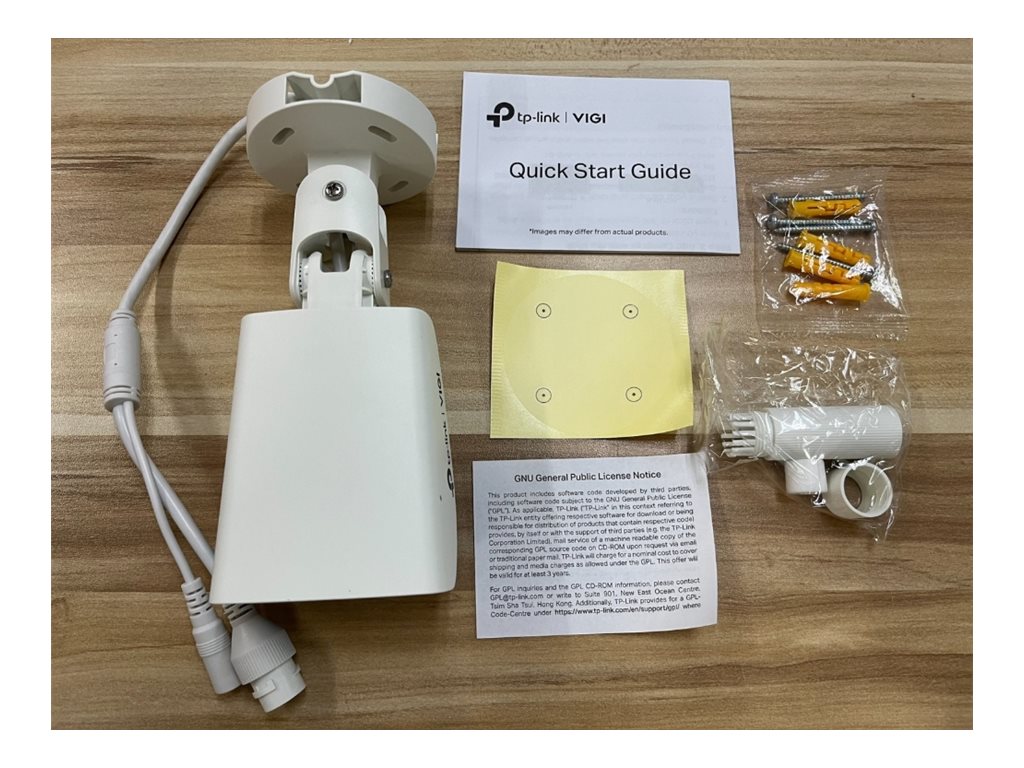

Included Accessories | Mounting hardware, waterproof cable attachments |
|---|
Compliant Standards | VCCI, BSMI, RoHS, NTRA, IP66, KC, RCM, IEEE 802.3af, IEEE 802.3at |
|---|
Power
Power Requirements | DC 12 V / PoE |
|---|
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
Relative Humidity (operating) | Up to 95% (non-condensing) |
|---|
