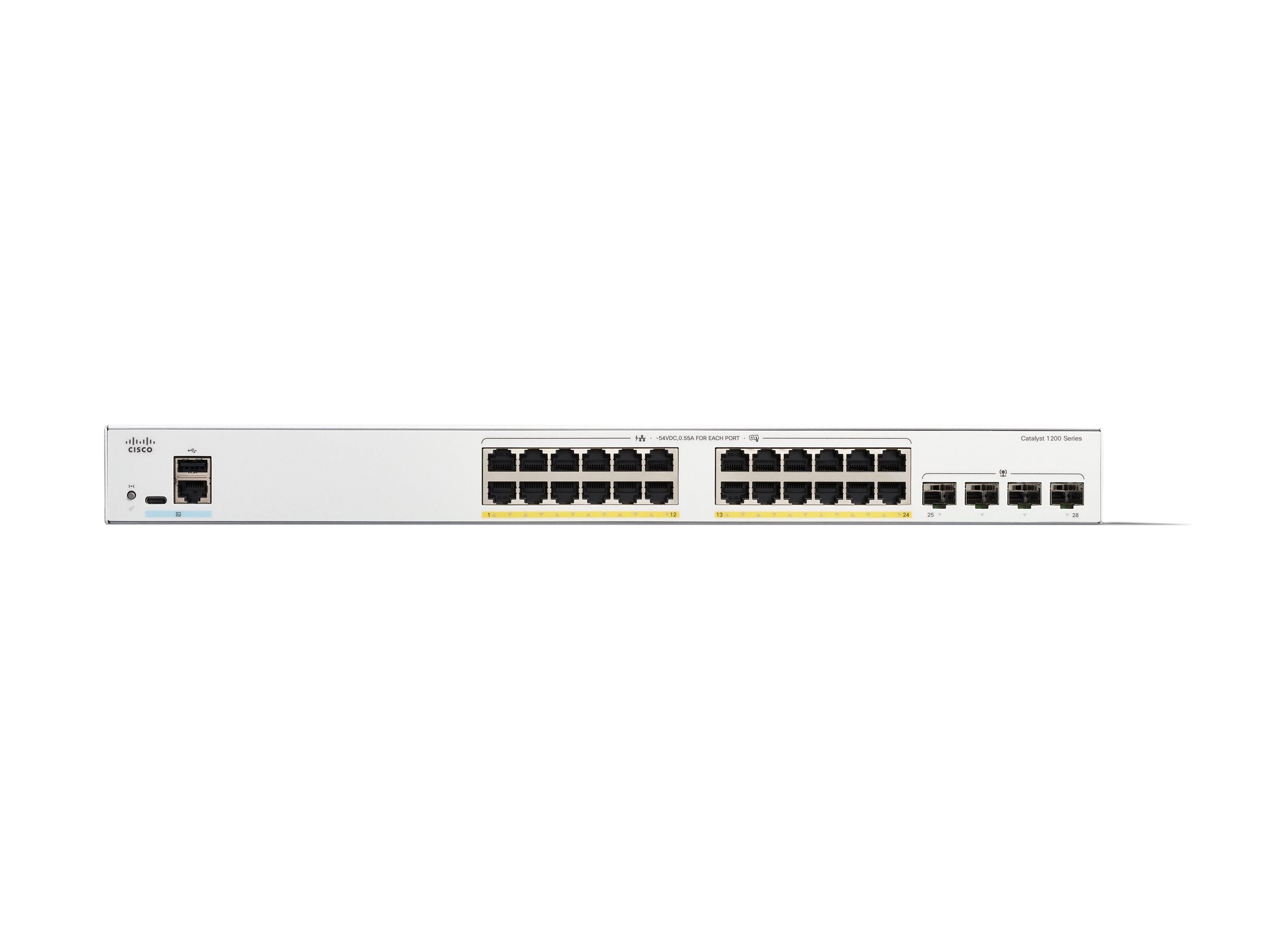

Cisco Catalyst 1200-24FP-4G, Switch, L3, smart, 24 x 10/100/1000 (PoE+) + 4 x Gigabit Ethernet SFP, rack-mountable, PoE+ (375 W)
$1,812.83 inc GST
✓ In Stock - 6 available
✓ Free NZ Delivery
6 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Cisco Catalyst 1200-24FP-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security, and reliability with a comprehensive suite of network features you need for a solid small business network.
- Easy configuration and management
- Reliability and performance
- Layer 3 static routing
- Network security
- Flexible and compact design
- An energy-efficient solution
- Peace of mind and investment protection
- SWITCH PORTS
24 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 375W, PoE, PoE+) - SIMPLE
Intuitive Cisco Business mobile app, local web interface, and Cisco Business Dashboard allows you to set up, manage, and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required - SECURITY
Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorized users - ENERGY EFFICIENT
Optimizes power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models - PERFECT FOR SMALL BUSINESS
Requires no subscription or licenses to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
What’s in the Box
- What’s in the Box
- Switch
- power cord
- USB Type C cable
- and mounting hardware
Main Specifications
Product Description | Cisco Catalyst 1200-24FP-4G – switch – 24 ports – smart – rack-mountable |
Device Type | Switch – 24 ports – L3 – smart |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit Ethernet SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 375 W |
Performance | Forwarding rate (64-byte packets): 41.66 Mpps Switching capacity: 56 Gbps |
Capacity | MSTP instances: 8 PVST+ instances: 126 RPVST+ instances: 126 Link aggregation groups: 4 Link aggregation ports: 8 Active VLANs: 255 IGMP multicast groups: 255 IPv4 routes (static): 32 IPv4 interfaces: 16 ACL rules: 512 Priority queues: 8 Packet buffer size: 1.5 MB |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour |
Remote Management Protocol | CLI, Telnet, SSH, SSH-2, DHCP, ICMP, SNMP, RADIUS, Syslog, HTTP, HTTPS, SNMP 2c, SNMP 3, RMON, TFTP, SCP |
Features | Fanless, QoS, ACL support, eco-friendly button, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing |
Compliant Standards | IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
Power | AC 100-240 V (50 – 60 Hz) |
Dimensions (WxDxH) | 44.5 cm x 34.5 cm x 4.4 cm |
Weight | 4.6 kg |
Documents
Extended Specifications
General
Device Type | Switch – 24 ports – L3 – smart |
|---|---|
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit Ethernet SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 375 W |
Performance | Forwarding rate (64-byte packets): 41.66 Mpps Switching capacity: 56 Gbps |
Capacity | MSTP instances: 8 PVST+ instances: 126 RPVST+ instances: 126 Link aggregation groups: 4 Link aggregation ports: 8 Active VLANs: 255 IGMP multicast groups: 255 IPv4 routes (static): 32 IPv4 interfaces: 16 ACL rules: 512 Priority queues: 8 Packet buffer size: 1.5 MB |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour |
Remote Management Protocol | CLI, Telnet, SSH, SSH-2, DHCP, ICMP, SNMP, RADIUS, Syslog, HTTP, HTTPS, SNMP 2c, SNMP 3, RMON, TFTP, SCP |
Encryption Algorithm | SSL |
Authentication Method | RADIUS |
Features | Fanless, QoS, ACL support, eco-friendly button, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing |
Compliant Standards | IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, link/activity/speed, PoE |
Expansion / Connectivity
Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 4 x 1000Base-X SFP 1 x console RJ-45 1 x USB-C console |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-240 V (50 – 60 Hz) |
Miscellaneous
Included Accessories | Pointer card, mounting kit |
|---|---|
MTBF | 698,220 hours |
Compliant Standards | Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE |
Dimensions & Weight
Width | 44.5 cm |
|---|---|
Depth | 34.5 cm |
Height | 4.4 cm |
Weight | 4.6 kg |
Environmental Parameters
Min Operating Temperature | -5 °C |
|---|---|
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 – 90% RH (non-condensing) |
Min Storage Temperature | -25 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 – 90% RH (non-condensing) |
