Startech HDMI® Over Fiber Extender with IR Control, HDMI to SC Fiber Converter Extender up to 2600ft (800m), 1920x1200 / 1080p (ST121HDFXA), Video/audio extender, Fibre Channel, HDMI, over fibre optic, up to 800 m
$1,417.90 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
Extend HDMI video and audio over SC Multi Mode fiber, with Infrared control. The ST121HDFXA is a long-range HDMI video extender kit that uses SC fiber optic cable to extend video/audio from an HDMI-equipped device to a remote display up to 2600 feet (800 Meters) away. The extender supports full High-Definition video (1920×1200 / 1080p) and includes both the transmitter and receiver, for a complete ready-to-use digital signage solution.
Not only is this an incredibly long range solution that can extend an HDMI signal across or between buildings, but because fiber optics transmit data using light rather than copper, it will not cause or be effected by electromagnetic Interference (EMI).

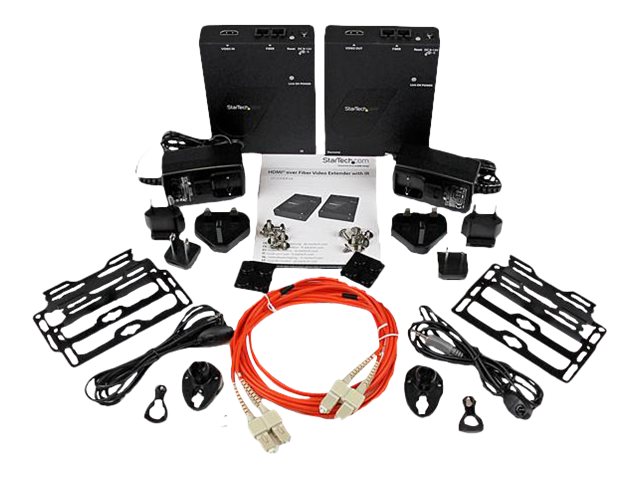

For convenient, time-saving control of the media source, the HDMI extender also offers Infrared (IR) extension, which enables you to control the HDMI audio-video source from either end of the connection. The kit also includes optional mounting hardware for a clean and professional installation.
Main Specifications
Product Description | Startech HDMI® Over Fiber Extender with IR Control – HDMI to SC Fiber Converter Extender up to 2600ft (800m) – 1920×1200 / 1080p (ST121HDFXA) – video/audio extender – Fibre Channel, HDMI |
Device Type | Video/audio extender |
Form Factor | External |
Data Transfer Rate | 3.4 Gbps |
Data Link Protocol | Fibre Channel, HDMI |
Transmission Medium | Fibre optic |
Max Transfer Distance | 800 m |
Power | AC 120/230 V |
Dimensions (WxDxH) | 9.7 cm x 12.9 cm x 2.6 cm |
Weight | 445 g |
Extended Specifications
General
Device Type | Video/audio extender |
|---|---|
Form Factor | External |
Colour | Black |
Networking
Connectivity Technology | Wired |
|---|---|
Data Link Protocol | Fibre Channel, HDMI |
Data Transfer Rate | 3.4 Gbps |
Max Resolution | 1080p @ 60 Hz |
Max Transfer Distance | 800 m |
Expansion / Connectivity

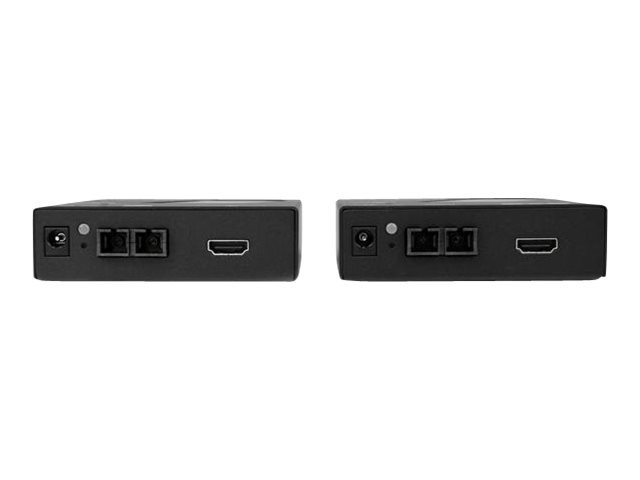

Interfaces | 1 x HDMI 1 x – Fibre Channel – SC multi-mode female 1 x IrDA |
|---|
Miscellaneous
Compliant Standards | FCC, RoHS |
|---|
Power
Power Device | External power adapter |
|---|---|
Installed Qty | 2 |
Voltage Required | AC 120/230 V |
Dimensions & Weight
Width | 9.7 cm |
|---|---|
Depth | 12.9 cm |
Height | 2.6 cm |
Weight | 445 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 80% |
Additional information
| Manufacturer | |
|---|---|
| Colour |
