Description

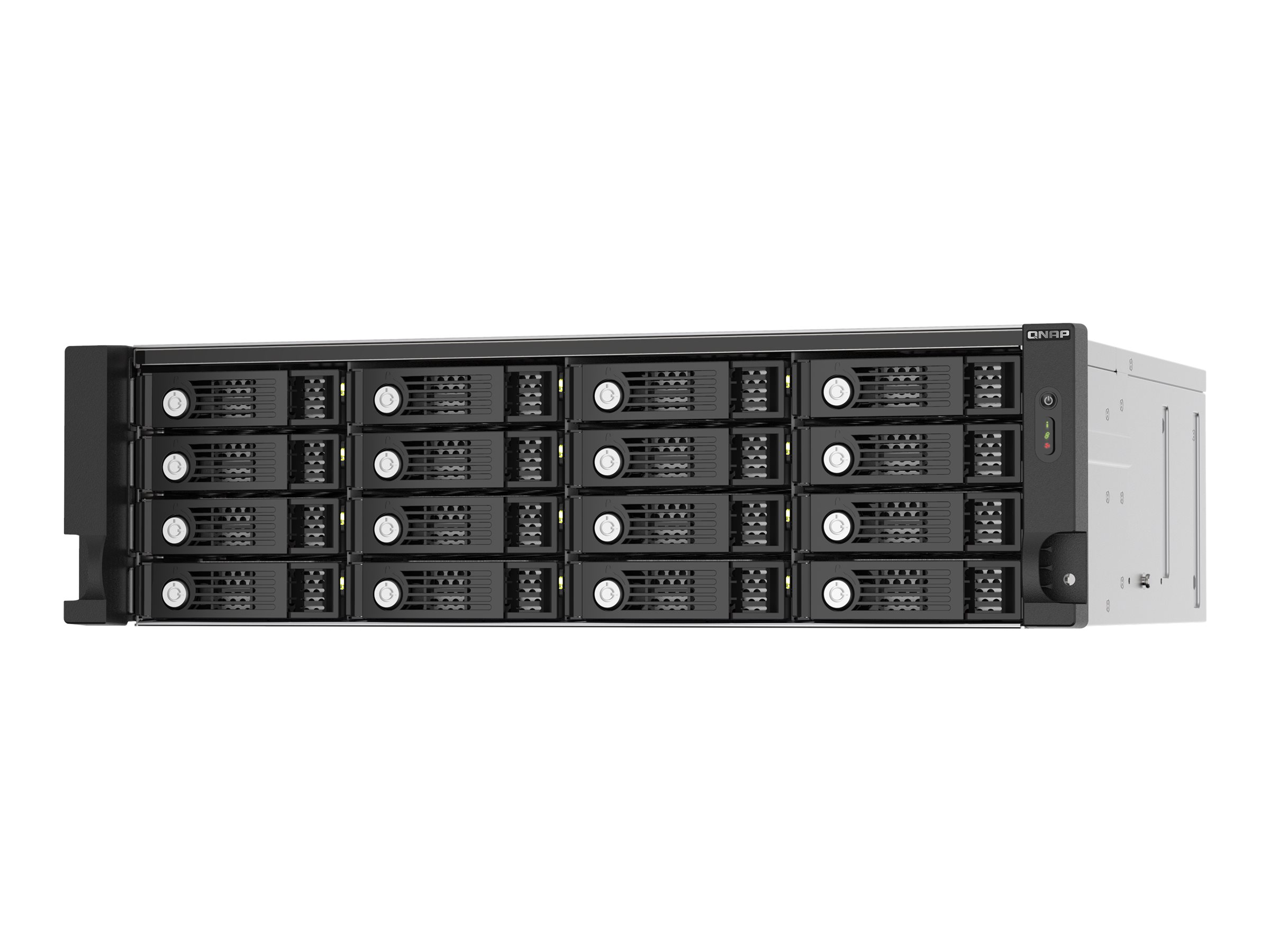

The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 4.6PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation.
- Supported NAS system
- DataBolt bandwidth optimization
- Multipath routing
- Storage management
- Remote files transfer
- Easy installation & storage
- Supported NAS system
Expand the storage space of a QTS/QuTS hero NAS, supports up to 4.6PB raw capacity by daisy-chaining up to 16 expansion enclosures. - DataBolt bandwidth optimization
Combine multiple 6Gb/s transmissions into 12 Gb/s data streams to achieve faster speed with existing 6Gb/s infrastructure. - Multipath routing
Ensure smooth data transmission and continuous operation by using the TL-R1620Sep-RP with a NAS that supports multipath routing. - Storage management
Manage the storage space and settings of the TL-R1620Sep-RP with Storage & Snapshot Manager on the host NAS. - Remote files transfer
Conserve network bandwidth and performance by using the TL-R1620Sep-RP to transfer huge files from one device to another. - Easy installation & storage
With a short-depth design, the TL-R1620Sep-RP is suitable for universal deployment.
Main Specifications
Product Description | QNAP TL-R1620Sep-RP – hard drive array |
Device Type | Hard drive array |
Enclosure Type | Rack-mountable – 3U |
Interface | SAS 12Gb/s |
Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
Supported Drives | SATA-600 / SAS-3 |
Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) – RAID JBOD |
Hard Drive | No HDD |
Power | AC 120/230 V |
Dimensions (WxDxH) | 48.22 cm x 42.53 cm x 13.13 cm |
Weight | 11.48 kg |
Extended Specifications
General
Device Type | Hard drive array |
|---|
Enclosure Type | Rack-mountable – 3U |
|---|
Chassis
Installed Devices / Modules Qty | 0 |
|---|
Supported Devices / Modules Qty | 16 |
|---|
Supported Drives | SATA-600 / SAS-3 |
|---|
Storage
HDD Array External Interface | SAS 12Gb/s |
|---|
Storage Controller
Type | RAID |
|---|
Interface Type | SATA 6Gb/s / SAS 12Gb/s |
|---|
RAID Level | JBOD |
|---|
Hard Drive
Expansion / Connectivity
Expansion Bays | 16 (total) / 16 (free) x hot-swap – 2.5″ / 3.5″ shared |
|---|
Interfaces | 4 x SAS 12Gb/s – Mini SAS HD (SFF-8644) |
|---|
Miscellaneous
Features | Built-in 3 cooling fans |
|---|
Cables Included | 1 x SFF-8644 to SFF-8644 SAS cable |
|---|
Included Accessories | 2 power cords, 48 x flat head screws (for 2.5″ HDD), 64 x flat head screws (for 3.5″ HDD), key |
|---|
Power
Power Device | 2 x internal power supply |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 120/230 V |
|---|
Power Consumption Operational | 207.13 Watt |
|---|
Power Provided | 550 Watt |
|---|
Dimensions & Weight
Width | 48.22 cm |
|---|
Depth | 42.53 cm |
|---|
Height | 13.13 cm |
|---|
Weight | 11.48 kg |
|---|
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 5 – 95% (non-condensing) |
|---|
Sound Emission | 36 dBA |
|---|
