Description

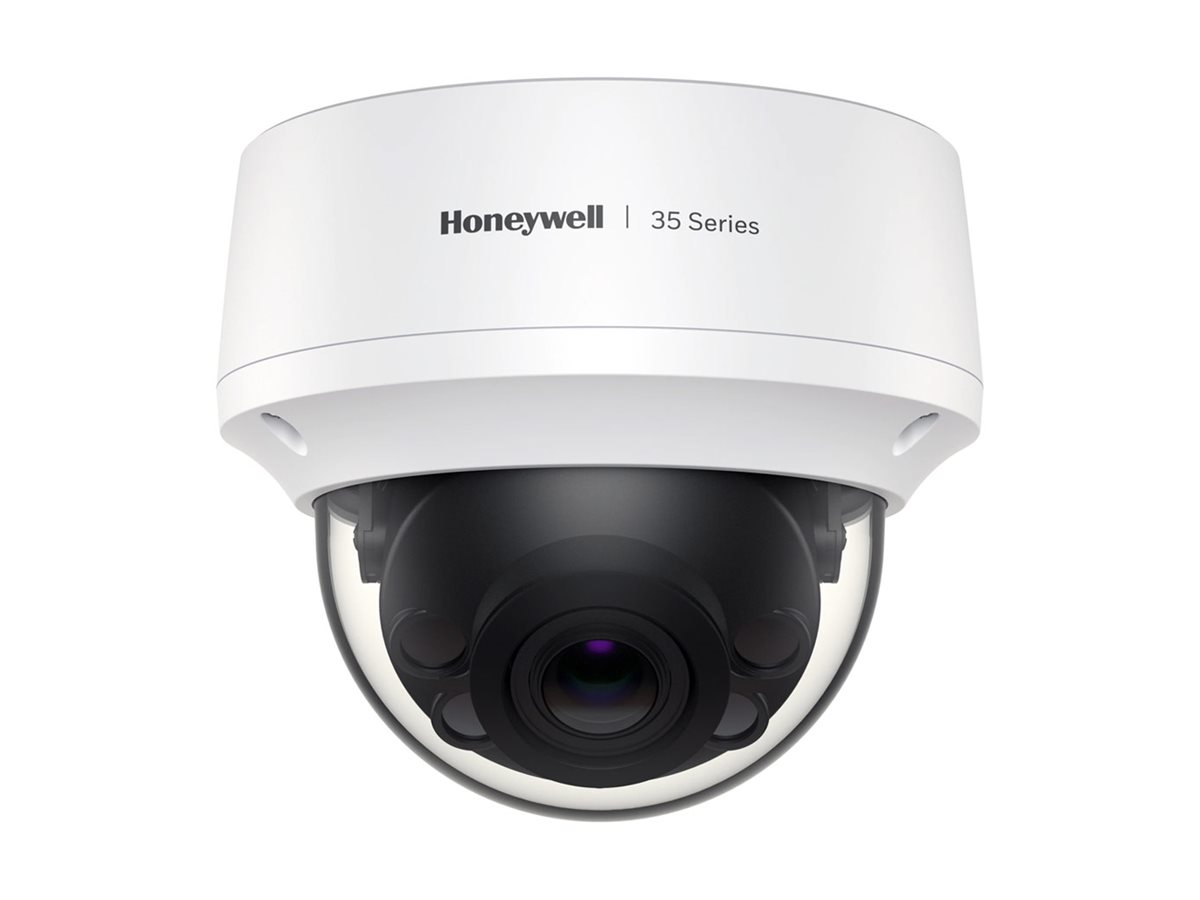

The Honeywell 35 Series HC35W48R2 network surveillance camera is engineered for precision and performance, offering high-resolution video capture at 3840 x 2160 pixels. With its progressive scan CMOS sensor and motorized zoom, it delivers exceptional detail and clarity, making it perfect for securing premises. Designed to operate in a wide range of environmental conditions, this camera withstands temperatures from -40 °C to 60 °C and offers waterproof and dustproof capabilities with its IP66 and IP67 ratings. Security is enhanced with features like 128-bit and 256-bit AES encryption, TLS 1.2, and advanced detection capabilities, ensuring peace of mind. Additionally, the camera’s infrared LEDs provide clear night vision up to 50 m, ensuring continuous surveillance in all lighting conditions. With support for various network protocols and two-way audio capability, it integrates seamlessly into existing systems, making it a versatile choice for comprehensive security solutions.
- Supports a wide range of operating temperatures from -40 °C to 60 °C
- Motorized zoom lens with auto iris for versatile surveillance
- Complies with multiple security and environmental standards
- 50 m infrared range for clear night vision
- Advanced video analytics for smart monitoring
- Robust environmental adaptability
Designed to withstand extreme temperatures ranging from -40 °C to 60 °C and humidity levels of 0 – 90% (non-condensing), ensuring reliable operation in any weather condition. - Advanced optical performance
Features a motorized zoom lens with a focal length of 2.7 mm to 13.5 mm, auto iris control, and a wide angular field of view (105° horizontal and 55° vertical), providing flexible surveillance coverage. - Enhanced security features
Equipped with 128-bit and 256-bit AES encryption, TLS 1.2 support, and various compliance standards including FCC Part 15 and IP67, ensuring data security and device integrity. - Superior night vision capability
Incorporates 4 infrared LEDs with a 50 m range and smart IR technology, delivering clear, detailed images even in total darkness. - Comprehensive video analytics
Supports smart motion detection, intrusion detection, loitering detection, and people counting, offering advanced surveillance and monitoring capabilities.
Main Specifications
Product Description | Honeywell 35 Series HC35W48R2 – network surveillance camera – dome |
Device Type | Network surveillance camera – fixed – dome – vandal / waterproof |
Audio | Yes: two-way audio capability |
Dimensions (WxDxH) | 13 cm x 13 cm x 11.23 cm |
Weight | 860 g |
Colour | RAL 9003, signal white, pantone black |
Connectivity Technology | Wired |
Camera | Colour – Day&Night – NTSC, PAL |
Optical Zoom | 5 x |
Max Resolution | 3840 x 2160 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Optical Sensor Type | Progressive Scan CMOS – 1/2.8″ – 8 MP |
Minimum Illumination | 0.007 lux – colour – F1.6 – 30 IRE
0 lux – IR – F1.6 |
Focal Length Control | Motorized zoom |
Focal Length | 2.7 mm – 13.5 mm |
Focus Adjustment | Motorised |
Lens Iris | F/1.6-3.3 – auto iris (DC) |
Panning Range (degree) | 0 to 355 |
Tilting Range (degree) | 0 to 75 |
Interfaces | Ethernet 10Base-T/100Base-TX |
Voltage | DC 12 V / PoE Class 0 |
Features | Smart IR, auto ICR, Wide Dynamic Range (WDR), Backlight Compensation (BLC), Highlight Compensation (HLC), auto white balance, manual white balance, Gain Control, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), privacy masking (up to 4 areas), Defog, manual 354° rotation, Smart Codec, 3 video streams, full duplex audio, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, password protection, IP address filtering, digest authentication, intrusion detection, loitering detection, people counting, Region of Interest (ROI), Smart Motion Detection, Video Motion Detection Technology, video tampering detection, aluminium housing |
Environmental Parameters (operating) | -40 °C – 60 °C; 0 – 90% (non-condensing) relative humidity |
Documents
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: two-way audio capability |
|---|
Audio Formats | G.711a, G.711u |
|---|
Form Factor | Dome |
|---|
Connectivity Technology | Wired |
|---|
Width | 13 cm |
|---|
Depth | 13 cm |
|---|
Height | 11.23 cm |
|---|
Weight | 860 g |
|---|
Camera
Type | Colour – Day&Night – fixed – vandal / waterproof |
|---|
Video Format | NTSC, PAL |
|---|
Digital Video Format | H.265, HEVC, H.264, MJPEG |
|---|
Max Digital Video Resolution | 3840 x 2160 |
|---|
Motion Detection | Yes |
|---|
Exposure Range | 1/8 sec – 1/32000 sec |
|---|
Minimum Illumination | 0.007 lux – colour – F1.6 – 30 IRE
0 lux – IR – F1.6 |
|---|
Infrared LEDs | 4 |
|---|
Infrared Distance | 50 m |
|---|
Digital Video Capture Resolution | 3840 x 2160, 2592 x 1944, 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576, 704 x 480, 640 x 480, 352 x 288, 352 x 240, 320 x 240 |
|---|
Frame Rate (max) | 30 frames per second |
|---|
Features | Smart IR, auto ICR, Wide Dynamic Range (WDR), Backlight Compensation (BLC), Highlight Compensation (HLC), auto white balance, manual white balance, Gain Control, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), privacy masking (up to 4 areas), Defog, manual 354° rotation, Smart Codec, 3 video streams, full duplex audio, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, password protection, IP address filtering, digest authentication, intrusion detection, loitering detection, people counting, Region of Interest (ROI), Smart Motion Detection, Video Motion Detection Technology, video tampering detection, aluminium housing |
|---|
Image Sensor
Type | 8 MP Progressive Scan CMOS 1/2.8″ |
|---|
Total Pixels | 5568 x 3132 |
|---|
Lens Construction
Type | Motorized zoom |
|---|
Optical Zoom | 5 x |
|---|
Focal Length | 2.7 mm – 13.5 mm |
|---|
Lens Iris | F/1.6-3.3 auto iris (DC) |
|---|
Focus Adjustment | Motorised |
|---|
Horizontal Field of View (degree) | 32 – 105 |
|---|
Vertical Field of View (degree) | 18 – 55 |
|---|
Panning
Tilting
Interfaces
Network Interface | Ethernet 10Base-T/100Base-TX |
|---|
Network Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, SMTP, DHCP, NTP, DNS, QOS, SNMP, UDP, ICMP, ARP, TLS, SSH, Telnet |
|---|
Alarm Inputs Qty | 1 |
|---|
Alarm Outputs Qty | 1 |
|---|
Expansion / Connectivity
Ports | Audio line in
Audio line out
LAN/power – RJ-45 |
|---|
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
|---|
Encryption Algorithm | TLS 1.2, 128-bit AES, 256-bit AES |
|---|
Miscellaneous
Compliant Standards | IEEE 802.3af, IP66, IP67, IK10, FCC Part 15, EN 55032, RCM, UKCA, EN 50130-4, UL/CSA 62368-1, RoHS, IEC/EN 63000 |
|---|
Colour | RAL 9003, signal white, pantone black |
|---|
Power
Power Requirements | DC 12 V / PoE Class 0 |
|---|
Software / System Requirements
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
Relative Humidity (operating) | 0 – 90% (non-condensing) |
|---|
