Description

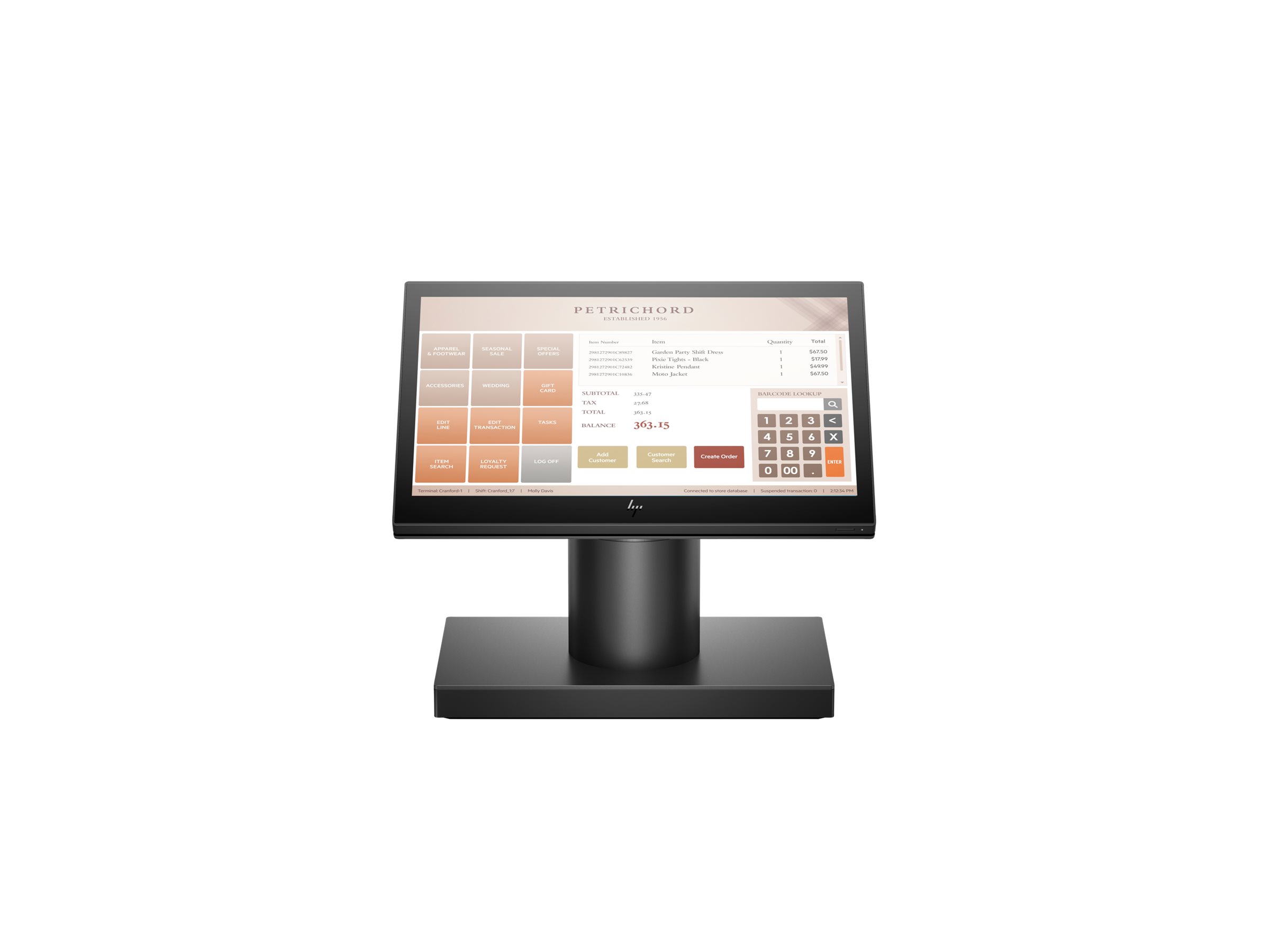

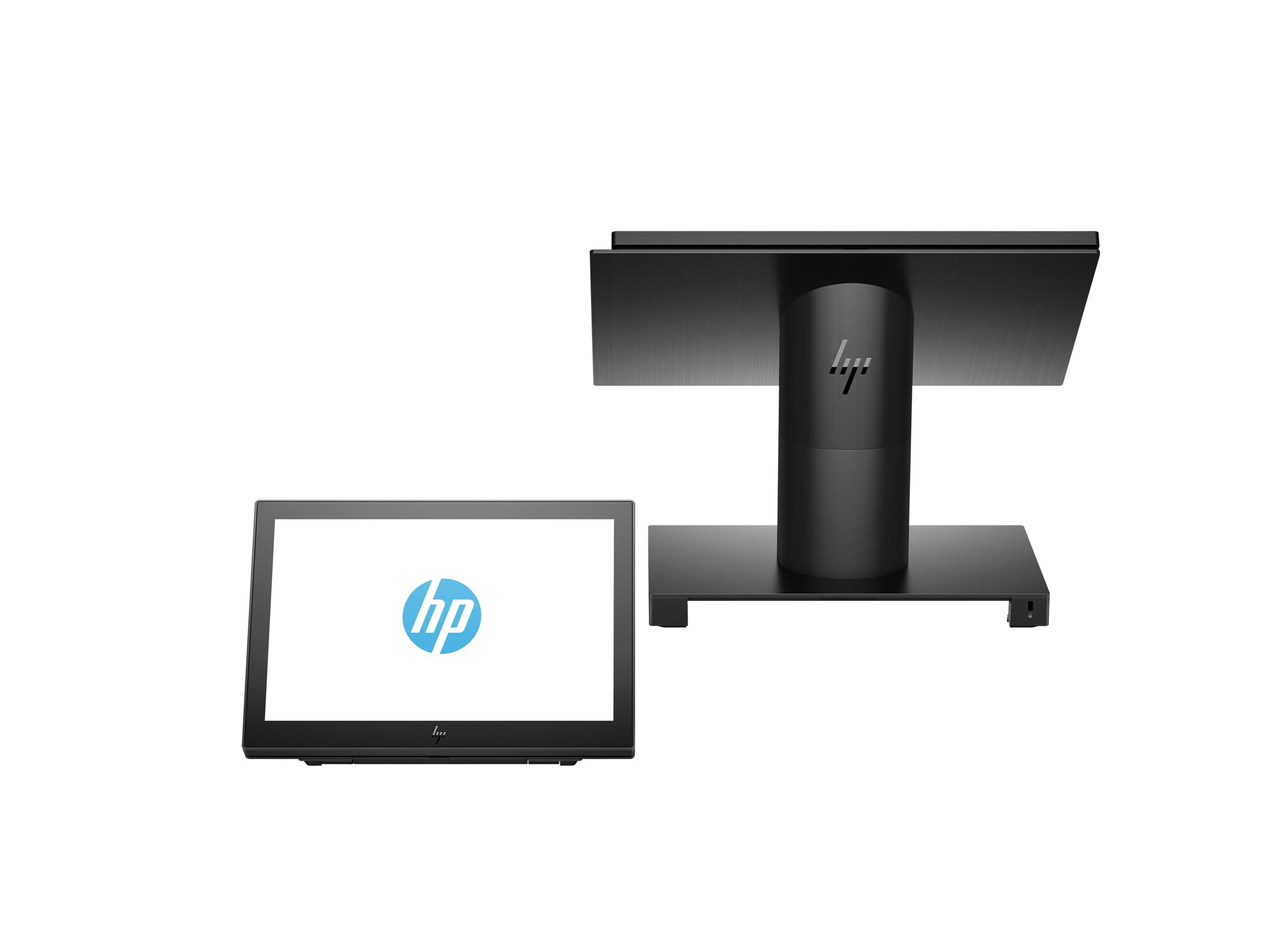

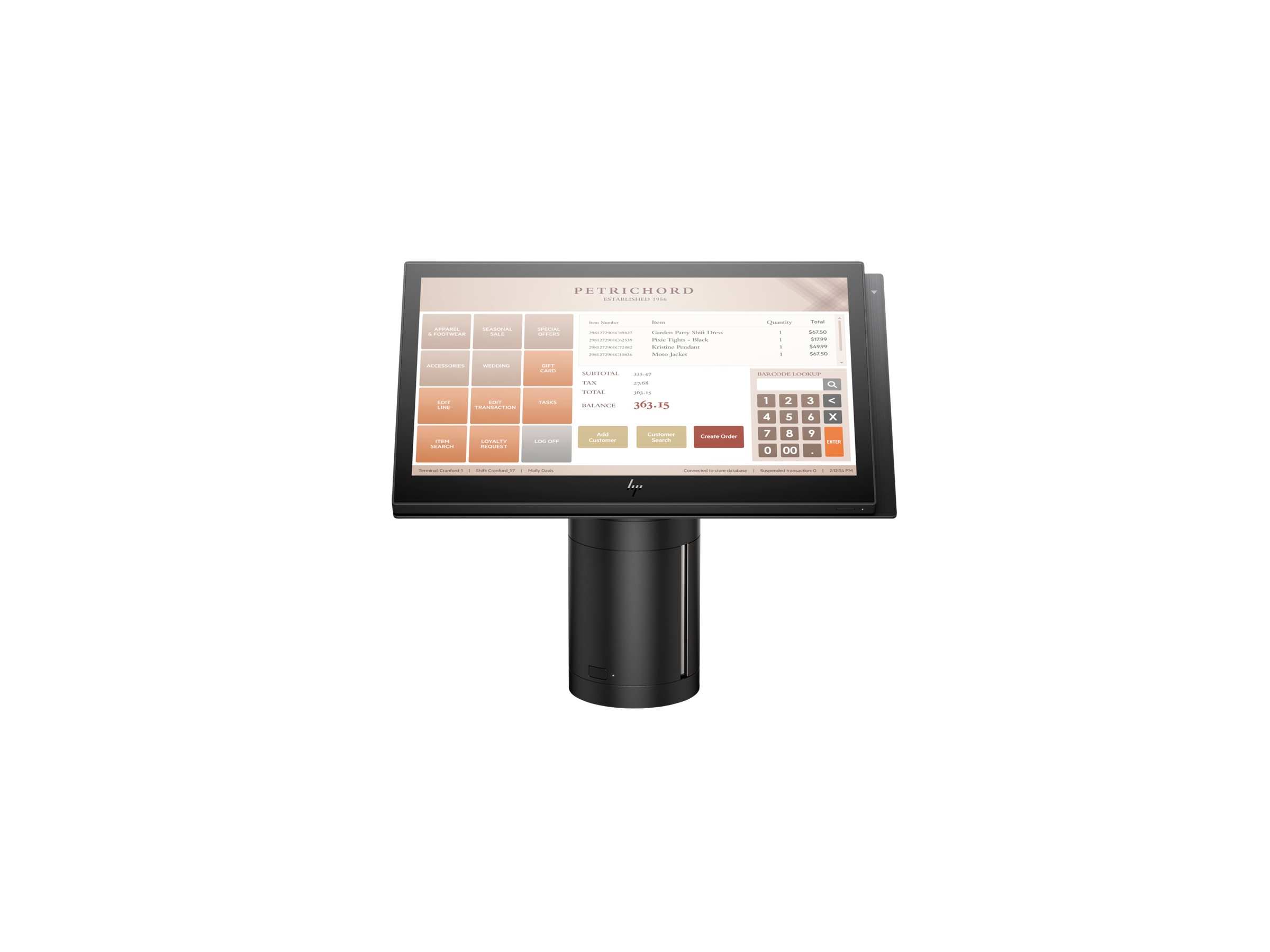

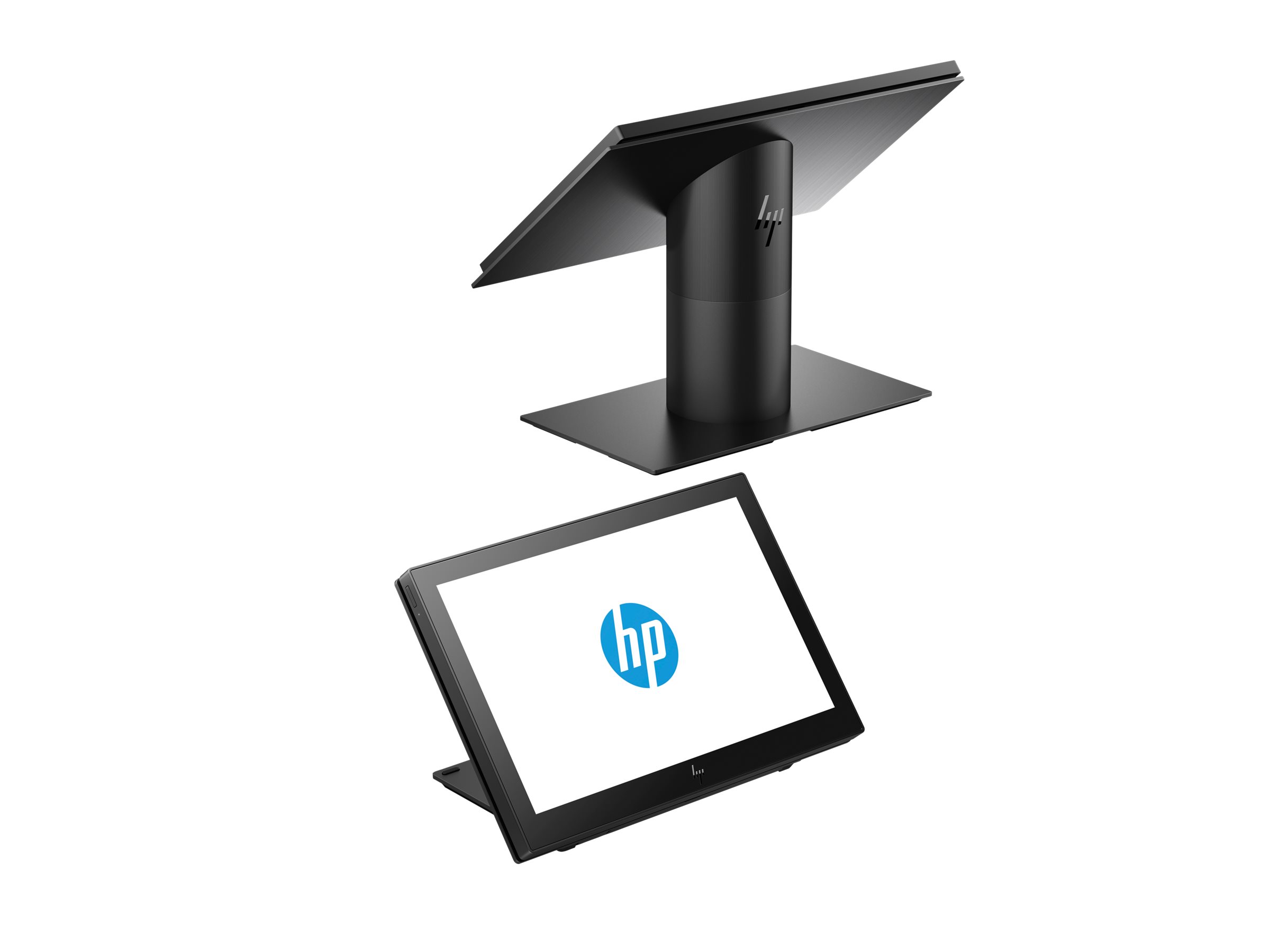

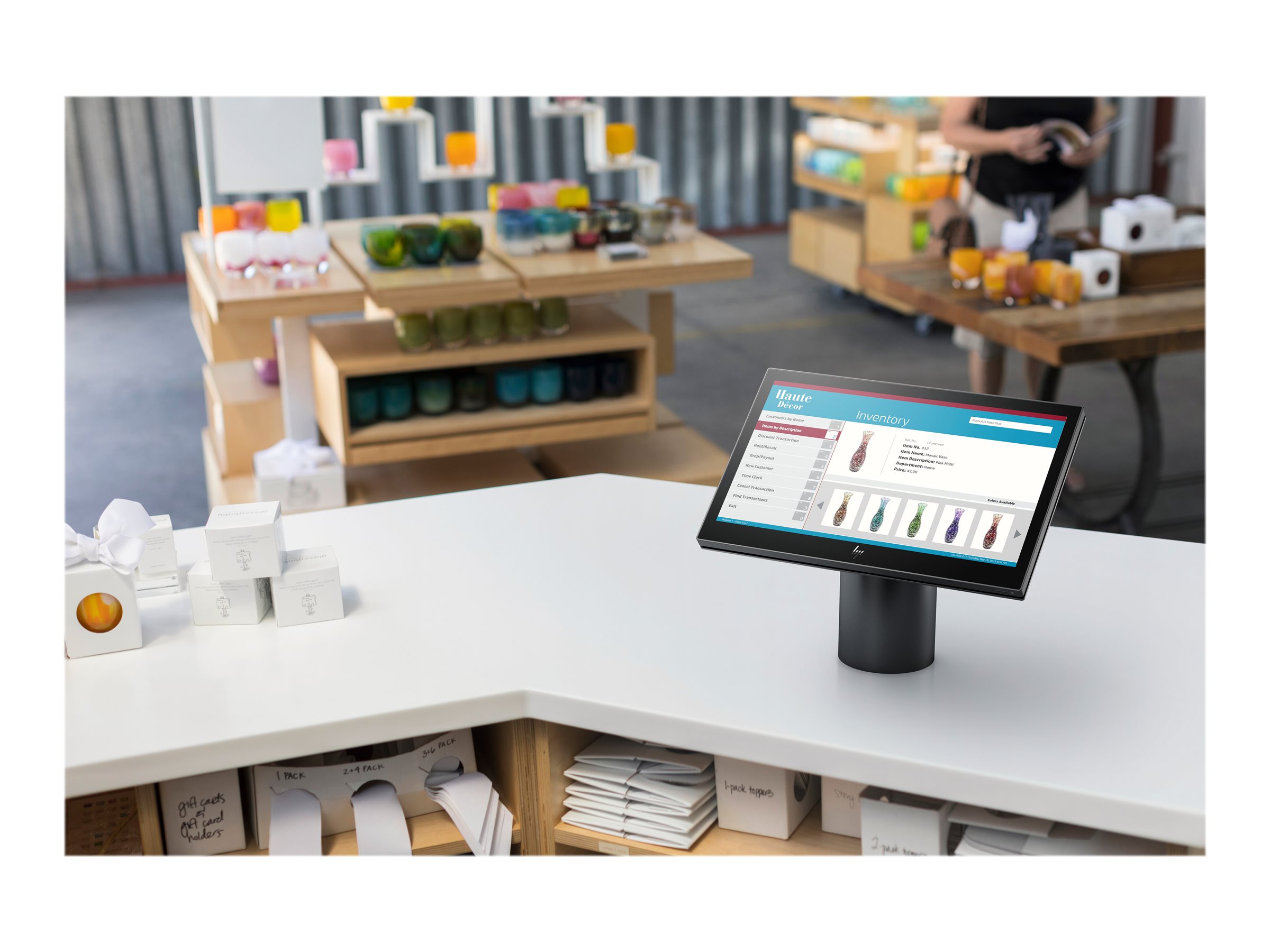

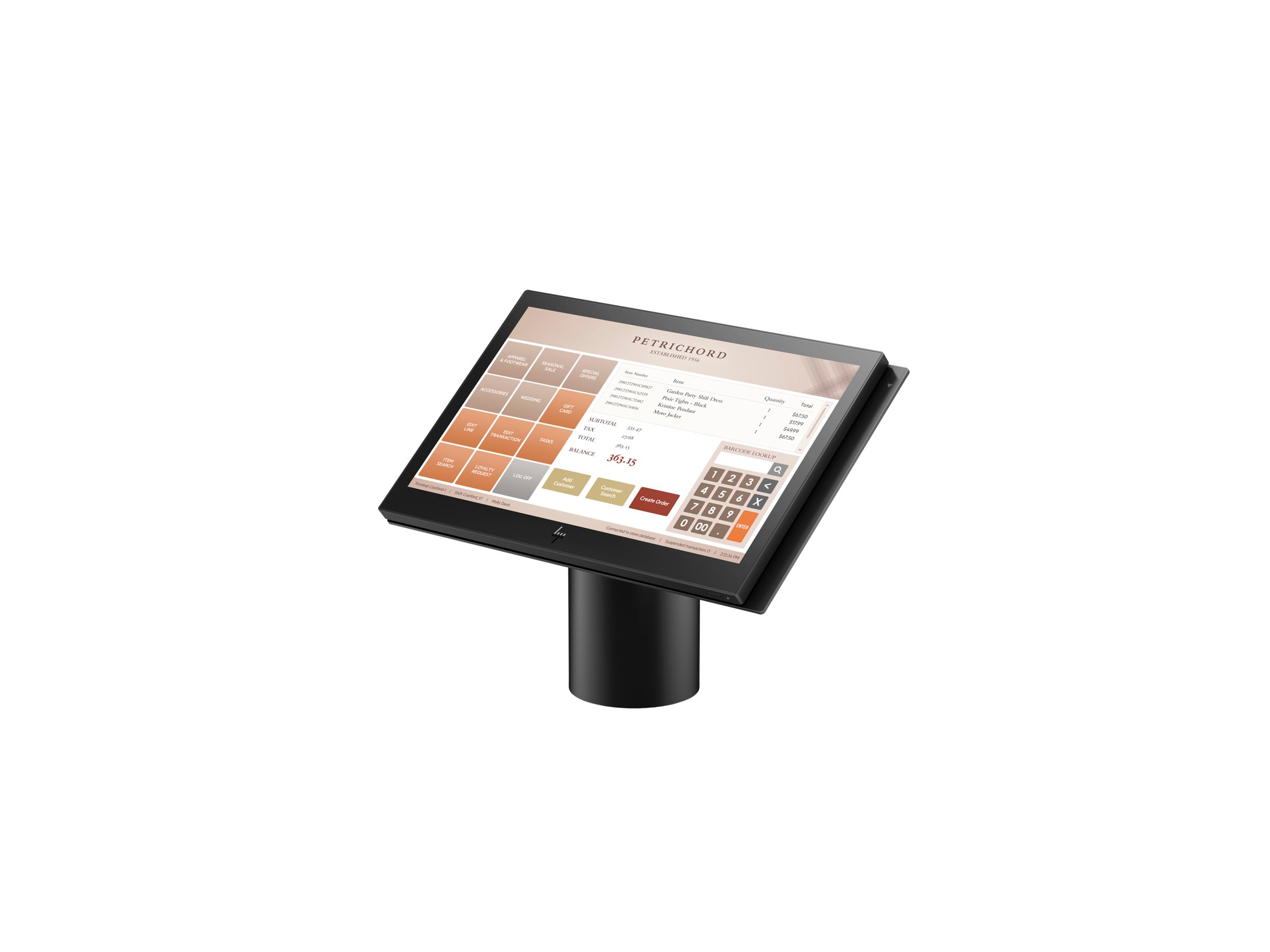

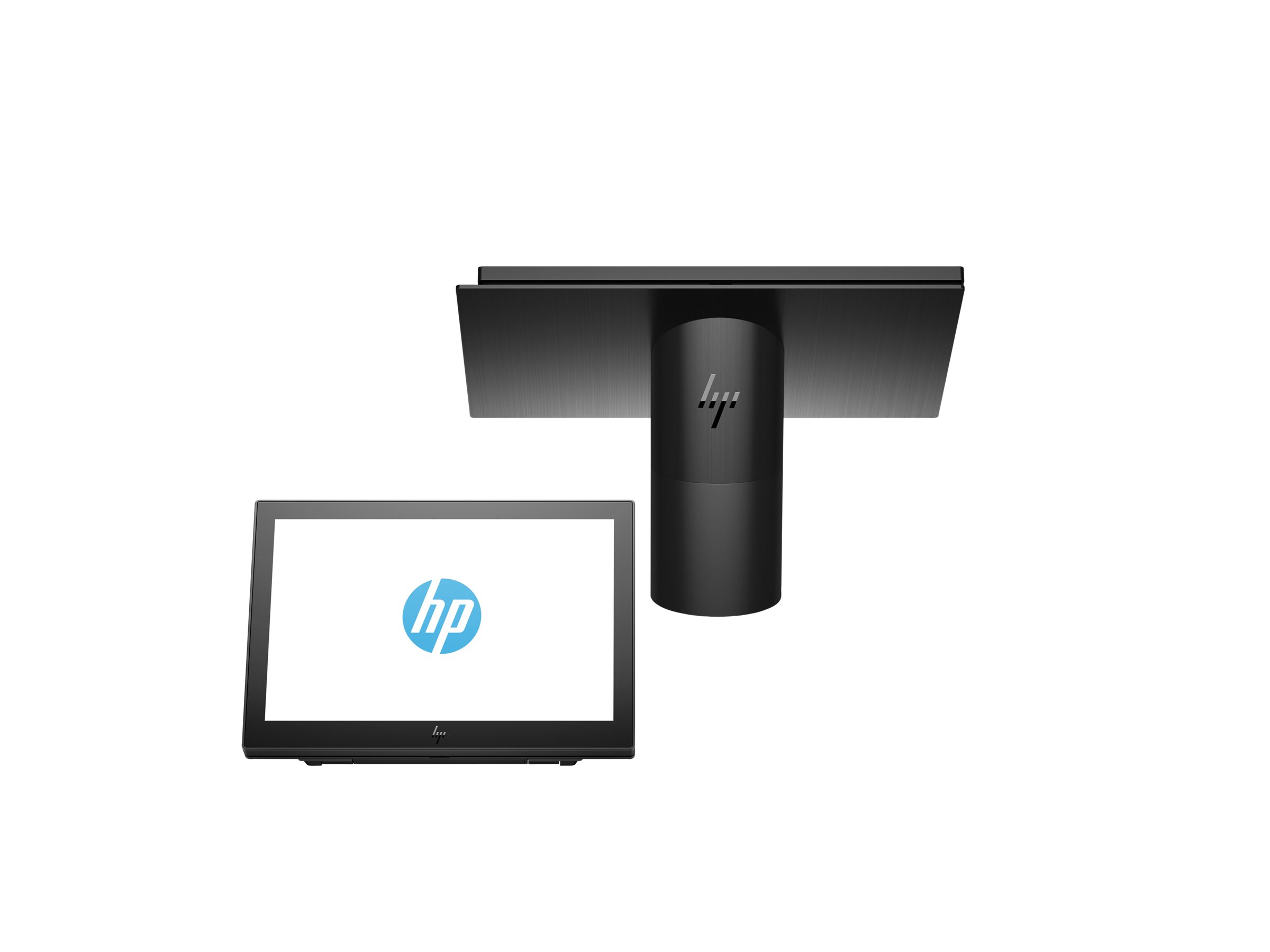

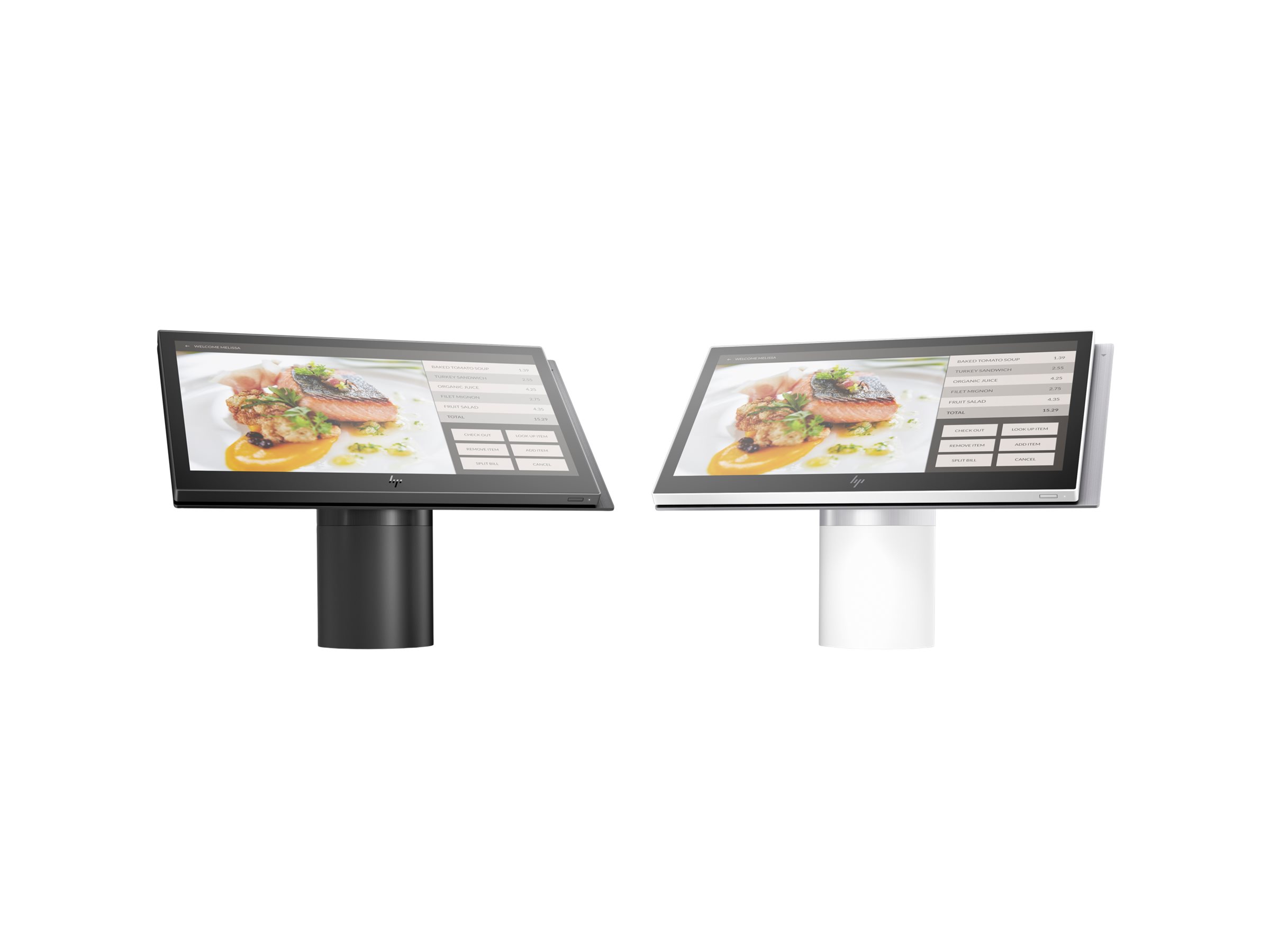

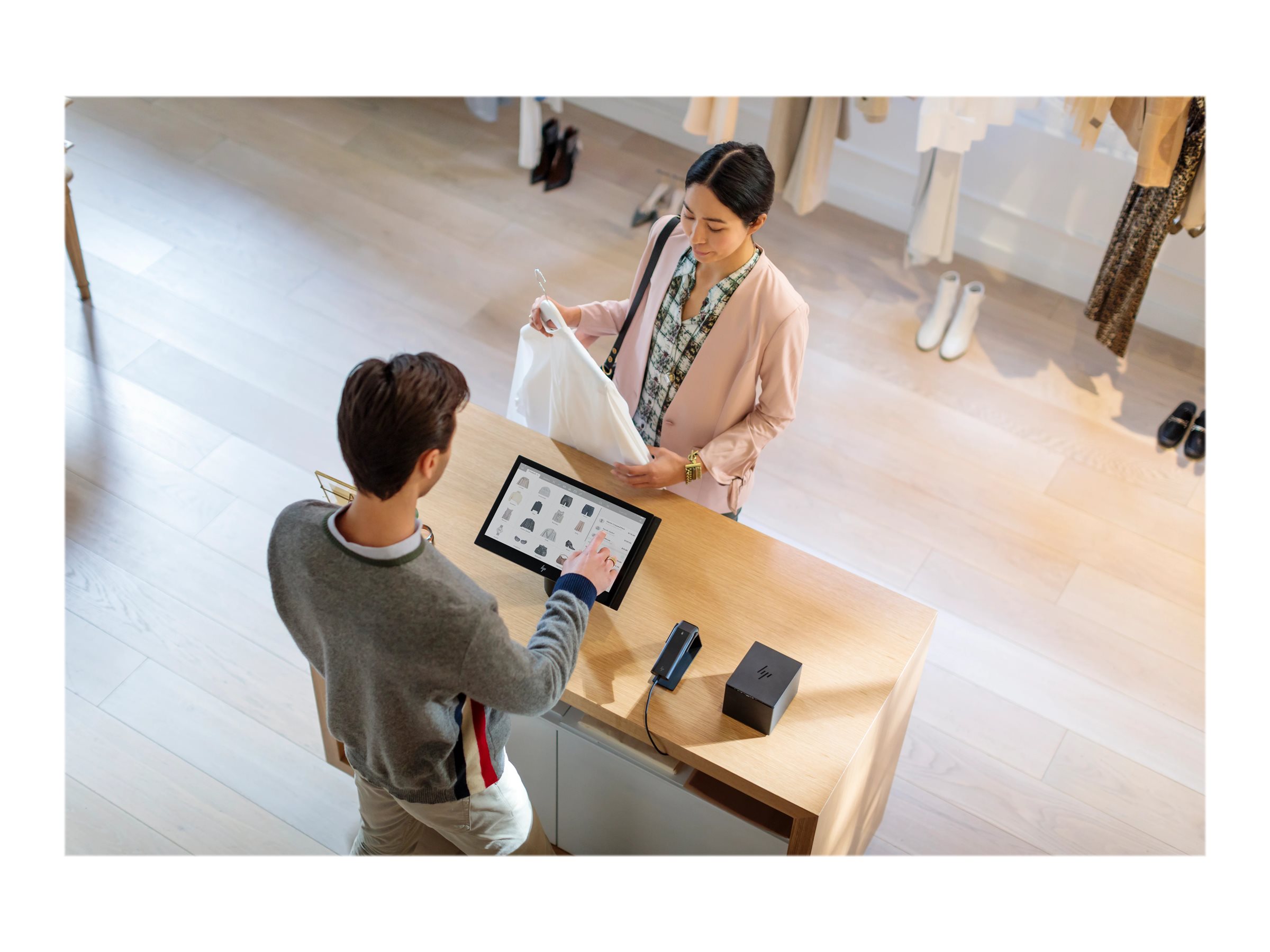

Transform your retail space with a versatile point of sale system that elevates the customer experience and supports your critical business operations. With security, durability, and flexibility built into its gorgeous design, the HP Engage One system marks a new era in retail.
- Build the ideal solution for your retail or hospitality environment with the streamlined, versatile HP Engage One system and its accessory ecosystem, all available in a choice of colors.
- Safeguard every transaction with multi-layered security that protects data from the operating system and beyond.
- This sleek POS system is designed specifically to keep up with the demands of retail and hospitality environments.
- Optimize your space in style

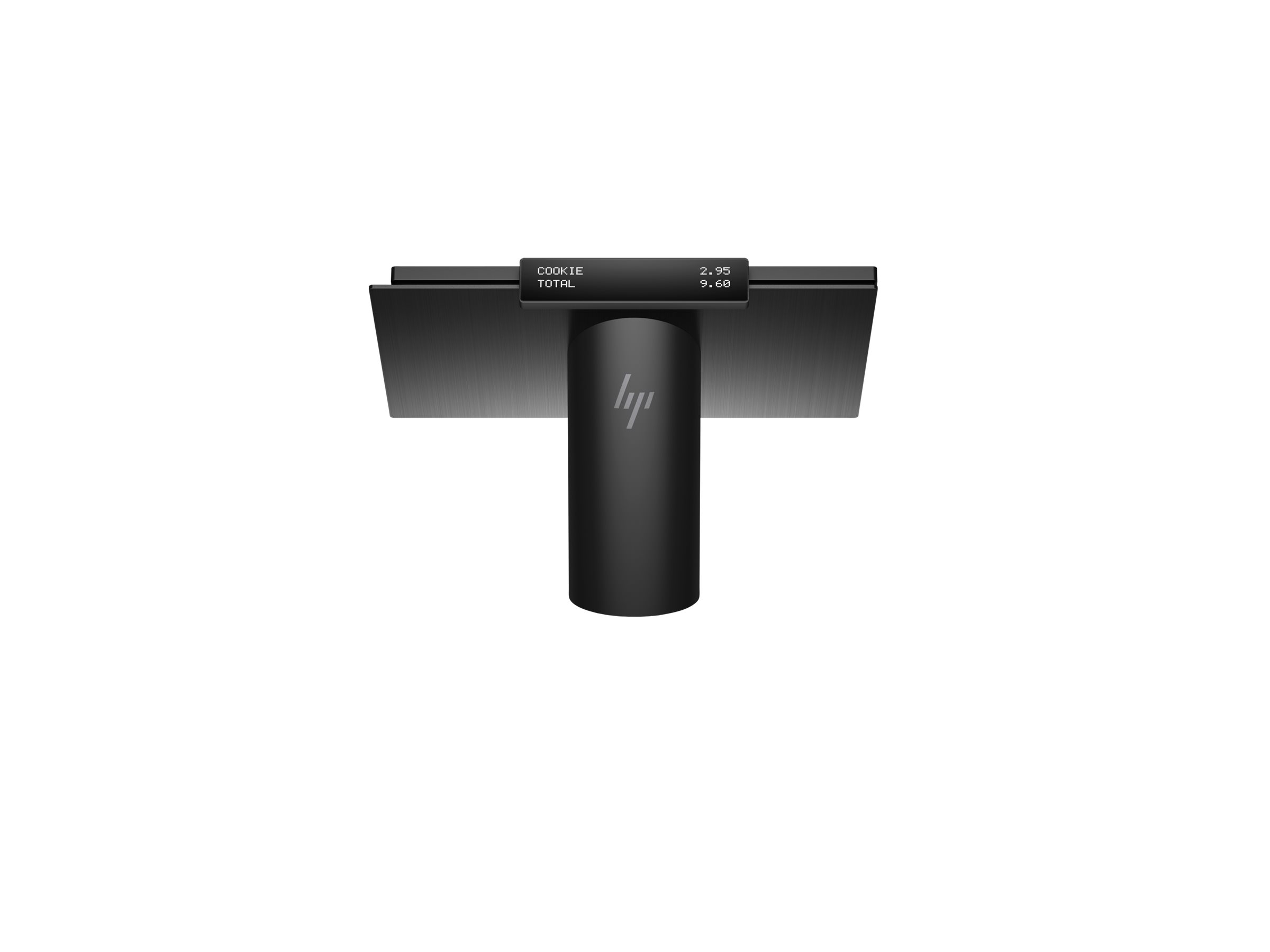

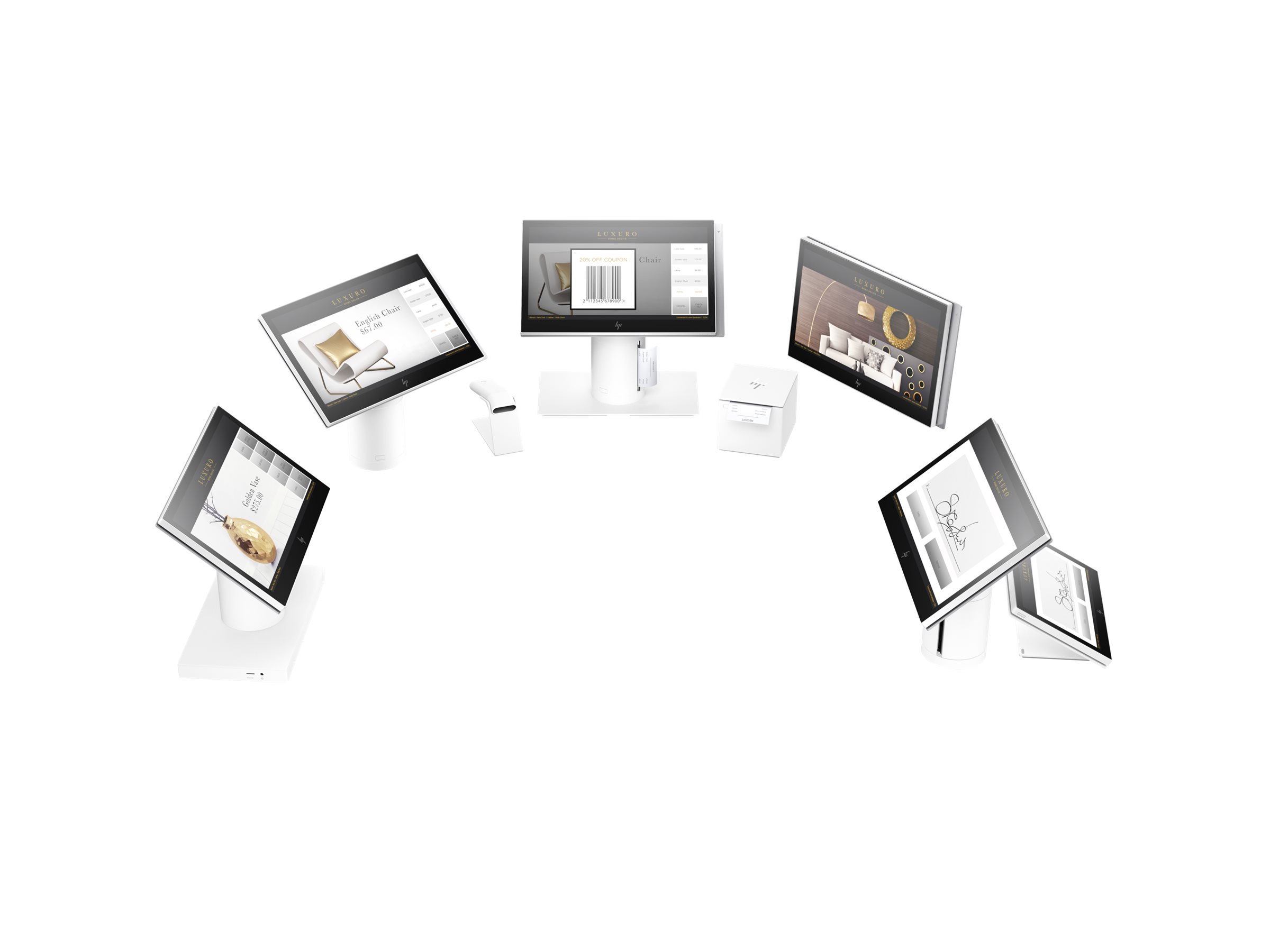

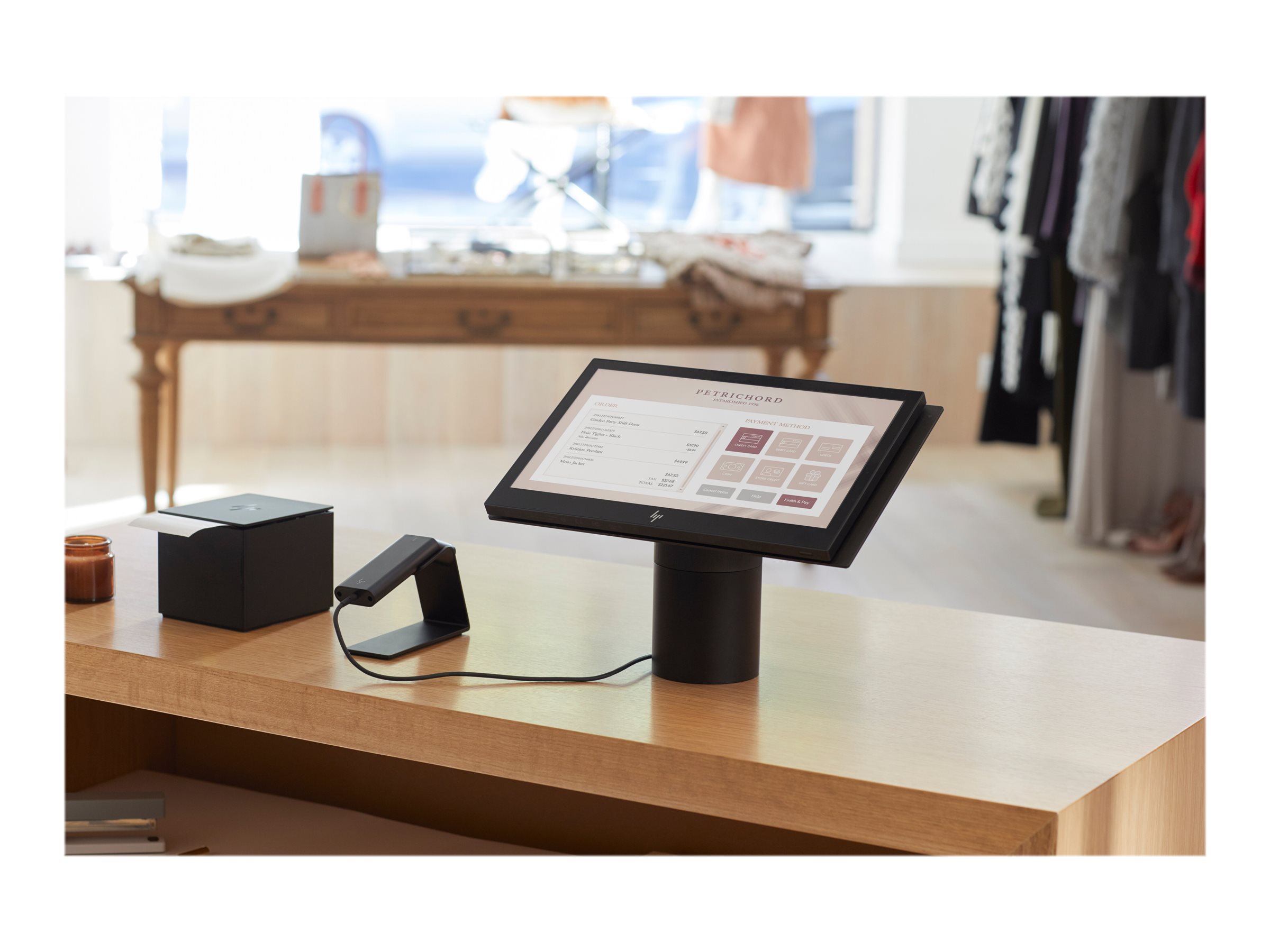

Set a new bar for sophistication with components and accessories that complement the HP Engage One aesthetic, including stands, magnetic stripe reader, barcode scanner, customer-facing displays, and an in-column or standalone receipt printer. - Alluring and easy to use
Engage customers and enable associates with a modern, polished 14″ diagonal touchscreen display that’s intuitive and responsive for fast interaction and has an anti-glare coating to minimize light interference. - Retail-ready durability

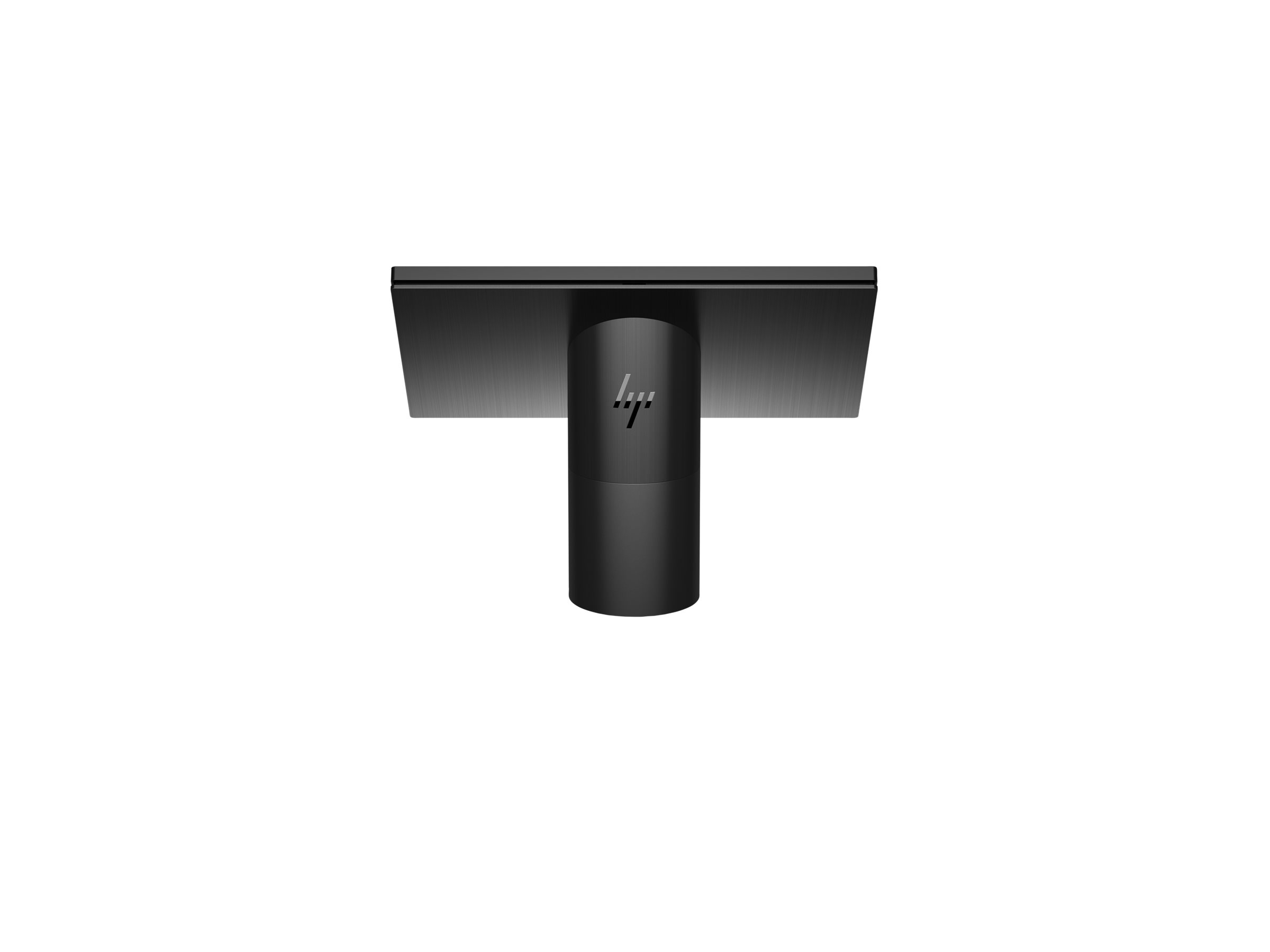

Entrust a device that’s not only beautiful but retail-hardened. It’s designed to pass MIL-STD 801G with a sturdy, anodized aluminum chassis that resists spills by channeling liquids away from the screen. - Secure inside and out
Get extra protection with automatic updates and security checks from HP BIOSphere Gen3. Control application and system access with Device Guard, Credential Guard, and an optional fingerprint reader. - Powerhouse performer
The HP Engage One is ready for duty with 7th generation Intel processors, efficient M.2 storage, fast DDR4 memory, and optional wireless LAN with Bluetooth . An integrated SD card reader supports easy backup, deployment, and servicing.
Documents
Extended Specifications
Networking
Ethernet Controller | Realtek RTL8153 |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | Intel Dual Band Wireless-AC 8265 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
|---|
Remote Management Protocol | SNMP 2 |
|---|
Features | Dual stream (2×2), auto-uplink (auto MDI/MDI-X), PXE support, Wake on LAN (WoL) |
|---|
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
|---|
Expansion / Connectivity
Slots | 1 (total) / 0 (free) x M.2 Card – 2230
1 (total) / 0 (free) x M.2 Card – 2280 |
|---|
Interfaces | 1 x cash drawer
2 x PoweredUSB (12 V)
1 x PoweredUSB (24 V)
1 x USB-C (charging)
2 x serial (powered)
4 x USB 3.0
1 x USB-C
1 x LAN
1 x headphones/microphone |
|---|
Miscellaneous
Included Accessories | HP Engage Advanced I/O Connectivity Base, HP Engage One Rotate/Tilt Stand with Integrated Column Printer |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | ISO 14001, WEEE, RoHS2, low halogen, ISO 11469, ISO 1043, IEC 60601-1-2 |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | (50/60 Hz) |
|---|
Power Factor Correction | Yes (active) |
|---|
Operating System / Software
OS Provided | Windows 10 IoT Enterprise Retail |
|---|
Sustainability Information
Dimensions & Weight
Dimensions & Weight Details | 33.62 cm – 21.64 cm – 1.76 cm – 1.38 kg – without stand
9.6 cm – 9.6 cm – 26 cm – stand with column printer
28.4 cm – 16.2 cm – 2.92 cm – 560 g – connectivity base |
|---|
Width | 33.62 cm |
|---|
Depth | 21.64 cm |
|---|
Height | 1.76 cm |
|---|
Weight | 1.38 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 49.5 cm |
|---|
Shipping Depth | 29.5 cm |
|---|
Shipping Height | 45.3 cm |
|---|
Shipping Weight | 7.2 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 20 – 85% RH |
|---|
General
Type | Point of sale terminal |
|---|
Product Form Factor | All-in-one |
|---|
Built-in Devices | Speaker |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Ebony black |
|---|
Processor / Chipset
CPU | Intel Core i3 (7th Gen) 7100U |
|---|
Clock Speed | 2.4 GHz |
|---|
Number of Cores | Dual-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | Hyper-Threading Technology, Intel Smart Cache |
|---|
Cache Memory
Installed Size | L3 Cache – 3 MB |
|---|
Cache Per Processor | 3 MB |
|---|
RAM
Installed Size | 8 GB (installed) / 32 GB (max) |
|---|
Technology | DDR4 SDRAM – non-ECC |
|---|
Effective Memory Speed | 2133 MHz |
|---|
Rated Memory Speed | 2400 MHz |
|---|
Memory Specification Compliance | PC4-19200 |
|---|
Form Factor | SO-DIMM 260-pin |
|---|
Slots | 2 (Total) / 1 (empty) |
|---|
Features | Unbuffered |
|---|
Configuration Features | 1 x 8 GB |
|---|
Hard Drive
Type | SSD – M.2 2280 |
|---|
Capacity | 1 x 256 GB |
|---|
Interface Type | PCI Express 3.0 x4 |
|---|
Features | NVM Express (NVMe), triple-level cell (TLC) |
|---|
Storage Controller
Type | 1 x SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Optical Storage
Card Reader
Type | Card reader |
|---|
Supported Flash Memory Cards | microSD |
|---|
Monitor
Monitor Type | LED |
|---|
Touchscreen | Yes (multi-touch) |
|---|
Diagonal Size | 14″ |
|---|
Native Resolution | 1920 x 1080 (Full HD) |
|---|
Widescreen Display | Yes |
|---|
Image Aspect Ratio | 16:9 |
|---|
Horizontal Viewing Angle | 178 |
|---|
Vertical Viewing Angle | 178 |
|---|
Pixel Pitch | 0.161 mm |
|---|
Response Time | 25 ms |
|---|
Image Brightness | 500 cd/m² |
|---|
Image Contrast Ratio | 800:1 |
|---|
Monitor Features | Full HD ultra wide-viewing angle (UWVA), Projected Capacitive Touch (PCT) technology |
|---|
Graphics Controller
Graphics Processor | Intel HD Graphics 620 Dynamic Video Memory Technology |
|---|
Audio Output
Sound Output Mode | Stereo |
|---|
Max Sampling Rate | 192 kHz |
|---|
Compliant Standards | High Definition Audio |
|---|
Speakers Included | 1 x amplifier |
|---|
