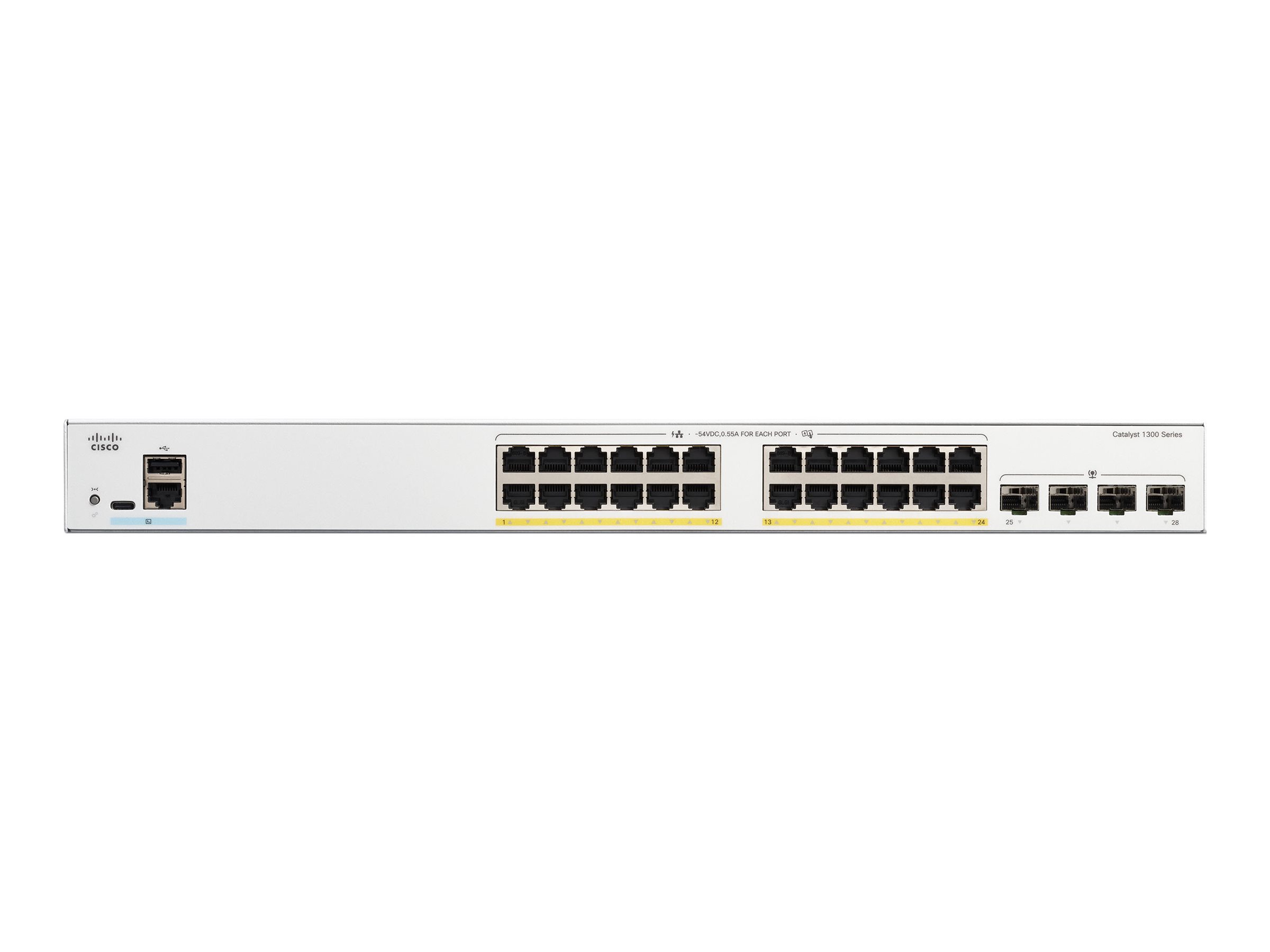

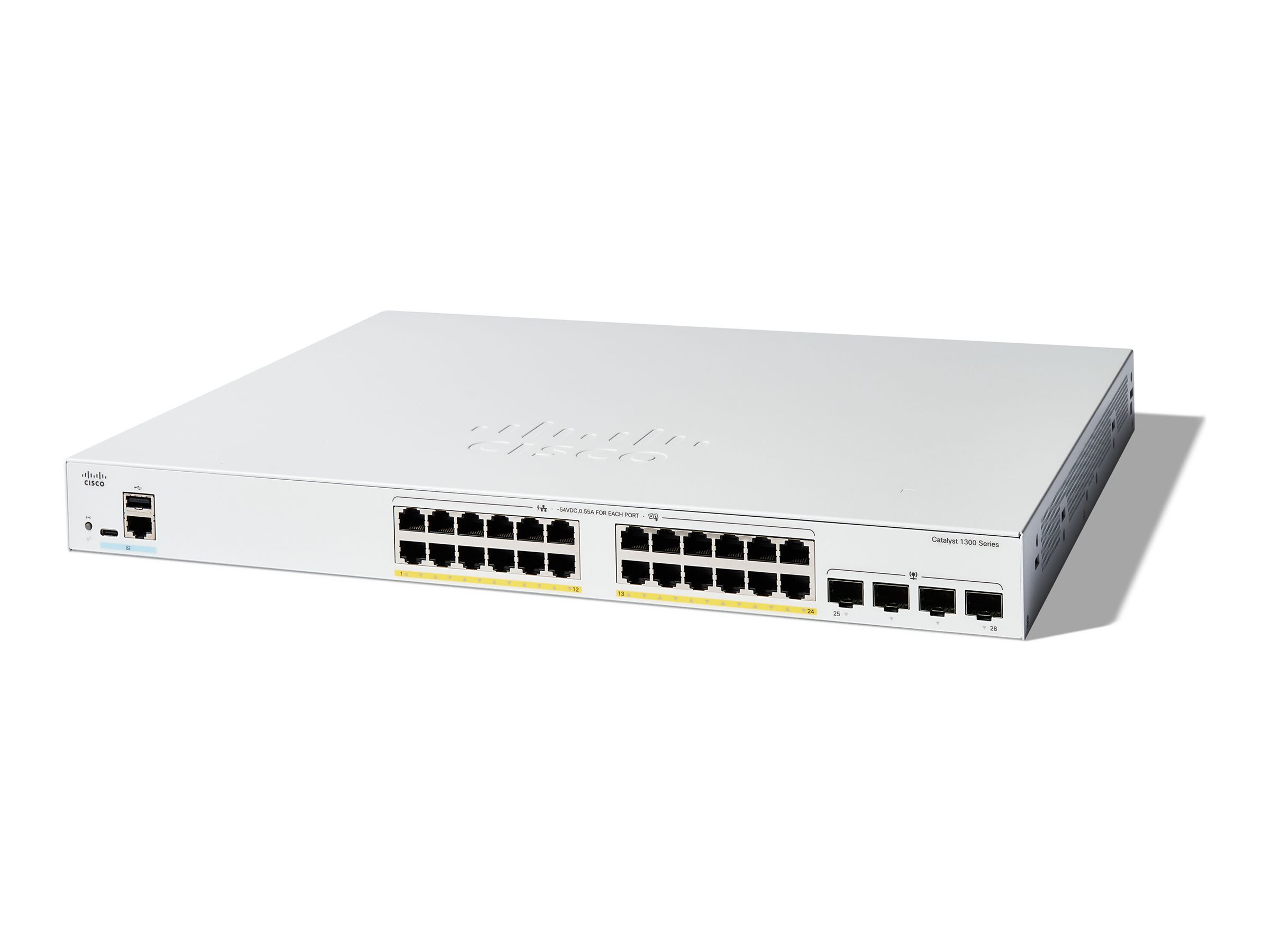

Cisco Catalyst 1300-24FP-4G, Switch, L3, Managed, 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP, rack-mountable, PoE+ (370 W)
$2,207.89 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Cisco Catalyst 1300-24FP-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features, and PoE+ support.
- Layer 2 switching
- VLAN support
- Spanning Tree Protocol (STP)
- Advanced threat protection
- IPv6 first-hop security
- Quality of service (QoS)
- sFlow
- Dynamic routing
- SWITCH PORTS
24 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 375W, PoE, PoE+) - SIMPLE
Intuitive Cisco Business mobile app, local web interface, and Cisco Business Dashboard allows you to set up, manage, and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required - ENHANCED SECURITY
IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks - ENERGY EFFICIENT
Optimizes power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models - PERFECT FOR SMALL BUSINESS
Requires no subscription or licenses to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
What’s in the Box
- What’s in the Box
- Switch
- power cord
- USB Type C cable
- and mounting hardware
Main Specifications
Product Description | Cisco Catalyst 1300-24FP-4G – switch – 24 ports – Managed – rack-mountable |
Device Type | Switch – 24 ports – L3 – Managed |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Forwarding rate (64-byte packets): 41.66 Mpps Switching capacity: 56 Gbps |
Capacity | MSTP instances: 8 RPVST+ instances: 126 Link aggregation groups: 8 Link aggregation ports: 8 VLAN IDs: 4093 IGMP multicast groups: 2000 IPv4 routes (static): up to 990 IPv4 interfaces: 128 ACL rules: 1024 Priority queues: 8 Packet buffer size: 1.5 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2, Bounjour |
Remote Management Protocol | CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS |
Features | 1 fan, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunnelling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimisation, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button |
Compliant Standards | IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
Power | AC 100-240 V (50 – 60 Hz) |
Dimensions (WxDxH) | 44.5 cm x 34.5 cm x 4.4 cm |
Weight | 4.6 kg |
Documents
Extended Specifications
General
Device Type | Switch – 24 ports – L3 – Managed |
|---|---|
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Forwarding rate (64-byte packets): 41.66 Mpps Switching capacity: 56 Gbps |
Capacity | MSTP instances: 8 RPVST+ instances: 126 Link aggregation groups: 8 Link aggregation ports: 8 VLAN IDs: 4093 IGMP multicast groups: 2000 IPv4 routes (static): up to 990 IPv4 interfaces: 128 ACL rules: 1024 Priority queues: 8 Packet buffer size: 1.5 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2, Bounjour |
Remote Management Protocol | CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS |
Encryption Algorithm | SSL, MD5 |
Authentication Method | RADIUS, TACACS+ |
Features | 1 fan, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunnelling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimisation, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button |
Compliant Standards | IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, link/activity/speed, PoE |
Expansion / Connectivity
Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 4 x 1000Base-X SFP 1 x console RJ-45 1 x USB-C console |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-240 V (50 – 60 Hz) |
Miscellaneous
Included Accessories | Pointer card, mounting kit |
|---|---|
MTBF | 698,220 hours |
Compliant Standards | Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE |
Dimensions & Weight
Width | 44.5 cm |
|---|---|
Depth | 34.5 cm |
Height | 4.4 cm |
Weight | 4.6 kg |
Environmental Parameters
Min Operating Temperature | -5 °C |
|---|---|
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 – 90% RH (non-condensing) |
Min Storage Temperature | -25 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% RH (non-condensing) |
