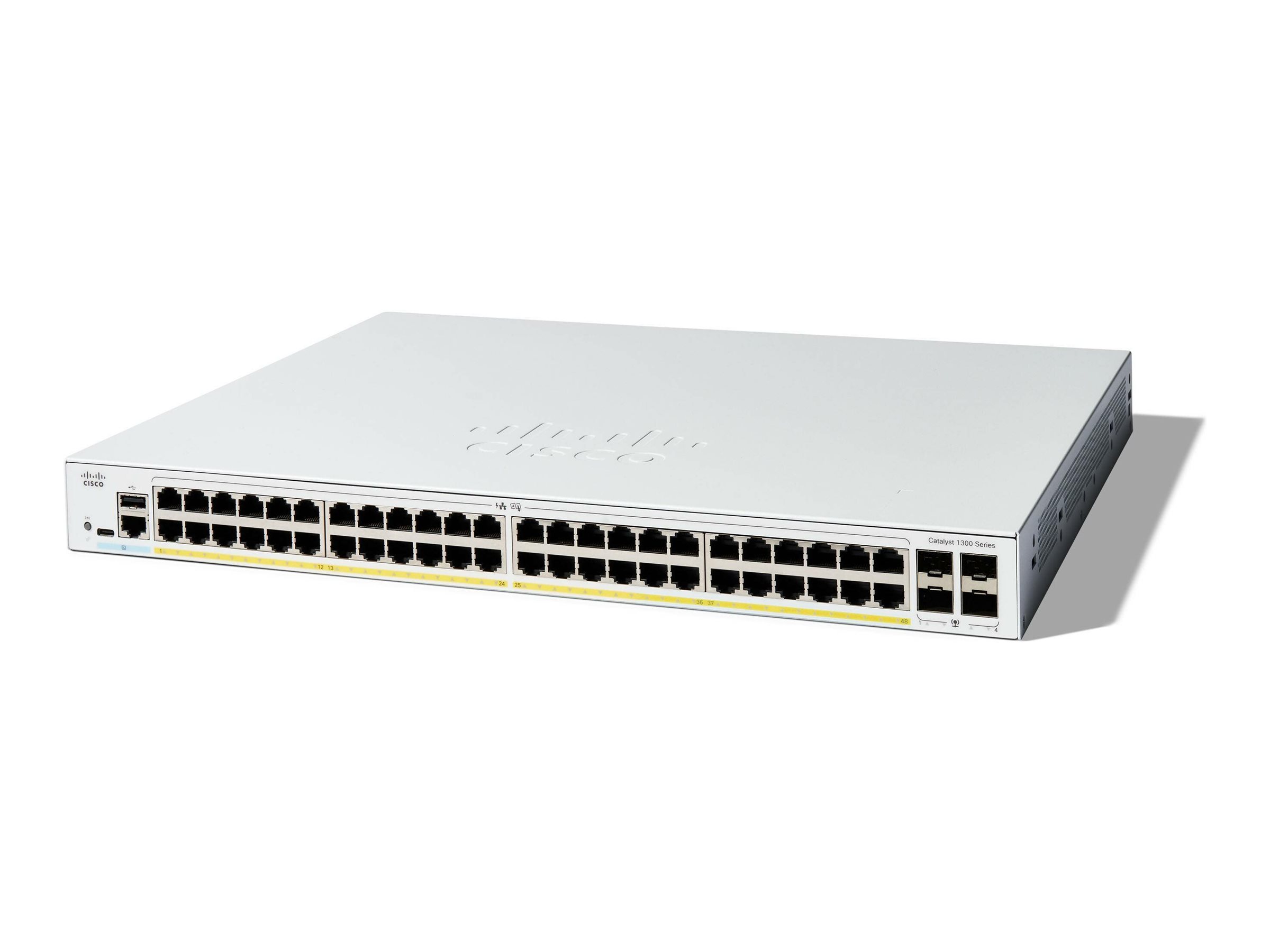

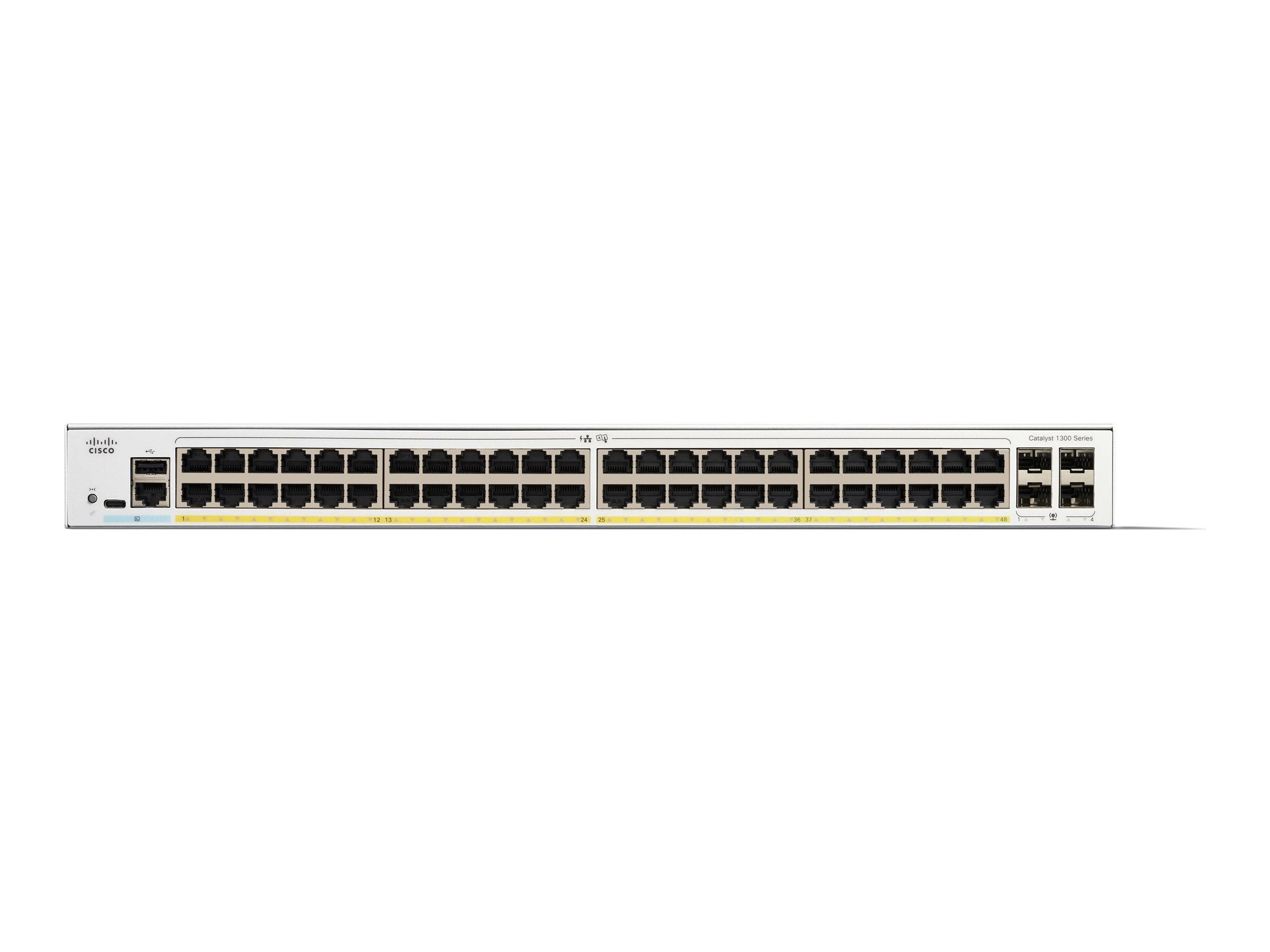

Cisco Catalyst 1300-48FP-4G – Switch – L3 – Managed – 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP – rack-mountable – PoE+ (740 W)
Manufacturer:Cisco
Part Number:C1300-48FP-4G
Warranty:Lifetime
PPID:AB27985
$3,033.94 inc GST
5 in stock (can be backordered)
Ships from Auckland
- Allow 1-2 days for delivery to the North Island
- Allow 2-3 days for delivery to the South Island
- add 1-2 days if you are rural
- Collection can be arranged
SKU: AB27985
Categories: Gigabit Hubs & Switches, Hardware, Hubs & Switches, Managed Switches, Networking, Rack-Mountable Hubs & Switches
Description
The Cisco Catalyst 1300-48FP-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.- Easy configuration and management
- Reliability and performance
- Layer 3 static routing
- Network security
- Flexible and compact design
- An energy-efficient solution
- Power over Ethernet
- SWITCH PORTS
48 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 740W, PoE, PoE+) - SIMPLE
Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required - ENHANCED SECURITY
IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks - ENERGY EFFICIENT
Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models - PERFECT FOR SMALL BUSINESS
Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
What’s in the Box
- Switch, power cable or adapter, USB Type C cable and mounting hardware
Main Specifications
Product Description | Cisco Catalyst 1300-48FP-4G – switch – 48 ports – Managed – rack-mountable |
Device Type | Switch – 48 ports – L3 – Managed |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 740 W |
Performance | Forwarding rate (64‑byte packets): 77.38 Mpps Switching capacity: 104 Gbps |
Capacity | MSTP instances: 8 RPVST+ instances: 126 Link aggregation groups: 8 Link aggregation ports: 8 VLAN IDs: 4093 IGMP multicast groups: 2000 IPv4 routes (static): up to 990 IPv4 interfaces: 128 ACL rules: 1024 Priority queues: 8 Packet buffer size: 3 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunnelling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimisation, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Power | AC 100-240 V (50 – 60 Hz) |
Dimensions (WxDxH) | 44.5 cm x 35 cm x 4.4 cm |
Weight | 5.82 kg |
Documents
Extended Specifications
Expansion / Connectivity
Interfaces | 48 x 10/100/1000 Base-T (PoE+) RJ-45 4 x 1000Base-X SFP 1 x console RJ-45 1 x USB-C console |
---|
Power
Power Device | Internal power supply |
---|---|
Voltage Required | AC 100-240 V (50 – 60 Hz) |
Miscellaneous
Included Accessories | Mounting kit, pointer card |
---|---|
MTBF | 856,301 hours |
Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
Dimensions & Weight
Width | 44.5 cm |
---|---|
Depth | 35 cm |
Height | 4.4 cm |
Weight | 5.82 kg |
Environmental Parameters
Min Operating Temperature | -5 °C |
---|---|
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 – 90% RH (non-condensing) |
Min Storage Temperature | -25 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% RH (non-condensing) |
General
Device Type | Switch – 48 ports – L3 – Managed |
---|---|
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 740 W |
Performance | Forwarding rate (64‑byte packets): 77.38 Mpps Switching capacity: 104 Gbps |
Capacity | MSTP instances: 8 RPVST+ instances: 126 Link aggregation groups: 8 Link aggregation ports: 8 VLAN IDs: 4093 IGMP multicast groups: 2000 IPv4 routes (static): up to 990 IPv4 interfaces: 128 ACL rules: 1024 Priority queues: 8 Packet buffer size: 3 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Encryption Algorithm | MD5, SSL |
Authentication Method | RADIUS, TACACS+ |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunnelling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimisation, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, PoE, link/activity/speed |
