Description
The Rocket enclosure is built to survive harsh environments and fits the Rocket mount built into every airMAX antenna. Pair the Rocket with the appropriate antenna for your PtP link or PtMP network.
- Plug-and-Play integration
- airMAX technology
- Plug-and-Play integration
Rocket radios and airMAX antennas have been designed to seamlessly work together. Every airMAX Sector, RocketDish, Omni, or Yagi antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; then you have the optimal combination of Rocket radio and airMAX antenna for your PtP or PtMP application. - airMAX technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Main Specifications

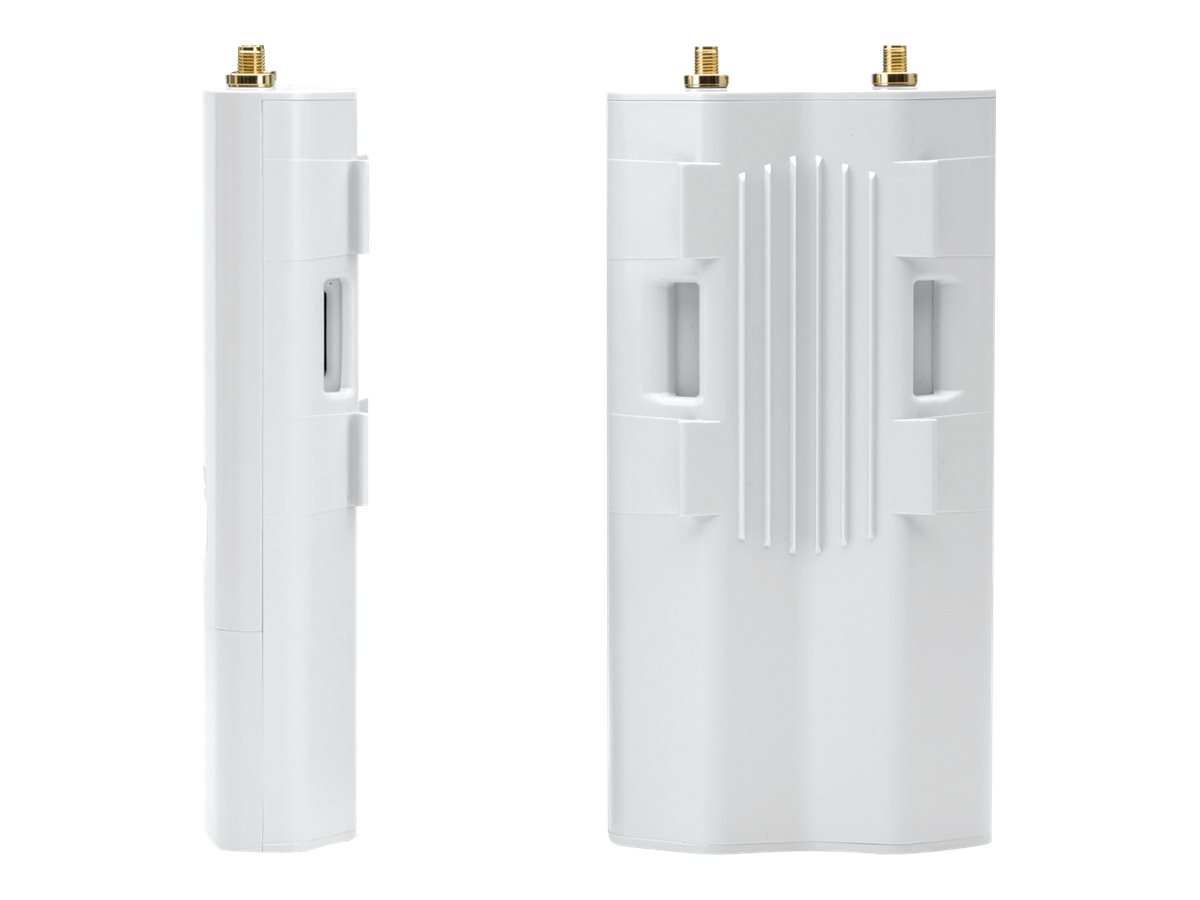

Product Description | Ubiquiti Rocket M3 – radio access point – AirMax |
Device Type | Radio access point |
Form Factor | External – outdoor |
Processor | 1 x Atheros MIPS 24KC 550 MHz |
RAM | 64 MB |
Flash Memory | 8 MB |
Data Link Protocol | AirMax |
Frequency Band | 3 GHz |
Power Over Ethernet (PoE) Supported | PoE |
Dimensions (WxDxH) | 16 cm x 8 cm x 3 cm |
Weight | 500 g |
Documents
Extended Specifications
General
Device Type | Radio access point |
|---|
Ruggedized Design | Outdoor |
|---|
Width | 16 cm |
|---|
Depth | 8 cm |
|---|
Height | 3 cm |
|---|
Weight | 500 g |
|---|
Processor / Memory / Storage
Processors Installed | 1 x Atheros MIPS 24KC 550 MHz |
|---|
Max Supported Qty | 1 |
|---|
RAM | 64 MB SDRAM |
|---|
Flash Memory | 8 MB |
|---|
Networking
Form Factor | External |
|---|
Data Link Protocol | AirMax |
|---|
Frequency Band | 3 GHz |
|---|
Features | MIMO technology, Quality of Service (QoS), pole mountable |
|---|
Expansion / Connectivity
Interfaces | 2 x aerial – RP-SMA
1 x 100Base-TX – RJ-45 |
|---|
Power
Power Over Ethernet (PoE) Supported | PoE |
|---|
Power Consumption Operational | 6.5 Watt |
|---|
Software / System Requirements
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|
Max Operating Temperature | 75 °C |
|---|
Humidity Range Operating | 5 – 95% (non-condensing) |
|---|
