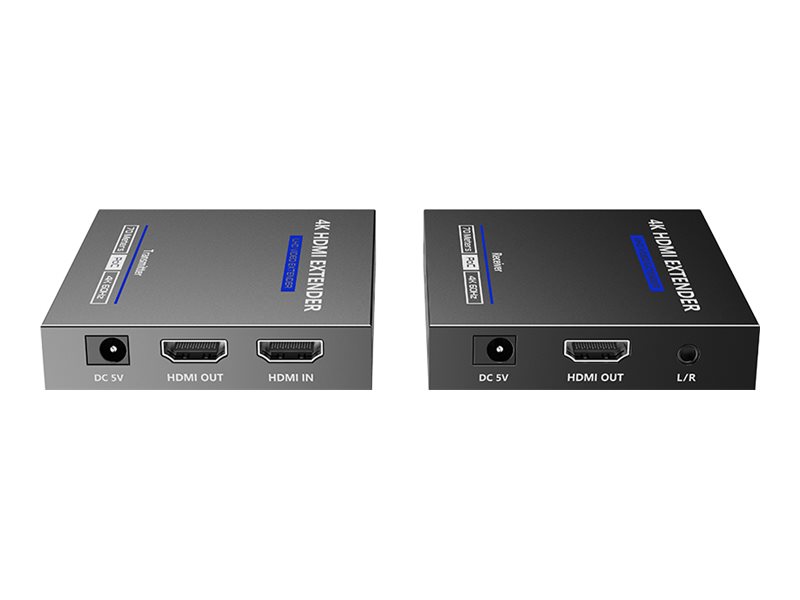

Lenkeng, Video/audio/infrared extender, HDMI, over CAT 6/6a/7, up to 70 m
$185.02 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.
- ipcolor IMAGE
- 4K 60Hz HDR
- Zero latency
- Visually lossless
- 70 meters
- IR pass-through
- HDMI loop out
- Lightning protection
- ESD protection
- Zero-latency transmission for 70 meters
Support CAT6/6A/7 network cable, the maximum transmission distance can reach 70 meters. - 4K 60Hz HDR for visually lossless transmission
Support 3840×2160 HDR, with ipcolor IMAGE – an advanced standard for visually lossless transmission solution, the image can be more clear, higher saturation and show more outstanding details.
Main Specifications
Product Description | Lenkeng – video/audio/infrared extender – HDMI |
Device Type | Video/audio/infrared extender |
Form Factor | External |
Data Transfer Rate | 18 Gbps |
Frequency Band | 600 MHz |
Data Link Protocol | HDMI |
Transmission Medium | CAT 6/6a/7 |
Max Transfer Distance | 70 m |
Power Over Ethernet (PoE) | PoC |
Extended Specifications
General
Device Type | Video/audio/infrared extender |
|---|---|
Form Factor | External |
Colour | Black |
Networking
Connectivity Technology | Wired |
|---|---|
Data Link Protocol | HDMI |
Data Transfer Rate | 18 Gbps |
Frequency Band | 600 MHz |
Max Resolution | 4K @ 60 Hz |
Max Transfer Distance | 70 m |
Status Indicators | Power |
Features | Surge protection, reset button, EDID Pass-Through, metal housing, DTS support, DTS-HD support, Dolby Atmos support, lightning protection, Dolby Digital support, HDR support, IR pass-through, HDMI loop out, Visually Lossless Compression, ESD Protector, zero latency, Ipcolour technology, LPCM support, YUV 4:4:4 |
Compliant Standards | HDCP 2.2 |
Expansion / Connectivity
Interfaces | 1 x HDMI input – 19 pin HDMI Type A female 2 x HDMI output – 19 pin HDMI Type A female 1 x network (input) – RJ-45 female 1 x network (output) – RJ-45 1 x IR input – mini jack female 1 x IR output – mini jack female 1 x audio – mini jack female 2 x power – DC-Jack female |
|---|
Miscellaneous
Compliant Standards | IEC 61000-4-2 |
|---|
Power
Power Over Ethernet (PoE) | PoC |
|---|
Dimensions & Weight
Dimensions (WxDxH) / Weight Details | Transmitter: 7.55 cm x 8.5 cm x 1.65 cm / 140 g Receiver: 7.55 cm x 8.5 cm x 1.65 cm / 140 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|---|
Max Operating Temperature | 60 °C |
Humidity Range Operating | 0 – 90% RH |
