Lenkeng, Video/audio/infrared extender, HDMI, over CAT 6/6a/7, up to 70 m
$136.04 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description

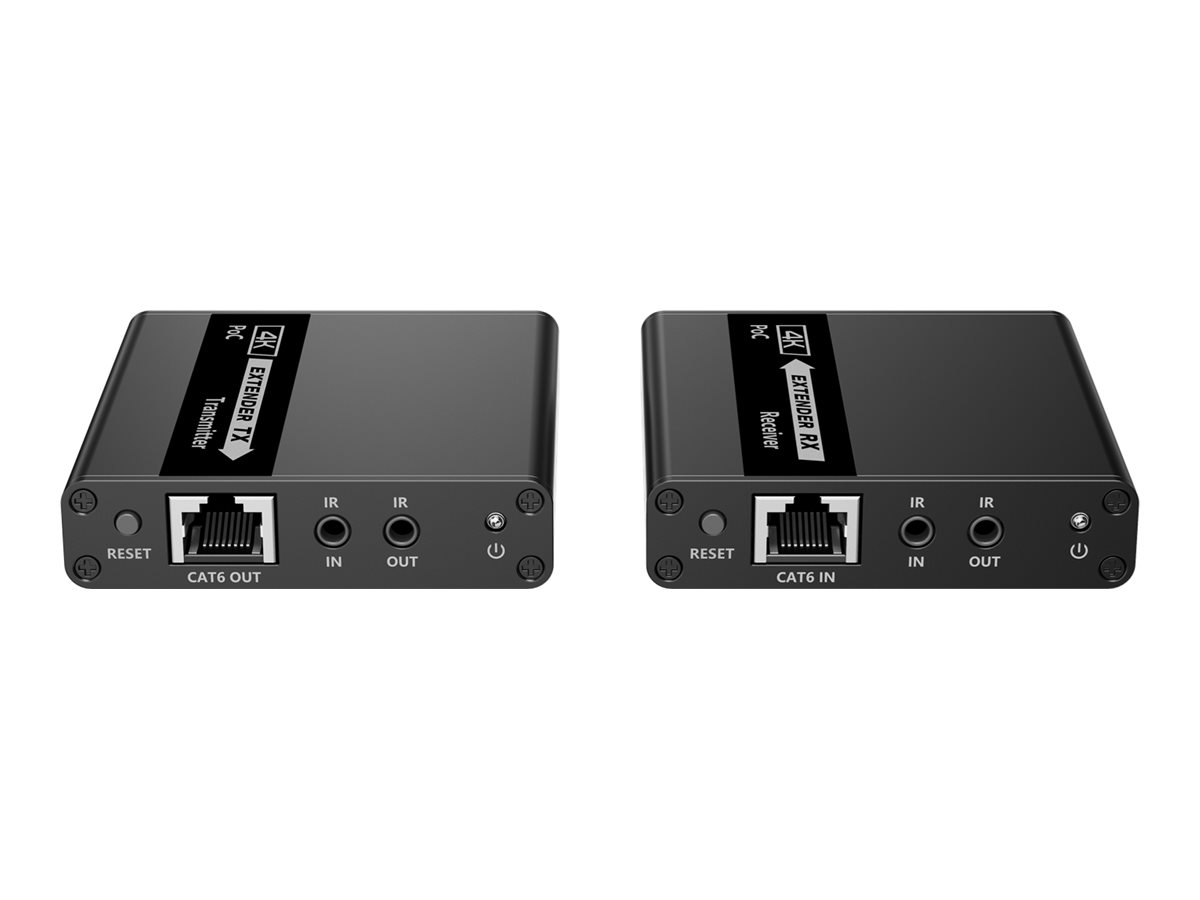

HDMI extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70m using a CAT6/6A/7 network cable. It adopts a point-to-point connection configuration. Supports bidirectional IR passback and 3.5mm stereo audio output.
- Zero latency
- Support up to 4K 30Hz resolution
- Supports CAT6/6A/7 network cables
- Support bidirectional IR pass-back function
- Support HDR10
- Support EDID passthrough
- Transmitter supports HDMI loop-out
- Receiver supports 3.5mm stereo audio output
- Lightning, surge, and ESD protection
- Support PoE network cable power supply, TX needs power supply
Main Specifications
Product Description | Lenkeng – video/audio/infrared extender – HDMI |
Device Type | Video/audio/infrared extender |
Form Factor | External |
Data Transfer Rate | 10.2 Gbps |
Data Link Protocol | HDMI |
Transmission Medium | CAT 6/6a/7 |
Max Transfer Distance | 70 m |
Power Over Ethernet (PoE) | PoE |
Extended Specifications
General
Device Type | Video/audio/infrared extender |
|---|---|
Form Factor | External |
Networking
Connectivity Technology | Wired |
|---|---|
Data Link Protocol | HDMI |
Data Transfer Rate | 10.2 Gbps |
Max Resolution | 1080p @ 60 Hz |
Max Transfer Distance | 70 m |
Status Indicators | Power |
Features | Surge protection, reset button, EDID Pass-Through, Dolby TrueHD support, DTS support, DTS-HD support, lightning protection, Dolby Digital support, HDR10 support, IR pass-through, HDMI loop out, ESD Protector, zero latency, LPCM support, aluminium alloy enclosure, YUV 4:4:4 |
Compliant Standards | HDCP 1.4 |
Expansion / Connectivity
Interfaces | 1 x HDMI input – 19 pin HDMI Type A female 2 x HDMI output – 19 pin HDMI Type A female 1 x network (input) – RJ-45 female 2 x network (output) – RJ-45 2 x IR input – mini jack female 2 x IR output – mini jack female 1 x audio (input) – mini jack female 2 x power – DC-Jack female |
|---|
Power
Power Over Ethernet (PoE) | PoE |
|---|
Dimensions & Weight
Dimensions (WxDxH) / Weight Details | Transmitter: 7.5 cm x 8 cm x 1.8 cm / 160 g Receiver: 7.5 cm x 8 cm x 1.8 cm / 160 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|---|
Max Operating Temperature | 60 °C |
Humidity Range Operating | 0 – 90% RH (non-condensing) |
Additional information
| Manufacturer |
|---|
