Samsung QB13R-M, 13" Diagonal Class QBR-M Series LED-backlit LCD display, digital signage, Tizen OS, 1080p 1920 x 1080, black

Description

The Samsung QB13R-M is designed for commercial use, focusing on digital signage. Featuring a 13-inch LCD screen, this display offers a resolution of 1920 x 1080 (1080p) and a brightness of 500 cd/m2. The slim design and anti-glare coating make it suitable for various environments, ensuring that content remains clear and vivid even in well-lit areas. With a wide viewing angle of 178 degrees, it is easy for multiple viewers to see the display at once, enhancing engagement.

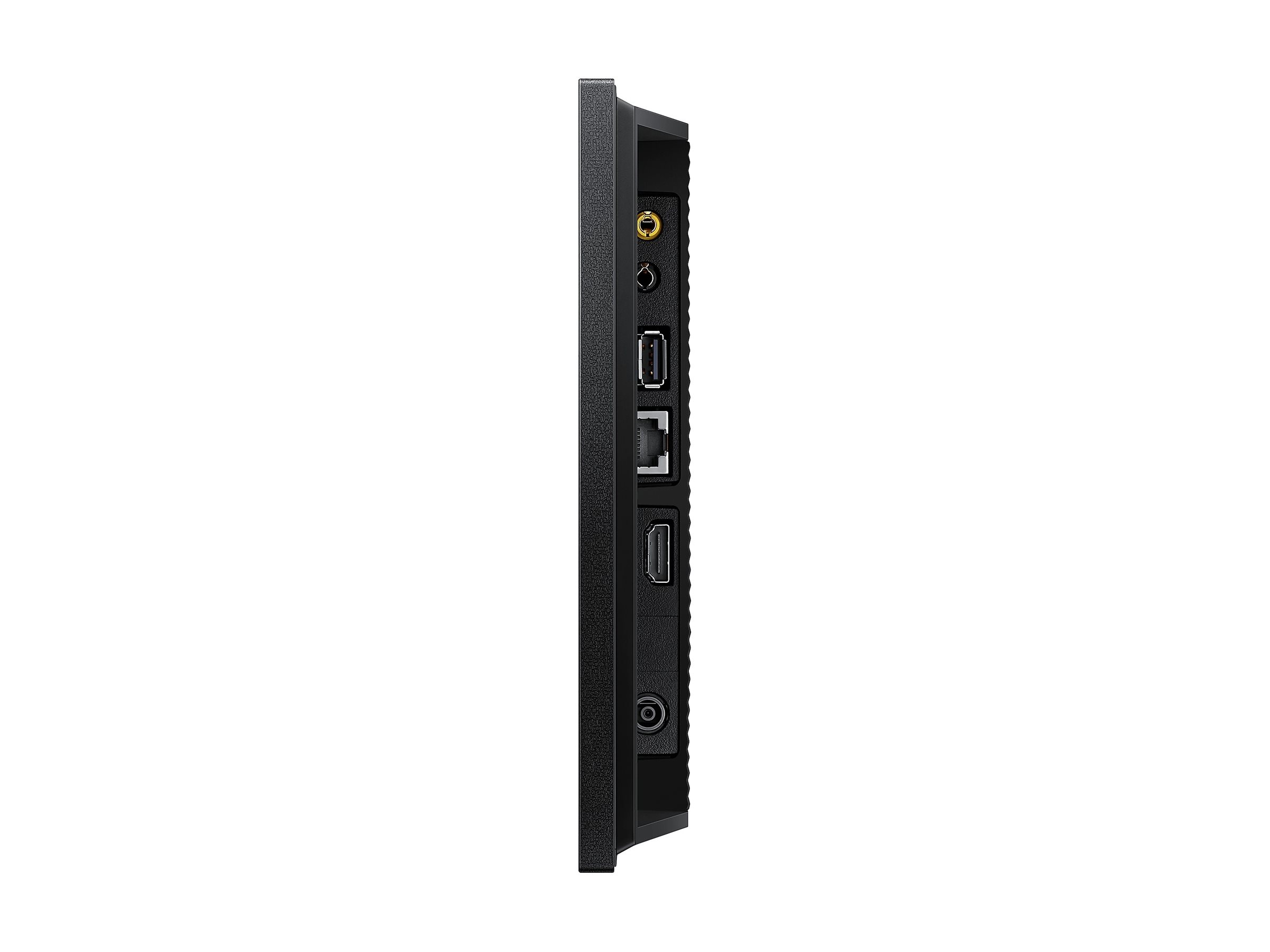

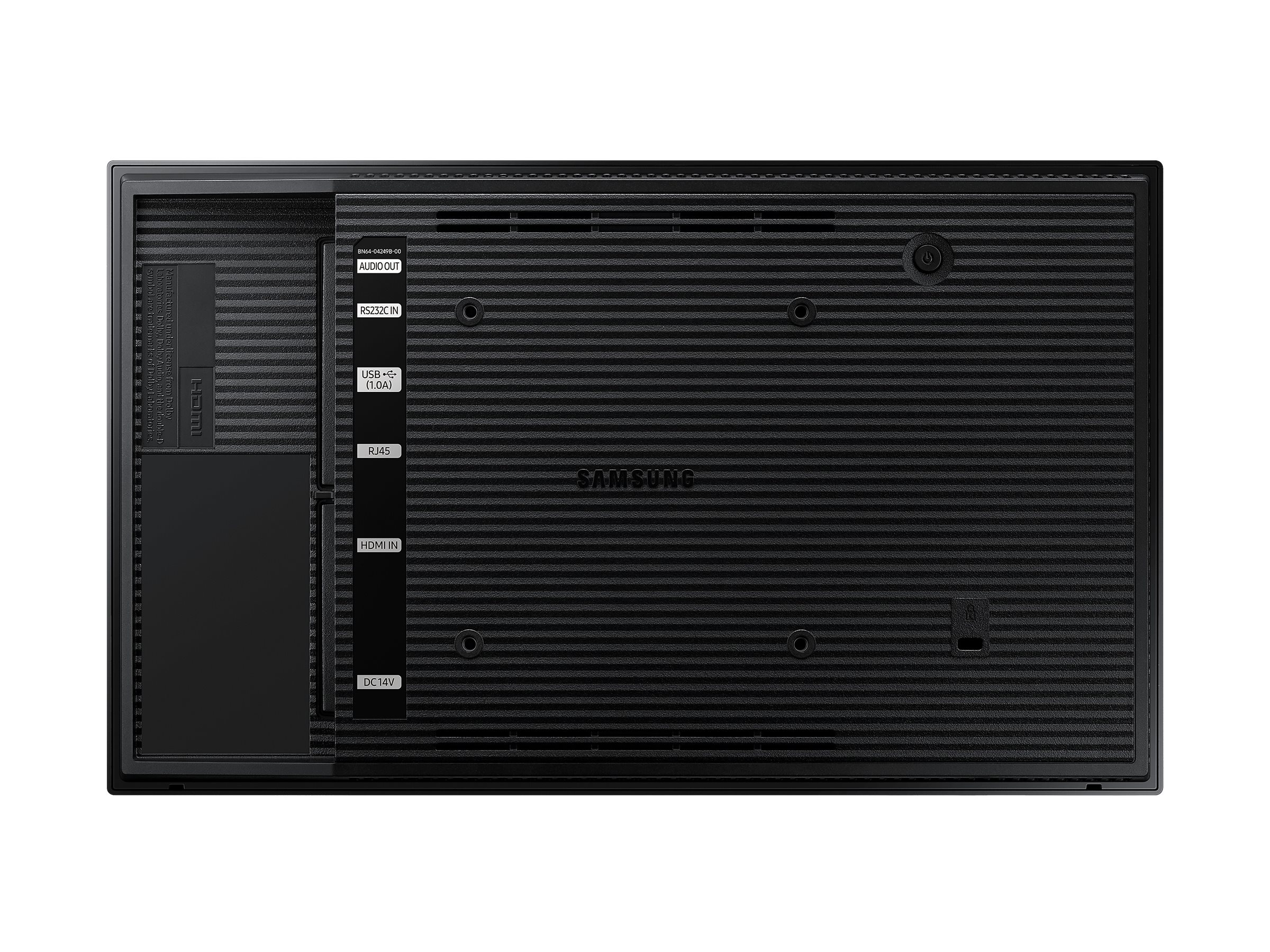

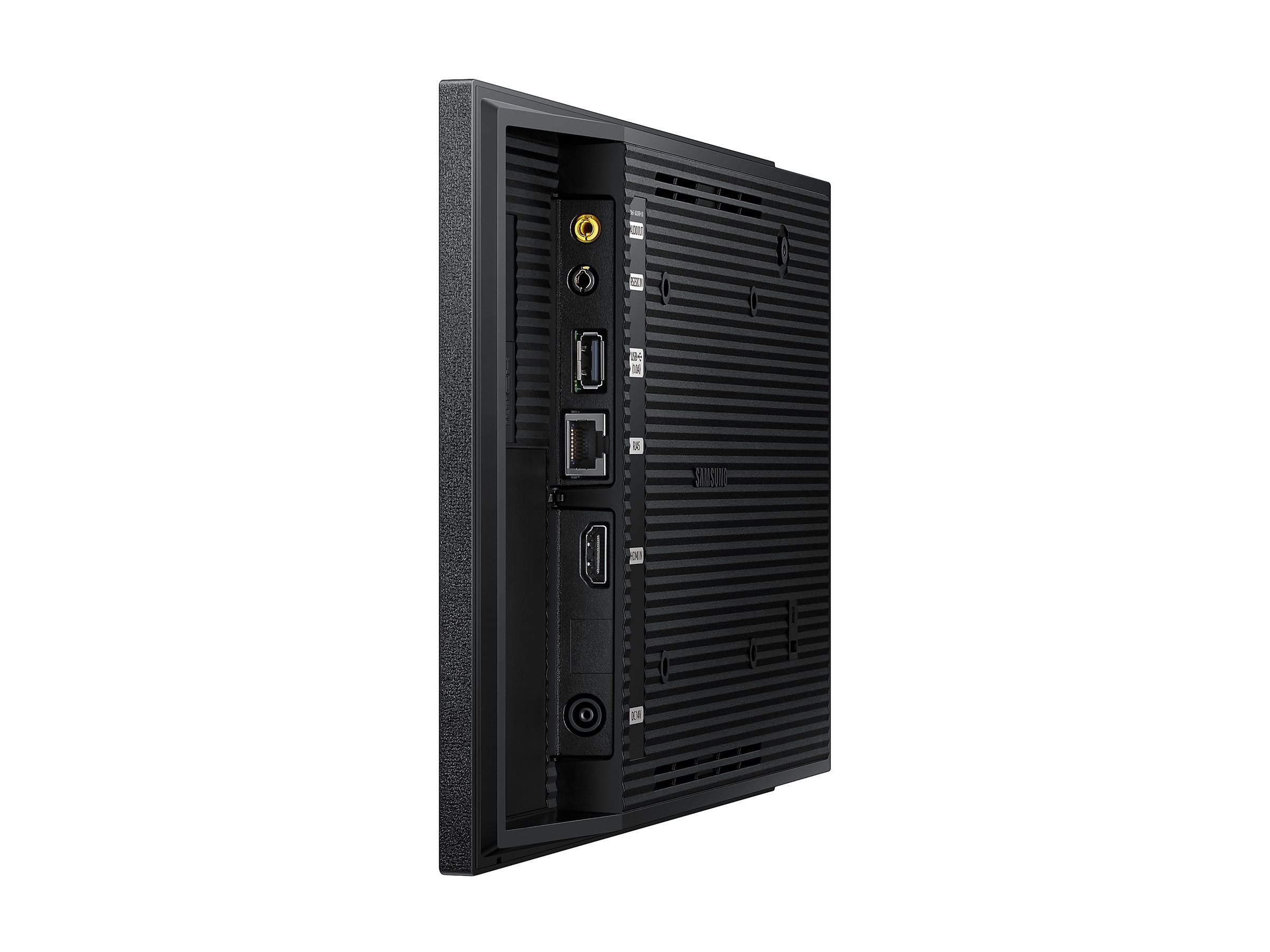

Equipped with the SMART Signage Platform and the MagicInfo S Player, this display allows for seamless content management and playback. Connectivity options include an HDMI input, USB port, audio line-out, RS-232 input, and LAN connectivity, making it flexible for different setups. The display also features built-in Wi-Fi, enabling wireless content sharing. With a power consumption of 27.5 watts during operation and 0.5 watts in sleep mode, it is designed for energy efficiency, making it an ideal choice for businesses looking to reduce operating costs.

• All-in-one solution for operational efficiency of content and reliable performance
• Compact and slim design for efficient utilization of space, even in tight locations
• Easy-to-read content with 1920 x 1080 FHD Resolution and non-glare panel
• Embedded MagicINFO S player enables efficient and seamless playback

• Enhanced communication in a compact display
  Samsung’s QB13R-M enables personalized and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB13R-M improves the operational efficiency of content, ensuring reliable performance for any business.
• Crisp and visible content
  The display supports 1920 x 1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.
• Slim, smart design

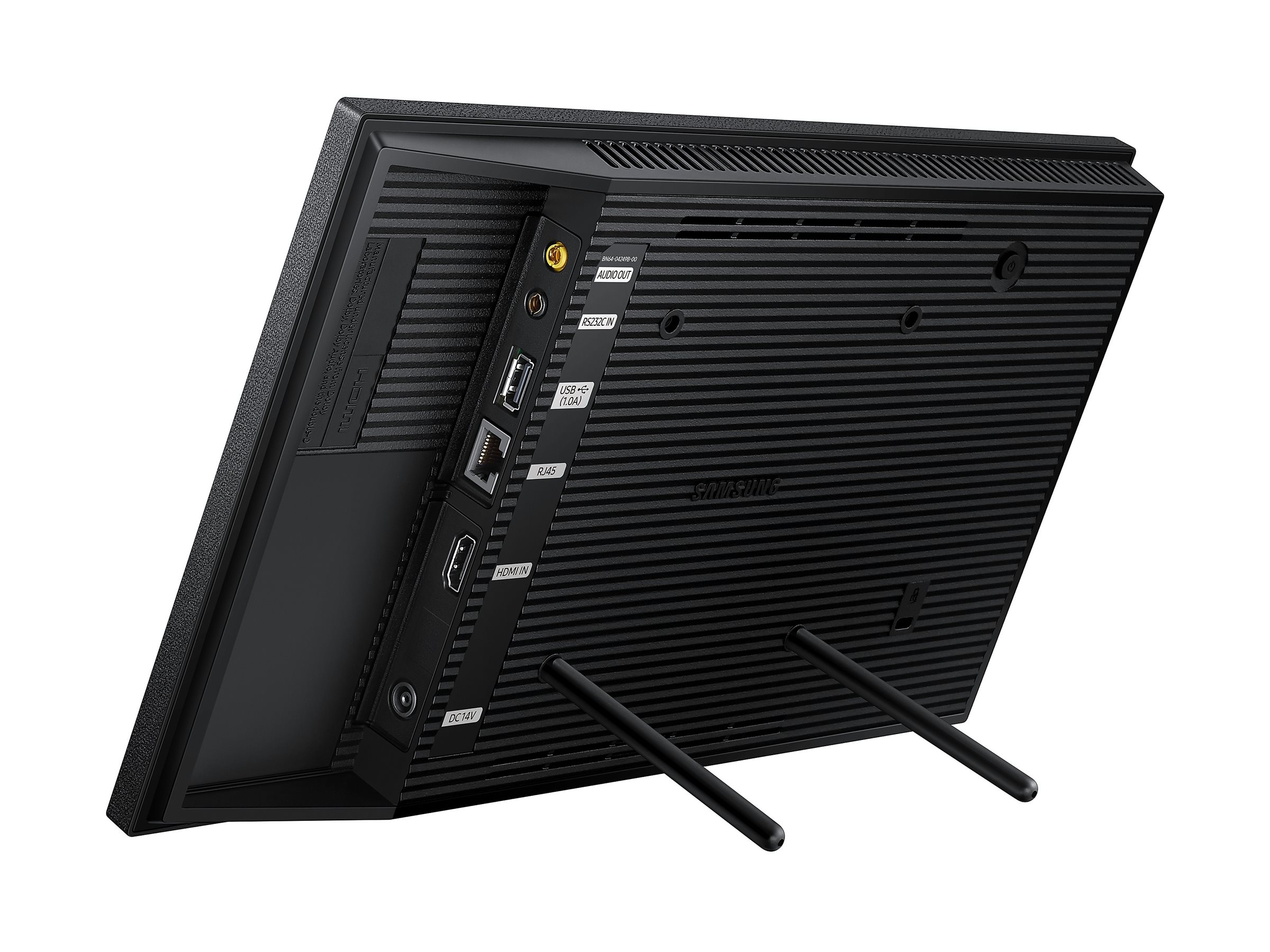

  The compact and slim design of the QB13R-M allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for either wall mounting or simply standing, with easy-to-operate connectivity, content play, and device controls.
• Powerful content playback
  With an embedded MagicINFO S player, backed by TIZEN, the QB13R-M allows efficient and seamless playback without an external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.
• Comprehensive security setup
  The powerful Knox security system provides rigid three-layer security, offering airtight protection at the application, platform, and system levels, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.
• Convenient, clean display control
  With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn’t require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.
• Safe operation, reliable performance
  The QB13R-M is Electromagnetic Compatibility (EMC) Class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Main Specifications

Documents

• Quick Start Guide
• User Manual
• Product Data Sheet / Brochure

Extended Specifications

Dimensions & Weight (Shipping)

Environmental Parameters

General

Display

Stands & Mounts

Media Player

Network & Internet Multimedia

Connections

Miscellaneous

Power

Dimensions & Weight (Shipping)
