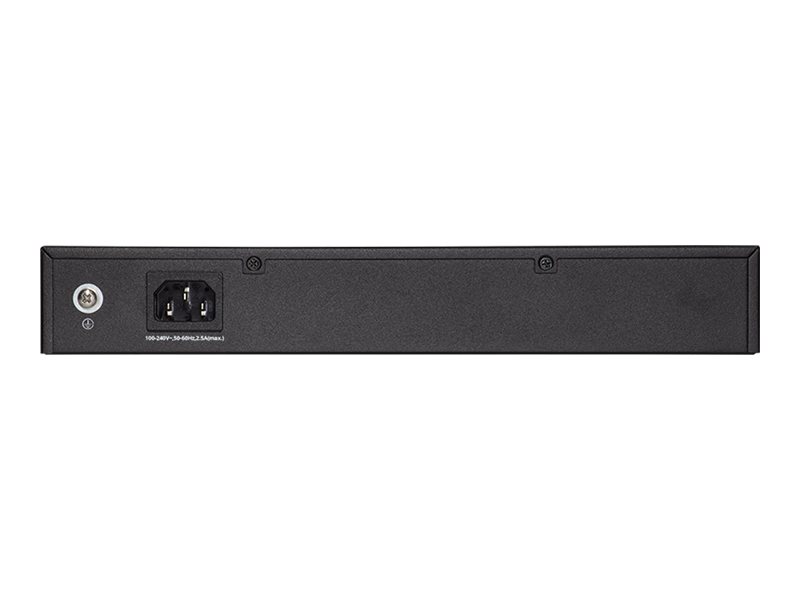

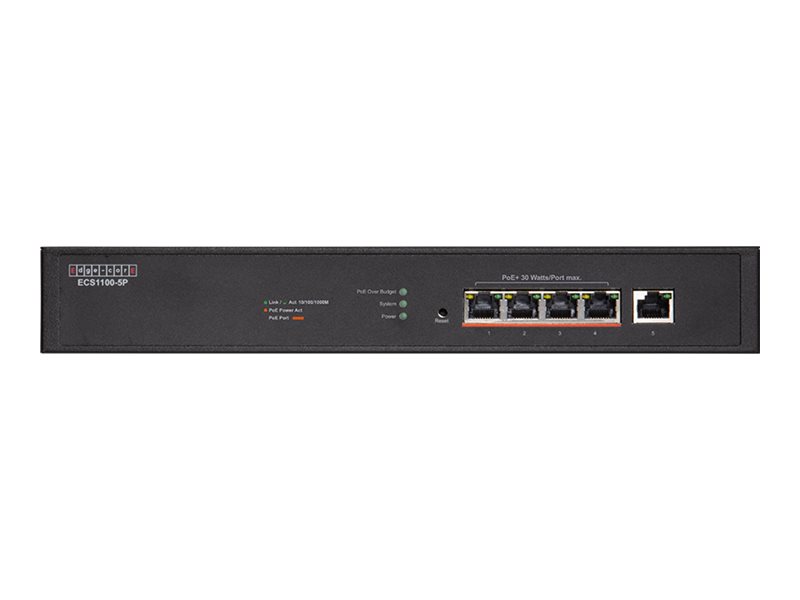

Edge-Core ECS1100 Series ECS1100-5P, Switch, smart, 4 x 10/100/1000 (PoE) + 1 x 10/100/1000, rack-mountable, PoE (120 W)
$244.77 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The ECS1100-5P is a fanless PoE switch that supports up to 4 ports at 30 W to meet the increasing power demands of users. The ECS1100 Series switches are rack mountable.
- 0°C to 50°C operating range
- PoE extend mode
- 6KV surge protection
- IGMP snooping v1/v2
- 802.3af/at/bt PoE
- Ingress Access Control List (ACL)
- VLAN trunking
- PoE timer
- Priority Queuing (PQ)
- Fanless design
- PD-Alive detection
- Robust performance
With a switching capacity of 10 Gbps and a forwarding rate of 7.44 Mbps, the Edge-Core ECS1100-5P ensures efficient data flow and high-speed connectivity for all connected devices. - Enhanced reliability
Designed to operate in a wide range of temperatures and humidity, coupled with a Mean Time Between Failures (MTBF) of over 200,000 hours, this switch promises exceptional reliability and longevity. - Comprehensive security features
Equipped with features like DDoS Protection, DHCP snooping, IP source guard, and Access Control Lists (ACL), the ECS1100-5P provides a secure networking environment to protect against various threats. - Efficient power management
The PoE (Power over Ethernet) support with a budget of 120 W and dynamic power allocation enables efficient energy use while powering devices directly through the network cables, reducing clutter and outlet demand. - Easy management and setup
A web GUI management portal along with support for multiple remote management protocols makes setup, configuration, and management of the ECS1100-5P straightforward and hassle-free.
Main Specifications
Product Description | Edge-Core ECS1100 Series ECS1100-5P – switch – 5 ports – smart – rack-mountable |
Device Type | Switch – 5 ports – smart |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (PoE) + 1 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 120 W |
Performance | Switching capacity: 10 Gbps Forwarding rate: 7.44 Mbps |
Capacity | Packet buffer size: 4 Mbit |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 15KB |
Routing Protocol | IGMPv2, IGMPv3, RSTP, STP |
Remote Management Protocol | NTP, DHCP, IPv4, IPv6 |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, Multicast Storm Control, SNTP support, STP support, DHCP snooping, fanless, DHCP client, MVR, port isolation, Storm Control, IP source guard, 6KV Surge protection, rate limit, Voice VLAN, PoE timer, loopback detection, dynamic power allocation, Unknown Storm Control, VLAN trunking, DDoS Protection, PQ, ACL MAC based, web GUI management portal, Ingress ACL, PD-Alive, ecCLOUD support, QoS, LACP, LLDP |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
Power | AC 100-240 V (50 – 60 Hz) |
Dimensions (WxDxH) | 29.4 cm x 18 cm x 4.4 cm |
Weight | 1.44 kg |
Extended Specifications
General
Device Type | Switch – 5 ports – smart |
|---|---|
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (PoE) + 1 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 120 W |
Performance | Switching capacity: 10 Gbps Forwarding rate: 7.44 Mbps |
Capacity | Packet buffer size: 4 Mbit |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 15KB |
Routing Protocol | IGMPv2, IGMPv3, RSTP, STP |
Remote Management Protocol | NTP, DHCP, IPv4, IPv6 |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, Multicast Storm Control, SNTP support, STP support, DHCP snooping, fanless, DHCP client, MVR, port isolation, Storm Control, IP source guard, 6KV Surge protection, rate limit, Voice VLAN, PoE timer, loopback detection, dynamic power allocation, Unknown Storm Control, VLAN trunking, DDoS Protection, PQ, ACL MAC based, web GUI management portal, Ingress ACL, PD-Alive, ecCLOUD support, QoS, LACP, LLDP |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
RAM | 256 KB |
Flash Memory | 8 MB |
Status Indicators | Power, system, PoE, link/activity |
Expansion / Connectivity
Interfaces | 4 x 1000Base-T RJ-45 PoE – 30 W 1 x 10/100/1000 (uplink) RJ-45 |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-240 V (50 – 60 Hz) |
Power Consumption Operational | 140 Watt |
Miscellaneous
MTBF | >200,000 hours |
|---|---|
Compliant Standards | FCC Class A certified, VCCI, BSMI, RoHS, WEEE, LVD, EN 62368-1, IEC/EN 62368-1, UKCA |
Dimensions & Weight
Width | 29.4 cm |
|---|---|
Depth | 18 cm |
Height | 4.4 cm |
Weight | 1.44 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 – 90% (non-condensing) |
