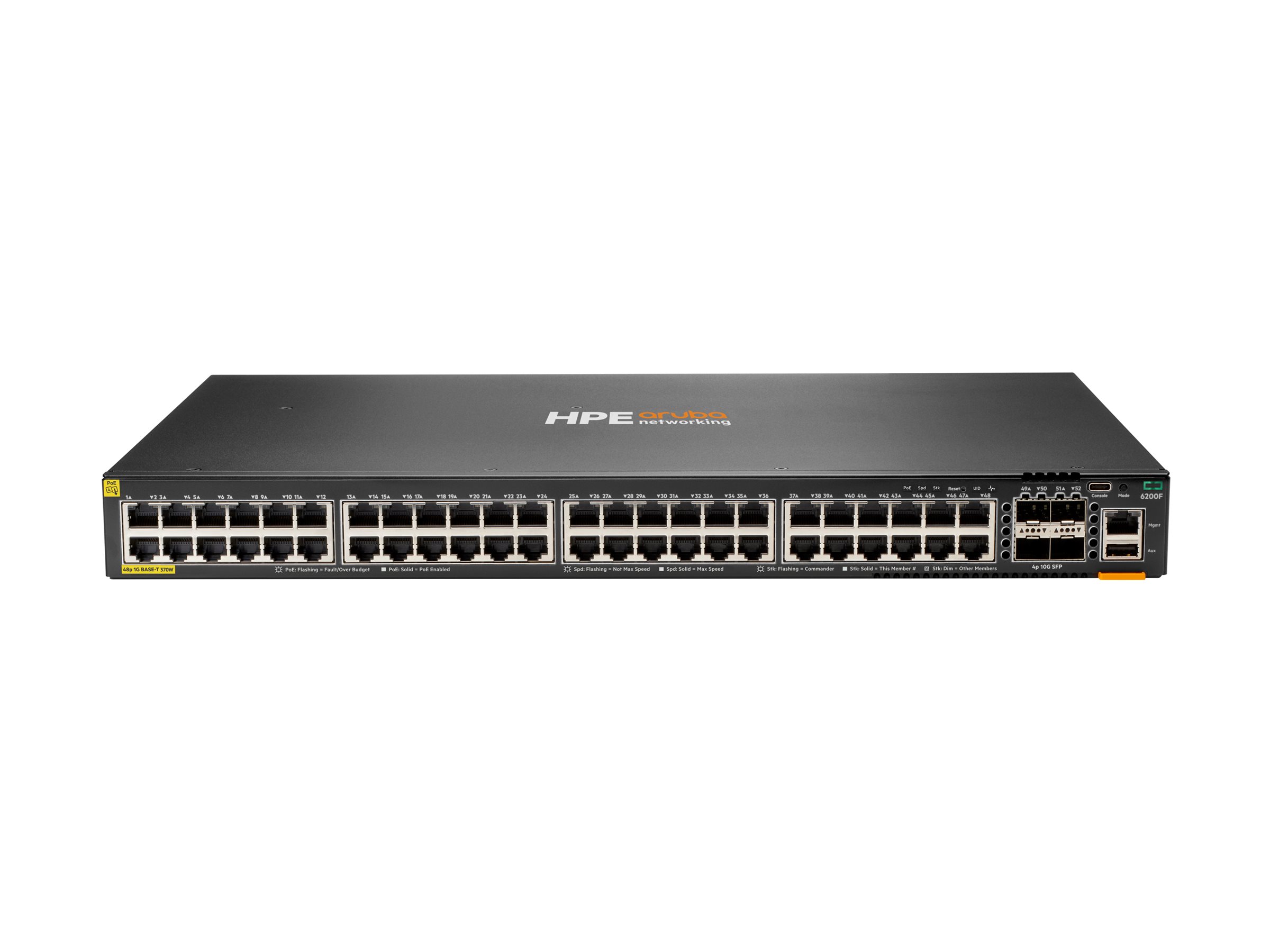

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch – Switch – L3 – Managed – 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ – front and side to back – rack-mountable

Manufacturer:HP
Part Number:JL726B
Warranty:Lifetime
PPID:AB22819

$6,431.89 inc GST

Free Delivery

Available on back-order

Out of Stock! Contact us for a lead time or ETA

Ships from Auckland

Ships from Auckland

  • Allow 1-2 days for delivery to the North Island
  • Allow 2-3 days for delivery to the South Island
  • add 1-2 days if you are rural
  • Collection can be arranged

Description

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

  • The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
  • The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
  • The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

  • Automation and Analytics
    The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
    Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.
    The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
    Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
    The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.
  • Performance and Power
    The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
    Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
    Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
    Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
  • Smarter Segmentation
    The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
    Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
    Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

What’s in the Box

  • HPE Aruba Networking CX 6200F 48G 4SFP+ Switch
  • 2-Post Rack Kit

Main Specifications

Product DescriptionHPE Aruba Networking CX 6200F 48G 4SFP+ Switch – switch – 48 ports – Managed – rack-mountable
Device TypeSwitch – 48 ports – L3 – Managed – stackable
Enclosure TypeFront and side to back rack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 + 4 x 100/1000/10G SFP+
PerformanceSwitching capacity: 176 Gbps
Throughput: 130.9 Mpps
Latency (1 Gbps): 2.28 µs
Latency (10 Gbps): 1.46 µs
CapacityPacket buffer size: 8 MB
MAC Address Table Size32768 entries
Jumbo Frame Support9220 bytes
Routing ProtocolRIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
Remote Management ProtocolRMON, CLI, MIB
FeaturesVirtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), PoE Class 4, Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
PowerAC 100-120/200-240 V
Dimensions (WxDxH)44.25 cm x 28.45 cm x 4.37 cm
Weight3.9 kg
System RequirementsAOS-CX

Extended Specifications

General

Device TypeSwitch – 48 ports – L3 – Managed – stackable
Enclosure TypeFront and side to back rack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 + 4 x 100/1000/10G SFP+
PerformanceSwitching capacity: 176 Gbps
Throughput: 130.9 Mpps
Latency (1 Gbps): 2.28 µs
Latency (10 Gbps): 1.46 µs
CapacityPacket buffer size: 8 MB
MAC Address Table Size32768 entries
Jumbo Frame Support9220 bytes
Max Units In A Stack8
Routing ProtocolRIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
Remote Management ProtocolRMON, CLI, MIB
Encryption AlgorithmSSL, FIPS 140-2
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
FeaturesVirtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), PoE Class 4, Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM8 GB DDR4 SDRAM
Flash Memory16 GB

Expansion / Connectivity

Interfaces48 x 10/100/1000 Base-T RJ-45
4 x 100/1000/10G SFP+ uplink/stacking
1 x USB-C console
1 x console RJ-45
1 x management
1 x USB Type A host

Power

Power DeviceInternal power supply
Voltage RequiredAC 100-120/200-240 V

Miscellaneous

Included Accessories2-Post Rack Kit
Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2020 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, GB 4943.1-2022, EN 55032:2015 /A11:2020, Class A, FCC 47 CFR part 15B:2021 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, CISPR 32:2016 Class A, AS/NZS CISPR 32:2015 Class A, IEC 63000:2018

Software / System Requirements

OS RequiredAOS-CX

Dimensions & Weight

Width44.25 cm
Depth28.45 cm
Height4.37 cm
Weight3.9 kg

Environmental Parameters

Min Operating Temperature0 °C
Max Operating Temperature45 °C
Humidity Range Operating5 – 95% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage5 – 95% (non-condensing)
