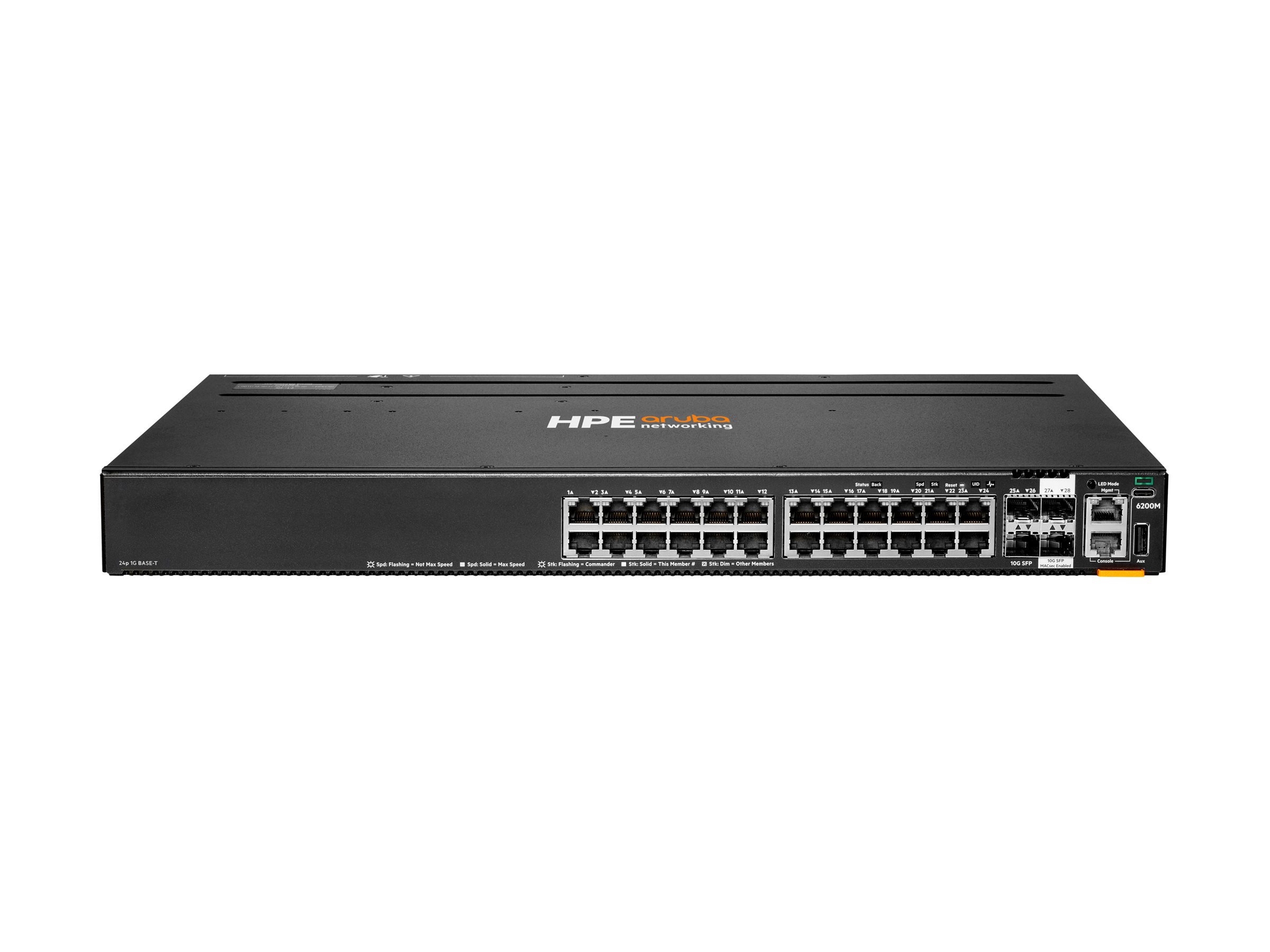

HPE Aruba 6200M 24G 4SFP+ Switch – Switch – Max. Stacking Distance 10 kms – L3 – Managed – 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) – front and side to back – rack-mountable – BTO

Manufacturer:HP
Part Number:R8Q67A
Warranty:Lifetime
PPID:AB22427

$5,912.62 inc GST

Free Delivery

Available on back-order

Out of Stock! Contact us for a lead time or ETA

Ships from Auckland

Ships from Auckland

  • Allow 1-2 days for delivery to the North Island
  • Allow 2-3 days for delivery to the South Island
  • add 1-2 days if you are rural
  • Collection can be arranged

Description

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

  • The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
  • The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
  • The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

  • Automation and Analytics
    The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
    Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.
    The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
    Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
    The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.
  • Performance and Power
    The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
    Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
    Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
    Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
  • Smarter Segmentation
    The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
    Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
    Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

Main Specifications

Product DescriptionHPE Aruba 6200M 24G 4SFP+ Switch – switch – Max. Stacking Distance 10 kms – 24 ports – Managed – rack-mountable
Device TypeSwitch – 24 ports – L3 – Managed – stackable
Enclosure TypeFront and side to back rack-mountable 1U
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
PerformanceSwitching capacity: 128 Gbps
Throughput: 95.2 Mpps
Latency (1 Gbps): 2.28 µs
Latency (10 Gbps): 1.46 µs
Packet buffer size: 8 MB
Stacking bandwidth: 40 Gbps
CapacitySwitched virtual interfaces (SVIs): 128
IPv4 host table capacity: 8000
IPv6 host table capacity: 8000
IPv4 routes (Unicast): 2000
IPv6 routes (Unicast): 2000
IGMP groups: 1000
MLD groups: 1000
IPv4 ACL entries (ingress): 1000
IPv6 ACL entries (ingress): 1000
MAC ACL entries (ingress): 1000
IPv4 ACL entries (egress): 512
IPv6 ACL entries (egress): 256
MAC ACL entries (egress): 512
MAC Address Table Size16000 entries
Jumbo Frame Support9220 bytes
Routing ProtocolOSPF, RIP-2, OSPFv2, OSPFv3, ECMP
Remote Management ProtocolSNMP, SNMP 3, SNMP 2c, CLI
FeaturesLayer 2 switching, ARP support, DiffServ support, VRRP support, QoS, TPM, ECMP, UDLD, DWRR, MIB, CoS, ToS, BPDU, SSM, NTP, security slot (Kensington security lock compatible), RPVST+, DNS support, IGMP support, UDLD, Auto MDIX, web GUI management portal, UTM, EQS
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
PowerAC 100-120/200-240 V (50/60 Hz)
Dimensions (WxDxH)44.2 cm x 38.5 cm x 4.4 cm
Weight5.59 kg
System RequirementsAOS-CX
Pricing TypeBTO

Extended Specifications

General

Device TypeSwitch – 24 ports – L3 – Managed – stackable
Enclosure TypeFront and side to back rack-mountable 1U
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
PerformanceSwitching capacity: 128 Gbps
Throughput: 95.2 Mpps
Latency (1 Gbps): 2.28 µs
Latency (10 Gbps): 1.46 µs
Packet buffer size: 8 MB
Stacking bandwidth: 40 Gbps
CapacitySwitched virtual interfaces (SVIs): 128
IPv4 host table capacity: 8000
IPv6 host table capacity: 8000
IPv4 routes (Unicast): 2000
IPv6 routes (Unicast): 2000
IGMP groups: 1000
MLD groups: 1000
IPv4 ACL entries (ingress): 1000
IPv6 ACL entries (ingress): 1000
MAC ACL entries (ingress): 1000
IPv4 ACL entries (egress): 512
IPv6 ACL entries (egress): 256
MAC ACL entries (egress): 512
MAC Address Table Size16000 entries
Jumbo Frame Support9220 bytes
Max Units In A Stack8
Routing ProtocolOSPF, RIP-2, OSPFv2, OSPFv3, ECMP
Remote Management ProtocolSNMP, SNMP 3, SNMP 2c, CLI
Encryption AlgorithmMD5, SSL, FIPS 140-2
Authentication MethodRADIUS, TACACS+
FeaturesLayer 2 switching, ARP support, DiffServ support, VRRP support, QoS, TPM, ECMP, UDLD, DWRR, MIB, CoS, ToS, BPDU, SSM, NTP, security slot (Kensington security lock compatible), RPVST+, DNS support, IGMP support, UDLD, Auto MDIX, web GUI management portal, UTM, EQS
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Processor1 x ARM: 1.8 GHz
RAM8 GB DDR4 SDRAM
Flash Memory16 GB

Expansion / Connectivity

Interfaces24 x 10/100/1000 Base-T RJ-45
4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256
1 x console RJ-45
1 x management RJ-45
1 x console (USB) Type C
1 x USB Type A host

Power

Power DeviceInternal power supply (not installed)
Max Supported Qty2
Voltage RequiredAC 100-120/200-240 V (50/60 Hz)
Power Consumption Operational75 Watt
Power Consumption Stand by56 Watt

Miscellaneous

Included AccessoriesRack kit (2 post), fan tray (field replaceable, hotswappable)
Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, Laser Class 1, WEEE, VCCI Class A, IEC 60950-1:2005 + A1:2009 + A2:2013, CISPR 35, EN 60825-1:2014, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, UL 62368-1 Third Edition, EN 61000-3-3:2013/A1:2019, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, IEC 62368-1:2014 2nd Ed, CNS 15598-1:2020, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35 Ed 1.0:2016, CSA 22.2 No.62368-1 Third Edition, EN 55032:2015 + A11:2020 Class A, FCC 47 CFR part 15B:2014 Class A
Pricing TypeBTO

Software / System Requirements

OS RequiredAOS-CX

Dimensions & Weight

Width44.2 cm
Depth38.5 cm
Height4.4 cm
Weight5.59 kg

Environmental Parameters

Min Operating Temperature0 °C
Max Operating Temperature45 °C
Humidity Range Operating15 – 95% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage15 – 90% (non-condensing)
