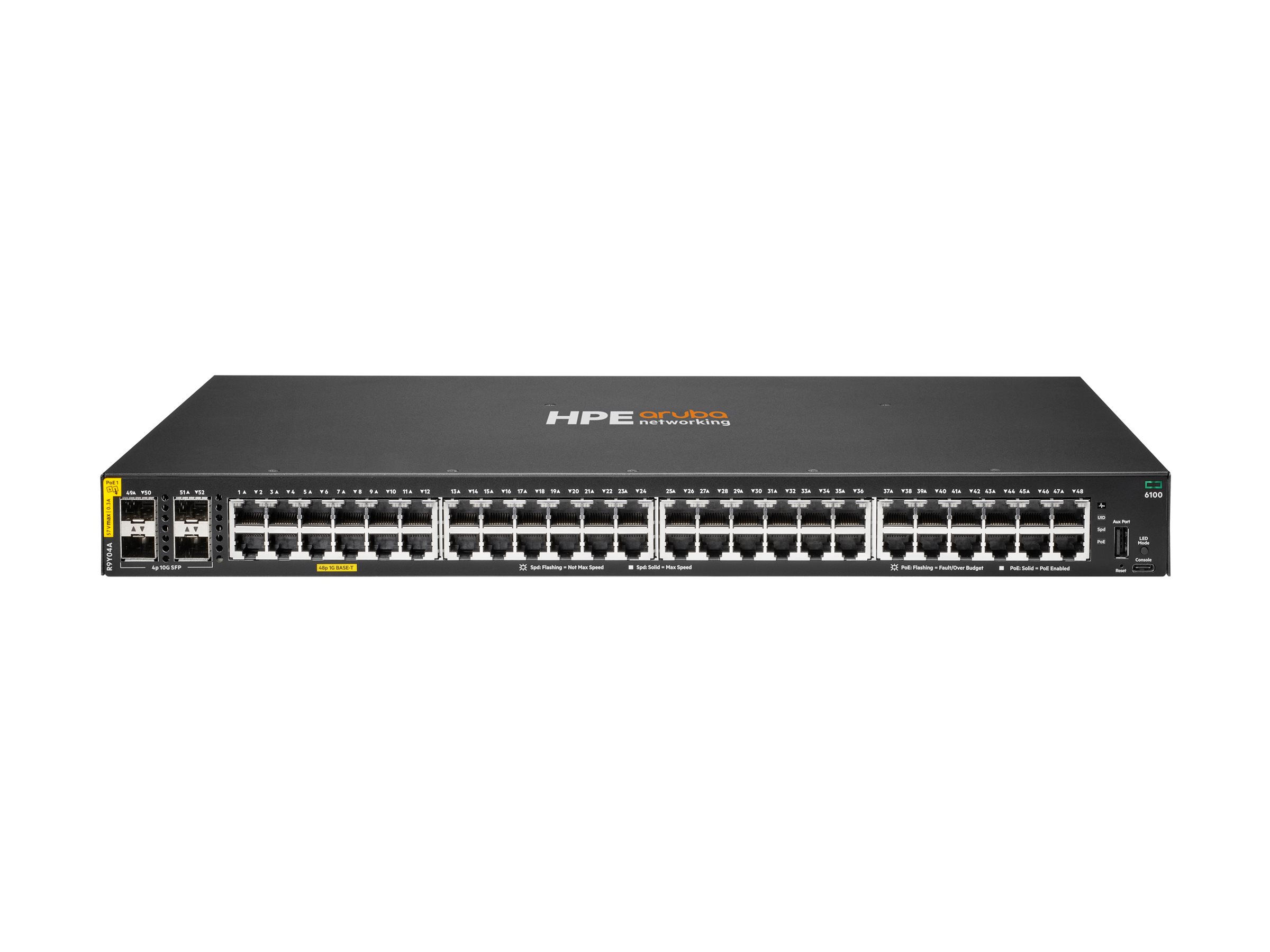

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch – Switch – L3 – Managed – 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) – side to side airflow – rack-mountable, wall-mountable – PoE+ (740 W) – CTO

Manufacturer:HP
Part Number:R9Y04A
Warranty:Lifetime
PPID:AB22426

$7,552.93 inc GST

Free Delivery

Available on back-order

Out of Stock! Contact us for a lead time or ETA

Ships from Auckland

Ships from Auckland

  • Allow 1-2 days for delivery to the North Island
  • Allow 2-3 days for delivery to the South Island
  • add 1-2 days if you are rural
  • Collection can be arranged

Description

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.

  • The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
  • The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
  • The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.

  • Entry Level Aruba CX Access Layer Switches
    The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
    Using Aruba AOS-CX operating system across HPE Aruba Networking CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
    Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
    Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
    Simplifies ownership with no switch software licensing or subscriptions required.
  • Performance and Power
    The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
    Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
    Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
  • Simplified Configuration and Management
    The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
    Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
    Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.
    Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
    Software-defined ready with REST APIs for fine-grained programmability of network tasks.

Main Specifications

Product DescriptionHPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch – switch – 48 ports – Managed – rack-mountable
Device TypeSwitch – 48 ports – L3 – Managed
Enclosure TypeSide to side airflow rack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)PoE+
PoE Budget740 W
PerformanceSwitching capacity: 176 Gbps
Throughput: 98.6 Mpps
Latency (1 Gbps): 1.9 µs
Latency (10 Gbps): 1.8 µs
CapacitySwitched virtual interfaces (SVIs) (dual stack): 16
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256
IGMP groups: 512
MLD groups: 512
IPv4 host table capacity: 1024
IPv6 host table capacity: 512
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
Packet buffer size: 12.38 MB
MAC Address Table Size8192 entries
Jumbo Frame Support9220 bytes
Routing ProtocolIGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management ProtocolSNMP 2, SNMP, RMON, SNMP 3, CLI, MIB
FeaturesLayer 2 switching, RSTP support, MSTP support, UDLD, CoS, ToS, PoE Class 4, RPVST+, LLDP, UTM, Address Resolution Protocol
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
PowerAC 100-127/200-240 V (50/60 Hz)
Dimensions (WxDxH)44.25 cm x 32.42 cm x 4.39 cm
Weight4.7 kg
System RequirementsAOS-CX
Pricing TypeCTO

Extended Specifications

General

Device TypeSwitch – 48 ports – L3 – Managed
Enclosure TypeSide to side airflow rack-mountable, wall-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)PoE+
PoE Budget740 W
PerformanceSwitching capacity: 176 Gbps
Throughput: 98.6 Mpps
Latency (1 Gbps): 1.9 µs
Latency (10 Gbps): 1.8 µs
CapacitySwitched virtual interfaces (SVIs) (dual stack): 16
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256
IGMP groups: 512
MLD groups: 512
IPv4 host table capacity: 1024
IPv6 host table capacity: 512
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
Packet buffer size: 12.38 MB
MAC Address Table Size8192 entries
Jumbo Frame Support9220 bytes
Routing ProtocolIGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management ProtocolSNMP 2, SNMP, RMON, SNMP 3, CLI, MIB
Encryption AlgorithmSSL
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
FeaturesLayer 2 switching, RSTP support, MSTP support, UDLD, CoS, ToS, PoE Class 4, RPVST+, LLDP, UTM, Address Resolution Protocol
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor1 x ARM CortexTM A9: 1.016 GHz
RAM4 GB DDR3 SDRAM
Flash Memory16 GB

Expansion / Connectivity

Interfaces48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4
4 x Gigabit / 10Gbit LAN SFP+ uplink
1 x USB-C console
1 x USB Type A host

Power

Power DeviceInternal power supply
Power Provided950 Watt
Voltage RequiredAC 100-127/200-240 V (50/60 Hz)
Power Consumption Operational49.7 Watt
Power Consumption Stand by37.5 Watt

Miscellaneous

Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, IEC/EN 60825-1:2014 Class 1, EN 60825-1:2014, IEC 62368-1: 2014, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 62368-1:2018, FCC CFR 47 Part 15 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, AS/NZS CISPR 32:2015 Class A, EN 62368-1: 2018, UL 62368-1: 2014 2nd Ed., CNS 15936 Class A, EN 55032:2015 + A11:2020, CISPR-32 Class A
Pricing TypeCTO

Software / System Requirements

OS RequiredAOS-CX

Dimensions & Weight

Width44.25 cm
Depth32.42 cm
Height4.39 cm
Weight4.7 kg

Environmental Parameters

Min Operating Temperature0 °C
Max Operating Temperature45 °C
Humidity Range Operating5 – 95% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage5 – 90% (non-condensing)
