Description

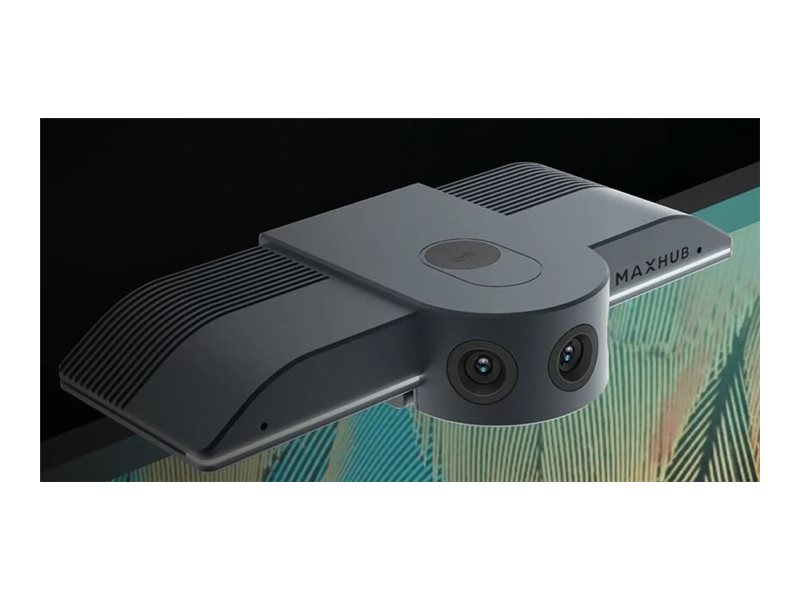

The MAXHUB UC M30 revolutionizes video conferencing with a panoramic 180° field of view, combined with auto tracking and five video layouts to suit every meeting type from small-group to full-room presentations.

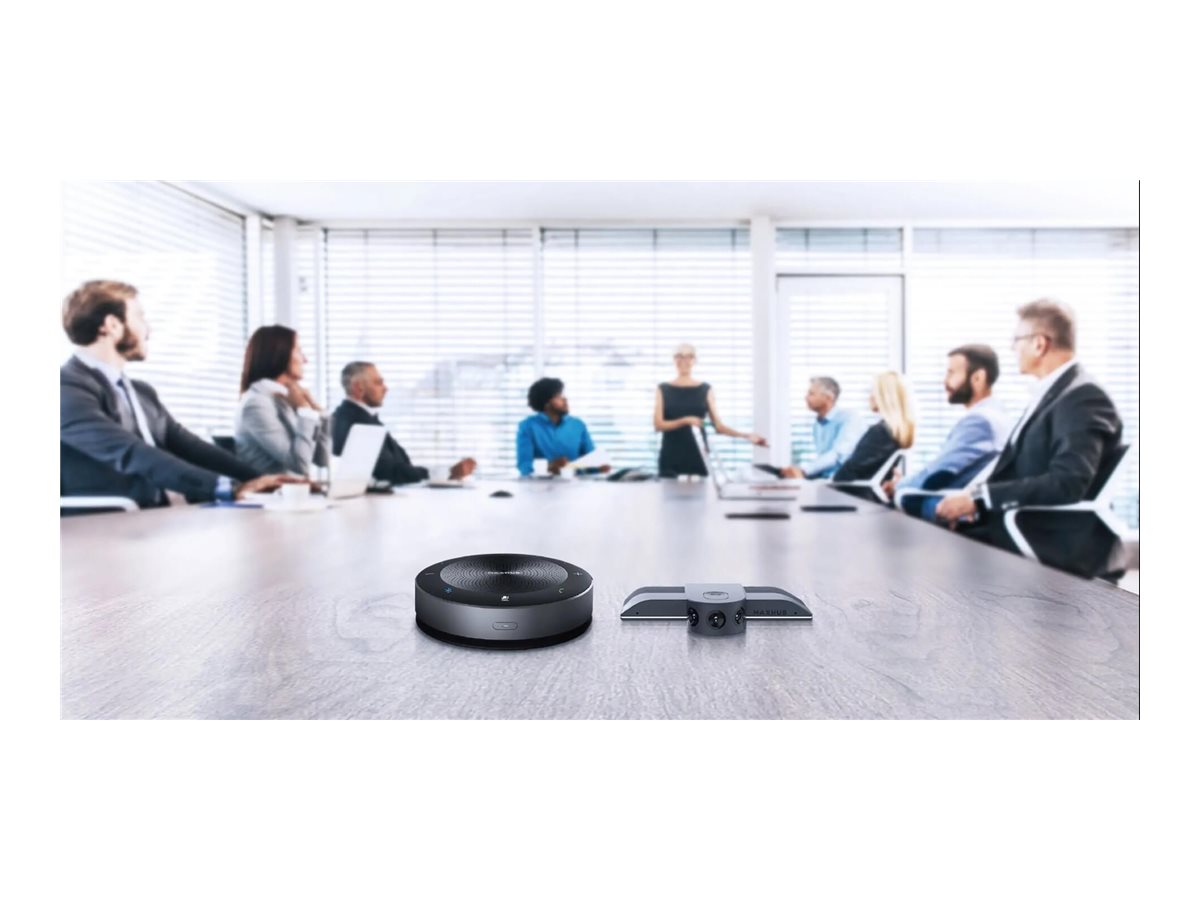

The MAXHUB BM20 360° Bluetooth speakerphone is a well-rounded performer that supports your every important conference call anytime, anywhere. Its voice pickup range ensures you are heard clearly in your flexible seats. The built-in high-performance dynamic speakers bring you a crystal clear voice experience.
What’s in the Box
- MAXHUB UC M30
- USB cable
- Wall mount kit
Main Specifications
Product Description | MAXHUB UC M30 – conference camera |
Device Type | Conference camera |
Audio | Yes: built-in two microphones |
Camera Mount Type | Wall mount |
Dimensions (WxDxH) | 14.4 cm x 7.3 cm x 2.6 cm |
Weight | 209.1 g |
Connectivity Technology | Wired |
Camera | Colour |
Max Resolution | 3840 x 2160 |
Frame Rate (max) | 30 frames per second |
Video Modes | 4K |
Optical Sensor Type | 12 MP |
Minimum Illumination | 10 lux |
Focus Adjustment | Fixed focus (min distance 1.5 m) |
Lens Iris | F/2.2 |
Interfaces | USB |
Cables Included | 1 – USB cable – external |
Features | 180° field of view, auto tracking |
Environmental Parameters (operating) | 0 °C – 40 °C; 10 – 90% RH relative humidity |
Documents
Extended Specifications
General
Device Type | Conference camera |
|---|
Audio Support | Yes: built-in two microphones |
|---|
Camera Mount Type | Wall mount |
|---|
Connectivity Technology | Wired |
|---|
Width | 14.4 cm |
|---|
Depth | 7.3 cm |
|---|
Height | 2.6 cm |
|---|
Weight | 209.1 g |
|---|
Camera
Type | Colour |
|---|
Digital Video Format | YUY2, MJPEG, H.264 |
|---|
Max Digital Video Resolution | 3840 x 2160 |
|---|
Video Modes | 4K |
|---|
Minimum Illumination | 10 lux |
|---|
Digital Video Capture Resolution | 3840 x 2160, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240, 3840 x 1376, 3840 x 962, 2560 x 1440, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 544 |
|---|
Frame Rate (max) | 30 frames per second |
|---|
Features | 180° field of view, auto tracking |
|---|
Image Sensor
Lens Construction
Lens Iris | F/2.2 |
|---|
Focus Adjustment | Fixed focus |
|---|
Min Focus Distance | 1.5 m |
|---|
Interfaces
Expansion / Connectivity
Miscellaneous
Included Accessories | Wall mount kit |
|---|
Cables Included | 1 x USB cable – external |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 17.5 cm |
|---|
Shipping Depth | 17.5 cm |
|---|
Shipping Height | 4.4 cm |
|---|
Shipping Weight | 538.3 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Relative Humidity (operating) | 10 – 90% RH |
|---|
