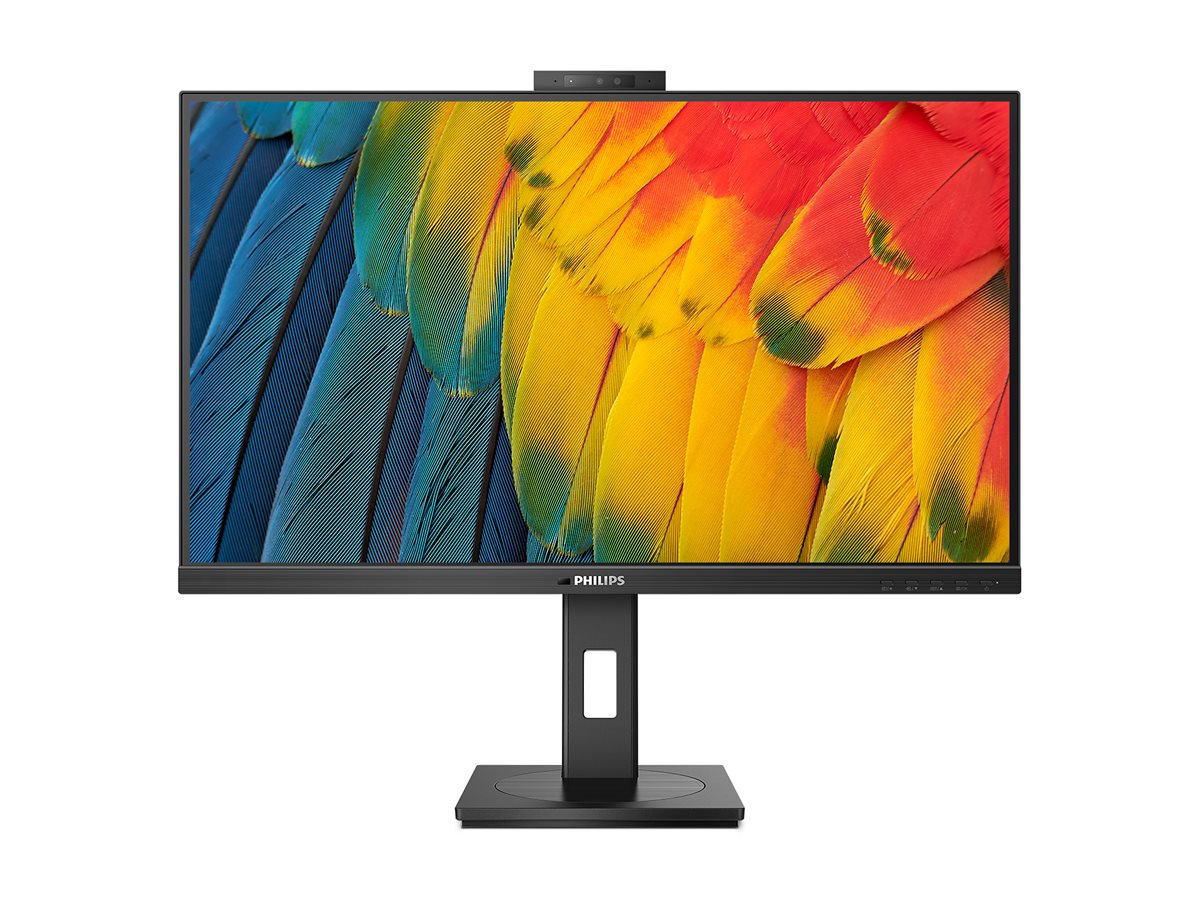

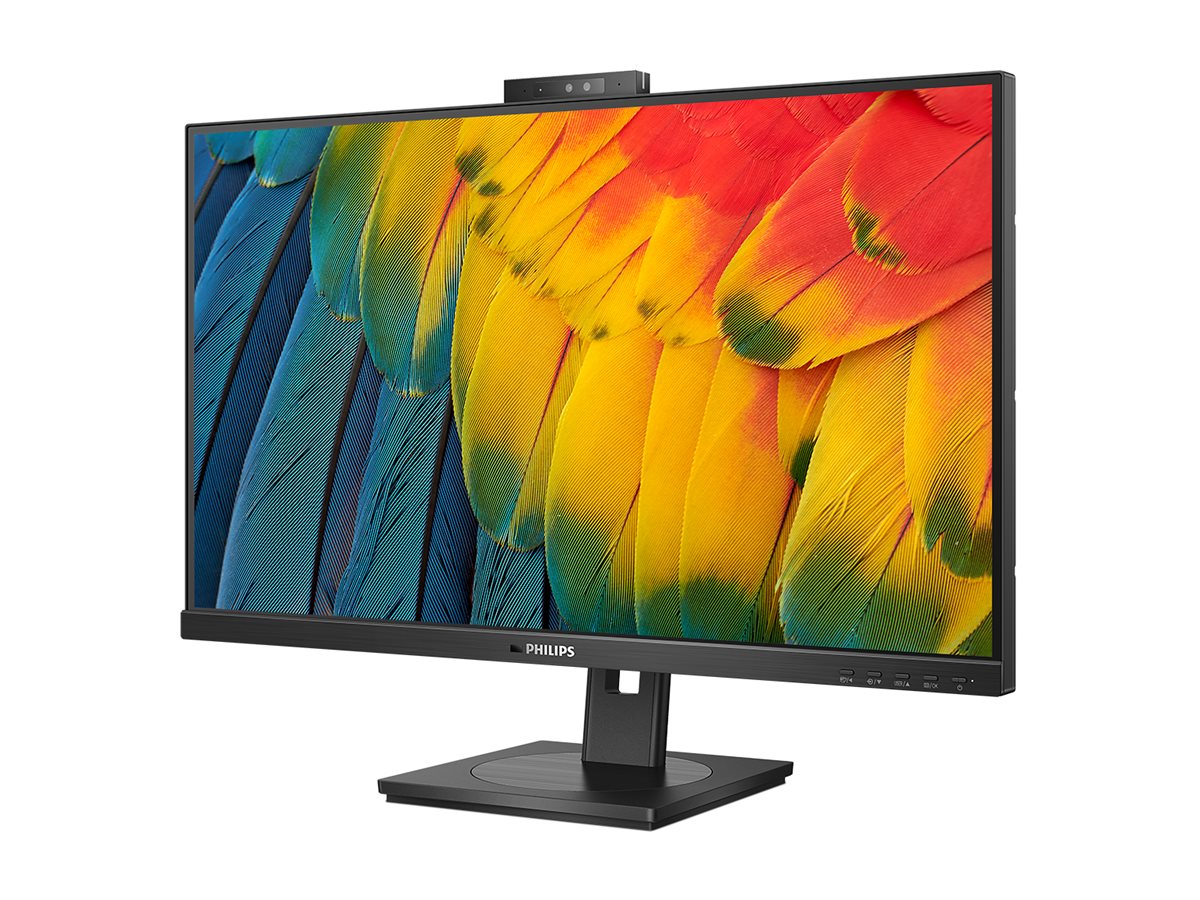

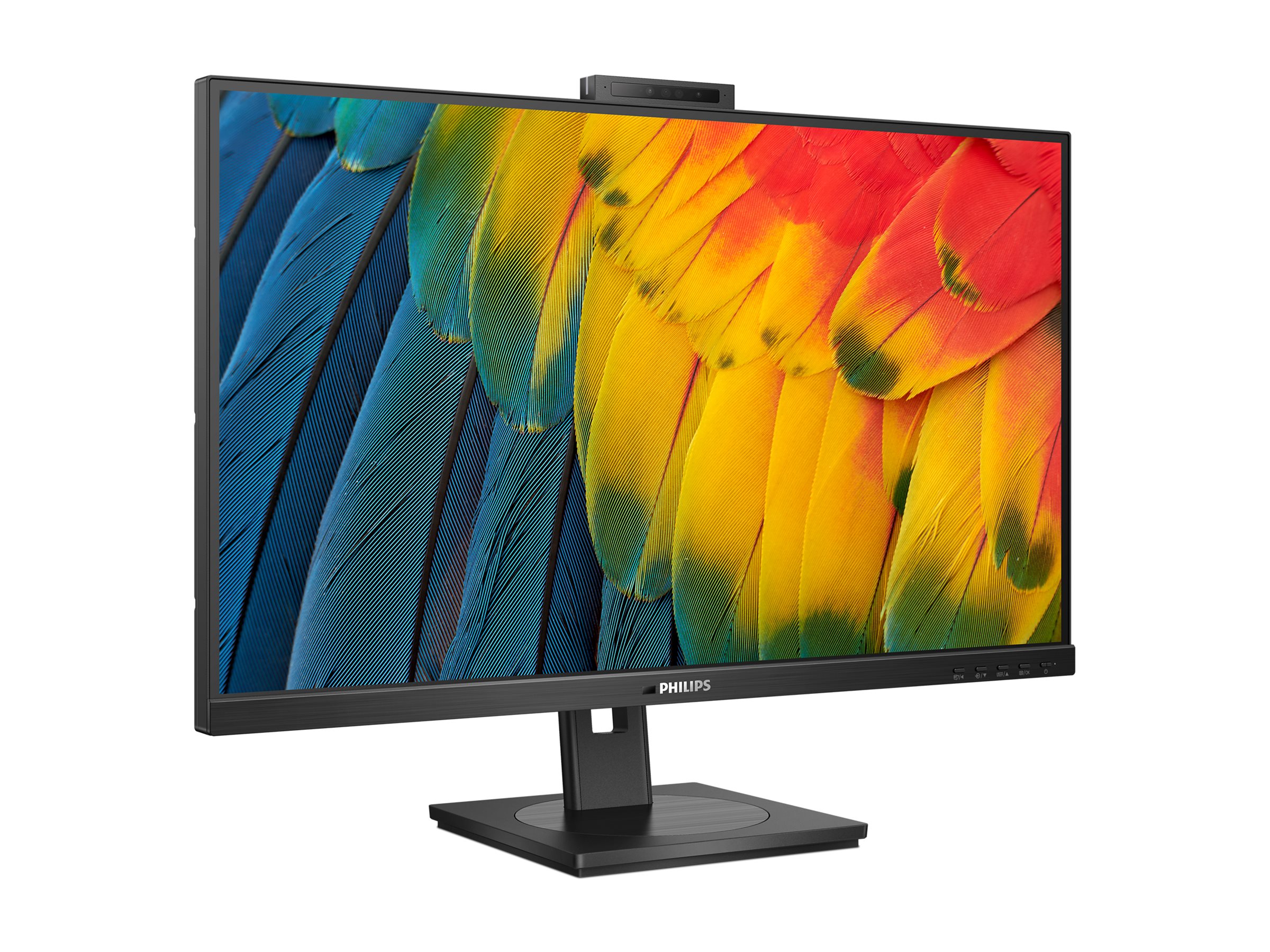

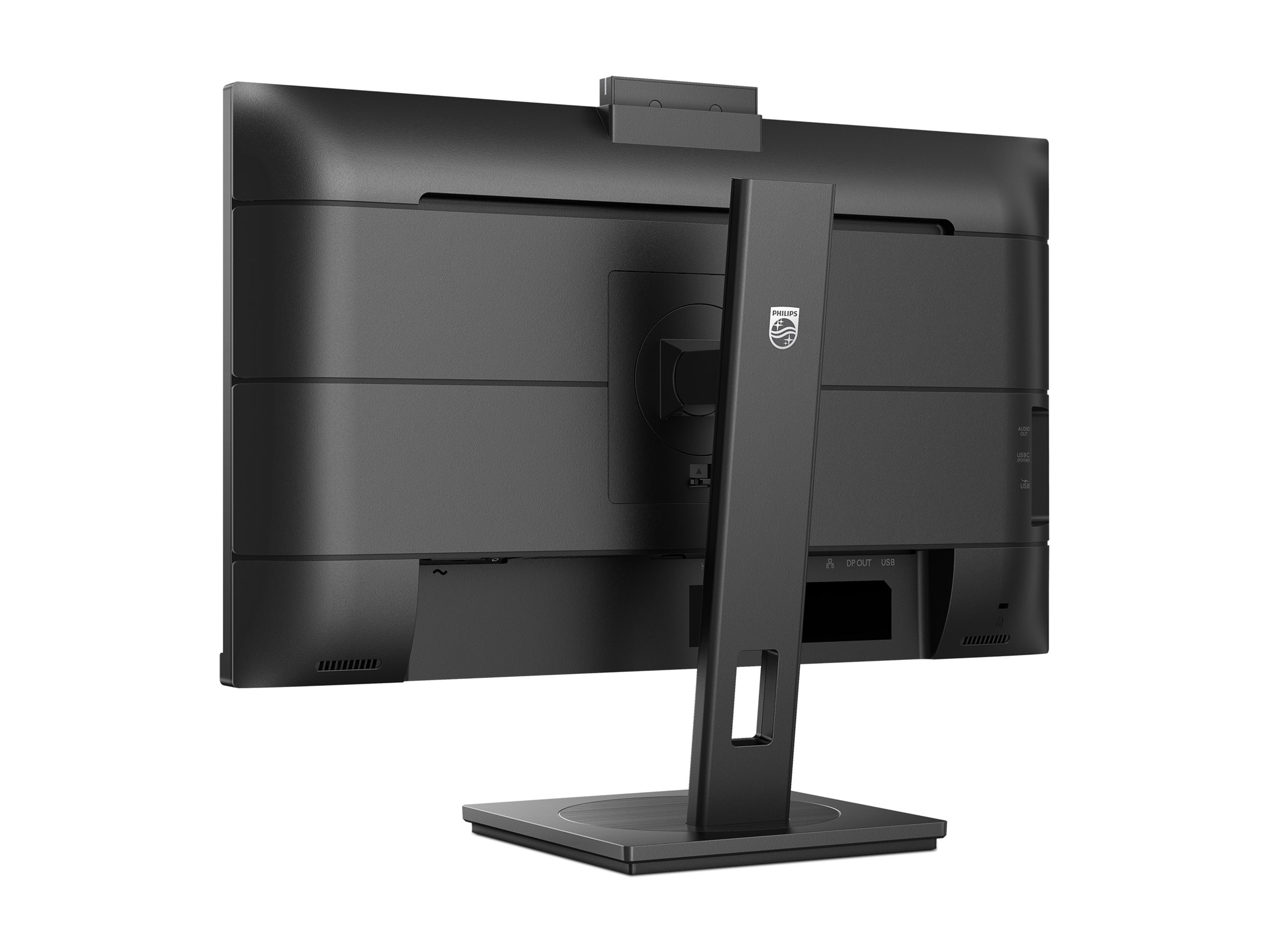

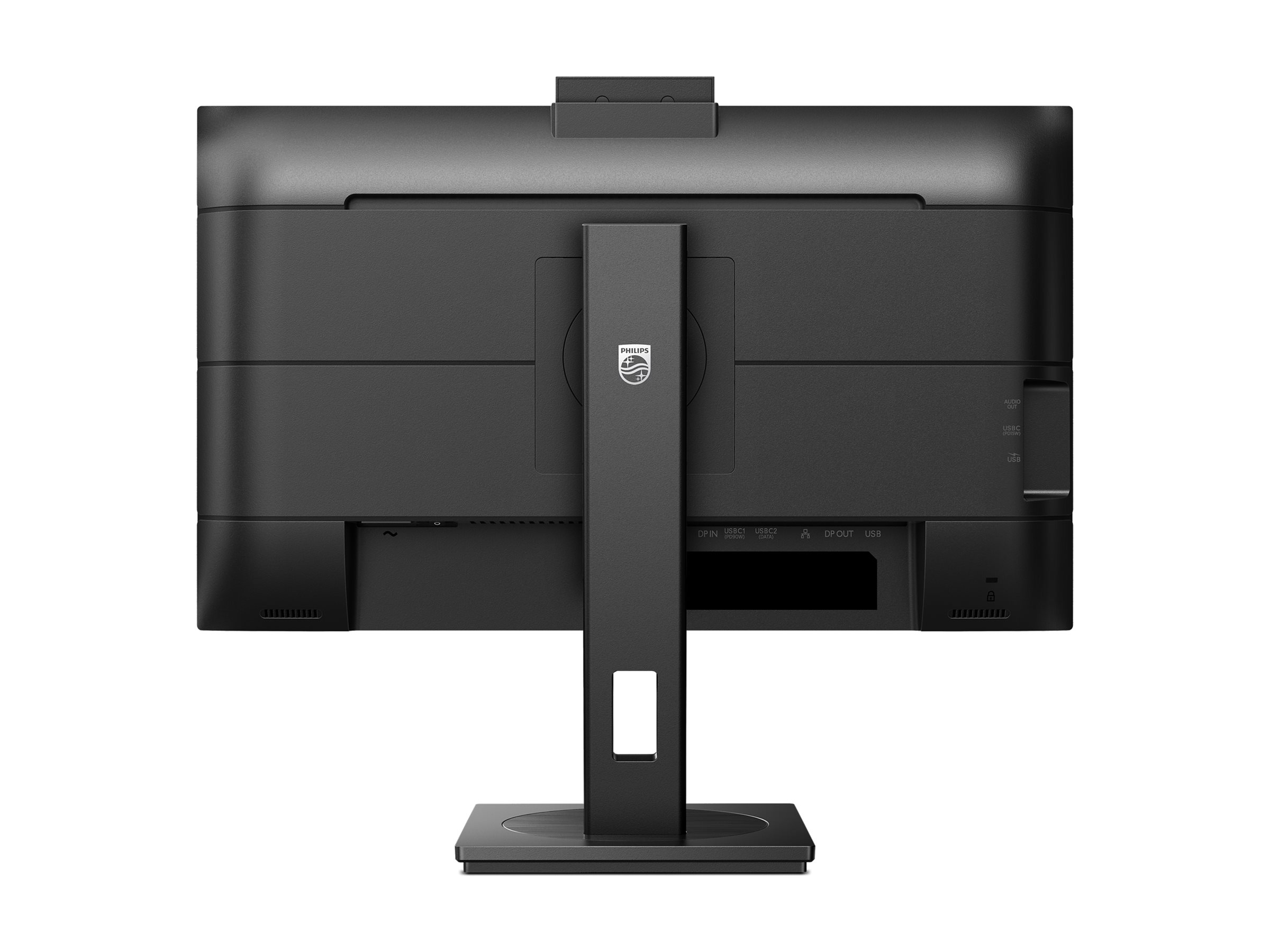

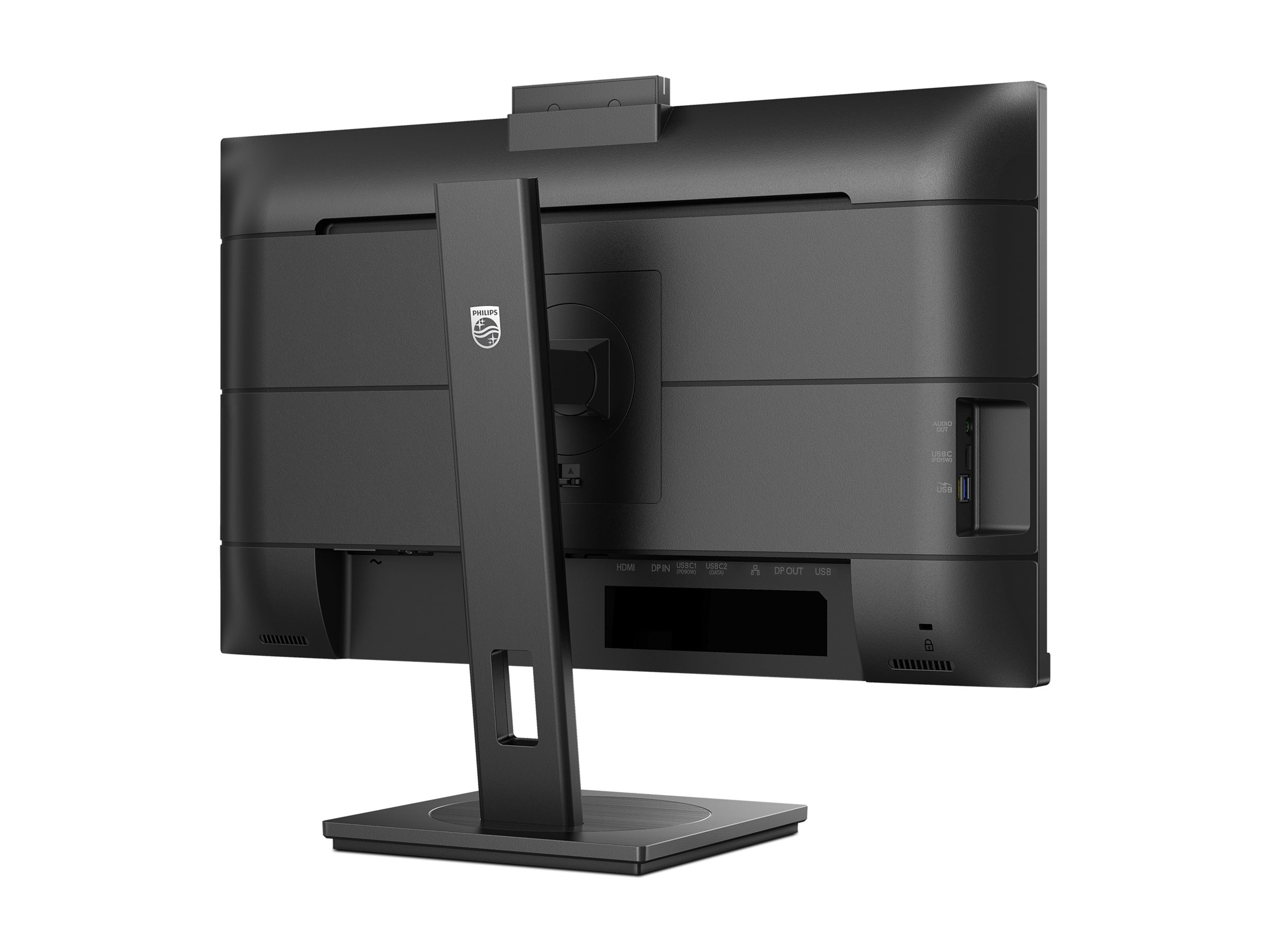

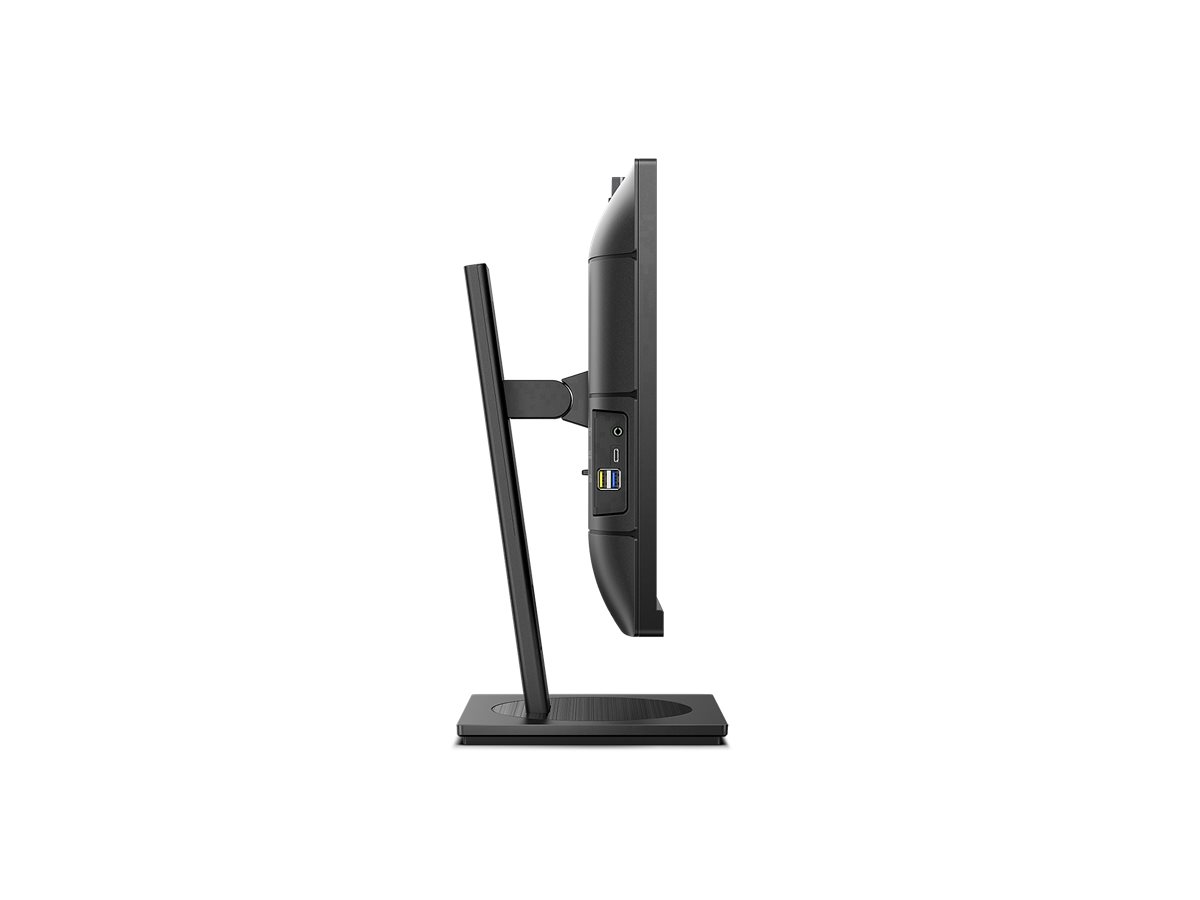

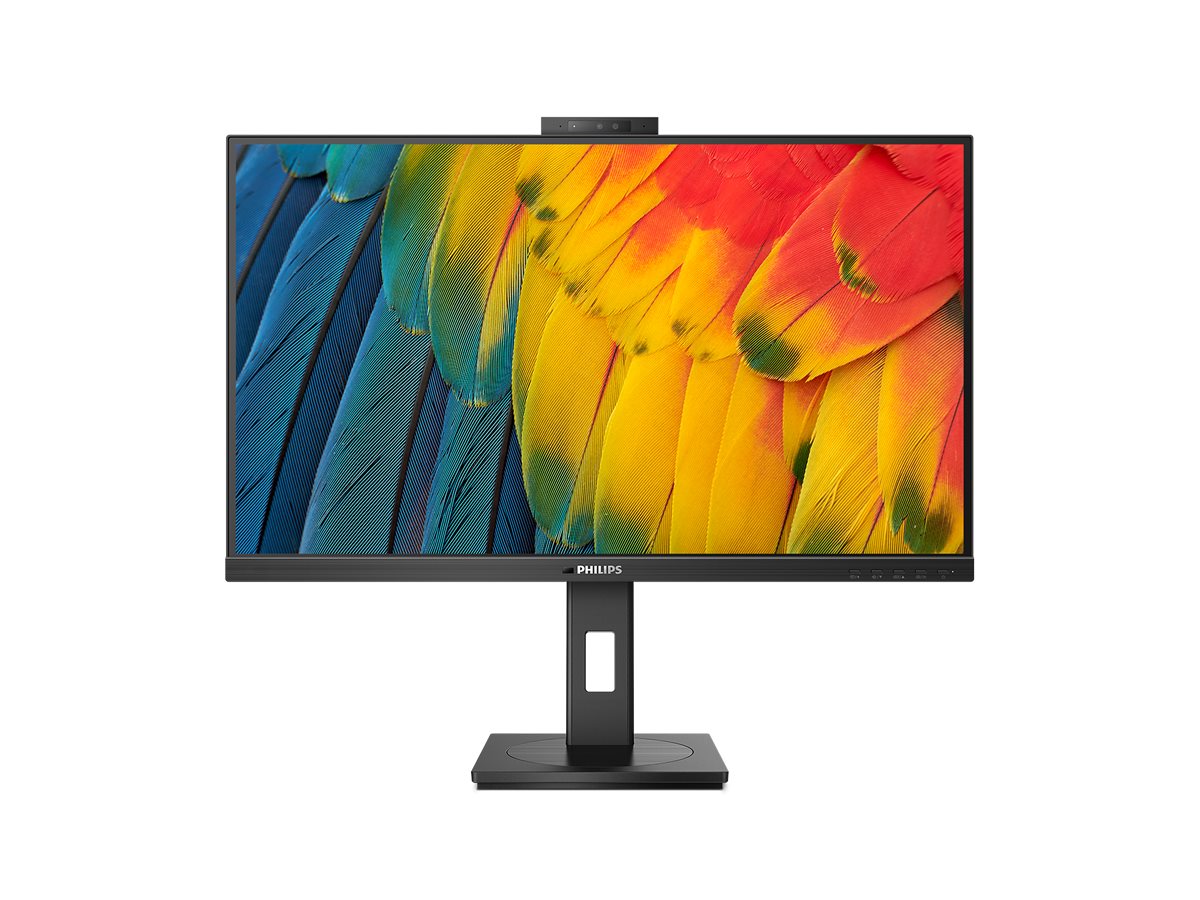

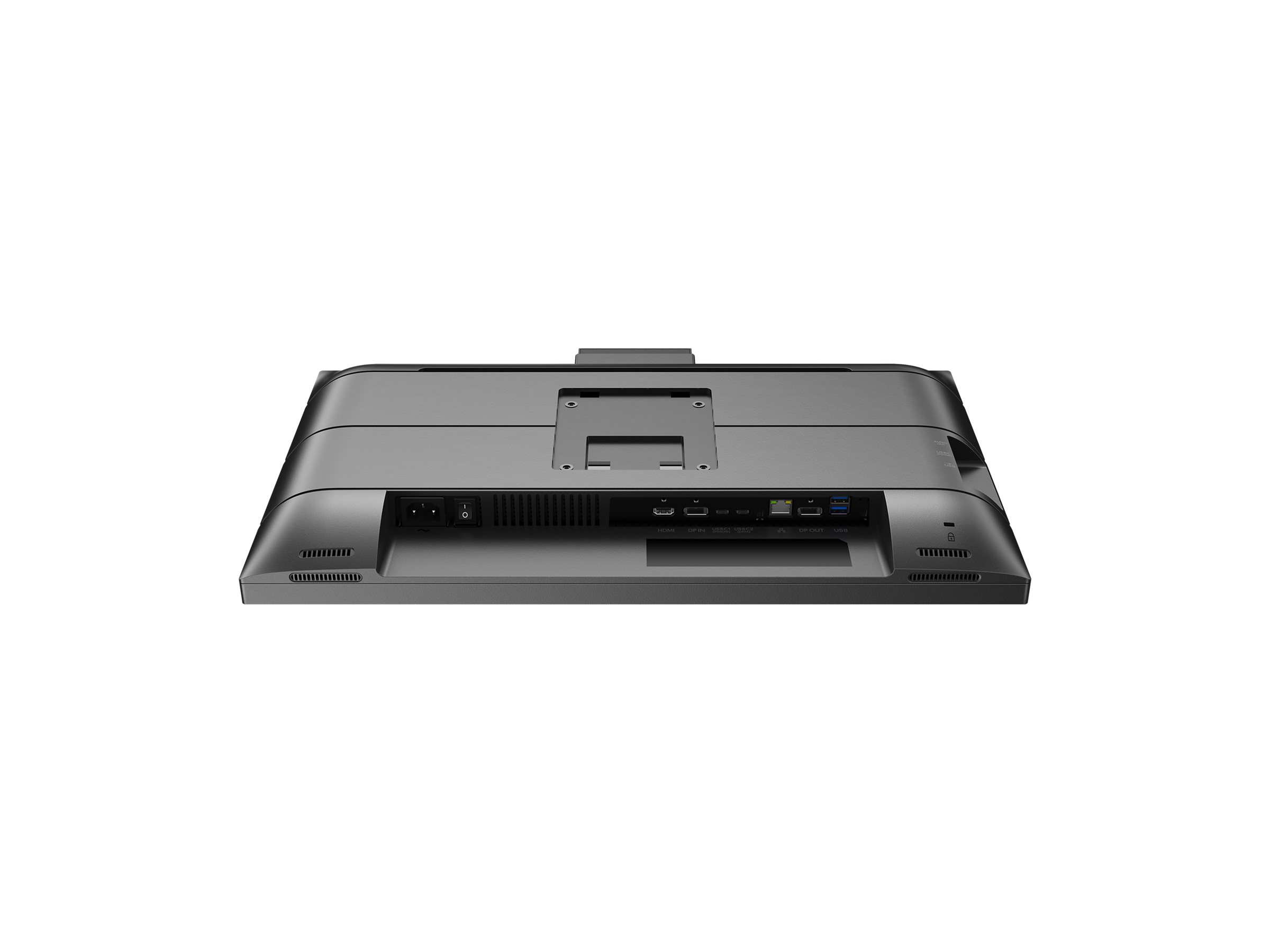

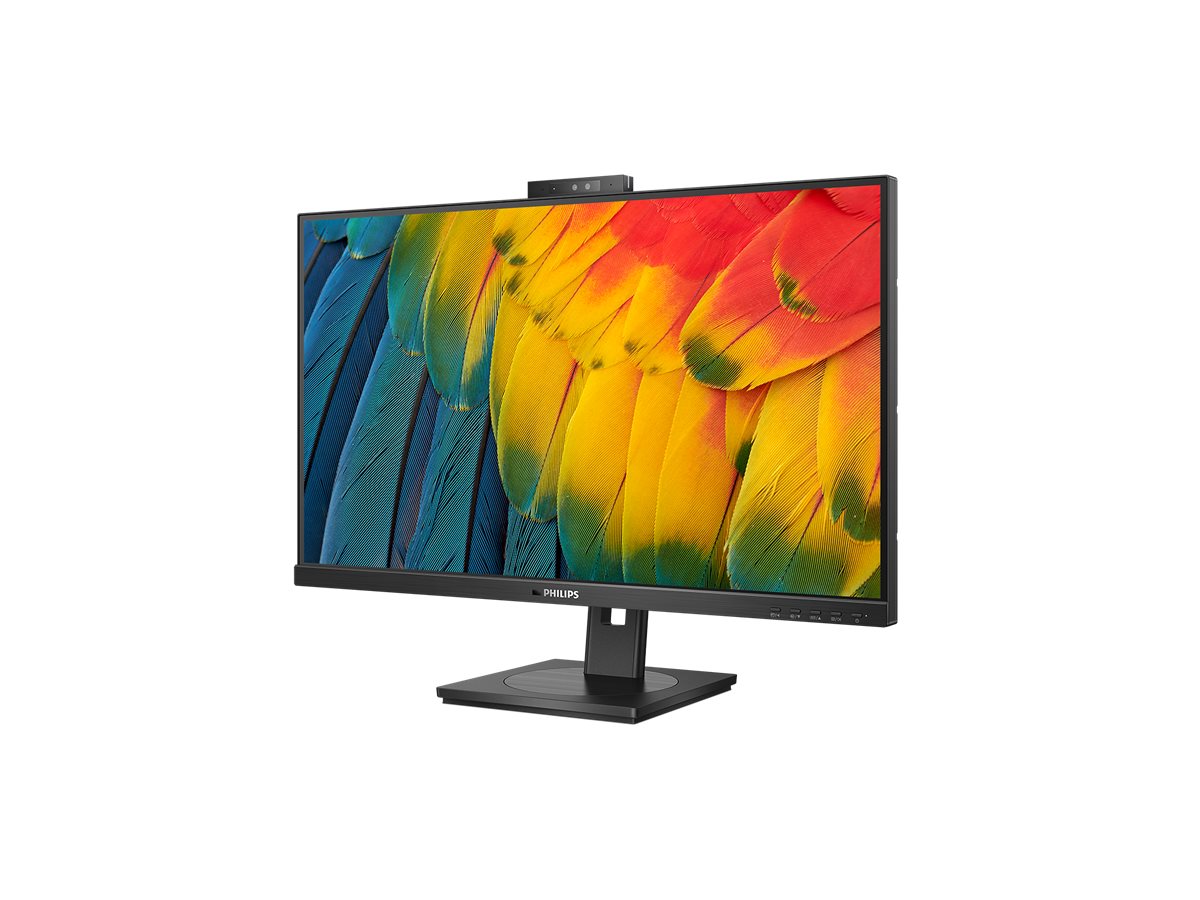

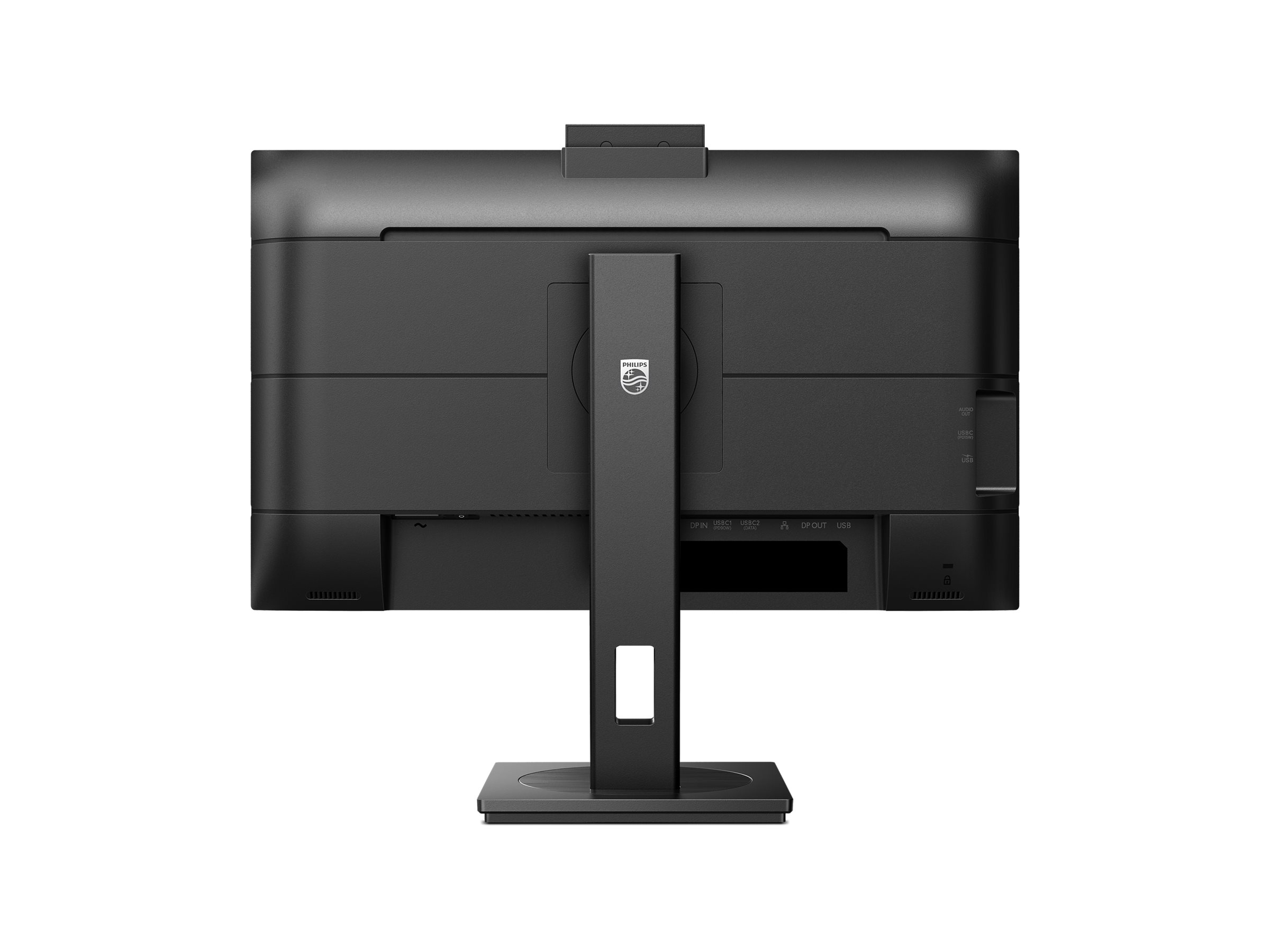

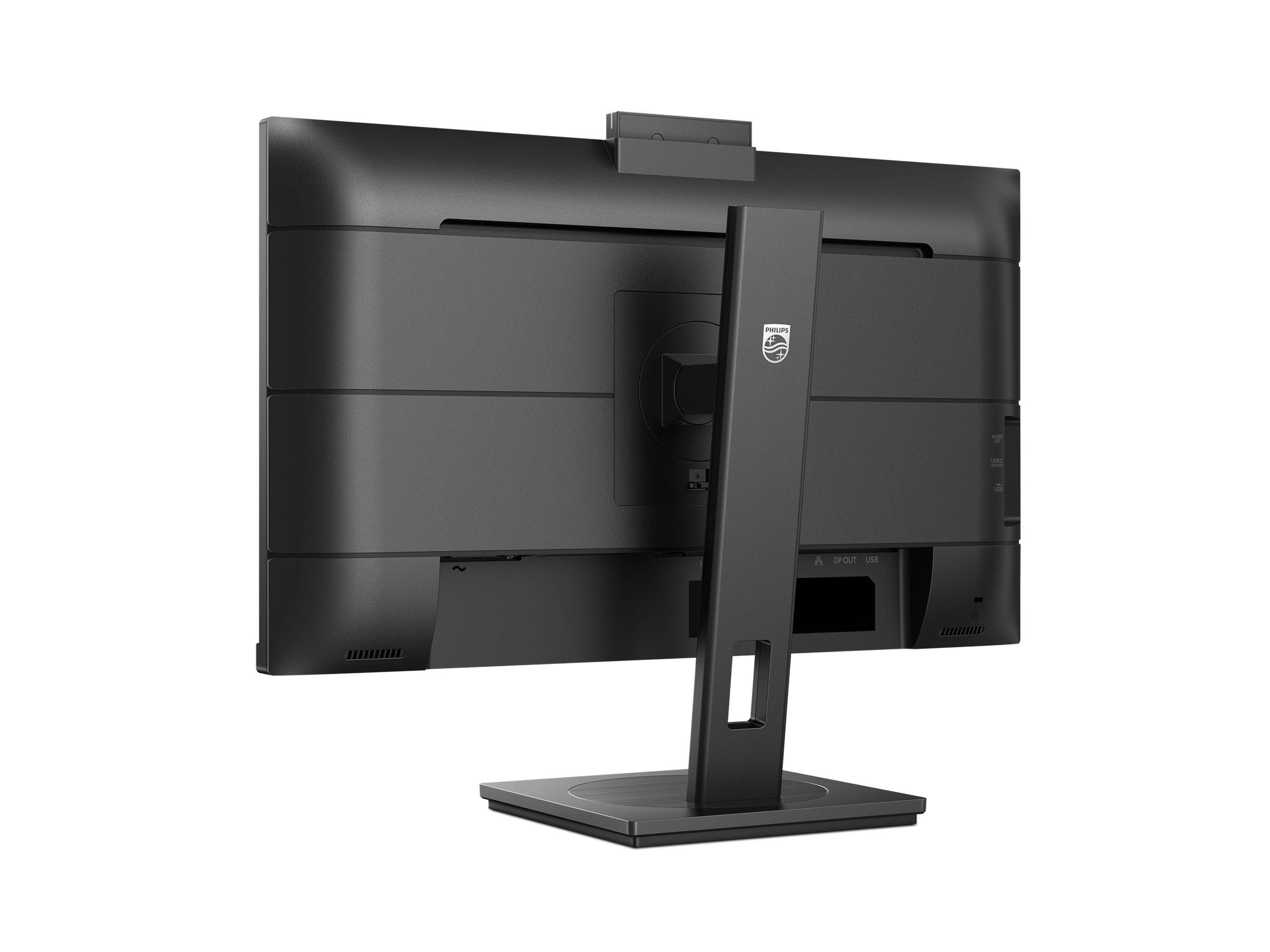

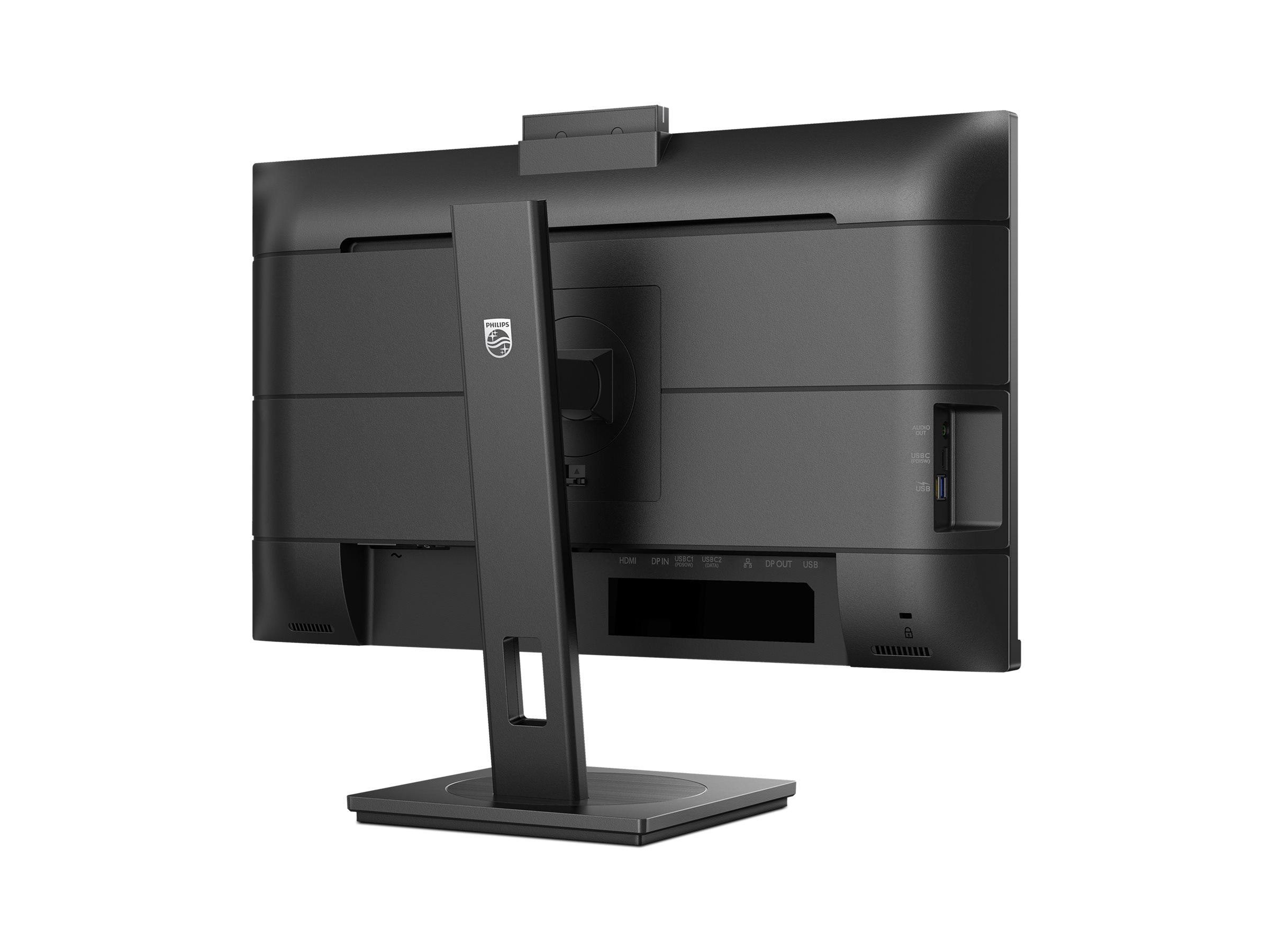

Philips 24B1U5301H, 5000 Series, LED monitor, USB, 23.8", 1920 x 1080 Full HD (1080p) @ 75 Hz, IPS, 300 cd/m², 1000:1, 4 ms, HDMI, DisplayPort, USB-C, speakers, textured black
$428.07 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged

SKU: AB21149
Category: LED Monitors
Description
This USB-C monitor is for video watching, data transfer and power delivery. The integrated 5MP webcam delivers sharp images, and noise canceling mic let people hear you fine. Windows Hello webcam for quick access and strong security.
- Single cable USB-C connection
- Excellent performance
- Designed for the way you work
- Designed for sustainability
- USB-C docking with RJ45
Simplify all peripherals from monitor to PC using one-cable-docking USB Type-C connector, includes networking, high resolution video output from PC to monitor, and surfing on Internet without an additional network cable, even without LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting faster data speeds allows you to transfer data from an HDD to your PC faster. Additionally, USB-C with power delivery can even enable you to power and charge your notebook from the monitor, eliminating the need for extra power cables. - DisplayPort-out
With DisplayPort-out you can connect multiple high resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to create a clean desktop without the hassle of too many wires all over. - IPS technology
IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle – even in 90 degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times. - MultiClient integrated KVM
With MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse set up. A convenient button allows you to quickly switch between sources. Handy with set-ups that require dual PC computing power or sharing one large monitor to show two different PCs. - MultiView technology
With the ultra-high resolution Philips MultiView display you can experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multi-tasking. - Webcam and noise canceling mic
This Philips monitor comes with built-in 5MP webcam, noise canceling microphone, and speakers. Making it perfect for working from home and collaborating remotely. The webcam is certified for Windows Hello. Equipped with advanced sensors for Windows Hello facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds. The physical camera switch offers extra privacy when not in use. The noise-canceling microphone and dual 5-watt integrated speakers deliver clear communications. - PowerSensor
PowerSensor is a built-in “people sensor” that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 75 percent and prolonging monitor life.
What’s in the Box
- Philips 24B1U5301H
- Software
Main Specifications
Product Description | Philips 24B1U5301H – 5000 Series – LED monitor – Full HD (1080p) – 23.8″ |
Device Type | LED-backlit LCD monitor – 23.8″ |
Energy Class | Class E |
KVM Switch | USB |
Daisy Chaining | Yes |
Features | USB Hub, KVM Switch, webcam, USB PD 90 Watt |
Panel Type | IPS |
Aspect Ratio | 16:9 |
Native Resolution | Full HD (1080p) 1920 x 1080 at 75 Hz |
Pixel Pitch | 0.2745 mm |
Brightness | 300 cd/m² |
Contrast Ratio | 1000:1 / 50000000:1 (dynamic) |
Response Time | 4 ms (grey-to-grey) |
Colour Support | 16.7 million colours (8-bit) |
Colour Gamut | 105% sRGB (CIE 1931), 88% NTSC (CIE 1976) |
Input Connectors | HDMI, DisplayPort, USB-C |
Built-in Ethernet | Yes |
Audio Input | Microphone |
Built-in Webcam | 5 Megapixel |

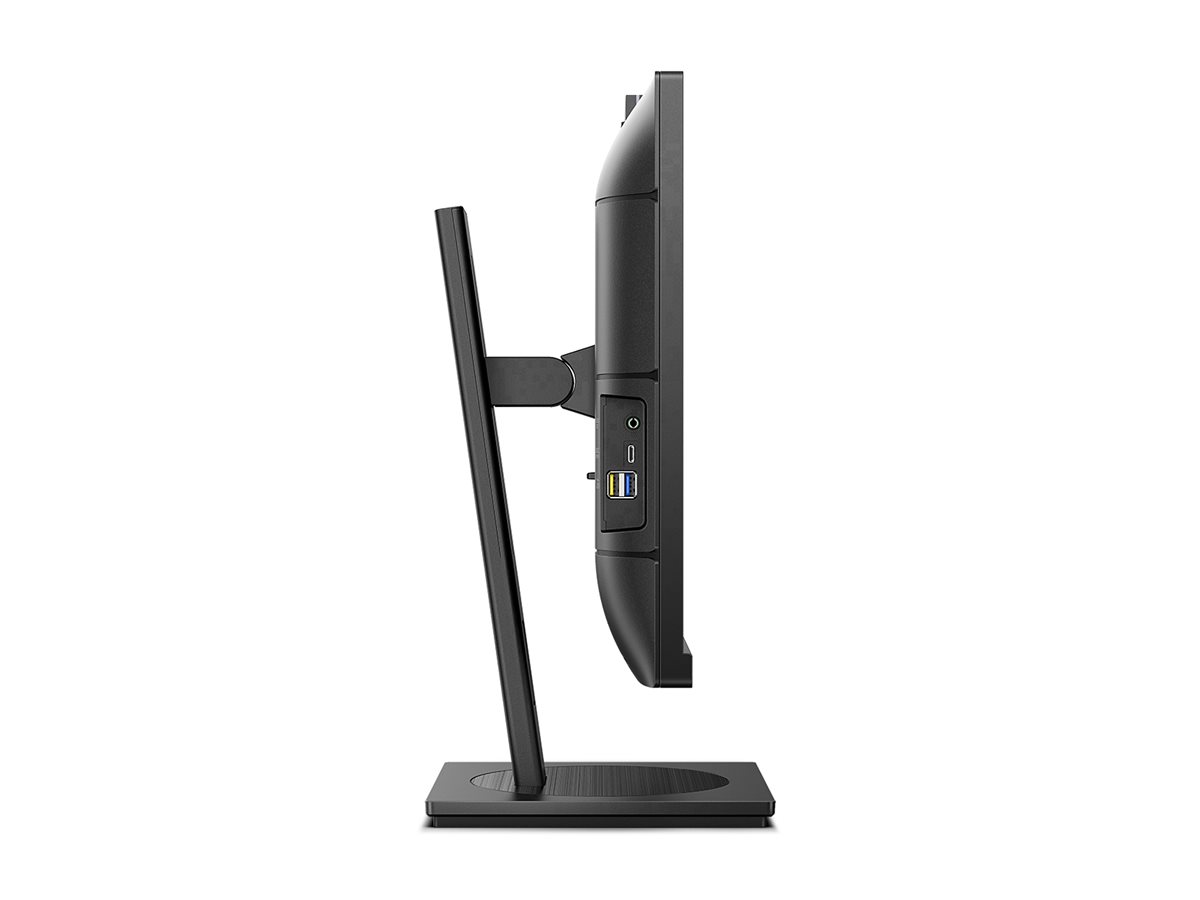

Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
Screen Coating | Anti-glare, 3H Hard Coating, Haze 25% |
Voltage | AC 100-240 V (50/60 Hz) |
Colour | Textured black |
Dimensions (WxDxH) – with stand (highest position) | 54 cm x 20.5 cm x 50 cm |
Weight | 5.5 kg |
Environmental Standards | TCO Certified Edge Displays, TCO Certified Displays 9, ENERGY STAR Qualified |
Compliant Standards | Plug and Play, FCC Class B certified, TUV GS, ICES-003, CB, TUV Ergo, DDC/CI, RoHS, MEPS, cETLus, CU-EAC, BFR-free, HDCP 2.2, HDCP 1.4, USB Power Delivery 3.0, Mercury-free, TUV Eye Comfort certified |
Documents
Extended Specifications
General
Display Type | LED-backlit LCD monitor / TFT active matrix |
|---|---|
Energy Class | Class E |
Diagonal Size | 23.8″ |
Daisy Chaining | Yes |
Built-in Devices | USB Hub, KVM Switch, webcam |
USB Power Delivery | 90 Watt |
Panel Type | IPS |
Aspect Ratio | 16:9 |
Native Resolution | Full HD (1080p) 1920 x 1080 at 75 Hz |
Pixel Pitch | 0.2745 mm |
Pixel Per Inch | 93 |
Brightness | 300 cd/m² |
Contrast Ratio | 1000:1 / 50000000:1 (dynamic) |
Colour Support | 16.7 million colours (8-bit) |
Colour Gamut | 105% sRGB (CIE 1931), 88% NTSC (CIE 1976) |
Response Time | 4 ms (grey-to-grey) |
Vertical Refresh Rate | 48 – 75 Hz |
Horizontal Refresh Rate | 30 – 85 kHz |
Horizontal Viewing Angle | 178 |
Vertical Viewing Angle | 178 |
Screen Coating | Anti-glare, 3H Hard Coating, Haze 25% |
Backlight Technology | WLED |
OSD Languages | Hungarian, Czech, Chinese (traditional), Chinese (simplified), Ukrainian, Brazilian Portuguese, English, German, French, Italian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Japanese, Korean |
Features | PowerSensor, MultiView, SmartImage, Smart Ergo base, Flicker Free technology, LightSensor, EasyRead, 3-sided bezeless, LowBlue Mode, LED power indicator, MultiClient KVM |
Colour | Textured black |
Dimensions (WxDxH) | 54 cm x 20.5 cm x 50 cm – with stand (highest position) |
Weight | 5.5 kg |
Built-in Webcam
Sensor Resolution | 5 Megapixel |
|---|---|
Features | Windows Hello compatible |
Audio Input
Type | Microphone |
|---|---|
Microphone Features | Noise-cancelling |
Audio
Type | Speakers – stereo |
|---|---|
Output Power / Channel | 5 Watt |
KVM
Keyboard / Mouse Interface | USB |
|---|
Connectivity

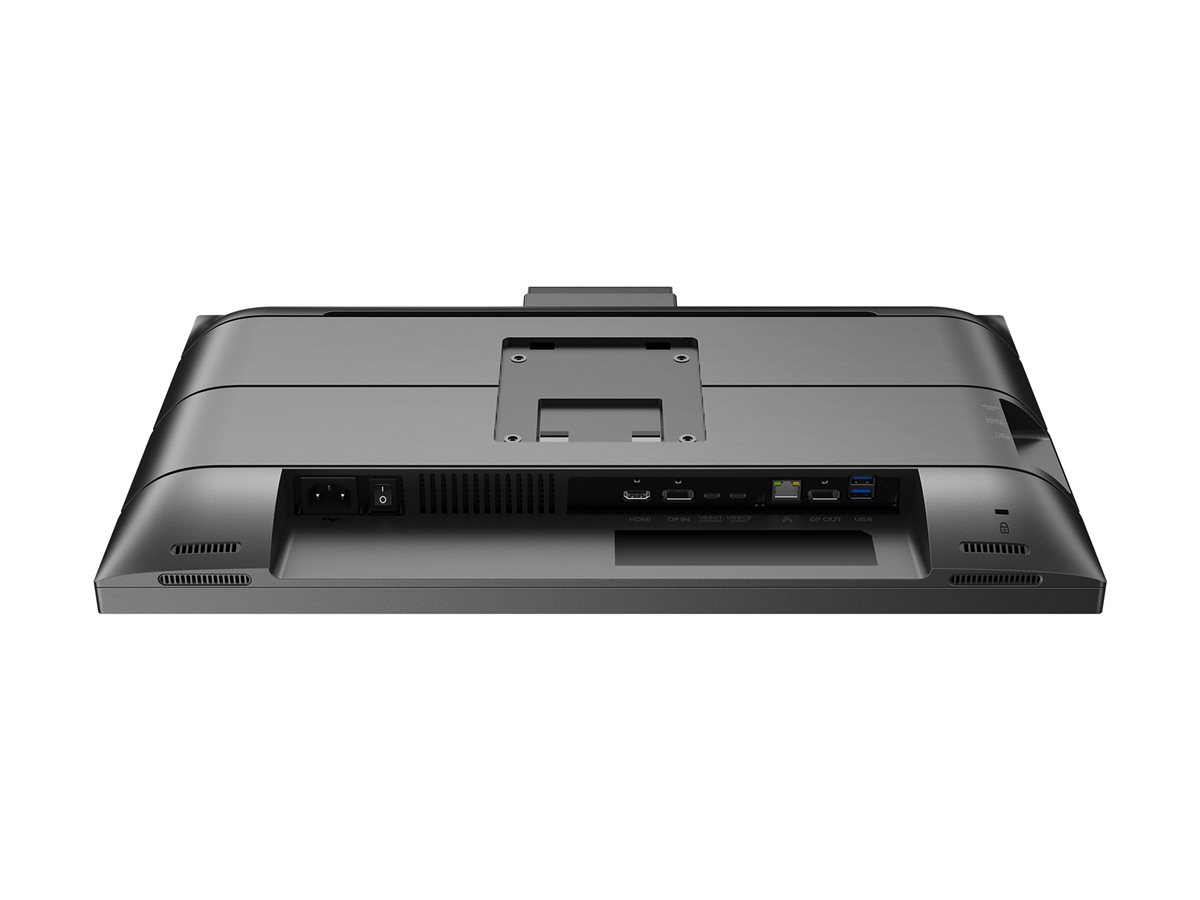

Interfaces | HDMI (HDCP 1.4, HDCP 2.2) DisplayPort 1.4 (HDCP 1.4, HDCP 2.2) DisplayPort output USB-C upstream (DisplayPort Alt Mode, data, power up to 90W) USB-C 3.2 Gen 2 upstream 3 x USB downstream USB downstream (BC 1.2) USB-C downstream (power up to 15W) Headphone/microphone combo jack Network (RJ-45) |
|---|
Mechanical
Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
|---|---|
Tilt Angle | -5/+30 |
Swivel Angle | 360 |
Rotation Angle | -90/+90 |
Height Adjustment | 150 mm |
VESA Mounting Interface | 100 x 100 mm |
Miscellaneous
Features | Security lock slot (cable lock sold separately) |
|---|---|
MTBF | 70,000 hour(s) |
Compliant Standards | Plug and Play, FCC Class B certified, TUV GS, ICES-003, CB, TUV Ergo, DDC/CI, RoHS, MEPS, cETLus, CU-EAC, BFR-free, HDCP 2.2, HDCP 1.4, USB Power Delivery 3.0, Mercury-free, TUV Eye Comfort certified |
Security Slot Type | Kensington security slot |
Power
Input Voltage | AC 100-240 V (50/60 Hz) |
|---|---|
Power Consumption SDR (On mode) | 18 kWh/1000h |
Power Consumption (Typical) | 15.3 Watt |
Power Consumption Stand by | 0.3 Watt |
Power Consumption (Off Mode) | 0 Watt |
On / Off Switch | Yes |
Software / System Requirements
Included Software | Philips SmartControl |
|---|
Dimensions & Weight
Dimensions & Weight Details | With stand (highest position) – width: 54 cm – depth: 20.5 cm – height: 50 cm – weight: 5.5 kg Without stand – width: 54 cm – depth: 5.1 cm – height: 32.3 cm – weight: 3.9 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 60 cm |
|---|---|
Shipping Depth | 19.8 cm |
Shipping Height | 40.6 cm |
Shipping Weight | 8.32 kg |
Sustainability Information
TCO Certified | TCO Certified Edge Displays, TCO Certified Displays 9 |
|---|---|
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 8.0 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 – 80% RH |
