Description
Reach max performance of PCIe 4.0. Experience longer-lasting, opponent-blasting speed. The in-house controller’s smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.
- Designed for tech enthusiasts, hardcore gamers and heavy-workload professionals who want blazing fast speed
- The integrated heatsink disperses heat to maintain speed, power, efficiency and thermal control, preventing downtime overheating on consoles and PCs
- PCIe 4.0 speed maximized
Huge speed boost, faster random read/write speeds than 980 PRO. Fly high in gaming, video and 3D editing, data analysis, and more. - Breakthrough power efficiency
More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with up to 50% improved performance per watt over 980 PRO. This low-power design makes max PCIe 4.0 performance possible with optimal power efficiency. - Smart thermal solution
Sink that heat. The slim heatsink dissipates heat to prevent performance drops from overheating. Get stable heat control, and minimal fan noise for heavy-graphic gaming. The thin body is compatible with PlayStation 5, desktops, and laptops meeting the PCI-SIG D8 standard. - The champion maker
A more than 55% improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games. The heatsink’s futuristic design adds style to heat control, now with RGB lights.
Main Specifications

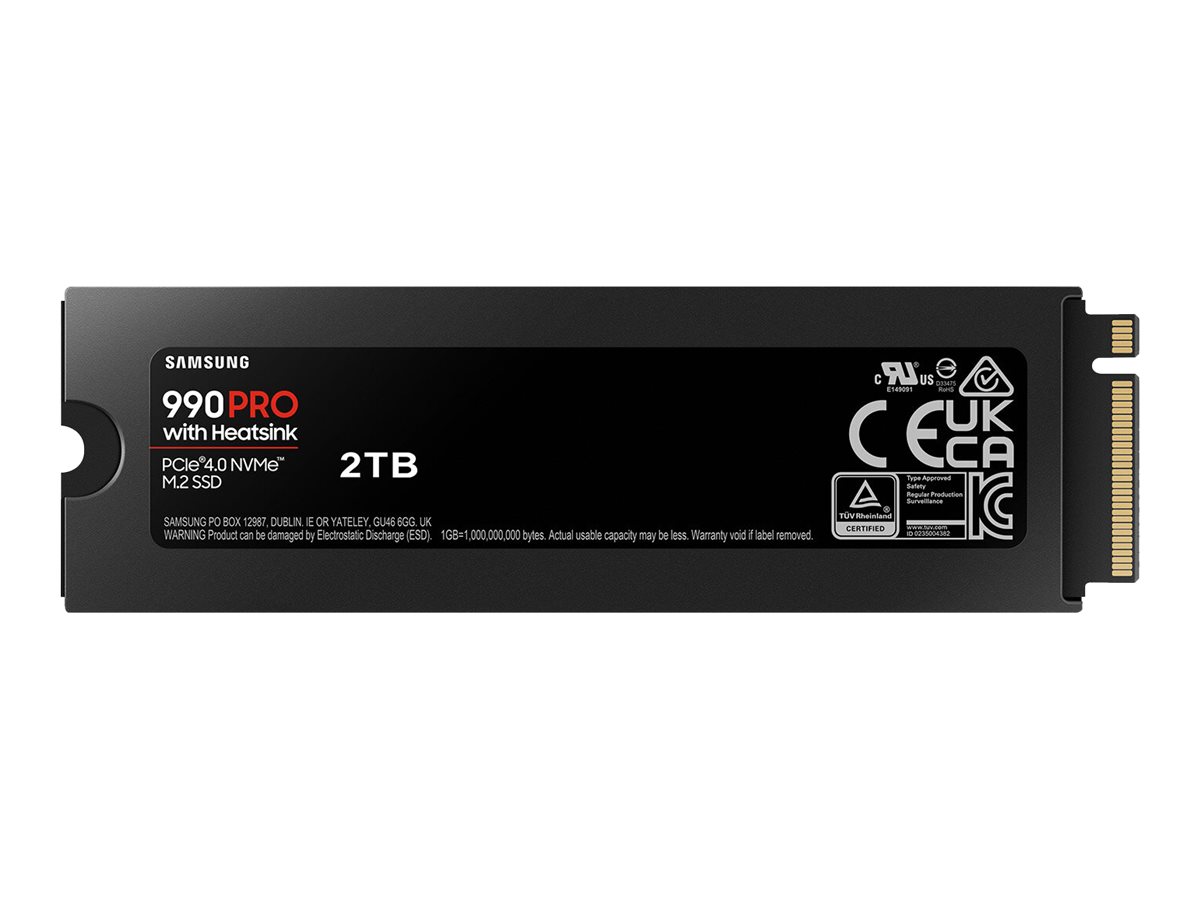

Product Description | Samsung 990 PRO MZ-V9P2T0CW – SSD – 2 TB – PCIe 4.0 x4 (NVMe) |
Type | Solid state drive – internal |
Capacity | 2 TB |
Integrated Heatsink | Yes |
Hardware Encryption | Yes |
Encryption Algorithm | 256-bit AES |
NAND Flash Memory Type | Multi-level cell (MLC) |
Form Factor | M.2 2280 |
Interface | PCIe 4.0 x4 (NVMe) |
Features | 2 GB Low Power DDR4 SDRAM Cache, Samsung V-NAND 3bit MLC Technology, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, sleep mode, PlayStation compatible, NVMe 2.0, S.M.A.R.T. |
Dimensions (WxDxH) | 24.3 mm x 80 mm x 8.2 mm |
Weight | 28 g |
Extended Specifications
General
Device Type | Solid state drive – internal |
|---|
Capacity | 2 TB |
|---|
Hardware Encryption | Yes |
|---|
Encryption Algorithm | 256-bit AES |
|---|
NAND Flash Memory Type | Multi-level cell (MLC) |
|---|
Integrated Heatsink | Yes |
|---|
Form Factor | M.2 2280 |
|---|
Interface | PCIe 4.0 x4 (NVMe) |
|---|
Features | 2 GB Low Power DDR4 SDRAM Cache, Samsung V-NAND 3bit MLC Technology, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, sleep mode, PlayStation compatible, NVMe 2.0, S.M.A.R.T. |
|---|
Width | 24.3 mm |
|---|
Depth | 80 mm |
|---|
Height | 8.2 mm |
|---|
Weight | 28 g |
|---|
Performance
Internal Data Rate | 7450 MBps (read) / 6900 MBps (write) |
|---|
Maximum 4KB Random Write | 1550000 IOPS |
|---|
Maximum 4KB Random Read | 1400000 IOPS |
|---|
Reliability
Expansion & Connectivity
Interfaces | PCI Express 4.0 x4 (NVMe) |
|---|
Compatible Bay | M.2 2280 |
|---|
Power
Power Consumption | 5.8 Watt (read)
5.1 Watt (write)
55 mW (idle)
5 mW (L1.2 mode) |
|---|
Software & System Requirements
Software Included | Samsung Magician Software |
|---|
Miscellaneous
Compliant Standards | IEEE 1667 |
|---|
Package Details | Box |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
Min Storage Temperature | -40 °C |
|---|
Max Storage Temperature | 85 °C |
|---|
Humidity Range Operating | 5 – 95% (non-condensing) |
|---|
Shock Tolerance (non-operating) | 1500 g |
|---|
Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
|---|
