Description

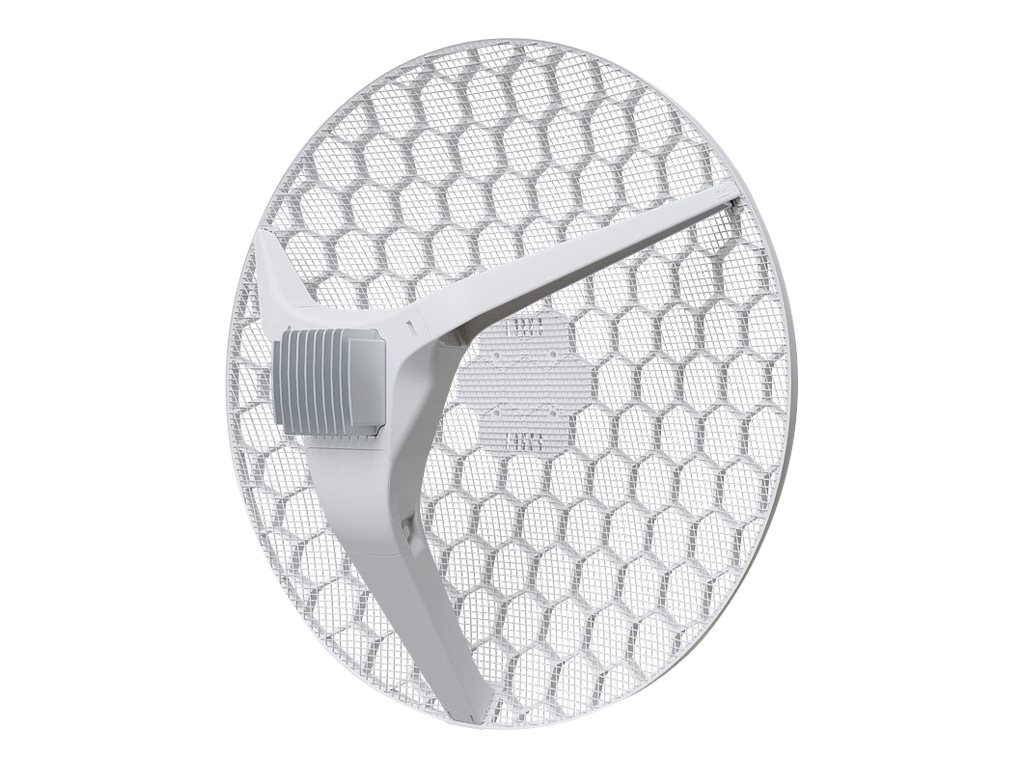

Need a reliable and strong long-distance connection that never goes down? The LHG XL 52 ac will provide just that with its dual-band capability. You can easily setup the 5 GHz channel as the main one with speed up to 600 Mbps and use the 2.4 GHz channel as an automatic backup connection with speed up to 260 Mbps.
The powerful 27 dBi 5 GHz / 18 dBi 2.4 GHz antenna will provide connection with link distance up to 40 km. This device can handle the heaviest loads thanks to the impressive quad-core CPU and 256 MB of RAM. It has a Gigabit Ethernet port, an SFP port, and it is 802.3af/at compliant – you can power it with the smart switches!
- Operates in extreme temperatures from -40°C to 70°C
- Supports wireless protocols IEEE 802.11b/a/g/n/ac
- Achieves maximum data rates up to 600 Mbps at 2.4 GHz
- Features Power over Ethernet (PoE+) for easy installation
- Equipped with a powerful ARM processor and 256 MB RAM
- Reliable performance
The device maintains efficient operation in a wide temperature range, facilitating connectivity in both hot and cold climates. - Versatile connectivity options
With support for a variety of wireless protocols, the MikroTik LHG XL 52 ac is adaptable to multiple network configurations, enhancing user flexibility. - High-speed data transfer
It achieves maximum data rates of 600 Mbps at 2.4 GHz and 260 Mbps at 5 GHz, allowing for smooth and efficient data transmission. - Easy installation
The inclusion of Power over Ethernet (PoE+) simplifies the installation process, minimizing the need for additional power cabling. - Efficient processing power
Powered by a 716 MHz ARM processor and 256 MB RAM, the device is equipped to handle demanding data traffic without compromising on performance.
What’s in the Box
- MikroTik LHG XL 52 ac
- External power adapter
- PoE injector, mounting kit
Main Specifications
Product Description | MikroTik LHG XL 52 ac – wireless bridge – Wi-Fi 5 |
Device Type | Wireless bridge |
Form Factor | External |
Processor | 1 x ARM IPQ4018 – 716 MHz |
RAM | 256 MB |
Flash Memory | 16 MB |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (2.4 GHz): 260 Mbps
Maximum data rate (5 GHz): 600 Mbps |
Included Accessories | PoE injector, mounting kit |
Power Over Ethernet (PoE) Supported | PoE+ |
Power | DC 12 – 57 V |
Dimensions (WxDxH) | 55 cm x 55 cm x 29.1 cm |
Extended Specifications
General
Device Type | Wireless bridge |
|---|
Width | 55 cm |
|---|
Depth | 55 cm |
|---|
Height | 29.1 cm |
|---|
Processor / Memory / Storage
Processors Installed | 1 x ARM IPQ4018 716 MHz |
|---|
RAM | 256 MB |
|---|
Flash Memory | 16 MB |
|---|
Networking
Form Factor | External |
|---|
Connectivity Technology | Wireless |
|---|
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
|---|
Frequency Band | 2.4 GHz, 5 GHz |
|---|
Performance | Maximum data rate (2.4 GHz): 260 Mbps
Maximum data rate (5 GHz): 600 Mbps |
|---|
Compliant Standards | IEEE 802.3af, IEEE 802.3at |
|---|
Aerial
Expansion / Connectivity
Interfaces | 1 x 1000Base-T (PoE+) – RJ-45
1 x SFP |
|---|
Miscellaneous
Included Accessories | PoE injector, mounting kit |
|---|
Power
Power Over Ethernet (PoE) Supported | PoE+ |
|---|
Power Device | External power adapter |
|---|
Voltage Required | DC 12 – 57 V |
|---|
Power Consumption Operational | 18 watt |
|---|
Software / System Requirements
OS Provided | MikroTik RouterOS (licence level 3) |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
