Description

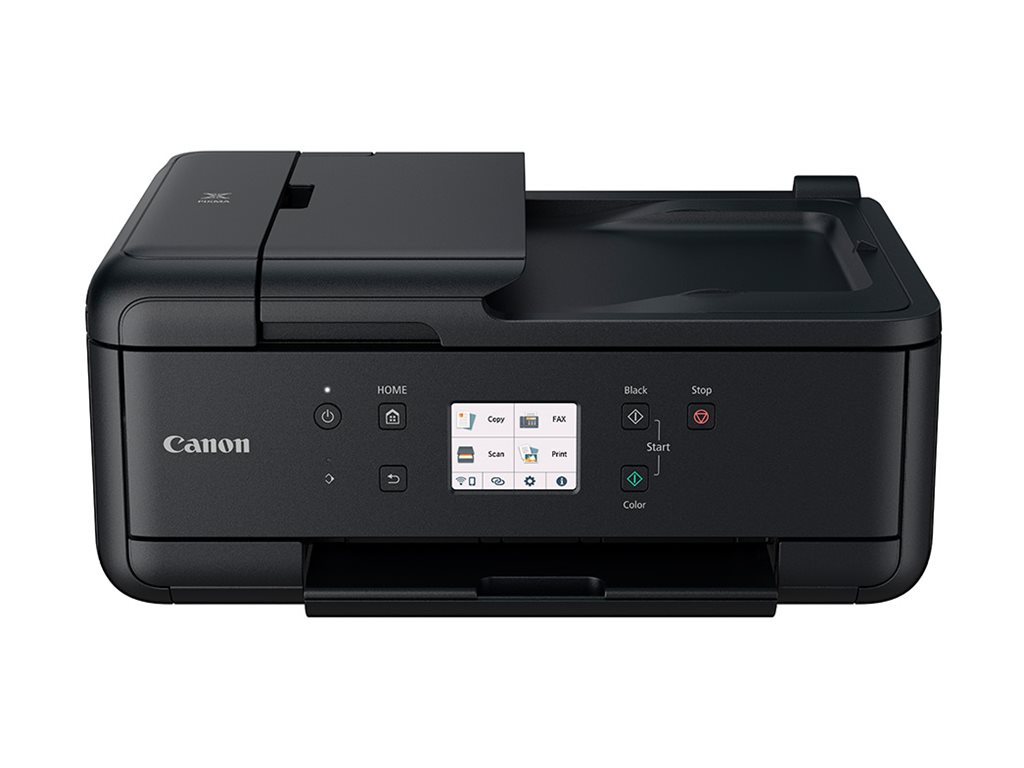

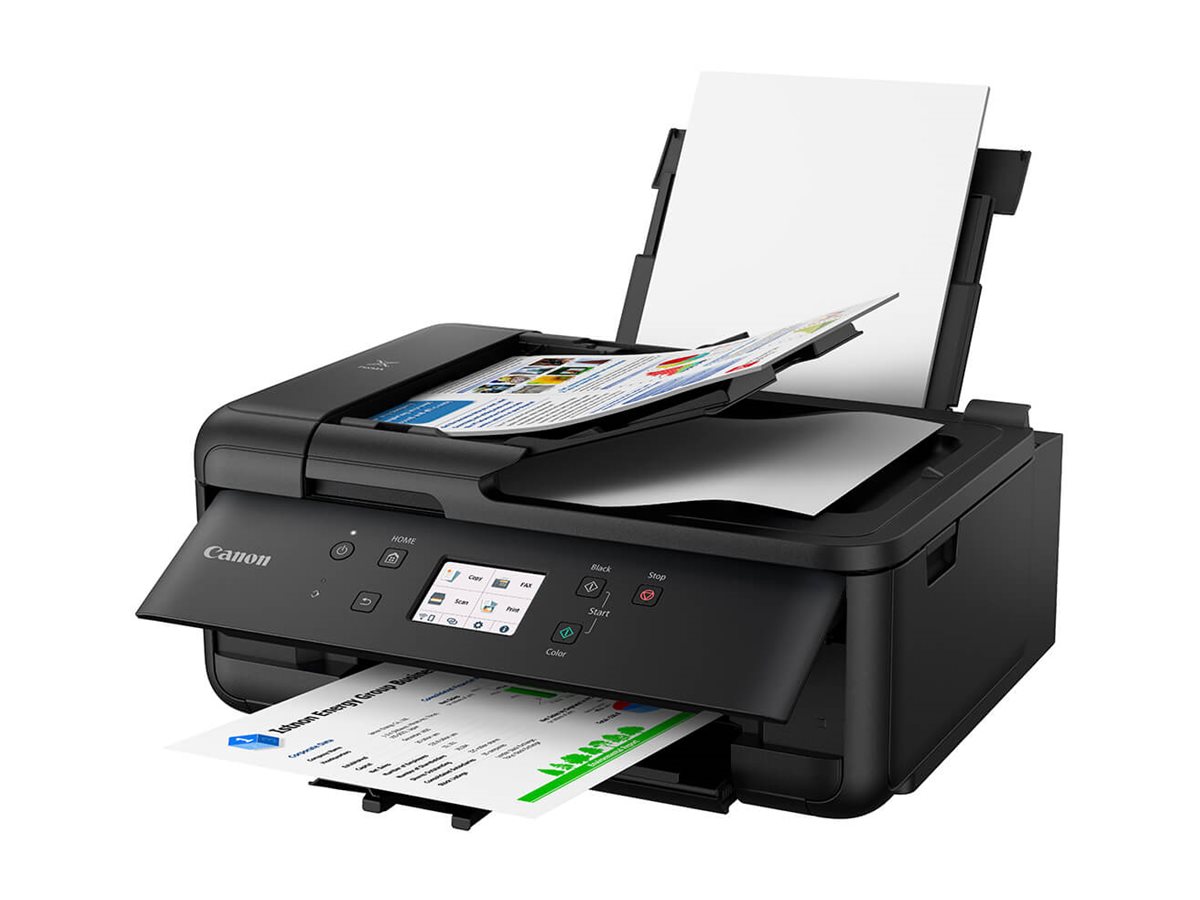

The PIXMA TR7660a HOME OFFICE is a home office printer that has the features you require for personal business such as print, copy, scan, and fax.
- Multifunction home office printer
- High speed, high quality prints
- Automatic document feeder
- Dual paper feeder
Get flexible with the way your printer receives paper- either through rear paper feeding or via front paper cassette. - Scan and copy multiple pages with ease
The PIXMA TR7660a HOME OFFICE automatic document feeder takes up to 20 pages and feeds paper one page at a time to scan or copy, meaning you won’t have to manually replace each page. - Easy setup with your PC or smartphone
The PIXMA TR7660a HOME OFFICE has improved Wi-Fi connectivity for simple setup, enabling quick and easy printing from your computer or smartphone. Connecting to a smartphone is even easier with the QR code direct connection function. - Auto duplex print
Save time and money with the auto duplex printing function, which automatically prints on both sides of the paper.
Main Specifications
Product Description | Canon PIXMA HOME OFFICE TR7660A – multifunction printer – colour |
Device Type | Multifunction printer |
Fax Type | Super G3 – plain paper |
Printing Technology | Ink-jet (colour) |
Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) – 5-ink |
Max Printing Speed | Up to 15 ipm (mono) / up to 10 ipm (colour) |
Max Printing Resolution | 4800 x 1200 dpi (colour) |
Max Fax Transmission Speed | 33.6 Kbps |
Data Compression System | MH, MR, MMR, JPEG |
Fax Resolutions | 300 x 300 dpi, 200 x 200 dpi |
Scanning | 1200 x 2400 dpi |
Display | 3″ |
Original Size | A4 (210 x 297 mm), Legal (216 x 356 mm) (max) |
Original Type | Sheets |
Document Feeder Capacity | 20 sheets |
Media Size | 55 x 89 mm (min) – 215.9 x 676 mm (max) |
Media Type | Envelopes, plain paper, high resolution paper, glossy photo paper, luster paper, semi-gloss photo paper, matte photo paper, iron-on transfers, magnetic photo paper, restickable photo paper, greeting cards, card stock, fine art paper, t-shirt transfers |
Standard Media Capacity | 200 sheets |
Automatic Duplexing | Yes (printing) |
Connection Availability | Yes |
Interface | USB, Wi-Fi |
AirPrint Enabled | Yes |
Office Machine Features | PIXMA Cloud Link |
Power | AC 120/230 V (50/60Hz) |
Dimensions (WxDxH) | 43.8 cm x 35 cm x 19 cm |
Weight | 7.9 kg |
Documents
Extended Specifications
General
Device Type | Multifunction printer |
|---|
Fax Type | Plain paper |
|---|
Printing Technology | Ink-jet – colour |
|---|
Display Diagonal Size | 3″ |
|---|
Display Colour Support | Colour |
|---|
Display Features | Touch screen |
|---|
Connection Availability | Yes |
|---|
Interface | USB, Wi-Fi |
|---|
AirPrint Enabled | Yes |
|---|
Office Machine Features | PIXMA Cloud Link |
|---|
Copying
Printing
Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
|---|
Nozzle Configuration | 4096 nozzles |
|---|
Max Printing Resolution | 4800 x 1200 dpi (colour) |
|---|
Max Printing Speed | Up to 15 ipm (mono) / up to 10 ipm (colour) |
|---|
Ink Cartridge Configuration | 5 individual ink tanks |
|---|
Ink Palette Supported (Colours) | Cyan, magenta, yellow, black, pigment black |
|---|
Colour | 5-ink |
|---|
Automatic Duplexing | Yes |
|---|
Scanning
Optical Resolution | 1200 x 2400 dpi |
|---|
Grayscale Depth | 8-bit |
|---|
Colour Depth | 8-bit |
|---|
Colour Depth (Internal) | 16-bit |
|---|
Fax Machine
Compatibility | Super G3 |
|---|
Max Transmission Speed | 33.6 Kbps |
|---|
Data Compression System | MH, MR, MMR, JPEG |
|---|
Fax Resolutions | 300 x 300 dpi, 200 x 200 dpi |
|---|
Total Memory Capacity | Up to 250 pages |
|---|
Document & Media Handling
Max Original Size | A4 (210 x 297 mm), Legal (216 x 356 mm) |
|---|
Supported Original Sizes | A4 (210 x 297 mm), Legal (216 x 356 mm), ANSI A (Letter) (216 x 279 mm) |
|---|
Original Type | Sheets |
|---|
Document Feeder Capacity | 20 sheets |
|---|
Min Media Size | 55 x 89 mm |
|---|
Max Media Size | A4/Legal |
|---|
Min Media Weight | 64 g/m² |
|---|
Max Media Weight | 300 g/m² |
|---|
Supported Media Type | Envelopes, plain paper, high resolution paper, glossy photo paper, luster paper, semi-gloss photo paper, matte photo paper, iron-on transfers, magnetic photo paper, restickable photo paper, greeting cards, card stock, fine art paper, t-shirt transfers |
|---|
Supported Media Sizes | 127 x 127 mm, 89 x 89 mm, ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), 55 x 91 mm, 101.6 x 152.4 mm, 127 x 177.8 mm, 177.8 x 254 mm, 203.2 x 254 mm, 55 x 89 mm, 215.9 x 676 mm |
|---|
Supported Envelope Sizes | International DL (110 x 220 mm), Com-10 (105 x 241 mm) |
|---|
Standard Media Capacity | 200 sheets |
|---|
Document & Media Handling Details | Input tray – 100 sheets size: 55 x 89 mm – 215.9 x 676 mm weight: 64 g/m² – 300 g/m²
Paper cassette – 100 sheets size: 148 x 210 mm – 216 x 297 mm weight: 64 g/m² – 105 g/m²
ADF – 20 sheets |
|---|
Speed Details | Printing: up to 15 ipm – B/W
Printing: up to 10 ipm – colour
Printing: 37 sec (10 x 15 cm (4″x6″)) – photo |
|---|
Connections
Power
Voltage Required | AC 120/230 V (50/60Hz) |
|---|
Power Consumption Operational | 13 watt |
|---|
Power Consumption Standby | 1 watt |
|---|
Dimensions & Weight
Width | 43.8 cm |
|---|
Depth | 35 cm |
|---|
Height | 19 cm |
|---|
Weight | 7.9 kg |
|---|
Environmental Parameters
Sound Emission | 46.5 dBA (operating) |
|---|
Min Operating Temperature | 5 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 10 – 90% RH (non-condensing) |
|---|
