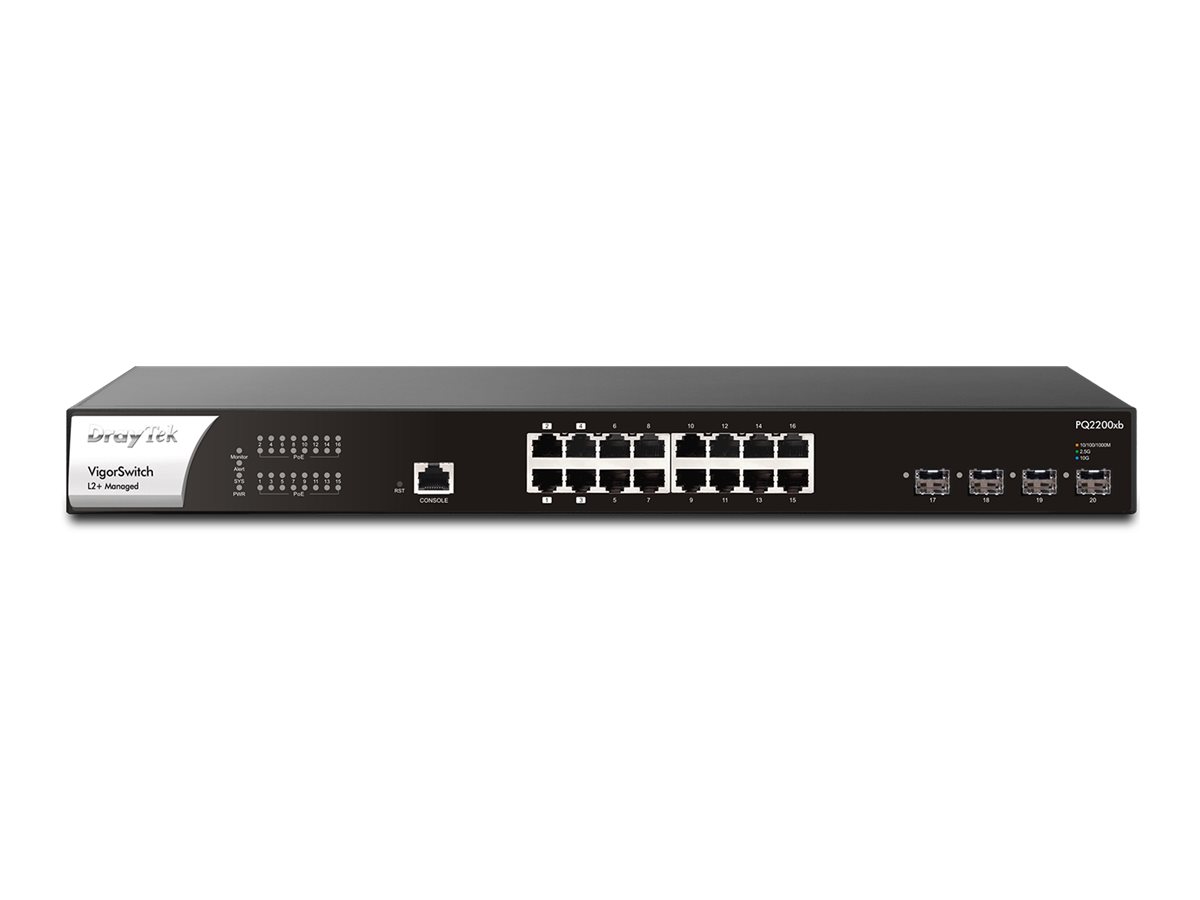

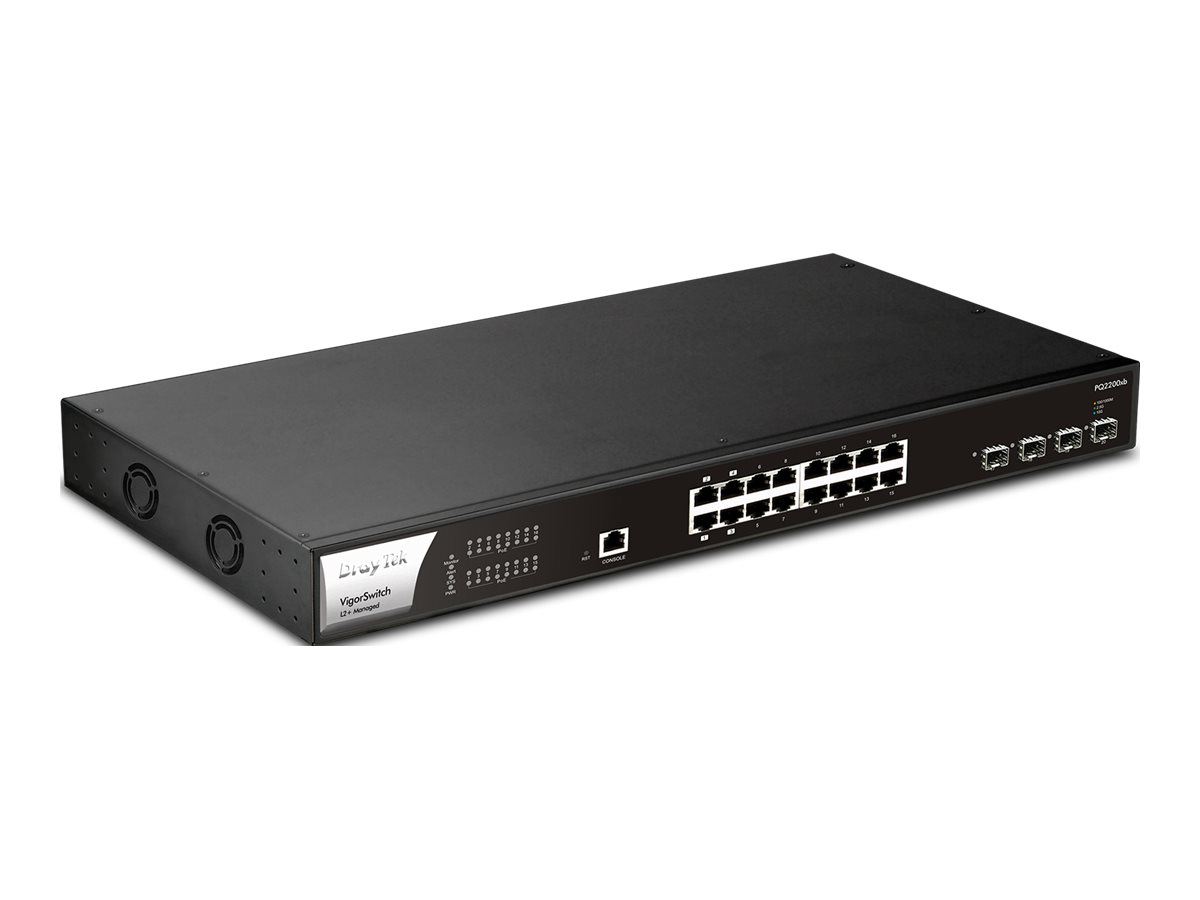

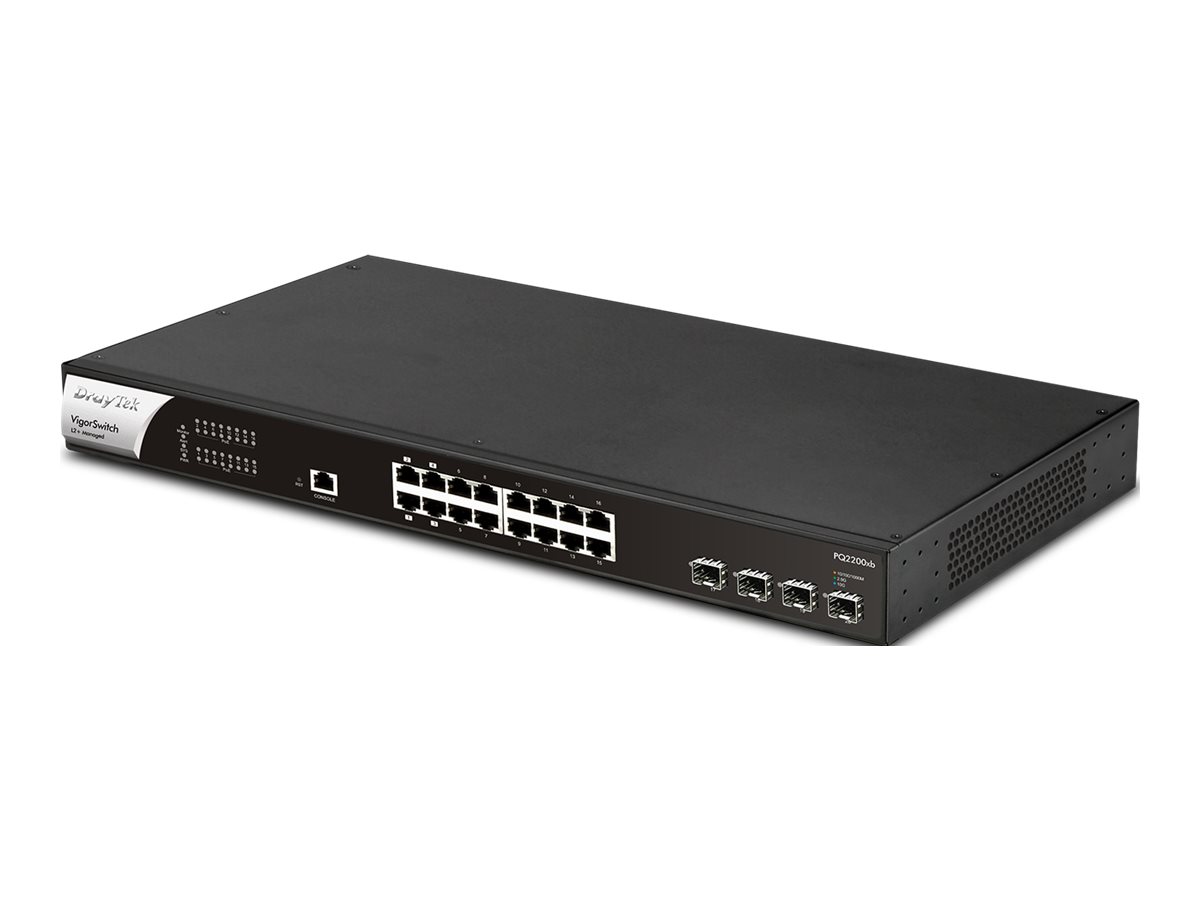

Draytek VigorSwitch PQ2200xb, Switch, L2+, smart, 16 x 100/1000/2.5G (PoE++) + 4 x SFP+, desktop, rack-mountable, PoE++ (400 W)
$1,399.42 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
VigorSwitch PQ2200xb features 4 PoE++ ports providing up to 90 W per port and 12 PoE+ ports. With a total 400 W output, it is ideal for more IoT applications integration, including LED lighting, POS (point of sale) computer, motion sensors, IP cam, etc.
Supporting DHCP server and VLAN routing, VigorSwitch PQ2200xb improves network efficiency and helps your LAN network to work continuously even when the gateway is offline.
- PoE++ capability
- Wire-speed VLAN routing
- Auto surveillance and voice VLAN
- IP conflict prevention
- QoS (Quality of Service)
- ONVIF-friendly
- PoE++ capability
Deliver up to 90 W over one Ethernet cable. Turn on/off the PoE device periodically with PoE schedule. - Wire-speed VLAN routing
Improve overall network performance by using VigorSwitch PQ2200xb to route the inter-VLAN traffic directly and offload the router. - Auto surveillance and voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. - IP conflict prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. - QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. - ONVIF-friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.
Main Specifications
Product Description | Draytek VigorSwitch PQ2200xb – switch – 20 ports – smart – rack-mountable |
Device Type | Switch – 20 ports – L2+ – smart |
Enclosure Type | Rack-mountable 1U |
Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
Ports | 16 x 100/1000/2.5G (PoE++) + 4 x SFP+ |
Power Over Ethernet (PoE) | PoE++ |
PoE Budget | 400 W |
Performance | Packet buffer size: 12 Mbit Switching capacity: 160 Gbps Forwarding rate (64-byte packets): 119.04 Mbps |
Capacity | Virtual interfaces (VLANs): 256 Multicast groups: 256 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 10KB |
Routing Protocol | IGMPv2, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
Features | IGMP snooping, E-mail alert, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, LLDP support, MVR, GVRP, SPQ, Multicast filtering function, CoS, tagged VLAN, ONVIF support, 802.1x authentication, DSCP support, Protocol-based VLANs support, Storm Control, IP source guard, Link Aggregation, dual image support, rate limit, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, DoS protection, WRR, MAC based VLAN, OpenVPN client, loop protection, LLDP-MED, schedule on/off, bridged/routed VLAN, static route, MAC address-based authentication, IP conflict detection & prevention, Surveillance VLAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt |
Power | AC 100-240 V |
Dimensions (WxDxH) | 44 cm x 28.1 cm x 4.4 cm |
Weight | 4.3 kg |
Extended Specifications
General
Device Type | Switch – 20 ports – L2+ – smart |
|---|---|
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
Ports | 16 x 100/1000/2.5G (PoE++) + 4 x SFP+ |
Power Over Ethernet (PoE) | PoE++ |
PoE Budget | 400 W |
Performance | Packet buffer size: 12 Mbit Switching capacity: 160 Gbps Forwarding rate (64-byte packets): 119.04 Mbps |
Capacity | Virtual interfaces (VLANs): 256 Multicast groups: 256 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 10KB |
Routing Protocol | IGMPv2, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
Authentication Method | RADIUS, TACACS+ |
Features | IGMP snooping, E-mail alert, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, LLDP support, MVR, GVRP, SPQ, Multicast filtering function, CoS, tagged VLAN, ONVIF support, 802.1x authentication, DSCP support, Protocol-based VLANs support, Storm Control, IP source guard, Link Aggregation, dual image support, rate limit, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, DoS protection, WRR, MAC based VLAN, OpenVPN client, loop protection, LLDP-MED, schedule on/off, bridged/routed VLAN, static route, MAC address-based authentication, IP conflict detection & prevention, Surveillance VLAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt |
Expansion / Connectivity
Interfaces | 4 x 100/1000/2.5G (PoE++) RJ-45 90 W 12 x 1/2.5G (PoE+) RJ-45 30 W 4 x 10GBase-X SFP+ |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-240 V |
Software / System Requirements
Software Included | VigorRouter Management (SWM), VigorConnect Management, VigorACS Management |
|---|
Dimensions & Weight
Width | 44 cm |
|---|---|
Depth | 28.1 cm |
Height | 4.4 cm |
Weight | 4.3 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
